Passive control of fluid-structure instabilities by means of piezo-shunts Marco CARINI, Jean-Lou PFISTER & Olivier MARQUET AEROFLEX project 16th European Turbulence Conference - KTH Stockholm Piezo-electricity : a wide range of applications


slide-1
SLIDE 1

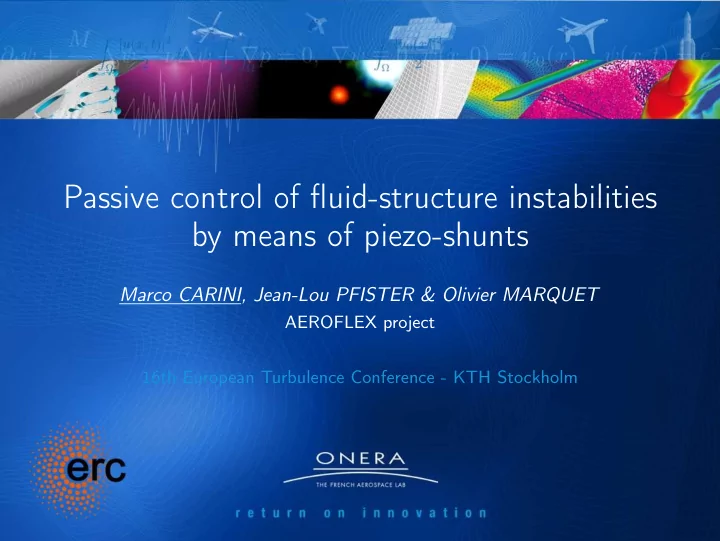

Passive control of fluid-structure instabilities by means of piezo-shunts

Marco CARINI, Jean-Lou PFISTER & Olivier MARQUET

AEROFLEX project 16th European Turbulence Conference - KTH Stockholm

slide-2
SLIDE 2

Piezo-electricity : a wide range of applications

Piezo-electricity : Electric response of certain mate- rials to a mechanical stress due to their microscopic structure Sensing & Actuation from everyday life . . . . . . to the Aerospace Research Focus on : using piezos to control fluid-structure global instabilities

ETC16 - Carini, Pfister & Marquet 2 / 18 23rd August 2017

slide-3
SLIDE 3

2D Model problem

Fluid region Solid region Rigid cylinder + elastic plate + piezo patches. Incompressible flow at Re = U∞D/ν = 80. Solid-to-fluid density ratio ρ = 50 and plate bending stiffness K = 0.3. Electromechanical coupling coefficient ke = 0.57009.

ETC16 - Carini, Pfister & Marquet 3 / 18 23rd August 2017

slide-4
SLIDE 4

Modelling framework

Incompressible Navier-Stokes equations on the deforming domain : ∂u ∂t + ∇· ( u ⊗ u + pI − 1 Re ( ∇ u + ∇ uT )) = 0, ∇· u = 0, Linear isotropic elastic material under small deformations : ρ∂2ξs ∂t2 − ∇· σs(ξs) = 0, Piezo-patch modelling : ρ∂2ξs ∂t2 − ∇· σs(ξs, Ve) = 0, ∇· d(Ve, ξs) = 0. Arbitrary Lagrangian Eulerian (ALE) formulation. Monolithic approach using FEM discretisation.

ETC16 - Carini, Pfister & Marquet 4 / 18 23rd August 2017

slide-5
SLIDE 5

Electro-mechanical coupling

Discretized piezo-structure eqs. M d2ξs dt2 + Kξs − Kp ∆Ve = 0, KT

p ξs + Cp ∆Ve = Qe,

Cp is the equivalent piezo-patches capacitance. Kp is the electromechanical coupling matrix bewteen σxx

s

and the transverse electric field ey. Parallel connection ∆V t

e = ∆V b e = ∆Ve.

Opposite poling y-direction ⇒ only bending modes are affected : KT

p ξs = 0,

for pure traction/compression

ETC16 - Carini, Pfister & Marquet 5 / 18 23rd August 2017

slide-6
SLIDE 6

Connecting a R-shunt circuit

1st order electr. dynamics dQe dt + 1 τe Qe = 0, where τe = ReCp is the characteristic electric time. Short-circuit ⇒ No electro-mechanical coupling ⇒ pure fluid-structure behaviour. Open-circuit ⇒ Maximal electro-mechanical coupling.

ETC16 - Carini, Pfister & Marquet 6 / 18 23rd August 2017

slide-7
SLIDE 7

Fluid-Structure-Electric System

Bf ∂qf ∂t − Rf(qf, qs) = 0, on Ωr

f

Fluid Eqs. Bs ∂qs ∂t − Rs(qs, qs) = 0,

  • n Ωr

s

Solid Eqs. Bp dqe dt − Rp(qe, qs) = 0,

  • Electr. Eqs.

where qf = (u p ) , qs = ( ξs ∂ξs/∂t ) , qe = (Qe Ve ) . and in compact abstract from : B ∂q ∂t = R(q). where q = {qf, qs, qe}T .

ETC16 - Carini, Pfister & Marquet 7 / 18 23rd August 2017

slide-8
SLIDE 8

Global stability analysis

Nonlinear fixed equilibrium solution qB : R(qB) = 0. Linearized perturbations around qB : q(x, t) = qB(x) + ϵˆ q(x)eλt, with ϵ ≪ 1. Generalised Eigenvalue problem : λBˆ q = Aˆ q, where : A = ∂R(q) ∂q

  • qB

=     Aff Ifs Ifs Ass Asp Aps App     .

ETC16 - Carini, Pfister & Marquet 8 / 18 23rd August 2017

slide-9
SLIDE 9

Global stability results

  • 0.2
  • 0.1

0.1 0.3 0.6 0.9 1.2

σ ω

Base flow Global spectrum for Short and Open circuit case. Investigate the mode transition :

▶ based on the added electrical

stiffness effect.

▶ by varying τe. ETC16 - Carini, Pfister & Marquet 9 / 18 23rd August 2017

slide-10
SLIDE 10

Leading fluid-structure-electric modes

Short-circuit Open-circuit

When using the same normalization, the maximum y-displacement is increased by 3

  • rders of magnitude in the open-circuit case.

ETC16 - Carini, Pfister & Marquet 10 / 18 23rd August 2017

slide-11
SLIDE 11

Structure mode kinematic analysis

Projection of qs on the structure free-vibration modes ω1 = 0.84 ω2 = 5.25 ω3 = 14.59 Projection coefficient amplitude Mode 1 Mode 2 Mode 3 Mode 4 Short-circuit mode 1.00 2.89 × 10−3 1.99 × 10−4 5.29 × 10−5 Open-circuit mode 0.99 1.53 × 10−1 2.61 × 10−2 1.14 × 10−2

ETC16 - Carini, Pfister & Marquet 11 / 18 23rd August 2017

slide-12
SLIDE 12

Structure mode kinematic analysis (continued)

Projection of qs on the piezo-structure free-vibration modes ω1 = 1.33 ω2 = 7.64 ω3 = 17.66 Projection coefficient amplitude Mode 1 Mode 2 Mode 3 Mode 4 Open-circuit mode 1.00 1.70 × 10−3 4.42 × 10−4 3.39 × 10−5

ETC16 - Carini, Pfister & Marquet 12 / 18 23rd August 2017

slide-13
SLIDE 13

Structure mode dynamic analysis

For the free-vibrating piezo-elastic plate in open-circuit we have : −ω2M ˆ ξs + (K + KpC−1

p KT p )ˆ

ξs = 0 By projection onto the base of free-vibrating modes of the elastic plate only, Xs, we

  • btain

ω2ˆ ζ =      ω2

0,1

ω2

0,2

... ω2

0,n

     ˆ ζ + ∆Ωpˆ ζ, with ∆Ωp = XH

s KpC−1 p KT p Xs

Truncation at the first 6 modes yields ω1 = 1.4 (compared to ω1,exact = 1.33) and abs(ˆ ζ1) = ( 0.9834, 0.1782, 0.0312, 0.0134, 3.33 × 10−10, 0.0050 ) ⇒ the first free-vibrating piezo mode essentially results from the combination of the first two free vibration modes of the elastic plate.

ETC16 - Carini, Pfister & Marquet 13 / 18 23rd August 2017

slide-14
SLIDE 14

Varying the electrical resistance

Leading eigenvalue

  • 6
  • 4
  • 2

1 2 3

  • 0.06
  • 0.03

0.03 0.06

log10 τe σ

  • 6
  • 4
  • 2

1 2 3 0.7 0.8 0.9 1 1.1

log10 τe ω

ETC16 - Carini, Pfister & Marquet 14 / 18 23rd August 2017

slide-15
SLIDE 15

Varying the electrical resistance (continued)

Increasing τe

  • 0.2
  • 0.15
  • 0.1
  • 0.05

0.05 0.6 0.8 1 1.2 σ ω

ETC16 - Carini, Pfister & Marquet 15 / 18 23rd August 2017

slide-16
SLIDE 16

System energy analysis

Leading mode

  • 6
  • 4
  • 2

1 2 3 0.4 0.8 1.2

log10 τe Es%

  • 6
  • 4
  • 2

1 2 3 4 8 12 ×10-4

log10 τe Pe%

The white area denotes the stabilization range. The red dashed line corresponds to the maximal damping of the leading mode.

ETC16 - Carini, Pfister & Marquet 16 / 18 23rd August 2017

slide-17
SLIDE 17

Conclusions

Structure-added electrical stiffness effect as expected. Fluid-structure mode (mainly driven by the unstable fluid dynamics) controlled by exploiting the piezo electro-mechanical coupling. Open/close circuit mode selection explained by continuosly varying Re :

▶ the original fluid-structure mode is increasingly damped as Re is increased. ▶ for large enough values of Re a second mode is destabilized (water-bed

effect).

▶ effective stabilization by passive control within a finite range of Re values.

Ongoing developments Varying elastic parameters to address other types of fluid-structure modes. Introducing a second-order electric dynamics. Active feedback control.

ETC16 - Carini, Pfister & Marquet 17 / 18 23rd August 2017

slide-18
SLIDE 18

Thanks for your attention.

(Any Question ?)
