Particle Size Analyses of Polydisperse Liposome Formulations with Multispectral Nanoparticle Tracking Analysis Pushpendra Singh October 16, 2019 The views expressed are those of the authors and should not be construed to represent the positions

slide-1
SLIDE 1

The views expressed are those of the authors and should not be construed to represent the positions of the U.S. Army or the DoD.

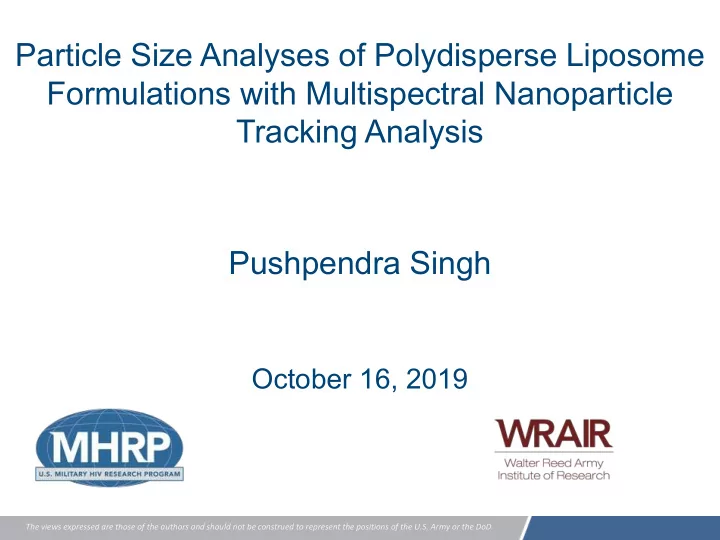

Particle Size Analyses of Polydisperse Liposome Formulations with Multispectral Nanoparticle Tracking Analysis Pushpendra Singh

October 16, 2019

slide-2
SLIDE 2

2

Outline

  • Liposomes and their application in medicine
  • Liposome manufacturing process
  • Significance of particle size distribution for liposomes
  • Challenges in particle size characterization
slide-3
SLIDE 3

3 Sercombe et al., Front. Pharmacol. 2015, 6: 286

  • Heavily being used in pharmaceutical industry as drug delivery system and vaccine

Liposomes in Medicine

slide-4
SLIDE 4

Liposomes in Medicine

4

  • Specialized

delivery vehicles that mimic biological membranes

  • Shield a drug from degradation and increase its lifespan in

circulation

  • Possess the ability of encapsulation of hydrophilic drug as

well as capability of solubilizing lipophilic drug Modulate pharmacokinetics and biodistribution of drug to minimize side effects

slide-5
SLIDE 5

http://www.horiba.com

Liposome

slide-6
SLIDE 6
  • Drying of Lipids
  • Lipid Hydration
  • Downsizing of Lipid Vesicles

Liposome Manufacturing Process

slide-7
SLIDE 7

7 Sharma and Verma , Int. J. Green Pharm. 2017, 6: 286 Lipids in organic solvent Rotary Evaporator Aqueous Solution Dried Lipid Film Agitation MLVs LUVs/SUVs

Liposome Manufacturing Process

slide-8
SLIDE 8

8 Sharma and Verma , Int. J. Green Pharm. 2017, 6: 286 Lipids in organic solvent Rotary Evaporator Aqueous Solution Dried Lipid Film Agitation MLVs LUVs/SUVs

Liposome Manufacturing Process

slide-9
SLIDE 9

9 Sharma and Verma , Int. J. Green Pharm. 2017, 6: 286 Lipids in organic solvent Rotary Evaporator Aqueous Solution Dried Lipid Film Agitation MLVs LUVs/SUVs

Liposome Manufacturing Process

slide-10
SLIDE 10

10 Sharma and Verma , Int. J. Green Pharm. 2017, 6: 286 Lipids in organic solvent Rotary Evaporator Aqueous Solution Dried Lipid Film Agitation MLVs LUVs/SUVs

Liposome Manufacturing Process

slide-11
SLIDE 11

11 Sharma and Verma , Int. J. Green Pharm. 2017, 6: 286 Lipids in organic solvent Rotary Evaporator Aqueous Solution Dried Lipid Film Agitation MLVs LUVs/SUVs Downsizing

Liposome Manufacturing Process

slide-12
SLIDE 12

12 Sharma and Verma , Int. J. Green Pharm. 2017, 6: 286 Lipids in organic solvent Rotary Evaporator Aqueous Solution Dried Lipid Film Agitation MLVs LUVs/SUVs Downsizing Filtration

Liposome Manufacturing Process

slide-13
SLIDE 13
  • Sonication
  • Extrusion
  • Microfluidization

Downsizing Methods

slide-14
SLIDE 14

Microfluidization

http://www.horiba.com

slide-15
SLIDE 15

Hydrated multilamellar vesicles Small size liposomes

Liposome Size Distribution

http://www.horiba.com

slide-16
SLIDE 16

Liposomes in Vaccines

16

  • Adjuvant: Enhance and direct the adaptative

immune response to vaccine antigens

  • Our lab created Army Liposome Formulation (ALF)

that contains various immunostimulants (e.g., Lipid A, QS21 and Aluminum salt)

slide-17
SLIDE 17

Adapted from Pasquale et al., Vaccine 2015, 3: 320-343

Development of vaccine design

17

Live Pathogen Attenuated Pathogen Recombinant Immunogen

slide-18
SLIDE 18

Licensed Vaccines

2017

Shingrix

18 Adapted from Pasquale et al., Vaccine 2015, 3: 320-343

slide-19
SLIDE 19

Experimental vaccine:

  • Malaria
  • Ricin
  • Ebola
  • Anthrax
  • HIV
  • Dengue
  • Cancer

Human Studies Vaccines: 14 Phase I & 2 Phase II

  • Malaria
  • HIV
  • Cancer
  • Meningococcus

ALF in Vaccines

slide-20
SLIDE 20
  • Dimyristoyl phosphatidylcholine (DMPC)
  • Dimyristoyl phosphatidylglycerol (DMPG)
  • Cholesterol
  • Monophosphoryl lipid A (MPLA)

Core composition of ALF

slide-21
SLIDE 21

ALF: Liposomes with MPLA ALFQ: ALF + QS21 ALFA: ALF + aluminum salt ALFQA: ALFQ + aluminum salt

Types of ALF

slide-22
SLIDE 22

Rationale

To establish a stand-alone method for particle size characterization

  • f

polydisperse liposomal adjuvants

slide-23
SLIDE 23

Why care about particle size?

slide-24
SLIDE 24

Why care about particle size?

Moyer et al., J Clin. Invest. 2016,126: 799-808

Biodistribution and Kinetics

slide-25
SLIDE 25

Moyer et al., J Clin. Invest. 2016,126: 799-808

Biodistribution and Kinetics

Why care about particle size?

slide-26
SLIDE 26

Moyer et al., J Clin. Invest. 2016,126: 799-808

Processivity Biodistribution and Kinetics

Why care about particle size?

slide-27
SLIDE 27

ALF: size vs. immune response

Endpoint Titer

Beck et al., J. Control Release 2018, 275: 12-19

Monodisperse Polydisperse

slide-28
SLIDE 28

Challenges of particle sizing methods

Dynamic Light Scattering (DLS) Laser Diffraction (LD) Nanoparticle Tracking Analysis (NTA)

Autocorrelation of scattered intensities to deduce average particle size

  • Range 30 -10000 nm
  • does not work on polydisperse sample

Narrow and wide angle scattering to deduce average particle size

  • Range 10 nm - 5 mm
  • does not work on polydisperse sample

Tracking of each particle undergoing Brownian (random) motion to determine particle size

  • Small size range 30 - 1000 nm
  • works on polydisperse sample
slide-29
SLIDE 29

ViewSizer

slide-30
SLIDE 30

Manzo and Garcia-Parajo Rep. Prog. Phys. 2015, 78: 124601 Ernst and Kohler Phys. Chem. Chem. Phys., 2013,15: 845-849

How does it work?

slide-31
SLIDE 31

Particle size distribution by ViewSizer

slide-32
SLIDE 32

Alone Mix

Singh et al., Int. J. Pharm. 2019, 566: 680-686

Size analysis of standards

DLS LD NTA MANTA

PSL beads ….. 70 nm

  • ---- 200 nm

.-.-. 600 nm 1300 nm

slide-33
SLIDE 33

Alone Mix

PSL beads ….. 70 nm

  • ---- 200 nm

.-.-. 600 nm 1300 nm

DLS LD NTA MANTA

Size analysis of standards

Singh et al., Int. J. Pharm. 2019, 566: 680-686

slide-34
SLIDE 34

Alone Mix

PSL beads ….. 70 nm

  • ---- 200 nm

.-.-. 600 nm 1300 nm

DLS LD NTA MANTA

Size analysis of standards

Singh et al., Int. J. Pharm. 2019, 566: 680-686

slide-35
SLIDE 35

Alone Mix

PSL beads ….. 70 nm

  • ---- 200 nm

.-.-. 600 nm 1300 nm

DLS LD NTA MANTA

Size analysis of standards

Singh et al., Int. J. Pharm. 2019, 566: 680-686

slide-36
SLIDE 36

Liposomes

  • Lwet:

Uniform (monodisperse) small sized liposomes manufactured by microfluidization

  • Llyo: Heterogenous (polydisperse) sized

liposomes nano to micron size

36

slide-37
SLIDE 37

Particle size distribution by ViewSizer

slide-38
SLIDE 38

Linear range of sensitivity

LYO

slide-39
SLIDE 39

Snapshots

Lwet Monodisperse Llyo Polydisperse

slide-40
SLIDE 40

Liposome size distribution in Lwet

slide-41
SLIDE 41

Liposome size distribution in Llyo

slide-42
SLIDE 42

DLS LD NTA MANTA

  • ----- Lwet

 Llyo

Size analysis of liposomes

Singh et al., Int. J. Pharm. 2019, 566: 680-686

slide-43
SLIDE 43

DLS LD NTA MANTA

  • ----- Lwet

 Llyo

Singh et al., Int. J. Pharm. 2019, 566: 680-686

Size analysis of liposomes

slide-44
SLIDE 44

Summary

  • Multispectral

Nanoparticle Tracking Analysis can measure particle size 50 - 2000 nm in polydisperse liposomes

  • Lyophilized liposome formulation contain

>90% particles in the range of 500 - 1500 nm

slide-45
SLIDE 45

Acknowledgements

LAAR Gary Matyas Zoltan Beck WRAIR Nelson Michael Robert Gramzinski LTC(P) Julie Ake HJF Sandhya Vasan Merlin Robb HORIBA Jeffrey Bodycomb

Kuba Tatarkiewicz

ANATOM Bill Travers Sean Travers

slide-46
SLIDE 46

Publication

Singh, P., Matyas, G.R., Beck, Z. (2019) Particle Size Analyses

  • f

Polydisperse Liposome Formulations with a Novel Advanced Nanoparticle Tracking Technology.

  • Int. J. Pharm. 566: 680-686.

doi: 10.1016/j.ijpharm.2019.06.013.
