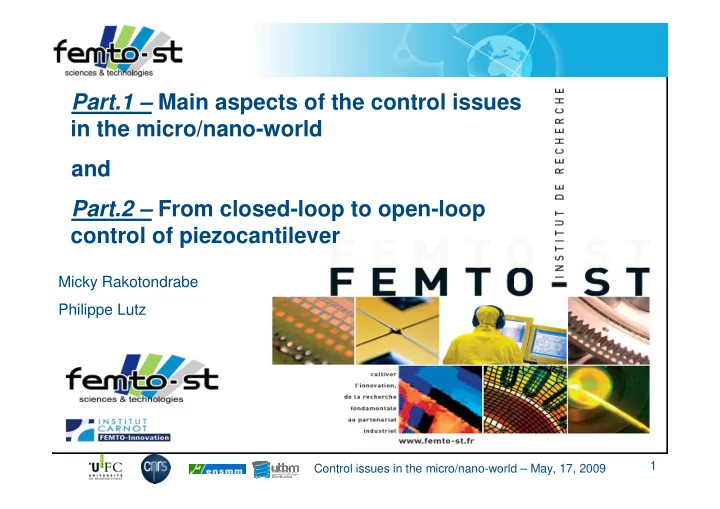

Part.1 Main aspects of the control issues in the micro/nano-world - - PowerPoint PPT Presentation
Part.1 Main aspects of the control issues in the micro/nano-world and Part.2 From closed-loop to open-loop control of piezocantilever Micky Rakotondrabe Philippe Lutz vnement - date 1 Control issues in the micro/nano-world
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 1
Part.1 – Main aspects of the control issues in the micro/nano-world and Part.2 – From closed-loop to open-loop control of piezocantilever
Micky Rakotondrabe Philippe Lutz
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 2
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 3
The roots of our activity comes from Watchmakers industry in Besançon area & Automotive industry in Belfort area.
ENGINEERING SCIENCES
TECHNOLOGY facility
to industrial partnership
. 500 staff people . 28 M annual overall budget including 10 M operational budget . About 250 running research contracts
Besançon Belfort
6 research departments 6 main application fields 1 microfabrication center
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 4
13 % 13 % 13 % 15 % 15 % 15 % 15 % 24 % 24 % 24 % 24 % 19 % 19 % 19 % 19 % 9 % 9 % 9 % 9 % 20 % 20 % 20 % 20 %
!"#!"$%#&'$" % $"($(" )*'% $" &#"'+)'"#&,"$# ("&'"# *%% +%$, $*#% $#"% #(%$# $"#%)!-# $"$* '&".(*'$"# #+* "+*'$"# #+*)'#) + "+*%*%$')%+ )#!"#$$#)') !*%% ($#'$#$"# "#"#,#$% "#'$"#% "#'!( $#)'"#%%', * '$))%+$/$*+() "#)#%$"('$$# #%% "###(%$% ( $!*% "#%*%$'% "#0#'$" % )%("&% #$#%)$ #''($#% ##!$% !$# $"#% # "#!$% 1#!#$#%
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 5
Automated Systems for Micromanipulation and Microassembly
– Create microrobots and microrobotic cells for flexible micromanipulation and microassembly
Because of the growing number of microproducts to assemble, efficient and reliable micromanipulation systems are required Micro-assembly
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 6
Automated Systems for Micromanipulation and Microassembly
– Control complex microsystems
MEMS = specific paradigms for control science
Microgripper from Femto-tools (FT G100) Nanotweezer from LIMMS
1 mm
Événement - date
Control issues in the micro/nano-world – May, 17, 2009
Automated Systems for Micromanipulation and Microassembly Robotic cells
Microhandling Microassembly Vision Micromanipulators Actuators
Control
Adressed issues
Grippers, DEP, phase, functionalisation, pH, …
Événement - date
Control issues in the micro/nano-world – May, 17, 2009
Automated Systems for Micromanipulation and Microassembly Modelling and control of:
management Control by exteroceptive sensors: visual servoing Main addressed scientific issues on control in the SAMMI group/ FEMTO-ST
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 9
Some characteristics of the « microworld »
1 mm 100 µm 10 µm 1 µm 1µm 10µm 100µm 1mm Optical microscopy Electronic scanning Microfabrication manufacturing Surface effects are predominant 200 µm
bacterium 2-6 µm pollen 20-40 µm lymphocyte 6-15 µm prothèse auditive 1 mm engrenage 800 µm carbon nanotube Diameter: 100 nm coil 130 µm
30 µ m 10 µ m
Lens with its support 500 µm mirror spectrometer
Assembled systems
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 10
Main consequences for micromanipulation
Macro Macro-
manipulation Micro Micro-
manipulation
Scale effect Component Ni 100x120x150 µm3 Advanced Microsystems Laboratory Minnesota University, Minneapolis, USA
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 11
Main consequences for micromanipulation and microrobot design
To avoid adhesion …
hydrophobic coating of the manipulator tips
(oxyde=dielectric)
acceleration)
A smaller and smaller object means less and less fingers to manipulate it! A smaller and smaller object means the use of strategies (dynamic)!
σ σ σ σs (Epoxy-Cu)=0.04 mC.m-2 , σ σ σ σs (Glass-Au)=4.2 mC.m-2
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 12
A light and compact mechanism is intrinsically more precise than a large and heavy mechanism
a « 400 km » arm with an accuracy of 4 cm …
C corresponds to L=480 nm for a 40 mm steel beam
Friction is the mortal enemy of the resolution (and then precision)
Deforming mechanisms, bearings without contacts
ρ E α m k α f
15 silicon silicon 9 kevlar kevlar 2,62 aluminium aluminium 2,66 steel steel E/ρ ρ ρ ρ.107 m2/s2 material material
Sensor as near as possible to the end-effectors, use of microscopic vision systems
Main consequences for micromanipulation and microrobot design
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 13
Main consequences for control
input controller system Measurement/sensors Output Noisy signals:
unfavourable High environment sensibility Non linear, variant and stochastics models
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 14
Today Approched Control Issues
Part.1 - Main aspects of the control issues in the micro/nanoworld, piezoelectric bender control Part.2 - From closed-loop to open loop control of piezocantilevers Micky RAKOTONDRABE and Philippe LUTZ, from FEMTO-ST (Besançon, France) Force control for nanohandling inside Scanning Electron Microscopes Daniel JASPER, from AMiR (Oldenburg, Germany) Controlled Optical Trapping of Nanoparticles Jason J. GORMAN, Thomas W. LEBRUN and Arvind BALIJEPALLI, from MEL (Gaithersburg, USA) Precision-Driven Hybrid Control for 3D Microassembly Dan O. POPA and Aditya N. DAS, from ARRI (Fort Worth, USA) Towards the mechanical and control-oriented optimization of micromechatronic systems for robust control Mathieu GROSSARD, Nicolas CHAILLET, Mehdi BOUKALLEL, Arnaud HUBERT and Christine ROTINAT-LIBERSA, from FEMTO-ST (Besançon, France) and CEA (Paris, France) Robust Vision-Guided Multi-probe Microassembly John WASON and John WEN, from CATS (Troy, USA) Fast and Precise Micropipette Positioning System based on Continuous Camera-Robot Recalibration and VisualServoing Leonardo S. MATTOS and Darwin G. CALDWELL, from ARD (Genova, Italia) Control of an Active Handheld Instrument for Microsurgery and Micromanipulation Robert A. MACLACHLAN, Brian C. BECKER and Cameron N. RIVIERE from RI (Pittsburgh, USA)
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 15
1 - Characteristics of piezoelectric cantilevers: hysteresis creep badly damped vibration sensitivity to thermal variation 2 - Closed-loop robust control 3 - Open-loop control
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 16
1 - Characteristics
Piezoelectric cantilever Piezoelectric cantilever Small object piezogripper
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 17
[Haddab, PhD00]
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 18
+
Passive layer Electrodes 15 mm 0,3 mm 2 m m Unimorph piezocantilever
+
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 19
[Haddab, Phd00] [Rakotondrabe et al, AIM06] [Rakotondrabe et al, IROS07a] [Rakotondrabe et al, CASE07] [Rakotondrabe et al, ICRA09] [Ivan et al, RSI09]
Manipulation force:
Deflection modeling and control.
δ
+
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 20
+
U δ
Dynamic hysteresis
(dynamic hysteresis)
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 21
U
+
δ
dynamic hysteresis static hysteresis linear dynamic
[Low and Guo, JMEMS95] [Croft et al, ASME-JDSMC01] [Rakotondrabe et al, T-CST09]
(separation principle)
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 22
+
δ
and accuracy(time conditioned)
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 23
+
δ
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 24
+
δ
T [° C] deflection [µm] U=0V U=15V U=30V
is highly sensitive to thermal variation
[Rakotondrabe et al, IROS07b]
90%deflection of maximal range use
1 - Characteristics
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 25
1 - Characteristics of piezoelectric cantilevers: hysteresis creep badly damped vibration sensitivity to thermal variation 2 - Closed-loop robust control 3 - Open-loop control
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 26
2 – Robust control
Max
α
min
α
Quadrilateral approximation
+ +
U
s
b δ
D p α
+ +
∆ Wα
+ ++ +
U
s
b δ
D p α
+ ++ +
∆ Wα
[Rakotondrabe et al, T-CST09]
0.U
δ α =
+ +
U
s
b δ
D p α
ε
c
δ ( ) K p
+ +
∆ Wα
+ ++ +
U
s
b δ
D p α
ε
c
δ ( ) K p
+ ++ +
∆ Wα
W2 W1
Fails with large hysteresis
uncertain
.
creep Temperature
s F δ δ δ + + + +
disturbance
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 27
2 – Robust control
δ
( )
U Γ ( ) D p
piezocantilever
( )
1 . −
Γ
s
δ U
Linearized system
+ +
U
s
b δ
ε
c
δ ( ) K p ( )
U Γ ( ) D p
Poutre piézo
( )
1 . −
Γ
+ ++ +
U
s
b δ
ε
c
δ ( ) K p ( )
U Γ ( ) D p
Poutre piézo
( )
U Γ ( ) D p
Poutre piézo
( )
1 . −
Γ
[Rakotondrabe et al, IFAC-WC08]
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 28
2 – Robust control
expensive large sizes (not convenient for packaged systems)
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 29
2 – Robust control
very noisy fragile
[Haddab et al, IFAC-Mech09]
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 30
1 - Characteristics of piezoelectric cantilevers: hysteresis creep badly damped vibration sensitivity to thermal variation 2 - Closed-loop robust control 3 - Open-loop control
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 31
3 – Feedforward control
Piezocantilever Compensator
reference
U
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 32
3 – Feedforward control
+
δ
U
Quadrilateral model Bouc-Wen model Preisach model Prandtl-Ishlinskii (PI) model
[Rakotondrabe et al, T-CST09] [Low and Guo, JMEMS95] [Croft et al, ASME-JDSMC01] [Kuhnen and Janocha, CIS01] [Mokaberi and Requicha, T-ASE08] [Rakotondrabe et al, IROS08]
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 33
3 – Feedforward control
[Kranosel’skii and Pokrovskii, Springer89]
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 34
3 – Feedforward control
( )
1 1 1 1 1 1 2 2
' ; 1 1 ' ' ; 2
k k j k j j k k k k j j j j
r w r r k n w w w w k n w w w w
= − = =
= ⋅ − = = − = = + ⋅ +
∑ ∑ ∑
⋯ ⋯
[Kranosel’skii and Pokrovskii, Springer89]
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 35
3 – Feedforward control
Compensated hysteresis Creep phenomenon Linear but creep phenomenon
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 36
3 – Feedforward control
Hysteresis compensator
+
δ
U
c
δ
[Rakotondrabe et al, T-CST09] c
δ K
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 37
3 – Feedforward control
Hysteresis compensator
+
δ
U
c
δ
Creep compensator
v
δ
c
δ K
in the compensator
1 K ( ) C p
v
δ
[Rakotondrabe et al, T-ASE09]
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 38
3 – Feedforward control
Hysteresis compensator
+
δ
U
c
δ
Creep compensator
v
δ
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 39
3 – Feedforward control
Dyncamic model inversion Input shaping techniques
[Croft et al, ASME-JDSMC01] [Singer et al, Patent90]
[Singer and Seering, ASME-JDSMC90] [Singhose et al, AIAA-JGCD96] [Popa et al, ICRA03] [Paris et al, IWMF08] [Rakotondrabe et al, IROS08]
Vibr. compensator
r
δ
Hysteresis compensator
+
δ
U
c
δ
Creep compensator
v
δ
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 40
3 – Feedforward control
( )
( )
( )
2 2
( ) sin 1 1
i n
t t n i i n i
t K A e t t
ξ ω
ω δ ω ξ ξ
− − ⋅ ⋅
= ⋅ ⋅ ⋅ ⋅ ⋅ − ⋅ − −
[Singer et al, Patent90]
Vibr. compensator
r
δ
Hysteresis compensator
+
δ
U
c
δ
Creep compensator
v
δ
1
1
m i i i
A A
=
= >
∑
(positivity of the amplitudes)
1
( )
m i i
t δ
=
=
(suppression of the vibrations)
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 41
3 – Feedforward control
[Rakotondrabe et al, T-ASE09]
Linear, without creep and well damped
Événement - date
Control issues in the micro/nano-world – May, 17, 2009 42
References
