SLIDE 1

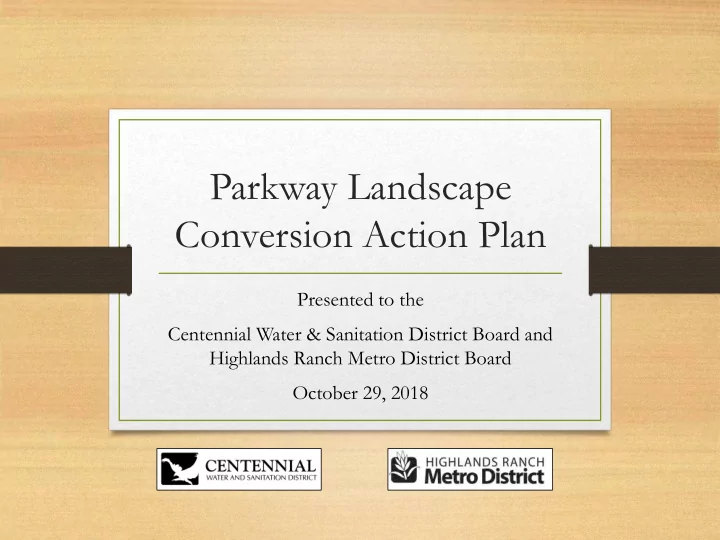

Parkway Landscape Conversion Action Plan

Presented to the Centennial Water & Sanitation District Board and Highlands Ranch Metro District Board October 29, 2018

slide-2
SLIDE 2

Background Information

  • Parkway Action Plan 2015
  • Challenging landscape to maintain
  • Rising maintenance costs
  • Commitment from both organizations to conserve

resources and water

  • Meet PBB results by conserving natural resources

while providing attractive parkways

2

slide-3
SLIDE 3

Approach to Planning

  • Jointly funded plan
  • DHM Design
  • Project Team: Dirk Ambrose, Bob Claiborne,

Thomas Riggle, Brittany White, Carrie Ward

  • Inventory of perennial problem areas, maintenance

issues and water usage

  • Studied concepts for converting some parkway

landscape

3

slide-4
SLIDE 4

Goals & Objectives

  • 1. Reduce overall water and maintenance needs by

providing a more sustainable landscape and irrigation system.

  • 2. Maintain and enhance the existing aesthetics and

experience of the streetscape.

  • 3. Educate the community in the value of landscape

conversions.

  • 4. Create a realistic phasing plan which prioritizes

areas for conversion.

4

slide-5
SLIDE 5

Landscape Analysis

285 Acres Consisting of 8 Typical Landscapes:

  • Community entries
  • Neighborhood areas
  • Commercial areas
  • Medians
  • Parkways that intersect with open space
  • Narrow, medium and wide areas

5

slide-6
SLIDE 6

Landscape Strategies

  • Identified eight typical landscapes
  • Simple designs visible from vehicles
  • Unified design, consistent plans and materials
  • Areas to convert: narrow, steep, south facing
  • Areas adjacent to open space, parks and recreation

center frontages

6

slide-7
SLIDE 7

3 Types of Conversion Scenarios

  • Shrub Bed – consists of cobble stone, wood mulch,

shrubs and ornamental grasses (typically for narrow area applications)

  • Alternative Grass – a variety of lower water use

grasses intended to look more like long turf (typically used in large areas that are adjacent to bluegrass)

  • Native Grass – a variety of low water use grasses that

thrive in our dry climate (typically used in large areas that are adjacent to open space)

7

slide-8
SLIDE 8

Typical Landscape Concepts - Before

8

Dad Clark Drive

slide-9
SLIDE 9

Typical Landscape Concepts – After

9

slide-10
SLIDE 10

Typical Landscape Concepts – Before

10

Broadway

slide-11
SLIDE 11

Typical Landscape Concepts – After

11

slide-12
SLIDE 12

Typical Landscape Concepts – Before

12

Foothills Canyon Boulevard

slide-13
SLIDE 13

Typical Landscape Concepts – After

13

slide-14
SLIDE 14

Typical Landscape Concepts – Before

14

Wildcat Reserve Parkway

slide-15
SLIDE 15

Typical Landscape Concepts – After

15

slide-16
SLIDE 16

Typical Landscape Concepts – Before

16

Highlands Ranch Parkway

slide-17
SLIDE 17

Typical Landscape Concepts – After

17

slide-18
SLIDE 18

Typical Landscape Concepts – Before

18

Highlands Ranch Parkway

slide-19
SLIDE 19

Typical Landscape Concepts – After

19

slide-20
SLIDE 20

Typical Landscape Concepts – Before

20

Plaza Drive

slide-21
SLIDE 21

Typical Landscape Concepts – After

21

slide-22
SLIDE 22

Typical Landscape Concepts – Before

22

Wildcat Reserve Parkway

slide-23
SLIDE 23

Typical Landscape Concepts – After

23

slide-24
SLIDE 24

Typical Landscape Concepts – Before

24

Wildcat Reserve Parkway

slide-25
SLIDE 25

Typical Landscape Concepts – After

25

slide-26
SLIDE 26

Typical Landscape Concepts – Before

26

Colorado Boulevard

slide-27
SLIDE 27

Typical Landscape Concepts – After

27

slide-28
SLIDE 28

28

Annual Water & Maintenance Cost Per Acre

Landscape Options Water Use Water Cost Maintenance Total Cost Bluegrass 27” $2,683 $2,580 $5,263 Shrub Bed 15” $1,491 $2,580 $4,071 Alternative Grass 15” $1,491 $291 $1,782 Native Grass 10” $994 $291 $1,285

Water and Maintenance Costs

slide-29
SLIDE 29

Conversion Costs

  • Conversion Cost/turf:

$ .60/SF or $ 26,136/acre

  • Conversion Cost/shrub beds:

$4.00/SF or $174,240/acre*

(*Shrub beds are normally smaller)

Costs may vary depending on significant sprinkler system adjustments, increased initial watering and additional seeding efforts.

29

slide-30
SLIDE 30

South Broadway, Dad Clark Dr. to Northridge Rd. 30

slide-31
SLIDE 31

Cost Benefit Analysis Example

South Broadway, Dad Clark Dr. to Northridge Rd.

31

Convert bluegrass to alternate turf - assume 15” of irrigation 96,574 SF 2.21/Ac. Conversion Cost (estimated $.60/SF) $57,944 Average Annual Water Cost Savings $2,634 Average Annual Maintenance Cost Savings $5,024 10-Year Water Savings (gallons) 7,201,241 Project Payback in Years 7.5

slide-32
SLIDE 32

Highlands Ranch Pkwy, White Oak to Deer Creek St. 32

slide-33
SLIDE 33

Cost Benefit Analysis Example

Highlands Ranch Pkwy, White Oak to Deer Creek St.

33

Convert bluegrass to shrubs and mulch - assume 15” of irrigation 10,000 SF .23/Ac. Conversion Costs (estimated $4.00/ SF) $40,000 Average Annual Water Cost Savings $274 Average Annual Maintenance Cost Savings $478 10-Year Water Savings (gallons) 749,450 Project Payback in Years 53

slide-34
SLIDE 34

Highlands Ranch Pkwy, Open Space, both sides, east of Montclair St. 34

slide-35
SLIDE 35

Cost Benefit Analysis Example

Highlands Ranch Pkwy, Open Space, both sides, east of Montclair St.

35

Convert bluegrass to native seed - assume 10” of irrigation 14,000 SF .32/Ac. Conversion Costs (estimated $.60/ SF) $8,400 Average Annual Water Cost Savings $540 Annual Maintenance Cost Savings $732 10-Year Water Savings (gallons) 1,477,177 Project Payback in Years 6.6

slide-36
SLIDE 36

Long Range Conversion Scenario

36

Long Range Conversion Scenario Convert 1/3 of Parkway Landscape 95 Acres Acres Per Year 5 Acres Total Years 19 Years Cost Per Year $300-$400K Total cost / 19 Years $5,700,000 - $7,600,000

slide-37
SLIDE 37

Demonstration Project

University Avenue – Highlands Ranch High School

37

slide-38
SLIDE 38

Next Steps

38

  • 2019 – demonstration project
  • Public information
  • Gather public input
  • Modify plan if needed
  • Boards adopt plan
slide-39
SLIDE 39

Questions & Comments

39
