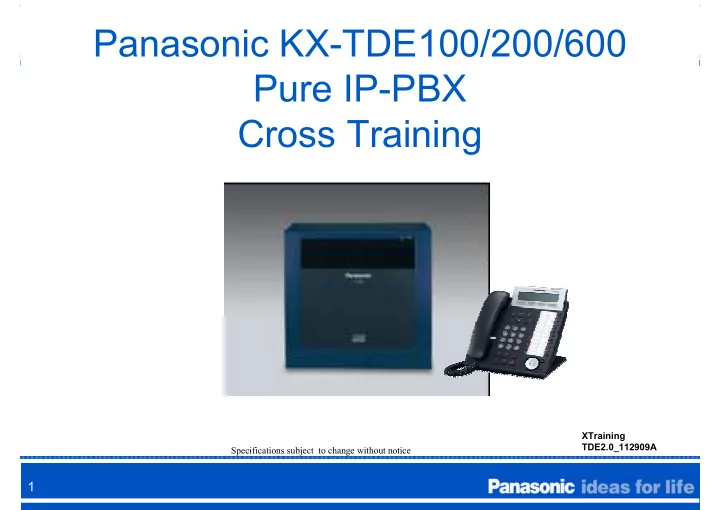

Panasonic KX-TDE100/200/600 Pure IP-PBX Cross Training

Specifications subject to change without notice XTraining TDE2.0_112909A

slide-2
SLIDE 2

2

KX-TDE100 System Outline

The KX-TDE100 consists of the Basic Shelf with:

  • A power supply slot (Not installed)
  • 6 free slots
  • A slot for the Main Processing Unit Card (IPCMPR)

(Installed)

  • SD Memory Card
  • A Run and Alarm LED
  • RS-232C (9-pin male)
  • Wall Mounting Bracket
  • Front Cover with lock

The Basic Shelf only comes equipped with the IPCMPR

  • Card. The basic shelf does NOT come equipped with a

power supply. Either the S-Type or the M-Type Power Supply Unit can be installed KX-TDE100 Basic Shelf. See page 34 of the Installation Manual for more information on determining when to use the S-Type or M-Type Power Supply Unit

slide-3
SLIDE 3

3

KX-TDE200 System Outline

The KX-TDE200 consists of the Basic Shelf with:

  • A power supply slot (Not installed)
  • 11 free slots
  • A slot for the Main Processing Unit Card

(IPCMPR) (Installed)

  • SD Memory Card
  • A Run and Alarm LED
  • RS-232C (9-pin male)
  • Wall or Floor Mounting Bracket
  • Front Cover with lock

The Basic Shelf only comes equipped with the IPCMPR Card. The basic shelf does NOT come equipped with a power supply. Either the M-Type

  • r the L-Type Power Supply Unit can be installed

KX-TDE200 Basic Shelf. See page 34 of the Installation Manual for more information on determining when to use the M-Type or L-Type Power Supply Unit

slide-4
SLIDE 4

4

IPCMPR Card

  • Main Processing Unit Card residing in the

MPR slot of the Basic Shelf

  • This card controls all Basic Shelf functions

including TSW control, detection of system clock alarm, shelf power down and watchdog timer overflow alarms

  • Features offered by IPCMPR Card

– VoIP Trunks / Extensions – LAN Connection – CTI Server support – Built-in Simplified Voice Message (SVM)

  • The KX-TDA0196 Remote Card and the

KX-TDE0110 DSP16 or KX-TDE0111 DSP64 Card can be installed as daughter boards on the IPCMPR Card

  • MPR card also includes circuitry for the RS-

232C connector

  • The card also has the connectors for 2 MOH

inputs, 2 Paging ports, System Clear Switch and Reset Button

  • Main components includes a processor, RAM,

ROM, memory backup lithium battery, and SD Memory Card slot

slide-5
SLIDE 5

5

IPCMPR Card

Built-in SVM Circuit Maintenance IP Communication Port USB Port MPR IPCMPR

  • MEC Card (KX-TDA0105)

can be Installed

  • USB Port is not available.
  • MEC Card (KX-TDA0105) is

not available TDE New VoIP DSP Card Remote TDA0196 Larger SD Card Main IP Communication Port

slide-6
SLIDE 6

6

KX-TDE0110, KX-TDE0111 DSP16/64

  • KX-TDE0110 – 16 Channel Digital

Signal Processing Card

– KX-NCS4104 Activation Key Pre-Installed – KX-NCS4508 Activation Key Pre-Installed – Supports G.729 and G.711 Codec – Initial configuration is 4 IP trunks by 8 IP PT’s

  • KX-TDE0111 – 64 Channel Digital

Signal Processing Card

– 4 - KX-NCS4104 Activation Keys Pre- Installed – 4- KX-NCS4508 Activation Keys Pre- Installed – Supports G.729 and G.711 Codec – Initial configuration is 16 IP trunks by 32 IP PT’s

slide-7
SLIDE 7

7

TDM side IP Trunk

IP-EXT: IP-PT SIP Ext. IP-EXT: IP-PT SIP Ext.

DSP 16 DSP 64

PSTN DPT SLT

MOH Service Tone

  • Ext. Pager

Doorphone MSG/SVM

Peer to Peer communication does not need DSP. Non-Peer to Peer communication Need DSP.

DSP 16/64 Cards

  • DSP

– Converts the signaling for IP (IP extension / IP trunk, which exchange Voice data as IP packet) and signaling for TDM (PCM signaling method, which is used in extension / trunk card, except for IP-GW and IP-EXT) – This card exchanges the different CODEC between G.711 and G.729 – If you want to use VoIP function, you need to install DSP16 or DSP64

slide-8
SLIDE 8

8

DSP 16/64 Cards

  • The available communications paths from IP

interface to traditional telephony interface is limited to 49 paths on both TDE100 and TDE200 - If SVM is disabled then limited to 53 paths

  • There is a limitation of a maximum of 32 IP

trunk paths

Traditional

DSP G729 IP Trunk G711 IP Extension

49 32 PSTN DPT SLT

MOH

  • Ext. Pager

Service Tone MSG/SVM

  • Max. 64 IP-PT or 128 SIP Phone

For H323 Trunk and SIP Trunk

1 2 3

Doorphone

slide-9
SLIDE 9

9

DSP 16/64 Cards

  • VoIP DSP capacities are calculated by a

combination of the available DSP processing power, and the available paths through any interconnecting IP trunks and extensions

  • Three voice codec's are available

– G.711/G.722 79.5 kbps using 30 ms packets – G.729 23.5 kbps using 30 ms packets – G.722 is used for P2P only – No DSP resource is used!

  • G.729 has the lowest network utilization but it

also has the highest DSP processor utilization

slide-10
SLIDE 10

10

DSP Resources

DSP Card

  • Comp. Power

A B DSP Power Resource required (per Channel) DSP Maximum Power Resource Simultaneous Available Calls (Max without path limitation) DSP16

Traditional

G729 4 （IP-Eｘｔ）/ 5 (IP-Trunk) 64 16(16) （IP-Eｘｔ）/ 12(12) (IP-Trunk)

Traditional

G711 1（IP-Eｘｔ）/ 2 (IP-Trunk) 49(64) （IP-Eｘｔ）/ 32(32) (IP-Trunk) G711 G729 5 12(12) G711 G711 2 32(32) G729 G729 8 8(8) DSP64

Traditional

G729 2（IP-Eｘｔ）/ 2.5 (IP-Trunk) 128 49(64) （IP-Eｘｔ）/ 32(51) (IP-Trunk)

Traditional

G711 1（IP-Eｘｔ）/ 1.5 (IP-Trunk) 49(128) （IP-Eｘｔ）/ 32(85) (IP-Trunk) G711 G729 3 32(42) G711 G711 2 32(64) G729 G729 4 32 (32)

slide-11
SLIDE 11

11

G729 IP Trunk - G711 IP Extension

Voice DSP Call Capacity

A B DSP16 (64 Resources) DSP 64 (128 Resources) 1 Traditional IP Trunk (G729) 12 Calls (*5=60) 32 Calls (*2.5=80) 2 Traditional IP Extension (G711) 49 Calls (*1=49)

(*53 if SVM is disabled)

49 Calls (*1=49)

(*53 if SVM is disabled)

3 IP Extension (G711) IP Trunk (G729) 12 Calls (*5=60) 32 Calls (*3=96)

G729 IP Trunk - G729 IP Extension

A B DSP16 (64 Resources) DSP 64 (128 Resources) 1 Traditional IP Trunk (G729) 12 Calls (*5=60) 32 Calls (*2.5=80) 2 Traditional IP Extension (G729) 16 Calls (*4=64) 49 Calls (*2=98) 3 IP Extension (G729) IP Trunk (G729) 8 Calls (*8=64) 32 Calls (*4=128)

slide-12
SLIDE 12

12

A B DSP16 (64 Resources) DSP 64 (128 Resources) 1 Traditional IP Trunk (G711) 32 Calls (*2=64) 32 Calls (*1.5=48) 2 Traditional IP Extension (G711) 49 Calls (*1=49)

(*53 if SVM is disabled)

49 Calls (*1=49)

(*53 if SVM is disabled)

3 IP Extension (G711) IP Trunk (G711) 32 Calls (*2=64) 32 Calls (*2=64) A B DSP16 (64 Resources) DSP 64 (128 Resources) 1 Traditional IP Trunk (G711) 32 Calls (*2=64) 32 Calls (1.5=48) 2 Traditional IP Extension (G729) 16 Calls (*4=64) 49 Calls (*2=98) 3 IP Extension (G729) IP Trunk (G711) 12 Calls (*5=60) 32 Calls (*3=96)

G711 IP Trunk - G711 IP Extension G711 IP Trunk - G729 IP Extension

Voice DSP Call Capacity

slide-13
SLIDE 13

13

KX-TDA0196 - Remote Card (RMT)

  • The optional RMT Card provides remote

programming and maintenance capability at up to 56 kbps (V.90)

  • The RMT Card is mounted on the MPR Card
slide-14
SLIDE 14

14

Virtual Cards

  • Virtual Cards are included with

the IPCMPR card and can be activated with the appropriate activation key

  • By installing Virtual Cards

using the KX-TDE Maintenance Console IP Trunks and IP Extensions can be used off of the IPCMPR Card

  • Max of 4 Virtual Trunk Slots
  • Max of 4 Virtual Extension

Slots

slide-15
SLIDE 15

15

Virtual Cards

  • V-IPGW16 – Virtual Card for 16 Channel VoIP GW

Trunks

– H.323 Compliant – Maximum of 2 totaling 32 IP-GW Trunks

  • V-IPEXT32 – Virtual Card for 32 IP Extensions

– Maximum of 4 totaling 128 IP-PT Telephones

  • V-SIPEXT32 – Virtual Card for 32 SIP Extensions

– Maximum of 4 totaling 128 Sip Extensions

  • V-SIPGW16 – Virtual Card for 16 Channel SIP Trunks

– Maximum of 2 totaling 32 IP-SIP Trunks

slide-16
SLIDE 16

16 Traditional Communication Part : IP Communication Part : TDE100 64 (128 )

DPT (DXDP)

96LCOT 4 PRI/T1 Max Total Available Trunks 96

CO Ch. Telephone Free Slot DSP Built-in IP-Ch. Max. IP-Ch. 6 DSP16 4 IP-Trunk 8 IP-PT 32 IP-Trunk 128 IP-PT(128 SIP-Phone) DSP64 16 IP-Trunk 32 IP-PT TDE200 256

DLC16*8 + DXDP

128 (256)

DPT (DXDP)

CO Ch. Telephone Free Slot DSP Built-in IP-Ch. Max. IP-Ch. 11 DSP16 4 IP-Trunk 8 IP-PT DSP64 16 IP-Trunk 32 IP-PT 32 IP-Trunk 128 IP-PT(128 SIP-Phone) 32 IP-Trunk 128 IP-PT(128 SIP-Phone) 32 IP-Trunk 128 IP-PT(128 SIP-Phone)

128 LCOT 4 PRI/T1 Max Total Available Trunks 128

128

DLC16*4 + DXDP

Configuration - Physical / Virtual Cards

slide-17
SLIDE 17

17

Trunk Card Maximums

slide-18
SLIDE 18

18

Extension Card Maximums

slide-19
SLIDE 19

19

Maximum Terminal Equipment

  • Please refer to

System Capacity section 1.4.3, in the Installation Manual for more complete information

slide-20
SLIDE 20

20

Maximum Trunk / Extensions Supported

slide-21
SLIDE 21

21

KX-TDE100/200 Activation Keys

  • V-IPGW16 – Virtual Card for 16 Channel

VoIP GW Trunks

  • V-SIPGW16 – Virtual Card for 16

Channel SIP Trunks

– These two types of Virtual Trunk Cards use the KX-NCS41xx Licensing

  • KX-NCS4102 – 2 Channel IP Trunk Key
  • KX-NCS4104 – 4 Channel IP Trunk Key
slide-22
SLIDE 22

22

KX-TDE100/200 Activation Keys

  • V-IPEXT32 – Virtual Card for 32 IP Extensions has two types of

Licensing

– KX-NCS42xx that supports IP extensions

  • KX-NT300 Series IP-PT and KX-NT321 IP-PT
  • IP-Softphone that is run on a PC

– KX-NCS45xx that supports IP wired only extensions

  • KX-NT300 Series IP-PT and KX-NT321 IP-PT

– KX-NCS4201 – 1 Channel IP Softphone/IP-PT Key – KX-NCS4204 – 4 Channel IP Softphone/IP-PT Key – KX-NCS4208 - 8 Channel IP Softphone/IP-PT Key – KX-NCS4216 – 16 Channel IP Softphone/IP-PT Key – KX-NCS4501 – 1 Channel IP-PT Key – KX-NCS4504 – 4 Channel IP-PT Key – KX-NCS4508 - 8 Channel IP-PT Key – KX-NCS4516 – 16 Channel IP-PT Key

slide-23
SLIDE 23

23

KX-TDE100/200 Activation Keys

  • V-SIPEXT32 – Virtual Card for 32 SIP

Extensions

– This Virtual Card is for SIP IP telephones such as the KX-HGT100 or KX-NT700

  • KX-NCS4701 – 1 Channel SIP Extension Key
  • KX-NCS4704 – 4 Channel SIP Extension Key
  • KX-NCS4708 – 8 Channel SIP Extension Key
  • KX-NCS4716 – 16 Channel SIP Extension Key
slide-24
SLIDE 24

24

KX-TDE100/200 Activation Keys

  • One special license exist for the KX-
  • TDE600. This License turns on advanced

network and other features such as:

– Centralized Voice Mail, Network DSS, ACD – calls delivered to longest idle extension, Cellular Phone Features, Outside destinations in ICD Group, PS Roaming and Network ICD Groups

  • KX-NCS4910 – Activation Key for Software

Upgrade to Enhanced Version (advanced Network and other features)

slide-25
SLIDE 25

25

KX-TDE600 Pure IP PBX

slide-26
SLIDE 26

26

KX-TDE600 Pure IP PBX

  • KX-TDE6101 – IPCEMPR Card
  • KX-TDE0105 – MEC Card
slide-27
SLIDE 27

27

KX-TDE600 Pure IP PBX

  • Optional KX-TDE0105 card support

Items TDE600 MPR 2.0 W/Out TDE0105 (Built in Memory) W/TDE0105 System Speed Dial 1000/Tenant x 32 1000/Tenant x 32 Station Speed Dial 100/Ext. Yes Yes Hotel-SMDR for check out. 4000 Calls 8000 Calls SDMR buffer 1000 Calls 4000 Calls Quick Dial 8Digit, 4000 entries Yes Yes

  • Max. Number of PS

512 512

slide-28
SLIDE 28

28

KX-TDE600 and KX-TDA620

KX-TDE600 Basic Shelf – 10 Free Slots KX-TDA620 Expansion Shelf – 11 Free Slots

slide-29
SLIDE 29

29

KX-TDE600 Physical Shelf

slide-30
SLIDE 30

30

KX-TDE600 Physical Shelf

  • KX-TDE600 – Basic Shelf
  • KX-TDE620 – Expansion Shelf
  • KX-TDE6101 – IPCEMPR processor card that will

upgrade a KX-TDA600 to a KX-TDE600

  • KX-TDA0103 – L Type Power Supply
  • KX-TDA0104 – M Type Power Supply
  • KX-TDA6110 – BUS-M Card, required to connect the

Basic Shelf to the first Expansion Shelf

  • KX-TDA6111 BUS-ME Card, mounts on the BUS-M
  • card. Required to connect the second and third

Expansion Shelf. Includes Bus Cables. One card required per Expansion Shelf

slide-31
SLIDE 31

31

KX-TDE600 Physical Shelf

  • The KX-TDE600 supports most of the same cards as

the KX-TDE100/200 PBX

  • The below cards replace similar cards in the KX-

TDE100/200 PBX

– KX-TDA6181 – 16 Port Analog Trunk Card (ELCOT16) – KX-TDA6174 – 16 Port Single Line Telephone Extension Card (ESLC16) – KX-TDA6175 – 16 Port Single Line Telephone Extension with Message Lamp (EMSLC16) – KX-TDA6178 – 24 Port Single Line Telephone Extension Card with Caller ID (ECSLC24) – Requires Large Power Supply in KX-TDE600 – KX-TDA6166 – 16 Channel Echo Canceller Card (EECHO16)

slide-32
SLIDE 32

32

The same as TDE100/200.

TDE600 Virtual Shelf

slide-33
SLIDE 33

33

TDE600 Maximum Trunk Cards

slide-34
SLIDE 34

34

TDE600 Maximum Extension Cards

slide-35
SLIDE 35

35

TDE600 Maximum Optional Cards

slide-36
SLIDE 36

36

TDE600 Maximum CO Lines and Extensions

slide-37
SLIDE 37

37

KX-TDE600 Maximum Terminal Equipment

slide-38
SLIDE 38

38

KX-TDE600 Maximum Terminal Equipment

slide-39
SLIDE 39

39

KX-TDE600 Activation Keys

  • V-IPGW16 – Virtual Card for 16 Channel

VoIP GW Trunks

  • V-SIPGW16 – Virtual Card for 16

Channel SIP Trunks

– These two types of Virtual Trunk Cards use the KX-NCS41xx Licensing

  • KX-NCS4102 – 2 Channel IP Trunk Key
  • KX-NCS4104 – 4 Channel IP Trunk Key
slide-40
SLIDE 40

40

KX-TDE600 Activation Keys

  • V-IPEXT32 – Virtual Card for 32 IP Extensions has two types of

Licensing

– KX-NCS42xx that supports IP extensions

  • KX-NT300 Series IP-PT and KX-NT321 IP-PT
  • IP-Softphone that is run on a PC

– KX-NCS45xx that supports IP wired only extensions

  • KX-NT300 Series IP-PT and KX-NT321 IP-PT

– KX-NCS4201 – 1 Channel IP Softphone/IP-PT Key – KX-NCS4204 – 4 Channel IP Softphone/IP-PT Key – KX-NCS4208 - 8 Channel IP Softphone/IP-PT Key – KX-NCS4216 – 16 Channel IP Softphone/IP-PT Key – KX-NCS4501 – 1 Channel IP-PT Key – KX-NCS4504 – 4 Channel IP-PT Key – KX-NCS4508 - 8 Channel IP-PT Key – KX-NCS4516 – 16 Channel IP-PT Key

slide-41
SLIDE 41

41

KX-TDE600 Activation Keys

  • V-SIPEXT32 – Virtual Card for 32 SIP

Extensions

– This Virtual Card is for SIP IP telephones such as the KX-HGT100 or KX-NT700

  • KX-NCS4701 – 1 Channel SIP Extension Key
  • KX-NCS4704 – 4 Channel SIP Extension Key
  • KX-NCS4708 – 8 Channel SIP Extension Key
  • KX-NCS4716 – 16 Channel SIP Extension Key
slide-42
SLIDE 42

42

KX-TDE600 Activation Keys

  • One special license exist for the KX-
  • TDE600. This License turns on advanced

network and other features such as:

– Centralized Voice Mail, Network DSS, ACD – calls delivered to longest idle extension, Cellular Phone Features, Outside destinations in ICD Group, PS Roaming and Network ICD Groups

  • KX-NCS4950 – Activation Key for Software

Upgrade to Enhanced Version (advanced Network and other features)

slide-43
SLIDE 43

43

KX-TDE100/200/600 Pure IP PBX

Thank you for your support
