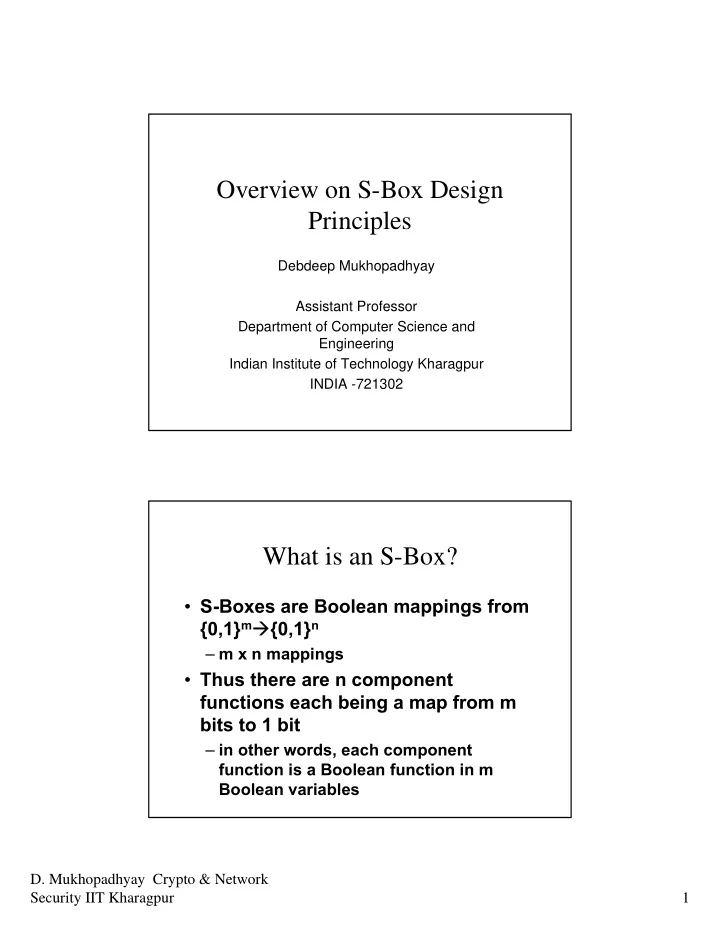

Overview on S-Box Design Principles Debdeep Mukhopadhyay Assistant Professor Department of Computer Science and Engineering Indian Institute of Technology Kharagpur INDIA -721302 What is an S-Box? • S-Boxes are Boolean mappings from {0,1} m � {0,1} n – m x n mappings • Thus there are n component functions each being a map from m bits to 1 bit – in other words, each component function is a Boolean function in m Boolean variables D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 1

Boolean Function • A Boolean function is a mapping from {0,1} m � {0,1} A Boolean function on n-inputs can be represented in • minimal sum (XOR +) of products (AND .) form: f(x 1 ,…,x n )= a 0 + a 1 . x 1 + …+ a n . x n + a 1,2 .x 1 .x 2 + …+ a n-1,n .x n-1 .x n + … …+ a 1,2,..,n x 1 .x 2 ...x n The ANF form is canonical… • If the and terms have all zero co-efficients we have an affine • function If the constant term is further 0, we have a linear function • Boolean Function • A Boolean function is a mapping from {0,1} m � {0,1} Σ → n : {0,1} be a Boolean Function. f α α α Binary sequence ( ( ), ( ),..., ( )) f f f 0 1 n − 2 1 is called the Truth Table of f • Sequence of a Boolean Function: α ( ) − α − α − f ( ) ( ) f f {( 1) ,( 1) ,...,( 1) n − } is called sequence of 0 1 2 1 f D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 2

Balanced Function • A Boolean function is said to be balanced if its truth table has equal number of ones and zeros. • The Hamming weight of a binary sequence is the number of ones Scalar Product of Sequences • Consider f and g as two Boolean functions. • Consider, η be the sequence of f and ε be the sequence of g. • Define, < η ε >= ≠ , (#no of cases when f=g)-(#no of cases when f g) D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 3

Non-linearity • The non-linearity of a Boolean function can be defined as the distance between the function and the set of all affine functions. ∴ = m in ( , ) N d f g ∈ Α f g n Σ n w here is the set of all affine functions over A n 1 − = − < η ε > 1 n ( , ) 2 , d f g 2 1 − ∴ = − η 1 n 2 max {| , |}, N l − f = n 1 i i 0,1,...,2 2 where is the sequence of a linear function in l x i A Compact Representation of all the linear functions Hadamard Matrix: Any rxr matrix with elements in {-1,1} if • HH T =rI r , where I r is the identity matrix of dimension rxr. Walsh Hadamard Matrix: • ⎡ ⎤ H H = = − − = n 1 n 1 1, , 1,2,... H H ⎢ ⎥ n 0 1 − ⎣ ⎦ H H − − n 1 n 1 Each row of H n is the sequence of a linear function in x • belonging to {0,1} n Each row, l i is the sequence of the Boolean function, • =< α > α ( ) , , is the binary representation of g x x i i i α Note that and are not sequences, but they are binary x i tuples of length n D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 4

Effect of Input Transformation on balanced-ness and Non-linearity • If a Boolean function, f(x) is balanced, then so is g=f(xB ^ A), A is an n-bit vector and B is an nxn 0-1 invertible matrix • Non-linearity of f and g are same. Strict Avalanche Criteria • Informally, if one bit input is changed in an S- Box, then half of the output bits should be changed • For a function, f to satisfy SAC the following condition is satisfied: ⊕ ⊕ α α ( ) ( ) is balanced, where wt( )=1 f x f x • Higher order SAC, when more than one input bits change • Both the SAC and the higher order SAC together make Propagation Criteria (PC) D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 5

How to make a Boolean Function satisfy SAC? • Consider a Boolean function, f(x) • Consider a non-singular {0,1} matrix of dimension nxn. • If for each row of the matrix A if: ⊕ ⊕ γ γ ( ) ( ) is balanced, is a row of the matrix A f x f x then g(x)=f(xA) satisfies the SAC. Example • f(x)=x1x2 ^ x3 does not satisfy SAC? • Why? Consider α =(001) • f(x)^f(x^e1) is balanced, e1=(100) • f(x)^f(x^e2) is balanced, e2=(010) • f(x)^f(x^e3) is balanced, e3=(111) ⎡ ⎤ 1 0 0 ⎢ ⎥ A= 0 1 0 ⎢ ⎥ ⎢ ⎥ ⎣ 1 1 1 ⎦ • Check that g(x)=f(xA) satisfies SAC D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 6

Bent Functions • Non-linearity of Boolean functions have an upper bound n − 1 ≤ − − 1 n 2 2 2 N f • Functions which achieve this are called Bent functions • They satisfy PC for all α • But they are always unbalanced • Bent functions exist for even values of n Example • f(x)=x1x2 ^ x3x4 is a Bent function in 4 variables • If f is a Bent function – so is f ^ (affine function) – f(xA ^ B) for a non-singular binary matrix A is also Bent • Bent functions are not balanced. Number of zeros, is 2 n-1 ±2 n/2-1 D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 7

Creating Balanced Non-linear function • Take 2 n-k , k-variable linear function, where k>n/2 • Concatenate the truth-tables • Thus, we obtain a nxk mapping which is non-linear – N f ≥ 2 n-1 -2 k-1 • Balanced • Can be made to satisfy SAC. Is the S-Box good against LC and DC? • Not only the component functions are good: – high non-linearity – satisfy PC – etc. • but their non-zero linear combinations also have to satisfy. – Challenging problem D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 8

Design of S-Box is even more complex • Good S-Boxes from the cryptographic point of view when put in hardware are found to leak information, like power consumption etc • They thus lead to attacks called Side Channel Attacks, which can break ciphers in minutes…after all the hard-work • Then there are Algebraic Attacks… • So, what to do? Open Research Problem(s)… Criteria of Good S-Box • Balanced Component functions • Non-linearity of Component functions high • Non-zero linear combinations of Component functions balanced and highly non-linear • Satisfies SAC • High Algebraic degree D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 9

Exercise • Enumerate 8 distinct linear functions in 5 variables, x 1 , x 2 , x 3 , x 4 , x 5 • Concatenate their Truth-tables to obtain an 8 input, 5 output function. • Store the resultant mapping as a 8x5 S- Box. • What is the non-linearity of your SBox? • Does is satisfy SAC? If not, modify the function to do so. Further Reading • J. Seberry, Zhang, Zhang, “Cryptographic Boolean Functions via Group Hadamard Matrices”, AJC Journal of Combinatorics, vol 10, 1994 • K. Nyberg, “Differentially Uniform Mappings for Cryptography”, Eurocrypt 1993 • K. Nyberg, “Perfect Non-linear SBoxes”, Eurocrypt 1991 D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 10

Next Days Topic • Modes of operation of Block Ciphers D. Mukhopadhyay Crypto & Network Security IIT Kharagpur 11
