Overview of Convolution Integral Topics Impulse response defined Several derivations of the convolution integral Relationship to circuits and LTI systems J. McNames Portland State University ECE 222 Convolution Integral Ver. 1.68 1


slide-1
SLIDE 1

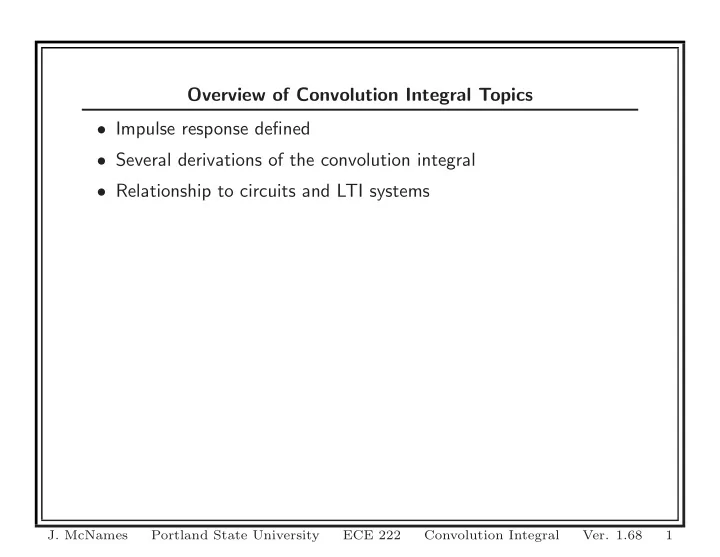

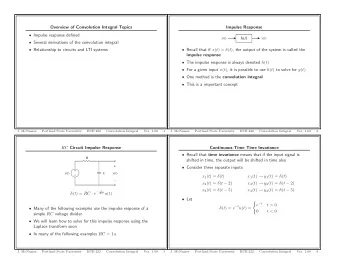

Overview of Convolution Integral Topics

  • Impulse response defined
  • Several derivations of the convolution integral
  • Relationship to circuits and LTI systems
  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

1

slide-2
SLIDE 2

Impulse Response h(t)

x(t) y(t)

  • Recall that if x(t) = δ(t), the output of the system is called the

impulse response

  • The impulse response is always denoted h(t)
  • For a given input x(t), it is possible to use h(t) to solve for y(t)
  • One method is the convolution integral
  • This is a important concept
  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

2

slide-3
SLIDE 3

RC Circuit Impulse Response

C R

  • +

x(t) y(t)

h(t) = RC · e−

t RC u(t)

  • Many of the following examples use the impulse response of a

simple RC voltage divider

  • We will learn how to solve for this impulse response using the

Laplace transform soon

  • In many of the following examples RC = 1 s
  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

3

slide-4
SLIDE 4

Continuous-Time Time Invariance

  • Recall that time invariance means that if the input signal is

shifted in time, the output will be shifted in time also

  • Consider three separate inputs

x1(t) = δ(t) x1(t) → y1(t) = h(t) x2(t) = δ(t − 2) x2(t) → y2(t) = h(t − 2) x3(t) = δ(t − 5) x3(t) → y3(t) = h(t − 5)

  • Let

h(t) = e−tu(t) =

  • e−t

t > 0 t < 0

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

4

slide-5
SLIDE 5

Example 1: Continuous-Time Time Invariance

−2 2 4 6 8 10 0.5 1 x1(t) = δ(t−0) Input −2 2 4 6 8 10 0.5 1 y1(t) = h(t−0) Output −2 2 4 6 8 10 0.5 1 x2(t) = δ(t−2) −2 2 4 6 8 10 0.5 1 y2(t) = h(t−2) −2 2 4 6 8 10 0.5 1 x3(t) = δ(t−5) Time (s) −2 2 4 6 8 10 0.5 1 y3(t) = h(t−5) Time (s)

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

5

slide-6
SLIDE 6

Example 1: MATLAB Code

t = -2:0.001:10; tc = [0 2 5]; for c1 = 1:length(tc), subplot(length(tc),2,c1*2-1); h = plot(tc(c1)*[1 1],[0 1],’b’,tc(c1),0.95,’b^’); set(h,’MarkerFaceColor’,’b’); set(h,’MarkerSize’,3); st = sprintf(’x_%d(t) = \\delta(t-%d)’,c1,tc(c1)); disp(st) ylabel(st); box off; xlim([min(t) max(t)]); ylim([0 1]); subplot(length(tc),2,c1*2); y1 = exp(-(t-tc(c1))).*(t>=tc(c1)); % Unit impulse response h[n] h = plot(t,y1,’r’); st = sprintf(’y_%d(t) = h(t-%d)’,c1,tc(c1)); ylabel(st); box off; xlim([min(t) max(t)]); end;

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

6

slide-7
SLIDE 7

Input Decomposition Let x(t) = r(t) − 2 · r(t − 1) + ·r(t − 2) = ⎧ ⎪ ⎨ ⎪ ⎩ t 0 ≤ t ≤ 1 −(t − 2) 1 ≤ t ≤ 2

  • therwise
  • We can approximate any bounded signal x(t) as a series of pulses

with width w and height proportional to x(t) x(t) ≈

  • k=−∞

x(kw)

  • u
  • t − (k − 1

2)w

  • − u
  • t − (k + 1

2)w

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

7

slide-8
SLIDE 8

Example 2: Input Decomposition

−0.5 0.5 1 1.5 2 2.5 0.5 1 Input x(t) −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.50 −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.25 −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.10 −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.04 Time (s)

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

8

slide-9
SLIDE 9

Example 2: MATLAB Code

fs = 1000; t0 = -0.5; t1 = 2.5; h = [0.50 0.25 0.10 0.04]; subplot(length(h)+1,1,1); t = t0:1/fs:t1; x = t.*(t>=0&t<1) + (-(t-2)).*(t>=1&t<2); hp = plot(t,x); set(hp,’MarkerFaceColor’,’b’); set(hp,’MarkerSize’,3); title(’Input’); ylabel(’x(t)’); box off; xlim([t0 t1]); for c1 = 1:length(h), subplot(length(h)+1,1,c1+1); t = t0:h(c1):t1; x = t.*(t>=0&t<1) + (-(t-2)).*(t>=1&t<2); hp = bar(t,x,1); set(hp,’FaceColor’,’w’); set(hp,’EdgeColor’,’r’); st = sprintf(’w = %4.2f’,h(c1)); ylabel(st); box off; xlim([t0 t1]); end;

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

9

slide-10
SLIDE 10

Replacing Rectangles with Impulses

  • If an input consists of a pulse that is sufficiently short in duration,

the continuous-time system will respond the same as it would to an impulse with the same area

  • The following example shows the response of an RC circuit to

three different pulses

  • Each pulse has unit area
  • The impulse response is also shown
  • Since the response is the same, we can replace our approximate

input signal that consists of rectangles with a train of impulses, if h is sufficiently small

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

10

slide-11
SLIDE 11

Example 3: RC Pulse Response

−2 2 4 6 8 10 0.2 0.4 Input x(t) −2 2 4 6 8 10 0.5 1 Output y(t) h(t) y(t) −2 2 4 6 8 10 0.5 1 Input x(t) −2 2 4 6 8 10 0.5 1 Output y(t) h(t) y(t) −2 2 4 6 8 10 5 10 Input x(t) Time (s) −2 2 4 6 8 10 0.5 1 Output y(t) Time (s) h(t) y(t)

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

11

slide-12
SLIDE 12

Example 3: MATLAB Code

sys = tf([0 1],[1 1]); % Transfer function of an RC circuit with RC = 1 t = -2:0.001:10; ht = exp(-t).*(t>=0); % System impulse response h = [2.0 1.0 0.1]; for c1 = 1:length(h), subplot(length(h),2,(c1-1)*2+1); x = (t>0 & t<h(c1))/h(c1); plot(t,x); title(’Input’); ylabel(’x(t)’); box off; xlim([min(t) max(t)]); subplot(length(h),2,c1*2); y = lsim(sys,x,t); % Simulate the output of the system plot(t,ht,’g’,t,y,’r’); legend(’h(t)’,’y(t)’); title(’Output’); ylabel(’y(t)’); box off; xlim([min(t) max(t)]); end;

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

12

slide-13
SLIDE 13

Impulse Input Decomposition x(t) can approximated as a sum of pulses. x(t) = xr(t) =

  • k=−∞

w·x(kw)

  • u
  • t − (k − 1

2)w

  • − u
  • t − (k + 1

2)w

  • w

Each pulse can be approximated as a unit impulse δ(t − kw) = d u(t − kw) dt = lim

w→0

u

  • t − (k − 1

2)w

  • − u
  • t − (k + 1

2)w

  • w

so for small w, x(t) can also be approximated as a sum of impulses, x(t) ≈ xδ(t) =

  • k=−∞

w · x(kw) · δ(t − kw) Note that

−∞

δ(t − kw) dt =

−∞

  • u
  • t − (k − 1

2)w

  • − u
  • t − (k + 1

2)w

  • w

dt = 1

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

13

slide-14
SLIDE 14

Example 4: Approximations to x(t)

−0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.50 Approximation with Rectangles −0.5 0.5 1 1.5 2 2.5 0.5 Approximation with Impulses −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.25 −0.5 0.5 1 1.5 2 2.5 0.1 0.2 −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.10 −0.5 0.5 1 1.5 2 2.5 0.05 0.1 −0.5 0.5 1 1.5 2 2.5 0.5 1 w = 0.04 Time (s) −0.5 0.5 1 1.5 2 2.5 0.02 0.04 Time (s)

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

14

slide-15
SLIDE 15

Example 4: MATLAB Code

fs = 1000; t0 = -0.5; t1 = 2.5; t = t0:1/fs:t1; x = t.*(t>=0&t<1) + (-(t-2)).*(t>=1&t<2); h = [0.5,0.25,0.10,0.04]; for c1 = 1:length(h), subplot(length(h),2,c1*2-1); th = t0:h(c1):t1; xr = th.*(th>=0&th<1) + (-(th-2)).*(th>=1&th<2); hb = bar(th,xr,1); set(hb,’FaceColor’,’w’); set(hb,’EdgeColor’,’b’); hold on; plot(t,x,’g’); hold off; st = sprintf(’w = %4.2f’,h(c1)); ylabel(st); box off; xlim([t0 t1]); subplot(length(h),2,c1*2); for c2 = 1:length(th), hp= plot(th(c2)*[1 1],[0 xr(c2)]*h(c1),’r’,th(c2),0.95*xr(c2)*h(c1),’r^’); hold on; set(hp(2),’MarkerFaceColor’,’r’); set(hp(2),’MarkerSize’,2); set(hp(2),’LineWidth’,0.001); end; hold off; box off; ylim([0 h(c1)]); xlim([t0 t1]); end;

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

15

slide-16
SLIDE 16

Applying Linearity If x(t) ≈ xδ(t) =

  • k=−∞

w x(kw) δ(t − kw), then by linearity and time invariance, y(t) ≈ yδ(t) =

  • k=−∞

w x(kw) h(t − kw) In the limit as w → 0, if x(t) and y(t) are integrable, we have x(t) = lim

w→0 xδ(t) =

−∞

x(τ) δ(t − τ) dτ y(t) = lim

w→0 yδ(t) =

−∞

x(τ) h(t − τ) dτ This is the continuous-time convolution integral

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

16

slide-17
SLIDE 17

Example 5: Impulse Approximation and Output

−2 2 4 6 8 10 0.5 Input −2 2 4 6 8 10 0.5 Output −2 2 4 6 8 10 0.5 −2 2 4 6 8 10 0.5 −2 2 4 6 8 10 0.5 −2 2 4 6 8 10 0.5 −2 2 4 6 8 10 0.5 Time (s) −2 2 4 6 8 10 0.5 Time (s) True Approximate

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

17

slide-18
SLIDE 18

Example 5: MATLAB Code

sys = tf([0 1],[1 1]); % Transfer function of an RC circuit with RC = 1 t0 = -2; t1 = 10; t = t0:0.001:t1; xt = t.*(t>=0&t<1) + (-(t-2)).*(t>=1&t<2); % True system input yt = lsim(sys,xt,t); % Simulate the output of the system y = zeros(size(t)); h = 0.5; ti = [0.5 1.0 1.5]; % Impulse times xi = [0.5 1.0 0.5]*h; % Impulse Amplitudes for c1 = 1:length(ti), subplot(length(ti)+1,2,c1*2-1); hp= plot(ti(c1)*[1 1],[0 xi(c1)],’b’,ti(c1),0.95*xi(c1),’b^’); set(hp,’MarkerFaceColor’,’b’); set(hp,’MarkerSize’,2); set(hp,’LineWidth’,0.001); box off; ylim([0 max(xi)]); xlim([min(t) max(t)]); subplot(length(ti)+1,2,c1*2); yp = xi(c1)*exp(-(t-ti(c1))).*((t-ti(c1))>=0); % Response to a single impulse plot(t,yp,’r’); box off; ylim([0 0.66]); xlim([min(t) max(t)]); y = y + yp; % Total Response end;

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

18

slide-19
SLIDE 19

Example 5: MATLAB Code Continued

subplot(length(ti)+1,2,length(ti)*2+1); for c1 = 1:length(ti), hp = plot(ti(c1)*[1 1],[0 xi(c1)]*h,’b’,ti(c1),0.95*xi(c1)*h,’b^’); set(hp,’MarkerFaceColor’,’b’); set(hp,’MarkerSize’,2); set(hp,’LineWidth’,0.001); hold on; end; hold off; box off; ylim([0 max(xi)*h]); xlim([min(t) max(t)]); xlabel(’Time (s)’); subplot(length(ti)+1,2,length(ti)*2+2); plot(t,yt,’g’,t,y,’r’); box off; ylim([0 0.66]); xlim([min(t) max(t)]); xlabel(’Time (s)’); legend(’True’,’Approximate’);

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

19

slide-20
SLIDE 20

Example 6: Approximate Outputs versus h

−2 2 4 6 8 10 0.2 0.4 Input −2 2 4 6 8 10 0.2 0.4 0.6 Output True Approximate −2 2 4 6 8 10 0.1 0.2 −2 2 4 6 8 10 0.2 0.4 0.6 True Approximate −2 2 4 6 8 10 0.05 0.1 Time (s) −2 2 4 6 8 10 0.2 0.4 0.6 Time (s) True Approximate

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

20

slide-21
SLIDE 21

Example 6: MATLAB Code

sys = tf([0 1],[1 1]); % Transfer function of an RC circuit with RC = 1 t0 = -2; t1 = 10; t = t0:0.001:t1; x = t.*(t>=0&t<1) + (-(t-2)).*(t>=1&t<2); % True system input yt = lsim(sys,x,t); % Simulate the output of the system h = [0.50 0.25 0.10]; for c1 = 1:length(h), subplot(length(h),2,c1*2-1); th = t0:h(c1):t1; % Impulse times xr = th.*(th>=0&th<1) + (-(th-2)).*(th>=1&th<2); % Impulse amplitudes for c2 = 1:length(th), hp= plot(th(c2)*[1 1],[0 xr(c2)]*h(c1),’b’,th(c2),xr(c2)*h(c1),’b^’); hold on; set(hp,’MarkerFaceColor’,’b’); set(hp,’MarkerSize’,1.2); set(hp(1),’LineWidth’,0.3); set(hp(2),’LineWidth’,0.001); end; hold off; box off; subplot(length(h),2,c1*2); y = zeros(size(t)); for c2 = 1:length(th), y = y + h(c1)*xr(c2)*exp(-(t-th(c2))).*((t-th(c2))>=0); end; hp = plot(t,yt,’g’,t,y,’r’); set(hp(1),’LineWidth’,0.8); set(hp(2),’LineWidth’,0.3); legend(’True’,’Approximate’); box off; end;

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

21

slide-22
SLIDE 22

Continuous-Time Convolution Derivation Summary h(t) h(t) h(t) h(t)

Definition of h(t) Time Invariance Linearity

h(t)

Linearity

h(t) x(t) x(t) δ(t) δ(t − τ) x(τ) δ(t − τ) ∞

−∞ x(τ) δ(t − τ) dτ Definition of δ(t)

y(t) h(t) h(t − τ) x(τ) h(t − τ) ∞

−∞ x(τ) h(t − τ) dτ

−∞ x(τ) h(t − τ) dτ

  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

22

slide-23
SLIDE 23

Convolution Integral Alternative Form y(t) = +∞

−∞

x(τ) h(t − τ) dτ Let u t − τ, then τ = t − u and dτ = −du. y(t) = −∞

x(t − u) h(u) (−du) = ∞

−∞

x(t − u) h(u) du = ∞

−∞

x(t − τ) h(τ) dτ

  • Both forms are called the convolution integral
  • This is often written as y(t) = x(t) ∗ h(t)
  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

23

slide-24
SLIDE 24

Intuition y(t) = x(t) ∗ h(t) = +∞

−∞

x(τ) h(t − τ) dτ

  • Key point: The system output at t is in response to all past and

present values of the input signal, not just at time t

  • Conceptually, you can think of convolution as weighted averaging
  • The signal x(t) is being averaged
  • The impulse response h(t) determines how it is weighted
  • Lowpass filters tend to have smooth, slowly varying weights
  • Highpass and bandpass filters tend to be oscillatory
  • J. McNames

Portland State University ECE 222 Convolution Integral

  • Ver. 1.68

24

slide-25
SLIDE 25

Summary h(t)

x(t) y(t)

y(t) = x(t)∗h(t) = +∞

−∞

x(t−τ) h(τ) dτ

  • The convolution integral describes how the output y(t) is related

to the input signal x(t) and the unit impulse h(t)

  • Only two assumptions were made about the system

– Linear – Time Invariant

  • Key points:

– The impulse response h(t) completely defines the behavior of continuous-time LTI systems – If h(t) is known, then the output of a continuous-time LTI system can be calculated for any input x(t) using the convolution integral
