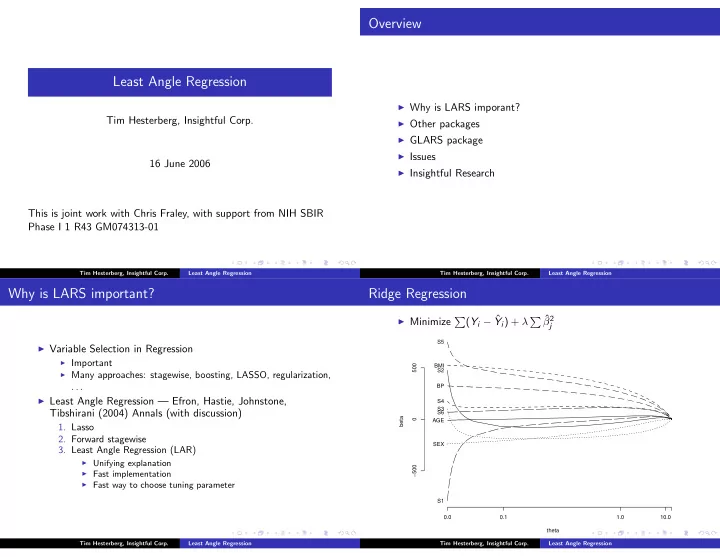

Least Angle Regression

Tim Hesterberg, Insightful Corp. 16 June 2006 This is joint work with Chris Fraley, with support from NIH SBIR Phase I 1 R43 GM074313-01

Tim Hesterberg, Insightful Corp. Least Angle Regression

Overview

◮ Why is LARS imporant? ◮ Other packages ◮ GLARS package ◮ Issues ◮ Insightful Research

Tim Hesterberg, Insightful Corp. Least Angle Regression

Why is LARS important?

◮ Variable Selection in Regression

◮ Important ◮ Many approaches: stagewise, boosting, LASSO, regularization,

. . .

◮ Least Angle Regression — Efron, Hastie, Johnstone,

Tibshirani (2004) Annals (with discussion)

• 1. Lasso
• 2. Forward stagewise
• 3. Least Angle Regression (LAR)

◮ Unifying explanation ◮ Fast implementation ◮ Fast way to choose tuning parameter Tim Hesterberg, Insightful Corp. Least Angle Regression

Ridge Regression

◮ Minimize (Yi − ˆ

Yi) + λ ˆ β2

j

theta beta −500 500 0.0 0.1 1.0 10.0 AGE SEX BMI BP S1 S2 S3 S4 S5 S6 Tim Hesterberg, Insightful Corp. Least Angle Regression

LASSO

◮ Minimize (Yi − ˆ

Yi) + λ |ˆ βj|

◮ Forces small coefficients → 0; gives simpler models. ◮ Smaller penalty on large coefficients: less effect on important

terms

◮ Implementation is more complicated and slower

sum( |beta| ) Standardized Coefficients 1000 2000 3000 −500 500

LASSO

AGE SEX BMI BP S1 S2 S3 S4 S5 S6

sum( |beta| ) Standardized Coefficients 1000 2000 3000 −500 500

Ridge Regression

AGE SEX BMI BP S1 S2 S3 S4 S5 S6

Tim Hesterberg, Insightful Corp. Least Angle Regression

Forward Stagewise Regression

(Forward Stagewise = Least Squares Boosting)

• 1. Initialize: standardize predictors, center y,

r = y, β1 = . . . = βp = 0

• 2. Repeat many times

◮ Find the predictor xj most correlated with r ◮ δ = ǫsign(r · xj) ◮ ˆ

βj ← ˆ βj + δ

◮ r ← r − δxj Tim Hesterberg, Insightful Corp. Least Angle Regression

Forward Stagewise and LASSO

March 2003 Trevor Hastie, Stanford Statistics 6

✬ ✫ ✩ ✪

Prostate Cancer Data

0.0 0.5 1.0 1.5 2.0 2.5

• 0.2

0.0 0.2 0.4 0.6 lcavol lweight age lbph svi lcp gleason pgg45 50 100 150 200 250

• 0.2

0.0 0.2 0.4 0.6 lcavol lweight age lbph svi lcp gleason pgg45

t =

j |βj|

Coefficients Coefficients

Lasso Forward Stagewise

Iteration

Tim Hesterberg, Insightful Corp. Least Angle Regression

Similarity:

Are LASSO and infinitesimal forward stagewise identical?

◮ With orthogonal predictors, yes. ◮ Otherwise similar.

Least Angle Regression provides explanation, and fast implementation.

Tim Hesterberg, Insightful Corp. Least Angle Regression

Stepwise, Forward Stagewise, Least Angle

Stepwise regression:

◮ Pick predictor most correlated with y ◮ Bring predictor completely into model (full LS

fit) Forward stagewise:

◮ Pick predictor most correlated with y ◮ Increment coefficient for predictor

Least Angle Regression:

◮ Pick predictor most correlated with y ◮ Bring predictor into model only to extent it is

better than others

◮ Move in least-squares direction until another

variable is as correlated

Tim Hesterberg, Insightful Corp. Least Angle Regression

Least Angle Regression

O X2 X1 A B C D E

C = projection of y onto space spanned by X1 and X2. B = first step for least-angle regression E = point on stagewise path

Tim Hesterberg, Insightful Corp. Least Angle Regression

LARS - other packages

lars : Efron and Hastie (S-PLUS and R)

◮ Linear regression

glmpath : Park and Hastie (R)

◮ GLM and Cox Proportional Hazards

Methods: plot, print, predict, cv, coef

Tim Hesterberg, Insightful Corp. Least Angle Regression

S+GLARS

◮ S-PLUS and R, open source

◮ Incorporate lars, glmpath ◮ Cleanup, consistent interface ◮ Incorporate future work by others; provide framework

◮ Extensions

◮ Numerically-accurate calculations ◮ Factors, splines, polynomials, interactions, . . . ◮ Other models (robust regression, . . . ), other penalties ◮ Missing data ◮ Massive data sets ◮ Diagnostics, tools for selecting tuning parameter

◮ User-friendly

◮ Consistent interface ◮ GUI ◮ Documentation Tim Hesterberg, Insightful Corp. Least Angle Regression

Issues

◮ Money

◮ NIH funding: require commercial potential ◮ Insightful: indirect benefit

◮ Outside contributors ◮ Licensing; ability to ship with S-PLUS, I-Miner.

Tim Hesterberg, Insightful Corp. Least Angle Regression

Insightful Research Department

◮ Turn research into software for wide use

◮ Higher standards than academic software (ease of use,

robustness, testing)

◮ Collaboration ◮ Variety: resampling, missing data, group sequential designs,

simulation-based econometric software, functional data, stable distributions, proteomics, microarrays, frailty models, causal modeling

◮ External funding — SBIR grants (NIH, NSF, . . . )

◮ Somewhat easier funding ◮ Commercial potential ◮ Risk, research element

◮ We’re hiring ◮ We’re looking for good projects and collaborators

Tim Hesterberg, Insightful Corp. Least Angle Regression
