Evolving Technique: Outcomes of Spine Surgery Fusion and the Use off BMP-2: Facts and Fiction Scott D. Boden, MD The Emory Orthopaedics & Spine Center Disclosures Past (before 2008) Consultant (Medtronic, Osteotech,

slide-1

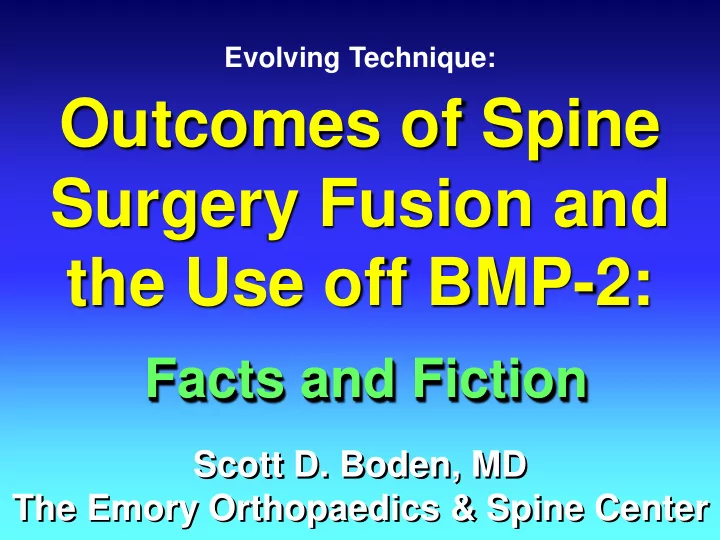

SLIDE 1

Facts and Fiction

Outcomes of Spine Surgery Fusion and the Use off BMP-2:

Scott D. Boden, MD The Emory Orthopaedics & Spine Center

Evolving Technique:

slide-2
SLIDE 2

Disclosures

฀ Past (before 2008)

฀ Consultant (Medtronic, Osteotech,

Sulzer/Zimmer)

฀ Royalties (Osteotech) ฀ IP/Patents (Medtronic)

฀ Current

฀ Royalties (Medtronic– DBM) ฀ IP (Emory/SkelRegen- Sm Mol) ฀ Consultant (SeaSpine, Bone Biologics

Corporation)

slide-3
SLIDE 3

Off-Label Warning

฀ BMP-2 is approved for

ALIF with some cages and

  • pen long bone Fx

฀ All other applications

shown and discussed are

  • ff-label (physician

directed)

slide-4
SLIDE 4

Spine Fusion: A Clinical Problem

฀ 1,000,000 BG procedures / year ฀ 50% spine fusion ฀ 5 - 40% nonunion ฀ 10-25% morbidity graft harvest ฀ Biology poorly understood

slide-5
SLIDE 5
slide-6
SLIDE 6

BMP: The Osteoinductive Principle

Rat ectopic implant assay

Bone formation 14 days post-implantation of rhBMP-2/ACS

Physiologic bone in an ectopic location – NOT ectopic bone… stupid (H. Reddi)

slide-7
SLIDE 7

Conduction vs Induction

Transverse Process

Ceramic without BMP Ceramic with BMP

slide-8
SLIDE 8

Healing Is Species Specific R Ra at t 0. .0 02 2 2 2-

  • 3

3 w wk ks s R Ra ab bb bi it t 0. .0 05 5 3 3-

  • 4

4 w wk ks s D Do

  • g

g 0. .3 35 5 6 6-

  • 8

8 w wk ks s M Mo

  • n

nk ke ey y 1 1. .5 50 3 3-

  • 5

5 m mo

  • s

s H Hu um ma an n 1 1. .5 5-

  • 2

2. .0 3 3-

  • 6

6 m mo

  • s

s

mg/cc Time

slide-9
SLIDE 9

Autograft x 5 wk

slide-10
SLIDE 10

rhBMP-2 Collagen

slide-11
SLIDE 11
slide-12
SLIDE 12

Rhesus NeOsteo 10 mg x 12 wk

slide-13
SLIDE 13

Rhesus NeOsteo 10 mg x 24 wk

slide-14
SLIDE 14

Pilot III - Patient #7 (25 mg + LB)

3m 24m 12m 6m

slide-15
SLIDE 15

InFUSE™ Bone Graft/LT-CAGE™ Clinical Study Results

InFUSE™ rhBMP-2 ACS absorbable collagen sponge Tapered fusion cage

Boden, Zdeblick, Sandhu, and Heim, Spine, 2000

slide-16
SLIDE 16
slide-17
SLIDE 17

Pivotal ALIF Trials - BMP-2: CT scan Fusion Results (2yr)

฀99.8% InFuse/LT cage Open ฀97.8% InFuse/LT cage Lap

slide-18
SLIDE 18
slide-19
SLIDE 19

ACS carrier limitations

ACS is a good carrier when protected from compression Future use of ACS in applications under compression require “bulking agents”

slide-20
SLIDE 20

Use of Recombinant Human Bone Morphogenetic Protein-2 as an Adjunct in Posterolateral Lumbar Spine Fusion:

A Prospective CT-Scan Analysis at One and Two Years Kern Singh MD, Joseph Smucker MD, Scott D. Boden MD

The Emory Spine Center Department of Orthopaedic Surgery Emory University School of Medicine

slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23

Arthrodesis Success Rate (CT Scan)

฀ Adjunctive rhBMP-2

฀ 96.9% fusion rate (124/128 levels) ฀ 93.8% Definite fusion

฀ ICBG alone

฀ 77.3% fusion rate (34/44 levels) ฀ 45.5% Definite Fusion

slide-24
SLIDE 24

6 months 12 months 24 months

ICBG and rhBMP-2

slide-25
SLIDE 25

Arthrodesis Success Rate (CT)

฀ rhBMP-2 + LOCAL BONE GRAFT

฀ 98.0% fusion rate (44/49 levels) ฀ 89.8% Definite fusion

฀ rhBMP-2 + ICBG

฀ 96.9% fusion rate (124/128 levels) ฀ 93.8% Definite fusion

฀ ICBG alone

฀ 77.3% fusion rate (34/44 levels) ฀ 45.5% Definite Fusion

slide-26
SLIDE 26

LBG and rhBMP-2

6 months 12 months 24 months

slide-27
SLIDE 27

BMP Local Side Effects

฀ Seroma/ Edema

฀ ACDF, PLF, PLIF, TLIF

฀ Bone Formation in track

฀ PLIF ฀ TLIF

฀ Transient Bone Resorption

฀ Interbody

slide-28
SLIDE 28
slide-29
SLIDE 29

BMP Local Side Effects

฀ Seroma/ Edema

฀ ACDF, PLF, PLIF, TLIF

฀ Bone Formation in track

฀ PLIF ฀ TLIF

฀ Transient Bone Resorption

฀ Interbody

slide-30
SLIDE 30

InFUSE™ Bone Graft/Bone Dowel Serial CT Review

Right Dowel Left Dowel Coronal View

slide-31
SLIDE 31
slide-32
SLIDE 32

BMP-Induced Radiculitis

฀ Most commonly reported

with TLIF (also endplate resorption – self limited

฀ 5-20% (not dose related) ฀ ?Combination of root

distraction + BMP?

฀ No evidence in PL Fusions

slide-33
SLIDE 33

BMP + Retrograde Ejaculation

฀ Most commonly reported

with laparoscopic ALIF

฀ 1-4% ฀ ? unclear mechanism ฀ Studies support and

refute, mostly refuted

slide-34
SLIDE 34

Pooled Results Cancer Risk (Percent)

1 2 3 4 5 6 7

Medtronic Wyeth Total

BMP-2 Control

p = 0.11 p = 0.95 p = 0.17

slide-35
SLIDE 35

Cancer Risk from BMP Exposure in Spinal Fusion

slide-36
SLIDE 36

Cancer Risk from BMP Exposure in Spinal Fusion

slide-37
SLIDE 37

Relative Risk – BMP to Control

Lower Risk Higher Risk

slide-38
SLIDE 38

Meta-Analysis BMP Fusions

Location Control BMP-2 Delta

Indicated?

ACDF (2+) 85.8 95.4 9.6% YES- 2+ ALIF 79.1 88.0 96.9 97.8 17.8% 9.8% ? TLIF 93.0 89.5 95.0 95.7 2.0% 6.2% NO PLF 75.3 83.1 95.2 93.6 19.9% 10.5% YES

2016 J Neurosurg Spine Hofstetter CP, Hofer AS, Levi AD (n=5890) 2015 Spine Galimbert F, Lubelski D, Healy AT et al (n=1794)

slide-39
SLIDE 39

rhBMP-2 Limitations

฀ Expensive ($5-7k/dose) ฀ Only approved for limited

use (so most off-label)

฀ Local Side Effects ฀ ? Cancer

slide-40
