OSMOSIS and DIFFUSION Concentration gradient Concentration Gradient - - PowerPoint PPT Presentation

OSMOSIS and DIFFUSION Concentration gradient Concentration Gradient - change in the concentration of a substance from one area to another. Molecules are always moving Molecules move randomly and bump into each other and other barriers


slide-1
SLIDE 1

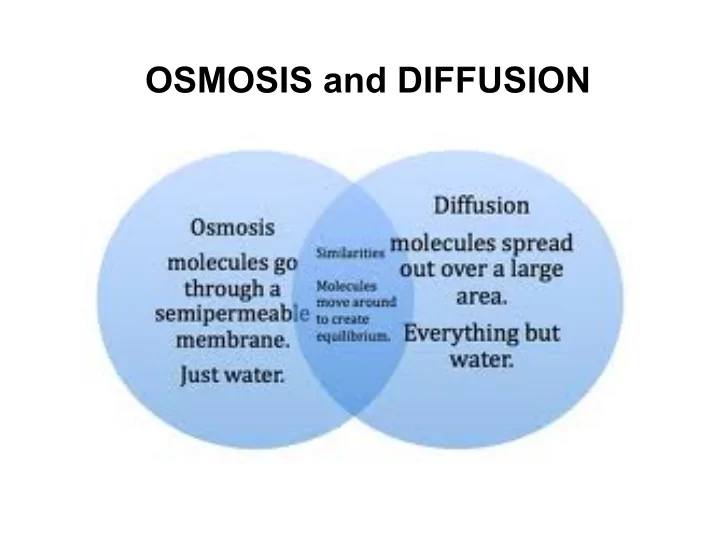

OSMOSIS and DIFFUSION

slide-2
SLIDE 2

Concentration gradient

Concentration Gradient - change in the concentration of a substance from one area to another.

slide-3
SLIDE 3

Molecules are always moving

Molecules move randomly and bump into each other and other barriers

slide-4
SLIDE 4

Molecules in solution tend to slowly spread apart over time. This is diffusion.

Diffusion

slide-5
SLIDE 5

Diffusion

  • Movement of molecules from an area of high

concentration to an area of lower concentration.

  • Factors that affect the rate of diffusion:

size of molecules, size

  • f

pores in membrane, temperature, pressure, and concentration.

slide-6
SLIDE 6

Diffusion [High] [Low]

concentrated, high energy molecules diffuse, low energy molecules

slide-7
SLIDE 7

Diffusion will continue until equilibrium is reached. This means there will be an equal distribution

  • f

molecules throughout the space. This is why food coloring moves throughout a beaker of water; why odors smell strong at first and then disappear over time. Equilibrium, a result of diffusion, shows the uniform distribution of molecules of different substances over time as indicated in the above diagram.

slide-8
SLIDE 8

Osmosis

  • Osmosis is the movement of WATER across a

semi-permeable membrane

  • At first the concentration of solute is very high on

the left.

  • But over time, the water moves across the semi-

permeable membrane and dilutes the particles.

slide-9
SLIDE 9
slide-10
SLIDE 10

Osmosis – A Special kind of Diffusion

Diffusion of water across a selectively permeable membrane (a barrier that allows some substances to pass but not others). The cell membrane is such a barrier. Small molecules pass through – ex: water Large molecules can’t pass through – ex: proteins and complex carbohydrates

slide-11
SLIDE 11

Isotonic Solutions: If the concentration of solute (salt) is equal on both sides, the water will move back and forth but it won't have any result on the overall amount of water on either side. "ISO" means the same.

slide-12
SLIDE 12

Hypotonic Solutions: The word "HYPO" means less, in this case there are less solute (salt) molecules outside the cell, since salt sucks, water will move into the cell. The cell will gain water and grow larger.

slide-13
SLIDE 13

Hypertonic Solutions: The word "HYPER" means more, in this case there are more solute (salt) molecules outside the cell, which causes the water to be sucked in that direction. This is why it is dangerous to

drink sea water - people marooned at sea will speed up dehydration (and death) by drinking sea water. This is also why "salting fields" was a common tactic during war, it would kill the crops in the field, thus causing food shortages.
