NEW CIRCULATION ! & GATHERING ! NEW GYMNASIUM ! ~ 2,915 SQ. FT. ~ 5,894 SQ. FT. EAST ELEVATION NEW GYMNASIUM ! ~ 5,894 SQ. FT. NEW CIRCULATION ! 33'-2" & GATHERING ! ~ 2,915 SQ. FT. NEW WASHROOMS & ! 24'-6" CHANGE ROOMS

slide-1

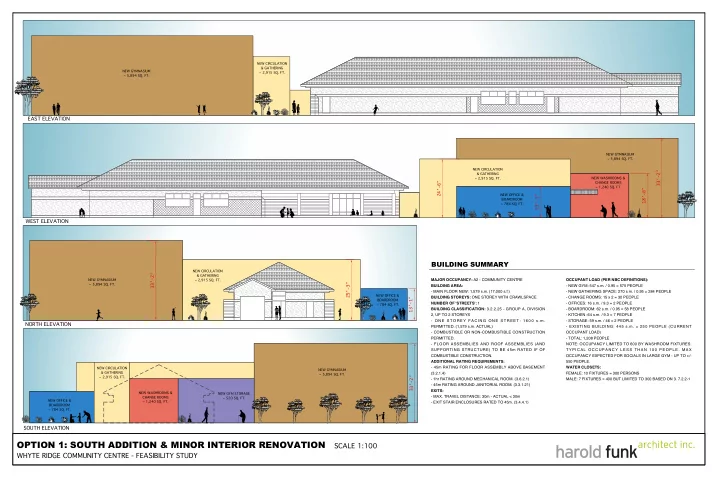

SLIDE 1

WHYTE RIDGE COMMUNITY CENTRE - FEASIBILITY STUDY

OPTION 1: SOUTH ADDITION & MINOR INTERIOR RENOVATION

SCALE 1:100

33'-2" 25'-3" 13'-1" 33'-2" 33'-2" 18'-6" 13'-1" 24'-6"

NORTH ELEVATION SOUTH ELEVATION WEST ELEVATION EAST ELEVATION

NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW WASHROOMS &! CHANGE ROOMS! ~ 1,240 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 784 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW GYM STORAGE ! ~ 520 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW WASHROOMS &! CHANGE ROOMS! ~ 1,240 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 784 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 784 SQ. FT.

BUILDING SUMMARY

OCCUPANT LOAD (PER NBC DEFINITIONS):

  • NEW GYM: 547 s.m. / 0.95 = 575 PEOPLE
  • NEW GATHERING SPACE: 270 s.m. / 0.95 = 284 PEOPLE
  • CHANGE ROOMS: 15 x 2 = 30 PEOPLE
  • OFFICES: 16 s.m. / 9.3 = 2 PEOPLE
  • BOARDROOM: 62 s.m. / 0.95 = 58 PEOPLE
  • KITCHEN: 64 s.m. / 9.3 = 7 PEOPLE
  • STORAGE: 59 s.m. / 46 = 2 PEOPLE
  • EXISTING BUILDING: 445 s.m. = 250 PEOPLE (CURRENT

OCCUPANT LOAD)

  • TOTAL: 1,208 PEOPLE

NOTE: OCCUPANCY LIMITED TO 600 BY WASHROOM FIXTURES. T Y P I C A L O C C U P A N C Y L E S S T H A N 1 0 0 P E O P L E . M A X OCCUPANCY EXPECTED FOR SOCIALS IN LARGE GYM - UP TO +/- 550 PEOPLE. WATER CLOSETS: FEMALE: 10 FIXTURES = 300 PERSONS MALE: 7 FIXTURES = 400 BUT LIMITED TO 300 BASED ON 3. 7.2.2-1 MAJOR OCCUPANCY: A2 - COMMUNITY CENTRE BUILDING AREA:

  • MAIN FLOOR NEW: 1,579 s.m. (17,000 s.f.)

BUILDING STOREYS: ONE STOREY WITH CRAWLSPACE NUMBER OF 'STREETS': 1 BUILDING CLASSIFICATION: 3.2.2.25 - GROUP A, DIVISION 2, UP TO 2 STOREYS

  • O N E S T O R E Y F A C I N G O N E S T R E E T : 1 6 0 0 s . m .
  • PERMITTED. (1,579 s.m. ACTUAL)
  • COMBUSTIBLE OR NON-COMBUSTIBLE CONSTRUCTION

PERMITTED.

  • FLOOR ASSEMBLIES AND ROOF ASSEMBLIES (AND

SUPPORTING STRUCTURE) TO BE 45m RATED IF OF COMBUSTIBLE CONSTRUCTION. ADDITIONAL RATING REQUIREMENTS:

  • 45m RATING FOR FLOOR ASSEMBLY ABOVE BASEMENT

(3.2.1.4)

  • 1hr RATING AROUND MECHANICAL ROOM. (3.6.2.1)
  • 45m RATING AROUND JANITORIAL ROOM. (3.3.1.21)

EXITS:

  • MAX. TRAVEL DISTANCE: 30m - ACTUAL < 30m
  • EXIT STAIR ENCLOSURES RATED TO 45m. (3.4.4.1)
slide-2
SLIDE 2

SL

E

WHYTE RIDGE COMMUNITY CENTRE - FEASIBILITY STUDY

OPTION 1: SOUTH ADDITION & MINOR INTERIOR RENOVATION SCALE 1:200

10' SIDE YARD SET BACK 10' SIDE YARD SET BACK 10' SIDE YARD SET BACK 20' FRONT YARD SET BACK 20' FRONT YARD SET BACK

NEW SQ. FT.: ~12,174! TOTAL SQ. FT.: ~17,200

EXISTING OUTDOOR BASKETBALL COURT CANADIAN PACIFIC RAILWAY CORRIDOR CANADIAN PACIFIC RAILWAY CORRIDOR FLEETWOOD ROAD FLEETWOOD ROAD CLOVERWOOD ROAD NEIGHBOURS CLOVERWOOD ROAD NEIGHBOURS CLOVERWOOD ROAD NEIGHBOURS EXISTING HOCKEY RINK EXISTING HOCKEY RINK EXISTING PLEASURE ! SKATING RINK

EXISTING TRANSFORMER

N

NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW KITCHEN / BAR /! CANTEEN / PANTRY! ~ 689 SQ. FT. NEW WASHROOMS &! CHANGE ROOMS! ~ 1,240 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 784 SQ. FT. NEW GYM ! STORAGE! ~ 520 SQ. FT. NEW STORAGE! ~ 116 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT.

NEW STORAGE! ~ 38 SQ. F.T NEW UNIVERSAL ! WASHROOM! ~ 81 SQ. FT. EXISTING EXTERIOR WALKWAY TO ! BE CLOSED IN TO CREATE ACCESS ! INTO THE EXISTING BUILDING

LEGEND

EXISTING BUILDING NEW STORAGE AREAS NEW WASHROOM / ! DRESSING ROOM NEW KITCHEN / CANTEEN / ! BAR / PANTRY NEW OFFICE / BOARDROOM! & MULTI-PURPOSE ROOM NEW CIRCULATION & ! GATHERING SPACE NEW GYMNASIUM

slide-3
SLIDE 3

NORTH ELEVATION SOUTH ELEVATION WEST ELEVATION EAST ELEVATION

BUILDING SUMMARY

OCCUPANT LOAD (PER NBC DEFINITIONS):

  • NEW GYM: 515 s.m. / 0.95 = 542 PEOPLE
  • GATHERING SPACE: 74 s.m. / 0.95 = 78 PEOPLE
  • CHANGE ROOMS: 15 x 2 = 30 PEOPLE
  • MINI-GYM: 116 s.m. / 0.95 = 122 PEOPLE
  • OFFICES: 15 s.m. / 9.3 = 2 PEOPLE
  • BOARDROOM: 47 s.m. / 0.95 = 50 PEOPLE
  • KITCHEN: 51 s.m. / 9.3 = 6 PEOPLE
  • STORAGE: 76 s.m. / 46 = 2 PEOPLE
  • BASEMENT CHANGE ROOMS: 52 PEOPLE
  • BASEMENT STORAGE: 85.5 s.m. / 46 = 2 PEOPLE
  • TOTAL: 1,401 PEOPLE

NOTE: OCCUPANCY LIMITED TO 600 BY WASHROOM FIXTURES. T Y P I C A L O C C U P A N C Y L E S S T H A N 1 0 0 P E O P L E . M A X OCCUPANCY EXPECTED FOR SOCIALS IN LARGE GYM - UP TO +/- 550 PEOPLE. WATER CLOSETS: FEMALE: 10 FIXTURES = 300 PERSONS MALE: 7 FIXTURES = 400 BUT LIMITED TO 300 BASED ON 3. 7.2.2-1 MAJOR OCCUPANCY: A2 - COMMUNITY CENTRE BUILDING AREA:

  • MAIN FLOOR: 1,583 s.m. (17,050 s.f.)

BUILDING STOREYS: ONE STOREY NUMBER OF 'STREETS': 1 BUILDING CLASSIFICATION: 3.2.2.25 - GROUP A, DIVISION 2, UP TO 2 STOREYS

  • O N E S T O R E Y F A C I N G O N E S T R E E T : 1 6 0 0 s . m .
  • PERMITTED. (1,583 s.m. ACTUAL)
  • COMBUSTIBLE OR NON-COMBUSTIBLE CONSTRUCTION

PERMITTED.

  • FLOOR ASSEMBLIES AND ROOF ASSEMBLIES (AND

SUPPORTING STRUCTURE) TO BE 45m RATED IF OF COMBUSTIBLE CONSTRUCTION. ADDITIONAL RATING REQUIREMENTS:

  • 1hr RATING AROUND MECHANICAL ROOM. (3.6.2.1)
  • 45m RATING AROUND JANITORIAL ROOM. (3.3.1.21)

EXITS:

  • MAX. TRAVEL DISTANCE: 30m - ACTUAL < 30m

WHYTE RIDGE COMMUNITY CENTRE - FEASIBILITY STUDY

OPTION 2: WEST ADDITION & MINOR INTERIOR RENOVATION

SCALE 1:100

32'-11" 13'-1" 18'-7" 32'-11" 32'-11" 25'-5"

slide-4
SLIDE 4

SL

E

EXISTING OUTDOOR BASKETBALL COURT CANADIAN PACIFIC RAILWAY CORRIDOR CANADIAN PACIFIC RAILWAY CORRIDOR FLEETWOOD ROAD FLEETWOOD ROAD CLOVERWOOD ROAD NEIGHBOURS CLOVERWOOD ROAD NEIGHBOURS CLOVERWOOD ROAD NEIGHBOURS EXISTING HOCKEY RINK EXISTING HOCKEY RINK EXISTING PLEASURE ! SKATING RINK

EXISTING TRANSFORMER

N

LEGEND

EXISTING BUILDING NEW STORAGE AREAS NEW WASHROOM / ! DRESSING ROOM NEW KITCHEN / CANTEEN / ! BAR / PANTRY NEW OFFICE / BOARDROOM! & MULTI-PURPOSE ROOM NEW CIRCULATION & ! GATHERING SPACE NEW GYMNASIUM

NEW GYMNASIUM! ~ 5,563 SQ. FT. NEW KITCHEN / BAR /! CANTEEN / PANTRY! ~ 460 SQ. FT. NEW WASHROOMS ! ~ 640 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 815 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 4,120 SQ. FT. NEW ! CHANGE ROOMS! ~ 502 SQ. FT. NEW ! GYM STORAGE! ~ 275 SQ. FT. NEW ! UTILITY ROOM! ~ 520 SQ. FT.

NEW STORAGE! ~ 38 SQ. F.T NEW UNIVERSAL ! WASHROOM! ~ 81 SQ. FT. EXISTING EXTERIOR WALKWAY TO ! BE CLOSED IN TO CREATE ACCESS ! INTO THE EXISTING BUILDING NEW JANITORS ROOM! ~ 78 SQ. F.T RENOVATED STORAGE! ~ 115 SQ. F.T RENOVATED SKATE SHARPENING! ~ 88 SQ. F.T EXISTING PARKING

PARKING LOT REVISIONS (STALL COUNT AND LAYOUT) TO BE BASED ON SELECTED SCHEME AND AREA PARKING LOT REVISIONS (STALL COUNT AND LAYOUT) TO BE BASED ON SELECTED SCHEME AND AREA

EXISTING PARKING EXISTING PARKING EXISTING PARKING

NEW SQ. FT.: ~ 12,965! TOTAL SQ. FT.: ~ 17,050 WHYTE RIDGE COMMUNITY CENTRE - FEASIBILITY STUDY

OPTION 2: WEST ADDITION & INTERIOR RENOVATION

10' SIDE YARD SET BACK 10' SIDE YARD SET BACK 10' SIDE YARD SET BACK 20' FRONT YARD SET BACK 20' FRONT YARD SET BACK

slide-5
SLIDE 5

NORTH ELEVATION SOUTH ELEVATION WEST ELEVATION EAST ELEVATION

NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW WASHROOMS & CHANGE ROOMS! ~ 1,240 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 784 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW GYM STORAGE ! ~ 520 SQ. FT. NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW WASHROOMS & CHANGE ROOMS! ~ 1,240 SQ. FT. NEW OFFICE &! BOARDROOM! ~ 784 SQ. FT. NEW WASHROOMS & CHANGE ROOMS! ~ 1,240 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT. NEW GYM STORAGE ! ~ 520 SQ. FT. NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT.

BUILDING SUMMARY

OCCUPANT LOAD (PER NBC DEFINITIONS):

  • NEW GYM: 515 s.m. / 0.95 = 542 PEOPLE
  • GATHERING SPACE: 128 s.m. / 0.95 = 135 PEOPLE
  • CHANGE ROOMS: 55 = 55 PEOPLE
  • OFFICES: 13 s.m. / 9.3 = 2 PEOPLE
  • BOARDROOM: 42 s.m. / 0.95 = 31 PEOPLE
  • KITCHEN: 61 s.m. / 9.3 = 7 PEOPLE
  • STORAGE: 33 s.m. / 46 = 1 PERSON
  • EXISTING BUILDING: 445 s.m. = 250 PEOPLE (CURRENT

OCCUPANT LOAD)

  • TOTAL: 1,023 PEOPLE

NOTE: OCCUPANCY LIMITED TO 600 BY WASHROOM FIXTURES. T Y P I C A L O C C U P A N C Y L E S S T H A N 1 0 0 P E O P L E . M A X OCCUPANCY EXPECTED FOR SOCIALS IN LARGE GYM - UP TO +/- 550 PEOPLE. WATER CLOSETS: FEMALE: 10 FIXTURES = 300 PERSONS MALE: 7 FIXTURES = 400 BUT LIMITED TO 300 BASED ON 3. 7.2.2-1 MAJOR OCCUPANCY: A2 - COMMUNITY CENTRE BUILDING AREA:

  • MAIN FLOOR: 1,407 s.m. (15,152 s.f.)

BUILDING STOREYS: ONE STOREY NUMBER OF 'STREETS': 1 BUILDING CLASSIFICATION: 3.2.2.25 - GROUP A, DIVISION 2, UP TO 2 STOREYS

  • O N E S T O R E Y F A C I N G O N E S T R E E T : 1 6 0 0 s . m .
  • PERMITTED. (1,407 s.m. ACTUAL)
  • COMBUSTIBLE OR NON-COMBUSTIBLE CONSTRUCTION

PERMITTED.

  • FLOOR ASSEMBLIES AND ROOF ASSEMBLIES (AND

SUPPORTING STRUCTURE) TO BE 45m RATED IF OF COMBUSTIBLE CONSTRUCTION. ADDITIONAL RATING REQUIREMENTS:

  • 1hr RATING AROUND MECHANICAL ROOM. (3.6.2.1)
  • 45m RATING AROUND JANITORIAL ROOM. (3.3.1.21)

EXITS:

  • MAX. TRAVEL DISTANCE: 30m - ACTUAL < 30m
  • EXIT STAIR ENCLOSURES RATED TO 45m. (3.4.4.1)

WHYTE RIDGE COMMUNITY CENTRE - FEASIBILITY STUDY

OPTION 3: SOUTH ADDITION & MINOR INTERIOR RENOVATION

SCALE 1:100

33'-2" 18'-6" 33'-2" 13'-1" 33'-2" 25'-3" 18'-6"

slide-6
SLIDE 6

SL

E

EXISTING OUTDOOR BASKETBALL COURT CANADIAN PACIFIC RAILWAY CORRIDOR CANADIAN PACIFIC RAILWAY CORRIDOR FLEETWOOD ROAD FLEETWOOD ROAD CLOVERWOOD ROAD NEIGHBOURS CLOVERWOOD ROAD NEIGHBOURS CLOVERWOOD ROAD NEIGHBOURS EXISTING HOCKEY RINK EXISTING HOCKEY RINK EXISTING PLEASURE ! SKATING RINK

EXISTING TRANSFORMER

N

NEW SQ. FT.: ~ 10,362! TOTAL SQ. FT.: ~ 15,152

NEW GYMNASIUM! ~ 5,894 SQ. FT. NEW KITCHEN / BAR /! CANTEEN / PANTRY! ~ 650 SQ. FT. NEW WASHROOMS ! ~ 638 SQ. FT. NEW GYM ! STORAGE! ~ 316 SQ. FT. NEW JANITOR ROOM! ~ 50 SQ. FT. NEW CIRCULATION! & GATHERING ! ~ 2,915 SQ. FT.

NEW STORAGE! ~ 38 SQ. F.T NEW UNIVERSAL ! WASHROOM! ~ 81 SQ. FT. EXISTING EXTERIOR WALKWAY TO ! BE CLOSED IN TO CREATE ACCESS ! INTO THE EXISTING BUILDING

NEW OFFICE & BOARDROOM! ~ 454 SQ. FT. NEW CHANGE ! ROOMS ! ~ 592 SQ. FT.

LEGEND

EXISTING BUILDING NEW STORAGE AREAS NEW WASHROOM / ! DRESSING ROOM NEW KITCHEN / CANTEEN / ! BAR / PANTRY NEW OFFICE / BOARDROOM! & MULTI-PURPOSE ROOM NEW CIRCULATION & ! GATHERING SPACE NEW GYMNASIUM

EXISTING PARKING

PARKING LOT REVISIONS (STALL COUNT AND LAYOUT) TO BE BASED ON SELECTED SCHEME AND AREA PARKING LOT REVISIONS (STALL COUNT AND LAYOUT) TO BE BASED ON SELECTED SCHEME AND AREA

EXISTING PARKING EXISTING PARKING EXISTING PARKING

WHYTE RIDGE COMMUNITY CENTRE - FEASIBILITY STUDY

OPTION 3: SOUTH ADDITION & INTERIOR RENOVATION

10' SIDE YARD SET BACK 10' SIDE YARD SET BACK 10' SIDE YARD SET BACK 20' FRONT YARD SET BACK 20' FRONT YARD SET BACK
