slide-1
SLIDE 1

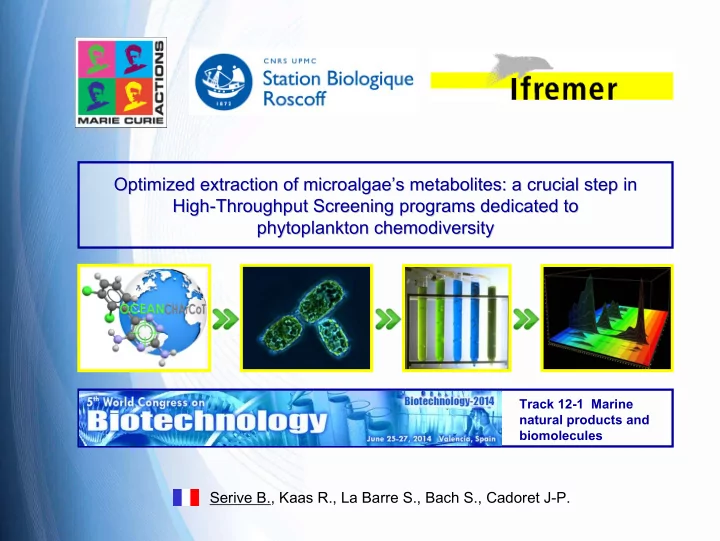

Optimized extraction of Optimized extraction of microalgae’s microalgae’s metabolites: a crucial step in metabolites: a crucial step in High High-

  • Throughput Screening programs dedicated to

Throughput Screening programs dedicated to phytoplankton phytoplankton chemodiversity chemodiversity

Track 12-1 Marine natural products and biomolecules

Serive B., Kaas R., La Barre S., Bach S., Cadoret J-P.

slide-2
SLIDE 2

2

  • Laboratory of Physiology and Biotechnology of Algae

Bioresources exploration

Van de Peer et al, 2000

Microalgaes: a high potential of biodiversity

slide-3
SLIDE 3
  • Laboratory of Physiology and Biotechnology of Algae

Microalgae biodiversity

Dunaliella salina

Source : IFREMER

slide-4
SLIDE 4
  • Laboratory of Physiology and Biotechnology of Algae

Rhodomonas salina

Source : IFREMER

Microalgae biodiversity

slide-5
SLIDE 5
  • Laboratory of Physiology and Biotechnology of Algae

Tetraselmis sp.

Source : IFREMER

Microalgae biodiversity

slide-6
SLIDE 6
  • Laboratory of Physiology and Biotechnology of Algae

Closterium baillyanum

Source : IFREMER

Microalgae biodiversity

slide-7
SLIDE 7
  • Laboratory of Physiology and Biotechnology of Algae

Euglena proxima

Source : IFREMER

Microalgae biodiversity

slide-8
SLIDE 8
  • Laboratory of Physiology and Biotechnology of Algae

Porphyridium purpureum

Source : IFREMER

Microalgae biodiversity

slide-9
SLIDE 9
  • Laboratory of Physiology and Biotechnology of Algae

Unknown cyanobacteria

Source : IFREMER

Microalgae biodiversity

slide-10
SLIDE 10
  • Laboratory of Physiology and Biotechnology of Algae

Arthrospira platensis

Source : IFREMER

Microalgae biodiversity

slide-11
SLIDE 11
  • Laboratory of Physiology and Biotechnology of Algae

Staurastrum vestitum

Microalgae biodiversity

slide-12
SLIDE 12
  • Laboratory of Physiology and Biotechnology of Algae

Chaetoceros muelleri

Source : gt-online.pl

Microalgae biodiversity

slide-13
SLIDE 13
  • Laboratory of Physiology and Biotechnology of Algae

Skeletonema costatum

Source : IFREMER

Microalgae biodiversity

slide-14
SLIDE 14
  • Laboratory of Physiology and Biotechnology of Algae

Asterionella formosa

Source : planktonforum.eu

Microalgae biodiversity

slide-15
SLIDE 15
  • Laboratory of Physiology and Biotechnology of Algae

Alexandrium minutum

Source : Gert Hansen

Microalgae biodiversity

slide-16
SLIDE 16
  • Laboratory of Physiology and Biotechnology of Algae

Microalgae biodiversity

slide-17
SLIDE 17

17

  • Laboratory of Physiology and Biotechnology of Algae

O CH

3

O N O O CH

3

O CH

3

CH

3

CH

3

CH

3

CH

3

H O H O

= Pharmacodiversity Chemodiversity Biodiversity =

12 phyla eucaryota 1 phylum procaryota Polyketides, terpenes, alkaloides, isoprenoids,

  • xylipins, peptides, macrolides, microlides,

lectines, glycolipids, polysaccharides, PUFAs, mycosporine-like AA, pigments Potential against cancers, Parkinson, Alzheimer, neurodegenerative diseases, bacterial and viral diseases, as immunostimulant, as fluorescent probes

slide-18
SLIDE 18

18

  • Laboratory of Physiology and Biotechnology of Algae

Lutein Zeaxanthin Landrum & Bone, 2001

Microalgae chemodiversity and pharmacodiversity

Anti Age-related Macular Degeneration

slide-19
SLIDE 19

19

  • Laboratory of Physiology and Biotechnology of Algae

Violaxanthine

Pasquet V., Morisset P., Ihammouine S., Chepied A., Aumailley L., Berard J-B., Serive B., Kaas R., Lanneluc I., Thiery V., Lafferriere M., Piot J-M., Patrice T., Cadoret J-P., Picot L., 2011. Antiproliferative activity of Violaxanthin isolated from bioguided fractionation of Dunaliella tertiolecta extracts. Marine Drugs, 9, 819-831.

Moreau et al, 2006 Fucoxanthine

  • O. aurita
  • D. tertiolecta

Microalgae chemodiversity and pharmacodiversity

slide-20
SLIDE 20

20

  • Laboratory of Physiology and Biotechnology of Algae

Mimouni et al, 2012. The Potential of Microalgae for the Production of Bioactive Molecules of Pharmaceutical Interest. Current Pharmaceutical Biotechnology 13(15): 2733-2750.

Microalgae chemodiversity and pharmacodiversity

Photoprotectant Photoprotectant Antiproliferative Antiproliferative activity activity

Usijirene Palythene Asterina-330 Mycosporine-glycine Palythine Palythenic acid Porphyra-334 Shinorine

Antioxidant Antioxidant

slide-21
SLIDE 21

21

  • Laboratory of Physiology and Biotechnology of Algae

For high-throughput screening of such metabolites, it is essential to reach the inner content of the cell.

Aims

A part of our project was the research and development of a technique enabling a high extraction yield of any metabolite, taking into account the difficulty of extracting bound and or inaccessible molecules with a wide variety of polarities. The challenge is therefore to identify molecules issued from this biodiversity which are often poorly known in terms of chemodiversity. The final aim is to compare without extraction bias the potential of microalgae.

slide-22
SLIDE 22

22

  • Laboratory of Physiology and Biotechnology of Algae

Choice of recalcitrant biological models

For the study of the chemodiversity extraction

Porphyridium purpureum Phaeodactylum tricornutum

Length : 5-8 µm Phylum : Rhodophyta Features :

  • Exopolysaccharides
  • Thick wall

Length : 3-4 x 15-20 µm Phylum : Ochrophyta Features :

  • Silica wall

15 µm

slide-23
SLIDE 23

23

  • Laboratory of Physiology and Biotechnology of Algae

Method Effectiveness Reproductibility Other considerations Soaking

  • Long processing

Cryogrinding

  • Liquid nitrogen handling require

Potter homogeniser

  • n.r.

Homogeniser +

  • Blade blunted by diatoms

Bead-beater +

  • Particles release

Planetary micro mill +++ +++ Particles release Sonication ++ + ROS release, hot spots Mixer mill – stainless steel jars + + n.r. Mixer mill – plastic grinding tube +++ +++ n.r.

→ → → → → → →

Chemodiversity extraction

→

Main studied parameters: Effectiveness (1-(recalcitrant cells/total)) Reproducibility Operating cost Temperature stability Easy to handling

Comparison of 9 disruption techniques

slide-24
SLIDE 24

24

  • Laboratory of Physiology and Biotechnology of Algae

Grinding optimisation on Retsch MM-400

Time (min) Weight (g) 5 10 15 20 25 30 35 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Weight (g) Time (min) 5 10 15 20 25 30 35 0.2 0.3 0.4 0.5 0.6 0.7 0.8

A B

+ +

Size classes: ( ) Fragments; ( ) Whole cells ; ( ) Agregates.

Optimisation of 3 studied variables by image analysis: creation of an index of desirability.

  • P. purpureum P. tricornutum

Optimum Grinding time : 27 min Beads weight : 0.92 g Optimum Grinding time : 30 min Beads weight : 0.24 g

Control Optimized grinding

50 µm 50 µm 50 µm 50 µm

  • P. Purpureum P. tricornutum

Control Optimized grinding

Isoresponses overlay Image analysis to evaluate acurately the particle size distribution Serive et al, 2012. Bioresource Technology 124

slide-25
SLIDE 25

25

  • Laboratory of Physiology and Biotechnology of Algae

→ In a total extract, we have different kind of molecules: Known by the scientific community and known by us Known somewhere in the world but unknown by our database Unknown by everyone → Isoplot absorbance metabolic snapshot because of the microalgae cellular plasticity

Total extract, chemodiversity and dereplication

SK(1,2,3) SK-R(1,2,3) L(1,2,3,4) 6 7 8 9 10 11 12 13 Score ROS

Isoplot absorbance

Time (min) Wavelenght (nm) Bioactivity for a same strain and different environmental conditions

slide-26
SLIDE 26

26

  • Laboratory of Physiology and Biotechnology of Algae

Methodology in the work flow

Metabolic snapshot Total extract Microalgae chemodiversity Efficient metabolite extraction OMICs studies ■ Genomic ■ Transcriptomic ■ Proteomic ■ Metabolomic ■ Pigmentomic Serive et al, 2012. Bioresource Technology 124

slide-27
SLIDE 27

27

  • Laboratory of Physiology and Biotechnology of Algae

Photomer project 1 2 3 4

Identify new photosensitizers from microalgae for PhotoDynamic Therapy

slide-28
SLIDE 28

28

  • Laboratory of Physiology and Biotechnology of Algae

45 microalgae strains composition → Spectral screening of interest in pharmacognosy. → High interest for oceanography applications.

Pigment analysis and spectral screening

Examples of original spectra from the following strains: A- Alexandrium minutum B- Alexandrium tamarense C- Chlorarachnion reptans D- Phaeodactylum tricornutum

A B C D

slide-29
SLIDE 29

29

  • Laboratory of Physiology and Biotechnology of Algae

OCEAN CHemodiversity Against Cell cycle Targets

Research of new marine inhibitors targeted against desease-relevant proteins kinases

slide-30
SLIDE 30

30

  • Laboratory of Physiology and Biotechnology of Algae

Bruker SolariX 12.0 Tesla FTMS

C A B

J-B Charcot

slide-31
SLIDE 31

31

  • Laboratory of Physiology and Biotechnology of Algae

Thank you for your attention

Contact: Benoit.Serive@live.fr
