OpenBSD: add VMM to packer The red pill taken to develop a Go plugin for packer.io to be able to create VM images on OpenBSD for VMM and many other virtualizers. Philipp Bhler <pb@sysfive.com> @pb_double sysfive.com portfolio

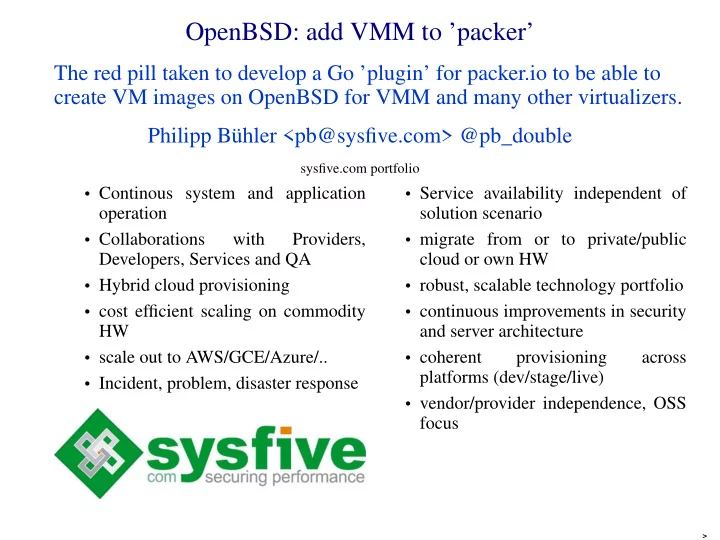

slide-1
SLIDE 1

OpenBSD: add VMM to ’packer’

The red pill taken to develop a Go ’plugin’ for packer.io to be able to create VM images on OpenBSD for VMM and many other virtualizers. Philipp Bühler <pb@sysfive.com> @pb_double

sysfive.com portfolio

  • Continous system and application
  • peration
  • Collaborations

with Providers, Developers, Services and QA

  • Hybrid cloud provisioning
  • cost efficient scaling on commodity

HW

  • scale out to AWS/GCE/Azure/..
  • Incident, problem, disaster response
  • Service availability independent of

solution scenario

  • migrate from or to private/public

cloud or own HW

  • robust, scalable technology portfolio
  • continuous improvements in security

and server architecture

  • coherent

provisioning across platforms (dev/stage/live)

  • vendor/provider independence, OSS

focus

>

slide-2
SLIDE 2

Philipp Bühler: OpenBSD VMM packer page 2: Opening I Lillehammer -- September 22nd, 2019

9:31:30

sysfive.com @EuroBSDcon 2019

Ze problems I tackle

  • VM guest keepers need bootable stuff
  • "infrastructure to go"
  • reproducibility
  • cross-host / virtualizer (OSX, OpenBSD, AWS / VirtualBox, VMM, AMI)

< >

slide-3
SLIDE 3

Philipp Bühler: OpenBSD VMM packer page 3: Overview I Lillehammer -- September 22nd, 2019

9:33:30

sysfive.com @EuroBSDcon 2019

Solutions / Approaches

  • my-imager.sh
  • curl github | sh
  • my-cold-hands ("VM guy is AWOL")
  • deploy.pl ;-)
  • packer (o’rly)

< >

slide-4
SLIDE 4

Philipp Bühler: OpenBSD VMM packer page 4: Introduction I Lillehammer -- September 22nd, 2019

9:36:30

sysfive.com @EuroBSDcon 2019

What’s packer anyway?

Packer is an open source tool for creating *identical* machine images for multiple platforms from a *single source* configuration. Packer is lightweight, runs on every major operating system, and is highly performant, creating machine images for multiple platforms *in parallel*. Packer does not replace configuration management like Chef or Puppet. In fact, when building images, Packer is able to use tools like Chef

  • r Puppet to install software onto the image.
  • written in golang
  • small core providing communications (rpc)
  • ev

erything else is a plugin (but linked into one binary)

  • configuration in one JSON file (+optional variables)

< >

slide-5
SLIDE 5

Philipp Bühler: OpenBSD VMM packer page 5: Introduction II Lillehammer -- September 22nd, 2019

9:38:30

sysfive.com @EuroBSDcon 2019

forms in the sandbox / Terminology

Artifacts Outcome of a "Build", e.g. AMI, .vmdk, .box Builds The actual running task producing above artifacts Builders Code to steer the VM host, handle disk images, etc (see below) Provisioners (optional) Additional treatment, installation goes here and range from simple inline shell scripts to full-blown ansible, Chef, .. Post-processors Treat the Artifacts after creation, e.g. compress, upload AWS, .. Templates The JSON files defining all of the above (and some) - NOT a VM "template"

< >

slide-6
SLIDE 6

Philipp Bühler: OpenBSD VMM packer page 6: Introduction III Lillehammer -- September 22nd, 2019

9:40:30

sysfive.com @EuroBSDcon 2019

Builders + Post-Provisioning

By default the following ‘‘builder’’ engines are supported. Where needed the accompaning ‘‘post-processor’’ is typically available, too (e.g. EC2/AMI upload): Alicloud ECS, Amazon EC2, Azure, CloudStack, DigitalOcean, Docker, File, Google Cloud, Hetzner Cloud, HyperOne, Hyper-V, Linode, LXC, LXD, NAVER Cloud, Null, 1&1, OpenStack, Oracle, Parallels, ProfitBricks, QEMU, Scaleway, Tencent Cloud, Triton, Vagrant, VirtualBox, VMware, Yandex.Cloud. Further ‘‘builders’’ can be found in the wild and are just added as a single go binary in certain paths (e.g. ˜/.packer.d/plugins/) By default additional provisioning support for the following tools: Ansible, Breakpoint, Chef, Converge, File, InSpec, PowerShell, Puppet, Salt Masterless, Shell.

< >

slide-7
SLIDE 7

Philipp Bühler: OpenBSD VMM packer page 7: Introduction IV Lillehammer -- September 22nd, 2019

9:43:30

sysfive.com @EuroBSDcon 2019

OpenBSD VMM

vmm(4) virtual machine monitor (VMM) providing the required resources for the VMs (CPU, Disk, Net) and handles the necessary memory mapping (isolation). vmd(8) userland daemon to interact with vmm(4) to create actual VMs and handle their lifecycle through: vmctl(8) administrative tool to create, start/stop, etc VMs. In this scope also the main ’interface’ for the packer builder plugin. vm.conf(5) configuration file for vmd(8), persist VM/network configurations. doas(1) While most tasks the ‘‘builder’’ can (and should!) run as unprivileged user, some commands need to be run as root. The plugin does so automatically. Caveat: needs ’nopass’ for now (no tty), ’persist’ typically timeouts too early.

< >

slide-8
SLIDE 8

Philipp Bühler: OpenBSD VMM packer page 8: Introduction V Lillehammer -- September 22nd, 2019

9:43:30

sysfive.com @EuroBSDcon 2019

OpenBSD dependencies / configuration

  • /etc/pf.conf:

1 pass in quick proto { udp tcp } from 100.64.0.0/10 to any port domain \ 2 rdr-to $dns_server port domain 3 pass out quick on $ext_if from 100.64.0.0/10 to any nat-to $ext_if

  • /etc/sysctl.conf

1 net.inet.ip.forwarding=1

  • vmd(8)

1 rcctl enable vmd 2 rcctl start vmd

< >

slide-9
SLIDE 9

Philipp Bühler: OpenBSD VMM packer page 9: Introduction VI Lillehammer -- September 22nd, 2019

9:44:30

sysfive.com @EuroBSDcon 2019

Enough Introduction..

Questions so far? Keep ’em until the end, way too big a stage here

< >

slide-10
SLIDE 10

Philipp Bühler: OpenBSD VMM packer page 10: Plugin development I Lillehammer -- September 22nd, 2019

9:46:30

sysfive.com @EuroBSDcon 2019

Plugin development

tools + space

  • pkg_add: golang, packer, git
  • $VISUAL / $EDITOR
  • diskspace: 1.5G go-dependencies + generated images/diskfiles

directory layout

  • / - Makefile, main.go, go.mod
  • /builder/packer-builder-openbsd-vmm - work cellar

< >

slide-11
SLIDE 11

Philipp Bühler: OpenBSD VMM packer page 11: Plugin development II Lillehammer -- September 22nd, 2019

9:46:30

sysfive.com @EuroBSDcon 2019

Plugin development

what is doing what

Makefile Targets: build, install, vmb, fmt, vet, test, clean, uninstall main.go

  • "import" builder
  • initialize builder as a "server" plugin
  • register builder (rpc configuration)
  • "daemonize", spinning mode, ..

< >

slide-12
SLIDE 12

Philipp Bühler: OpenBSD VMM packer page 12: Plugin development III Lillehammer -- September 22nd, 2019

9:50:30

sysfive.com @EuroBSDcon 2019 config.go holds the configuration struct read from template (JSON) builder.go

  • new - instantiate driver with global vars/logs
  • prepare - populate configuration
  • run - tokenize build into "steps", hand over "artifact" information
  • cancel - clean up the mess if SIGABRT

driver.go Interact via vmctl(8) to create disks, start/stop the VM. Gather additional information like tap(4) IP address. Fixme: Get information of ‘‘ifconfig tap’’ to find the IP address. Currently there’s some assumption about how VM-Id and tapN correlate (or not). awk->golang or ioctl needed. Also interface with the VM (serial console) to "type" so called boot_command. Additionally catching all the output into a logfile (linefeed). step_*.go The various ‘‘steps’’ needed to create an artficat (next page)

< >

slide-13
SLIDE 13

Philipp Bühler: OpenBSD VMM packer page 13: Plugin development IV Lillehammer -- September 22nd, 2019

9:54:30

sysfive.com @EuroBSDcon 2019

‘‘Stepping the build’’

step_outdir.go create a directory that will hold the artifacts step_create_disks.go create the empty disk that will be installed on (via vmctl, no doas). step_get_vm_params.go Put information about the VM into the ’state bag’, to be consumed by following steps. step_launch_vm.go Start a VM (via "driver") with above created disk and the configured options (name, memory, kernel). Fixme: shutdown the VM if there are errors (right now I don’t, because debug and auto_install(8) already stops the VM) step_bootcmd.go

  • Get configuration (IP/port) from the built-in httpd
  • gather the configured boot_command, enrich with above data
  • "type" the command via the connected serial console. Basically the httpd

cannot run on 80/tcp, so auto_install will fail-ask for the URL and the plugin provides this (e.g. http://100.64.1.2:8230/packer-auto_install.conf)

< >

slide-14
SLIDE 14

Philipp Bühler: OpenBSD VMM packer page 14: Plugin development V Lillehammer -- September 22nd, 2019

10:00:30

sysfive.com @EuroBSDcon 2019

* DEMO TIME*

1 { 2 "builders": [ 3 { 4 "type": "openbsd-vmm", 5 "name": "packer-obsd64-vmm-amd64", 6 "vm_name": "myvm", 7 "disk_size": "1500M", 8 "disk_format": "raw", 9 "output_directory": "images", 10 "http_directory": "./docroot", 11 "iso_image": "˜/Downloads/install65.iso", 12 "bios": "/bsd.rd", 13 "boot_wait": "5s", 14 "boot_command": [ 15 "A<enter>", 16 "http://{{ .HTTPIP }}:{{ .HTTPPort }}/packer-auto_install.conf<enter>" 17 ], 18 "ssh_username": "root" 19 } 20 ] 21 }

asciinema play auto-install-demo.cast

< >

slide-15
SLIDE 15

Philipp Bühler: OpenBSD VMM packer page 15: Status / Outlook I Lillehammer -- September 22nd, 2019

10:02:00

sysfive.com @EuroBSDcon 2019

Status

  • VMM: everything on deck (full/real PXE would be add-on)
  • plugin: all architectural integration (config/builder/driver)
  • plugin_steps: create disk/VM/boot/provide auto_install infra

< >

slide-16
SLIDE 16

Philipp Bühler: OpenBSD VMM packer page 16: Status / Outlook II Lillehammer -- September 22nd, 2019

10:05:00

sysfive.com @EuroBSDcon 2019

Outlook

Fixme / Finish

  • GetTapIpAddr
  • more observation than fixed timeouts - if possible

Needables

  • plugin: provide/check dependencies (vmd running, pf.conf)
  • plugin: make it a ports-pkg
  • plugin: support fiddlings (like variables for boot_command, basically there)
  • plugin: config item ’disklabel’
  • plugin: multiple disks
  • plugin: "complex" networking?
  • plugin: adapt to upcoming VMM features

< >

slide-17
SLIDE 17

Philipp Bühler: OpenBSD VMM packer page 17: Status / Outlook III Lillehammer -- September 22nd, 2019

10:08:00

sysfive.com @EuroBSDcon 2019

Integration (Puffalanche)

  • make ’vagrant’ a port and use it as a vbox post-processor
  • Cloudify the clones (cloud-init, context,..)
  • "Ecosystem" - cloud at puffy fingertips (hi mischa, sorry)
  • Disk resizing (maybe not needed with images-a-la-carte..)

< >

slide-18
SLIDE 18

Philipp Bühler: OpenBSD VMM packer page 18: K-THX-BYE I Lillehammer -- September 22nd, 2019

10:09:00

sysfive.com @EuroBSDcon 2019

Ohai + Links + Thanks

  • Code/Slides - https://v.gd/packobsd
  • Kickoff - Glarus, Switzerland / https://hack4glarus.ch
  • Thanks to Claudio for the idea of vmctl -B
  • Thanks to grubernaut for go.mod, review, ISO+QCOW2 support and other

spurious fixes

  • Any help/pull request very welcome (e.g. multi-disk)

Questions?

< >

slide-19
SLIDE 19

Philipp Bühler: OpenBSD VMM packer page 19: K-THX-BYE II Lillehammer -- September 22nd, 2019

10:09:30

sysfive.com @EuroBSDcon 2019

BEER after the closing session DO NOT MISS - see you there

Code/Slides - https://github.com/double-p/packer-builder-openbsd-vmm https://github.com/double-p/presentations

< >

slide-20
SLIDE 20

Philipp Bühler: OpenBSD VMM packer page 20: Attic I Lillehammer -- September 22nd, 2019

10:11:10

sysfive.com @EuroBSDcon 2019

Golang

  • GOPATH (disk sizes/isolation)
  • go.mod/go.sum
  • go vet
  • go fmt
  • // interface{}

<
