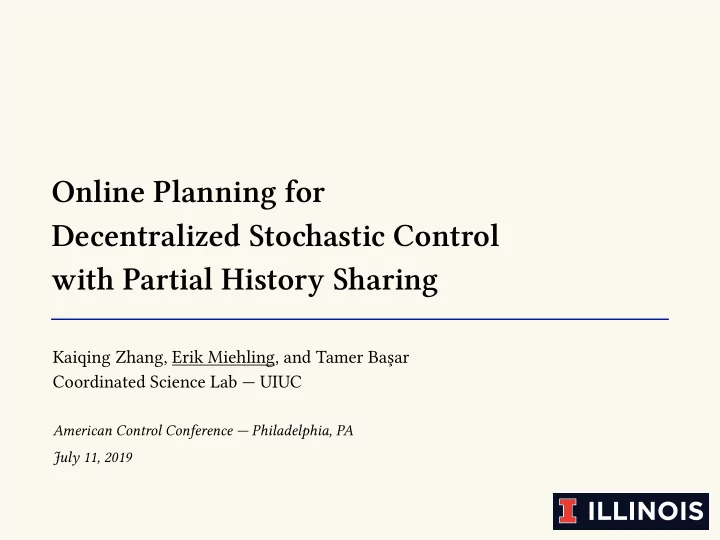

Online Planning for Decentralized Stociastic Control with Partial History Sharing

Kaiqing Zhang, Erik Miehling, and Tamer Başar Coordinated Science Lab — UIUC

American Control Conference — Philadelphia, PA July 11, 2019

2

Decentralized Stociastic Control

• Asymmetric information → no single agent has knowledge of all

previous events

• Control of a dynamic system by multiple agents each possessing

different information

• Also termed Dec-POMDPs in the learning/CS community

Robotics Smart Grid Unmanned Aerial Vehicles MOBA Video Games

• Dynamic programming techniques quickly become computationally

intractable

3

Decentralized Stociastic Control with Partial History Sharing

• In practice, agents may have some information (history) in common
• Agents may observe each other’s actions, e.g., fleet control [Gerla et

al., ’14]

• Share some common observations, e.g., cooperative robot navigation

[Lowe et al., ’18; Zhang et al., ’18]

• Tiis common information can be used to reduce the policy search space
• Decentralized POMDP → centralized POMDP [Nayyar et al., ’13;

Mahajan & Mannan, ’13]

• Sufficient information: belief over the system state and local

information of each agent

4

Related Work

• Common information approach + dynamic programming decomposition

(requires model to be known) [Nayyar et al., ’13]

• Common information-based reformulation is generalization of
• ccupancy-state MDPs [Dibangoye et al., ’16, ’18] for Dec-POMDPs
• Model-free/sampling-based planning heuristics for Dec-POMDPs:
• Dec-POMDP → non-observable MDP, solved by heuristic tree search

[Oliehoek et al., ’14]

• Monte-Carlo sampling + policy iteration/expectation-maximization

[Wu et al., ’10, ’13]

• Monte-Carlo tree search for special Dec-POMDPs [Amato et al., ’13;

Best et al., ’18]

• Require a centralized coordinator [Amato et al., ’13; Oliehoek et al.,

’14; Dibangoye et al., ’18] or communication [Oliehoek et al., ’12]

5

Our Contribution

• Development of a tractable online + decentralized planning algorithm

for decentralized stochastic control with partial history sharing

• Does not require an explicit model representation, only a generative

model (black-box simulator)

• Does not require explicit communication among agents
• Possesses provable convergence guarantees
• Tie proposed algorithm unifies some recently developed Dec-POMDP

solvers

• Consider a dynamical system consisting of agents where
• Local memory/information,
• Local action,
• Local observations,

6

Decentralized Stociastic Control with Partial History Sharing — Model

• Common information
• Let and , the common information

is a subset of common info. increment ← updated local memory ← updated common info. ←

• Dynamics
• State:
• Information:

• Delayed sharing (d-step):

7

Examples of Partial History Sharing

• Some additional examples are periodic sharing, delayed state sharing, and
• thers (see [Nayyar et al., ’13])
• Control sharing:

→ → → →

• Tie goal is to find a joint control policy, , consisting of

local control policies , such that the total expected discounted reward, , is maximized

• Note that all agents possess the same goal, i.e., they have a common

reward function

8

Decentralized Stociastic Control with Partial History Sharing — Model (cont’d)

• Consider a coordinator that has access to the common information
• Tie coordinator solves for prescriptions that map each

agent’s local information to a local action

9

Common Information Approaci

• Tie coordinator’s problem is a POMDP with modified state, action, and
• bservation processes [Nayyar et al., ’13]
• state:
• action:
• bservation:
• Define virtual history as — the information

state of the coordinator’s POMDP is the common information based belief

• Given a virtual history , the coordinator determines a joint prescription

using a coordination strategy, , where

• Tie coordinator’s objective is to find a coordination strategy profile

where

• A dynamic programming decomposition to solve for the optimal

prescriptions exists [Nayyar et al., ’13]

10

Common Information Approaci

to maximize

• Note: since the coordinator’s information is in common between the

agents, each agent can (in principle) perform this computation

11

Challenges with the Common Information Approaci

• Tie decision variables of the coordinator are functions
• Under finite action and observation spaces, the space of these functions

is also finite, but very large Examples:

• 1-step delayed sharing:

→ →

• Control sharing:

12

Decentralized Online Planning

• Inspired by the single-agent Partially Observable Monte-Carlo Planning

(POMCP) algorithm of [Silver & Veness, ’10]

• Sampling-based approach helps to alleviate the computational challenges

associated with the large state space Key Ideas of the Algorithm:

• Solve the coordinator’s POMDP via online tree search
• Nodes of each search tree are virtual histories with

edges consisting of joint prescriptions and new common information

• Agents possess a common random seed to avoid the

need to communicate (used before [Bernstein et al., ’09; Oliehoek et al., ’09; Arabneydi & Mahajan, ’15])

13

Decentralized Online Planning

• Each agent constructs an identical set of search trees across all agents
• Search trees are constructed iteratively by running simulations from the

current history for each agent (tree)

14

Searci Stage

• Each simulation begins by sampling from the common information based

belief at the current history node

• Successive simulations build out the search trees under a stopping

condition (e.g., timeout) is met where, : number of previous simulation visits to the virtual history h : estimated value of choosing prescription in virtual history h

• Tie search tree is expanded by either rollout or selection via UCB1

[Auer et al., ’02] as follows

15

Belief Update

• A joint prescription is selected, actions are realized, and new common

information is revealed to the agents

• Tie belief at a given history node h is approximated by a set of K

particles, denoted by the set B(h)

• Draw a particle uniformly from B(h)
• Call the generative model to

construct a sample of new common information and updated local memories

• If the sampled common information matches the true common

information, add particle to updated belief set

• Tie belief is updated by the following procedure:

repeat K times

• Generate from the selected prescription,

16

Convergence

• Due to the common source of randomness, the planning procedure is

identical and decoupled for all agents

• Convergence of the decentralized online planning algorithm can be

characterized by the (single-agent) POMCP alg. [Silver & Veness, ’10]

• Applied to a novel security setuing

(collaborative intrusion response)

• Agents choose defense actions in

response to security alert information

• Actions and alerts are copied to

centralized database with delay (1-step delayed sharing)

400 600 800 1000 1200 1400 1600 0.5 1 1.5 2

17

MAA* Our algorithm Centralized problem NOMDP POMDP Common information Empty General Local memory Local observation history General State System state + joint local observation history System state + joint local memory History Joint policies Joint prescriptions + common information Sufficient statistic Belief over system state + joint local

• bservation history

Belief over system state and joint local memory

Existing Algorithms: MAA*

• Heuristic tree-search algorithm from [Szer et al., ’05]
• Dec-POMDP → non-observable MDP [Oliehoek et al., ’14]
• Can be viewed as the designer’s approaci from [Nayyar et al., ’13]

18

MAA* Our algorithm Centralized problem NOMDP POMDP Common information Empty General Local memory Local histories (observations + actions) General State System state + joint local histories System state + joint local memory History Joint policies Joint prescriptions + common information Sufficient statistic Belief over system state + joint local histories Belief over system state and joint local memory

Existing Algorithms: Occupancy-state MDPs

• Dec-POMDP → occupancy-state MDP [Dibangoye et al., ’16]
• Tie occupancy state (belief over state + joint local histories) is a sufficient

statistic for optimal planning

19

Concluding Remarks and Future Work

• Proposed an online tree-search based planning algorithm for

decentralized stochastic control with partial history sharing

• Represents an initial atuempt and highlights the difficulties with

development of tractable online planning for decentralized stochastic control under partial observability Remaining ciallenges and future work:

• Tie branching factors of the search trees are very large — can we focus
• n subset of prescriptions during simulation?
• Development of the notion of probabilistic common information — can

we relax the binary membership of common information to a probability that given information is common?

Thank you!

20

Funding Aclnowledgements

US Office of Naval Research (ONR) MURI grant N00014-16-1-2710 US Army Research Office (ARO) grant W911NF-16-1-0485

Additional Slides

22 Algorithm 1 Decentralized Online Planning with Partial History Sharing – Agent i

function SEARCH(h) repeat if h = ∅ then (x, m1, . . . , mn) ⇠ B0 else (x, m1, . . . , mn) ⇠ B(h) end if SIMULATE(x, m1, . . . , mn, h, 0) until STOPPINGCONDITION() return argmaxδ2Γ V (hδ) end function function ROLLOUT(x, m1, . . . , mn, h, d) if βd < ε then return 0 end if γ = (γ1, . . . , γn) ⇠ (Γ1

rollout(h), . . . , Γn rollout(h))

(u1, . . . , un) (γ1(m1), . . . , γn(mn)) (x0, y1, . . . , yn, r) ⇠ G(x, u1, . . . , un) zi Pi

Z(mi, ui, yi) and share zi with all other agents

h0 hγz (m10, . . . , mn0) (P1

L(m1, u1, y1, z1), . . . ,

Pn

L(mn, un, yn, zn))

R r + β · ROLLOUT(x0, m10, . . . , mn0, h0, d + 1) return R end function function SIMULATE(x, m1, . . . , mn, h, d) if βd < ε then return 0 end if if h 62 T i then for all γ 2 Γ do T i(hγ) (N0(hγ), V0(hγ)) end for return ROLLOUT(x, m1, . . . , mn, h, d) end if γ=(γ1, . . . , γn) 2 argmax

(δ1,...,δn)2Γ1⇥···⇥Γn

V (hδ) + ρ s log N(h) N(hδ) (u1, . . . , un) (γ1(m1), . . . , γn(mn)) (x0, y1, . . . , yn, r) ⇠ G(x, u1, . . . , un) zi Pi

Z(mi, ui, yi) and share zi with all other agents

h0 hγz (m10, . . . , mn0) (P1

L(m1, u1, y1, z1), . . . , Pn L(mn, un, yn, zn))

N(h) N(h) + 1 R r + β · SIMULATE(x0, m10, . . . , mn0, h0, d + 1) N(hγ) N(hγ) + 1 V (hγ) V (hγ) + RV (hγ)

N(hγ)

return R end function
