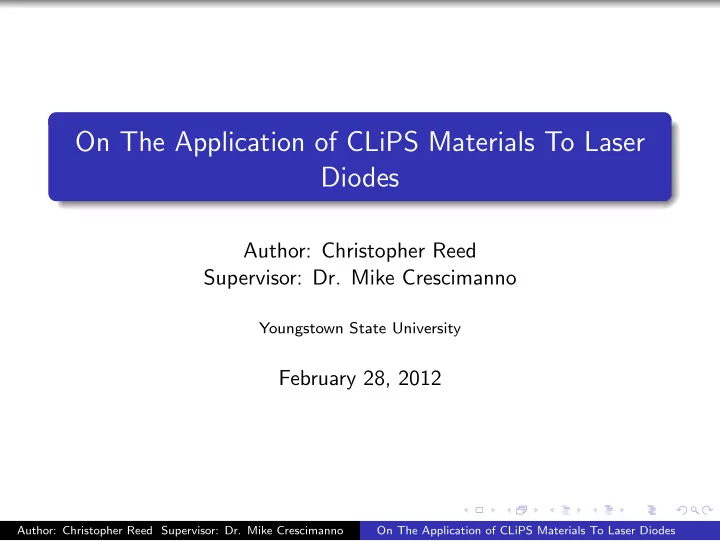

On The Application of CLiPS Materials To Laser Diodes

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

Youngstown State University

February 28, 2012

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-2
SLIDE 2

Outline

Introduction Experiment Theory Simulation Applications Conclusion

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-3
SLIDE 3

Introduction

What are CLiPS? What happens when a CLiPS film is applied to a laser diode?

Spectra Lasing Threshold Linewidth

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-4
SLIDE 4

Picture of CLiPS Material and Laser Diode

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-5
SLIDE 5

Outline

Introduction Experiment Theory Simulation Applications Conclusion

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-6
SLIDE 6

Spectra

CLiPS Changes the Wavelength Moving the CLiPS Around Also Changes the Wavelength Sometimes the Wavelength Did Not Change

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-7
SLIDE 7

Experimental Setup For Spectra and Lasing Threshold

Figure: Experimental Setup for Spectroscopy and Lasing Threshold

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-8
SLIDE 8

Picture of Spectra

Figure: Specra with and without CLiPS

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-9
SLIDE 9

Lasing Threshold

Lases Earlier and with Less Current Laser is Now Less Efficient

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-10
SLIDE 10

Picture of Lasing Treshold

Figure: Lasing Threshold with and without CLiPS

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-11
SLIDE 11

Experimental Setup of Fabry-Perot

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-12
SLIDE 12

Picture of Linewidth

Figure: Fabry-Perot measurement of the linewidth with and without CLiPS

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-13
SLIDE 13

Linewidth

Need to Maintain Spectral Purity Used a Fabry-Perot Interferometer Inconclusive Data (Linewidth Didn’t Change)

Too Much Transverse-K Linewidth Didn’t Get Any Worse Linewidth Should Actually Get Better

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-14
SLIDE 14

Outline

Introduction Experiment Theory Simulation Applications Conclusion

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-15
SLIDE 15

Theory

Why Did These Things Happen?

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-16
SLIDE 16

Spectra

Wavelength Is Determined By a Variety of Factors

Type of Gain Medium Length of Laser Cavity Reflectivity of Mirrors

ν = mc/2d Phase

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-17
SLIDE 17

Lasing Threshold

More Light In the Laser Cavity Population Inversion Happens Sooner Less Current is Required Q factor increases Q = ν

ℓ

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-18
SLIDE 18

Linewidth

Heisenberg’s Uncertainty Principle for Time and Energy

∆E∆t ≥ /2

Inconclusive Data Some Reasons Why

Residual CLiPS Material on Ouput Coupler Beam Quality Too Poor Too Much Transverse-K Laser Still Spectrally Pure

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-19
SLIDE 19

Thermal Effects

Residual CLiPS Material on Ouput Coupler THV Has a Higher Thermal Expansion Than San25 Causes Too Much Transverse-K Destroys Beam Quality

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-20
SLIDE 20

Picture of Linewidth

Figure: Fabry-Perot measurement of the linewidth with and without CLiPS

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-21
SLIDE 21

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects?

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-22
SLIDE 22

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6%

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-23
SLIDE 23

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6%

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-24
SLIDE 24

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6% 83.3X10−6%

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-25
SLIDE 25

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6% 83.3X10−6% 83.3X10−6% = αδT

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-26
SLIDE 26

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6% 83.3X10−6% 83.3X10−6% = αδT Mike Aviles Says That α = 3.2X10−4/◦K

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-27
SLIDE 27

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6% 83.3X10−6% 83.3X10−6% = αδT Mike Aviles Says That α = 3.2X10−4/◦K ∆T = .3◦K

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-28
SLIDE 28

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6% 83.3X10−6% 83.3X10−6% = αδT Mike Aviles Says That α = 3.2X10−4/◦K ∆T = .3◦K 80 Fringes!

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-29
SLIDE 29

Thermal Effects

Can the Change in the Number of Fringes Be Explained By Thermal Effects? 8.3 Fringes Corresponds To a Change of 8.7X10−6% 10.7 Fringes Corresponds To a Change of 11.2X10−6% 83.3X10−6% 83.3X10−6% = αδT Mike Aviles Says That α = 3.2X10−4/◦K ∆T = .3◦K 80 Fringes! Our Theory Doesn’t Work

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-30
SLIDE 30

Outline

Introduction Experiment Theory Simulation Applications Conclusion

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-31
SLIDE 31

Simulation

Built in C Most of the Code (CLiPS Section) Built By Dr. Crescimanno I Worked On Laser Cavity Section Results of Simulation Tell Us How Accurate Our Theory Is

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-32
SLIDE 32

Theory

Laser Cavity Section Built With Three Matrices Back Mirror (Essentially No Light Gets Through) Laser Cavity With Gain Medium Output Coupler

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-33
SLIDE 33

Mirrors

r −1 1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-34
SLIDE 34

Mirrors

r −1 1

  • t

1 1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-35
SLIDE 35

Mirrors

r −1 1

  • t

1 1

  • r′

1 1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-36
SLIDE 36

Mirrors

r −1 1

  • t

1 1

  • r′

1 1

  • t′

−1 1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-37
SLIDE 37

Mirrors

Back Mirror

Call a Matrix M: M = a b c d

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-38
SLIDE 38

Mirrors

Back Mirror

Call a Matrix M: M = a b c d

  • a

b c d 1 − r 1 + r

  • = t

1 1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-39
SLIDE 39

Mirrors

Back Mirror

Call a Matrix M: M = a b c d

  • a

b c d 1 − r 1 + r

  • = t

1 1

  • And:

t′

  • a

b c d −1 1

  • =
  • −1 + r ′

1 + r ′

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-40
SLIDE 40

Mirrors

Back Mirror

Call a Matrix M: M = a b c d

  • a

b c d 1 − r 1 + r

  • = t

1 1

  • And:

t′

  • a

b c d −1 1

  • =
  • −1 + r ′

1 + r ′

  • M =
  • 1−r 2+t2

2t t2−(r−1)2 2t t2−(r+1)2 2t 1−r 2+t2 2t

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-41
SLIDE 41

Mirrors

Back Mirror

Call a Matrix M: M = a b c d

  • a

b c d 1 − r 1 + r

  • = t

1 1

  • And:

t′

  • a

b c d −1 1

  • =
  • −1 + r ′

1 + r ′

  • M =
  • 1−r 2+t2

2t t2−(r−1)2 2t t2−(r+1)2 2t 1−r 2+t2 2t

  • Output Coupler Has the Same Matrix but r and t Are

Different

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-42
SLIDE 42

Laser Cavity

Laser Cavity Matrix N:

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-43
SLIDE 43

Laser Cavity

Laser Cavity Matrix N:

N =

  • cosδ

(−i/n)sinδ (−in)sinδ cosδ

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-44
SLIDE 44

Laser Cavity

Laser Cavity Matrix N:

N =

  • cosδ

(−i/n)sinδ (−in)sinδ cosδ

  • δ Is Defined As (2π/λ)(n)(l)

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-45
SLIDE 45

Laser Cavity

Laser Cavity Matrix N:

N =

  • cosδ

(−i/n)sinδ (−in)sinδ cosδ

  • δ Is Defined As (2π/λ)(n)(l)

n Is the Index of Refraction of the Gain Medium Inside the Laser Cavity

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-46
SLIDE 46

Laser Cavity

Laser Cavity Matrix N:

N =

  • cosδ

(−i/n)sinδ (−in)sinδ cosδ

  • δ Is Defined As (2π/λ)(n)(l)

n Is the Index of Refraction of the Gain Medium Inside the Laser Cavity λ Is the Wavelength of the Laser Light

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-47
SLIDE 47

Laser Cavity

Laser Cavity Matrix N:

N =

  • cosδ

(−i/n)sinδ (−in)sinδ cosδ

  • δ Is Defined As (2π/λ)(n)(l)

n Is the Index of Refraction of the Gain Medium Inside the Laser Cavity λ Is the Wavelength of the Laser Light l Is the Length of the Laser Cavity

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-48
SLIDE 48

Derivation of Fabry-Perot Transmission - Part 1

Similar To Laser Cavity And Mirrors

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-49
SLIDE 49

Derivation of Fabry-Perot Transmission - Part 1

Similar To Laser Cavity And Mirrors

1 1−r2 MNM′

M = −1 −ir ir −1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-50
SLIDE 50

Derivation of Fabry-Perot Transmission - Part 1

Similar To Laser Cavity And Mirrors

1 1−r2 MNM′

M = −1 −ir ir −1

  • M′ =
  • −1

−ir ir −1

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-51
SLIDE 51

Derivation of Fabry-Perot Transmission - Part 1

Similar To Laser Cavity And Mirrors

1 1−r2 MNM′

M = −1 −ir ir −1

  • M′ =
  • −1

−ir ir −1

  • N =
  • cosδ

(−i/n)sinδ (−in)sinδ cosδ

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-52
SLIDE 52

Derivation of Fabry-Perot Transmission - Part 2

1 1 − r2

  • (1+r2)cosδ

−i(1−r2)sinδ+2ircosδ −i(1−r2)sinδ−2ircosδ (1+r2)cosδ

  • Author: Christopher Reed Supervisor: Dr. Mike Crescimanno

On The Application of CLiPS Materials To Laser Diodes

slide-53
SLIDE 53

Derivation of Fabry-Perot Transmission - Part 2

1 1 − r2

  • (1+r2)cosδ

−i(1−r2)sinδ+2ircosδ −i(1−r2)sinδ−2ircosδ (1+r2)cosδ

  • t =

2(1−r2) a+d−b−c

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-54
SLIDE 54

Derivation of Fabry-Perot Transmission - Part 2

1 1 − r2

  • (1+r2)cosδ

−i(1−r2)sinδ+2ircosδ −i(1−r2)sinδ−2ircosδ (1+r2)cosδ

  • t =

2(1−r2) a+d−b−c

t =

2(1−r2) 2(1+r2)cosδ+2i(1−r2)sinδ

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-55
SLIDE 55

Derivation of Fabry-Perot Transmission - Part 2

1 1 − r2

  • (1+r2)cosδ

−i(1−r2)sinδ+2ircosδ −i(1−r2)sinδ−2ircosδ (1+r2)cosδ

  • t =

2(1−r2) a+d−b−c

t =

2(1−r2) 2(1+r2)cosδ+2i(1−r2)sinδ

|t|2 = 1 1 +

4r2 (1−r2)2 cos2δ

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-56
SLIDE 56

Fabry-Perot Transmission

Figure: Graph of Transmission Function

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-57
SLIDE 57

Band

Figure: Band Structure

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-58
SLIDE 58

Intermediate Band Left

Figure: Intermediate Band Left

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-59
SLIDE 59

Intermediate Band Right

Figure: Intermediate Band Right

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-60
SLIDE 60

Zoomed Intermediate Band Left

Figure: Zoomed In Intermediate Band Left

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-61
SLIDE 61

Results

Gain Envelope Shifts Shift in Individual Lines The Side of the CLiPS that is Face Down Matters

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-62
SLIDE 62

Outline

Introduction Experiment Theory Simulation Applications Conclusion

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-63
SLIDE 63

Applications

Atomic Spectroscopy Tunable Lasers

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-64
SLIDE 64

Construction

Three Main Ways

Physically Move the Mirrors Heat Up the Laser Cavity Change the Index of Refraction of the Gain Medium By Varying the Power

Alternatively You Can Add CLiPS

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-65
SLIDE 65

Outline

Introduction Experiment Theory Simulation Applications Conclusion

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes

slide-66
SLIDE 66

Conclusion

Experiment Theory Simulation Applications

Author: Christopher Reed Supervisor: Dr. Mike Crescimanno On The Application of CLiPS Materials To Laser Diodes
