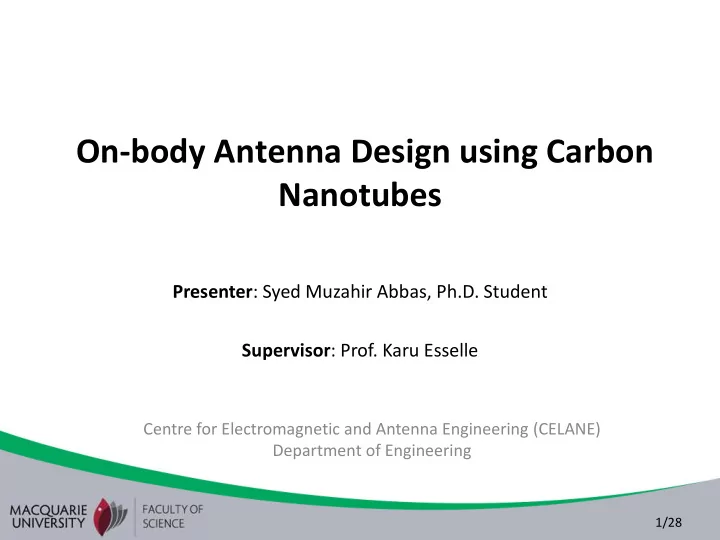

On-body Antenna Design using Carbon Nanotubes

Centre for Electromagnetic and Antenna Engineering (CELANE) Department of Engineering

Presenter: Syed Muzahir Abbas, Ph.D. Student Supervisor: Prof. Karu Esselle

slide-2
SLIDE 2

2/28

Presentation Outline

  • Project Overview
  • Background

– Antennas – CNT – CNT Yarns – Body Centric Communication – On-body Antennas

  • Research Objectives

– On-body Antenna Design Requirements – Design Constraints/Aims & Objective – Expected Outcomes

  • Task Plan
  • Conclusion
slide-3
SLIDE 3

3/28

Project Overview

slide-4
SLIDE 4

4/28

Presentation Outline

  • Project Overview
  • Background

– Antennas – CNT – CNT Yarns – Body Centric Communication – On-body Antennas

  • Research Objectives

– On-body Antenna Design Requirements – Design Constraints/Aims & Objective – Expected Outcomes

  • Task Plan
  • Conclusion
slide-5
SLIDE 5

5/28

Antennas [1]

  • Antenna Definition

“Usually a metallic device (as a rod or wire) for radiating or receiving radio waves”. (Webster’s dictionary) OR “A means for radiating or receiving radio waves”. (IEEE Standard)

  • Antenna Parameters

– Antenna Impendence – Efficiency – Radiation Pattern – Antenna Gain – Directivity – Antenna Polarization – Bandwidth – Return Loss

[1] C. A. Balanis, Antenna Theory: Analysis and Design: John Wiley, 2005.

slide-6
SLIDE 6

6/28

Carbon Nanotube (CNT)

  • Potential candidates for replacement of

conventional metals

– Density of CNT composites is about five time lower than copper and around half that of aluminium. – Thermal conductivity is about ten times that of copper

  • Significant Advantages

– Mechanical (high strength and load bearing) – Electrical (conductivity and resistivity) – Thermal (sustain at high temperatures) – Non-oxidizing abilities

  • Applications

– Nanoantennas – Nanoelectronics

  • Allotropes of carbon with a cylindrical

nanostructure

  • Fig. 1: Diamond *
  • Fig. 2: Graphite *

* http://chem-guide.blogspot.com.au/2010/04/covalent-solid.html

Graphene

slide-7
SLIDE 7

7/28

Carbon Nanotube (CNT) -- Continued

  • CNT can be categorized as

– Single-Walled Carbon Nanotube (SWCNT)

  • A layer of graphite, a single atom thick, called

graphene, which is rolled into a seamless cylinder

  • Diameter is close to 1nm
  • Length thousand times of diameter

– Multi-Walled Carbon Nanotube (MWCNT)

  • Consist of concentric tubes (i.e. multiple rolled

layers) of graphene. OR

  • As a single sheet of graphite rolled into the shape
  • f a scroll.
  • Diameter range is 5nm to 50nm
  • Length thousand times of diameter
  • Fig. 3: SWCNT *
  • Fig. 4: MWCNT *

*http://staff.aist.go.jp/h-kataura/Kogaku-kiji-forweb.htm

slide-8
SLIDE 8

8/28

Carbon Nanotube (CNT) -- Continued

  • Fig. 5: Carbon Nanotubes *

* http://explow.com/buckypaper http://www.phy.mtu.edu/yap/frontiercarbon.html

a b c d

slide-9
SLIDE 9

9/28

CNTs in Antenna Applications -- Continued

– Polymer-carbon nanotube sheets for conformal load bearing antennas. – Presented circuit model to calculate CNT sheet conductivity. – Presented fabrication process.

  • Load Bearing Antenna Applications [2]
  • Fig. 6: Circuit model for conductivity [2]
slide-10
SLIDE 10

10/28

CNTs in Antenna Applications -- Continued

– Conducted mechanical tests for

  • Stress,
  • Strain
  • Bending
  • Fig. 7: (a) Stress (b) Strain (c) Bend [2]

[2] Z. Yijun, Y. Bayram, D. Feng, D. Liming, and J. L. Volakis, "Polymer-Carbon Nanotube Sheets for Conformal Load Bearing Antennas," Antennas and Propagation, IEEE Transactions on, vol. 58, pp. 2169-2175, 2010.

– Proposed it suitable for conformal load bearing antennas and RF circuits.

(b) (c) (a)

slide-11
SLIDE 11

11/28

CNTs in Antenna Applications -- Continued

– Full-Composite Fractal Antenna Using Carbon Nanotubes for Multiband Wireless Applications. – UHF-RFID (900MHz), Blutooth (2.4GHz) and WLAN (5.5GHz). – Presented antenna design and fabrication process. – Antenna gain and read range can be controlled by changing the conductivity of composite, which is not possible for materials with fixed conductivity such as copper.

  • Multiband Wireless Applications [3]
  • Fig. 8: Fractal Antenna Design [3]

[3] A. Mehdipour, I. D. Rosca, A. R. Sebak, C. W. Trueman, and S. V. Hoa, "Full-Composite Fractal Antenna Using Carbon Nanotubes for Multiband Wireless Applications," Antennas and Wireless Propagation Letters, IEEE, vol. 9, pp. 891-894, 2010.

slide-12
SLIDE 12

12/28

CNTs in Antenna Applications -- Continued

– Comparison of copper and CNT antennas. – Frequency range 24 - 34 GHz. – Presented antenna design and fabrication process. – Housing effect on the performance of CNT antenna is much lower than for the copper antenna – Above 30GHz its significantly less resulting in stable gain and less distortion in radiation pattern.

  • Wideband Millimeter-Wave Antenna Applications [4]
  • Fig. 9: (a) Antenna Design (b) Array [4]

[4] A. Mehdipour, I. D. Rosca, A. R. Sebak, C. W. Trueman, and S.

  • V. Hoa, "Carbon Nanotube Composites for Wideband Millimeter-

Wave Antenna Applications," Antennas and Propagation, IEEE Transactions on, vol. 59, pp. 3572-3578, 2011. (a) (b)

slide-13
SLIDE 13

13/28

Carbon Nanotube (CNT) Yarns

  • CNT yarns (fibers) are composed of individual CNTs
  • Can be spun from CNT forest by spinning
  • By passing CNT films through a drop of volatile liquid
  • Fig. 10: CNT yarns production by CSIRO*

* http://www.csiro.au/Outcomes/Materials-and-Manufacturing/ Innovation/Carbon-Nanotubes-2.aspx

slide-14
SLIDE 14

14/28

Body Centric Communication [5]

  • Off-body communication

– Communications from off-body to an on-body device or system

  • On-body communication

– Communications within on-body networks and wearable systems

  • In-body communication

– Communications to medical implants and sensor networks

  • Fig. 11: Human body model
slide-15
SLIDE 15

15/28

Presentation Outline

  • Project Overview
  • Background

– Antennas – CNT – CNT Yarns – Body Centric Communication – On-body Antennas

  • Research Objectives

– On-body Antenna Design Requirements – Design Constraints/Aims & Objective – Expected Outcomes

  • Task Plan
  • Conclusion
slide-16
SLIDE 16

16/28

On-body Antenna Design Requirements

  • Frequency Range

– UWB lower band (3 - 5 GHz) – UWB (3.1 – 10.6 GHz) – V-Band (7 GHz around 60 GHz) TABLE: Unlicensed frequency bands around 60 GHz [6].

  • Antenna Impedance

– 50 ohm

Country Japan USA Canada Korea Europe Australia Frequency Band (GHz) 59-66 57.05-64 57-64 57-64 57-64 59.4-62

slide-17
SLIDE 17

17/28

Design Constraints/Aims & Objective

  • Polarization

– Horizontal / Vertical

  • Radiation Pattern [6]

– Omni-directional and along the body surface

  • Full Ground Plane

– To prevent radiation towards body

  • Bandwidth

– Larger bandwidth

  • Size/Weight

– Small/Light

  • Distance b/w antenna and body
slide-18
SLIDE 18

18/28

Expected Outcomes

  • RF/Microwave characterization of CNT yarns
  • Antenna prototype for on-body communication with

desired parameters

  • Which polarization is suitable and why?
  • Desired radiation pattern over the required bandwidth
  • How bandwidth can be enhanced in presence of full

ground plane?

  • Recommended distance between antenna and body?
slide-19
SLIDE 19

19/28

Presentation Outline

  • Project Overview
  • Background

– Antennas – CNT – CNT Yarns – Body Centric Communication – On-body Antennas

  • Research Objectives

– On-body Antenna Design Requirements – Design Constraints/Aims & Objective – Expected Outcomes

  • Task Plan
  • Conclusion
slide-20
SLIDE 20

20/28

Task Plan-First year (2012-2013)

Months 1 - 6 7 - 8 9 - 11 12

Task-1, Literature Review

Mar –Aug2012

Task-2, Software Learning

Sep-Oct

Task-3, Test Structures Designing

Nov-Jan2013

Task-4, Test Structures Fabrication

Feb

Task-1, Literature Review (6-months)

– To strengthen the relevant knowledge and to gain detailed insight of existing

work carried out so far in the field under investigation – CNT, CNT yarns, Antennas, On-body communication/antennas, UWB, Human body properties Deliverables – Literature review report

slide-21
SLIDE 21

21/28

Task Plan-First year (2012-2013)

Task-2, Software Learning (2-months) – High Frequency Structure Simulator (HFSS) Completed – CST Microwave Studio In progress – AWR Microwave Office In progress Tasks To Do – Task-3, Test Structures Designing – Task-4, Test Structures Fabrication Task-1, Achieved (March 2012 to date) – CNT, CNT yarns, Antennas, On-body communication/antennas, UWB, Human body properties Deliverables – Test Structures

slide-22
SLIDE 22

22/28

Task Plan-Second year (2013-2014)

Months 13 - 15 16 - 18 19 - 21 22-24

Task-5, CNT Measurements

Mar –May2013

Task-6, Antenna Designing

Jun-Aug

Task-7, Antenna Simulations

Sep-Nov

Task-8, Antenna Fabrication

Dec

Task-9, Antenna Testing

Jan-Feb2014 Deliverables – Properties of CNT yarns – Antenna prototype – Publication of results in International conferences/journals

slide-23
SLIDE 23

23/28

Task Plan-Third year (2014-2015)

Months 25 - 26 27 - 36

Task-10, Results and Analysis Mar-Apr2014 Task-11, Write-up

May2014 - Feb2015 Deliverables – Publication of results in International conferences/journals – Thesis write-up – Completion of thesis in 3 years

slide-24
SLIDE 24

24/28

Presentation Outline

  • Project Overview
  • Background

– Antennas – CNT – CNT Yarns – Body Centric Communication – On-body Antennas

  • Research Objectives

– On-body Antenna Design Requirements – Design Constraints/Aims & Objective – Expected Outcomes

  • Task Plan
  • Conclusion
slide-25
SLIDE 25

25/28

Conclusion

  • Overview of CNT, CNT yarns, body-centric communication, on-body antennas
  • Use of CNTs in antenna applications and their advantages
  • On-body antenna design requirements
  • Design Constraints/Aims & Objective
  • Expected outcomes
  • Task plan (achieved & to do)
  • Investigating RF/Microwave characterization of CNT yarns will open new

dimensions for their usage in nanoantennas and nanoelectronics applications
