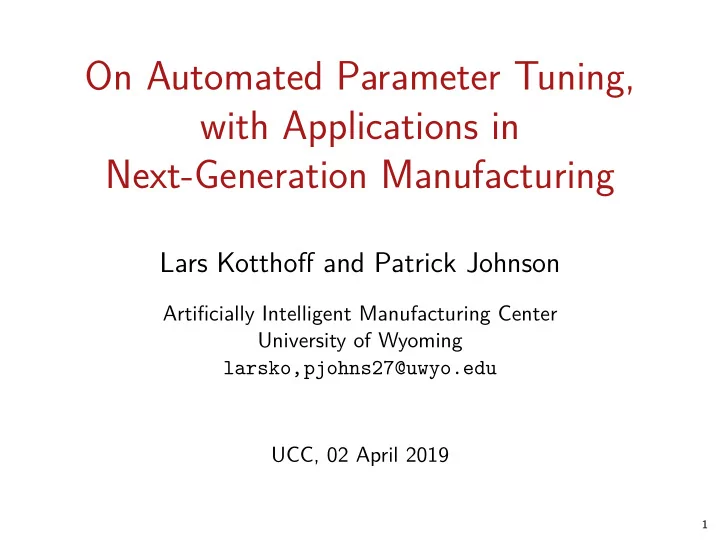

SLIDE 1

On Automated Parameter Tuning, with Applications in Next-Generation Manufacturing

Lars Kotthofg and Patrick Johnson

Artifjcially Intelligent Manufacturing Center University of Wyoming larsko,pjohns27@uwyo.edu UCC, 02 April 2019

1

SLIDE 2

Big Picture

▷ advance the state of the art through meta-algorithmic techniques ▷ rather than inventing new things, use existing things more intelligently – automatically ▷ invent new things through combinations of existing things

2

SLIDE 3

Motivation – Performance Difgerences

0.1 1 10 100 1000 0.1 1 10 100 1000 Virtual Best SAT Virtual Best CSP

Hurley, Barry, Lars Kotthofg, Yuri Malitsky, and Barry O’Sullivan. “Proteus: A Hierarchical Portfolio of Solvers and Transformations.” In CPAIOR, 2014. 3

SLIDE 4

Motivation – Performance Improvements

10

−2 10 −1 10 0 10 1 10 2 10 3 10 4

10

−2

10

−1

10 10

1

10

2

10

3

10

4

SPEAR, original default (s) SPEAR, optimized for SWV (s)

Hutter, Frank, Domagoj Babic, Holger H. Hoos, and Alan J. Hu. “Boosting Verifjcation by Automatic Tuning of Decision Procedures.” In FMCAD ’07: Proceedings of the Formal Methods in Computer Aided Design, 27–34. Washington, DC, USA: IEEE Computer Society, 2007. 4

SLIDE 5

What to Tune – Parameters

▷ anything you can change that makes sense to change ▷ e.g. search heuristic, variable ordering, type of global constraint decomposition ▷ not random seed, whether to enable debugging, etc. ▷ some will afgect performance, others will have no efgect at all

5

SLIDE 6

Automated Parameter Tuning

Frank Hutter and Marius Lindauer, “Algorithm Confjguration: A Hands on Tutorial”, AAAI 2016 6

SLIDE 7

General Approach

▷ evaluate algorithm as black-box function ▷ observe efgect of parameters without knowing the inner workings ▷ decide where to evaluate next ▷ balance diversifjcation/exploration and intensifjcation/exploitation ▷ repeat until satisfjed

7

SLIDE 8

Grid and Random Search

▷ evaluate certain points in parameter space

Bergstra, James, and Yoshua Bengio. “Random Search for Hyper-Parameter Optimization.” J. Mach. Learn.

Res. 13, no. 1 (February 2012): 281–305.

8

SLIDE 9

Local Search

▷ start with random confjguration ▷ change a single parameter (local search step) ▷ if better, keep the change, else revert ▷ repeat, stop when resources exhausted or desired solution quality achieved ▷ restart occasionally with new random confjgurations

9

SLIDE 10

Local Search Example

(Initialisation)

graphics by Holger Hoos 10

SLIDE 11

Local Search Example

(Initialisation)

graphics by Holger Hoos 11

SLIDE 12

Local Search Example

(Local Search)

graphics by Holger Hoos 12

SLIDE 13

Local Search Example

(Local Search)

graphics by Holger Hoos 13

SLIDE 14

Local Search Example

(Perturbation)

graphics by Holger Hoos 14

SLIDE 15

Local Search Example

(Local Search)

graphics by Holger Hoos 15

SLIDE 16

Local Search Example

(Local Search)

graphics by Holger Hoos 16

SLIDE 17

Local Search Example

(Local Search)

graphics by Holger Hoos 17

SLIDE 18

Local Search Example

?

Selection (using Acceptance Criterion)

graphics by Holger Hoos 18

SLIDE 19

Surrogate-Model-Based Search

▷ evaluate small number of initial (random) confjgurations ▷ build surrogate model of parameter-performance surface based

n this

▷ use model to predict where to evaluate next ▷ repeat, stop when resources exhausted or desired solution quality achieved ▷ allows targeted exploration of promising confjgurations

19

SLIDE 20

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.000 0.005 0.010 0.015 0.020 0.025

x type

init

prop

type

y yhat ei

Iter = 1, Gap = 1.9909e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 20

SLIDE 21

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.00 0.01 0.02 0.03

x type

init

prop seq

type

y yhat ei

Iter = 2, Gap = 1.9909e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 21

SLIDE 22

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.000 0.002 0.004 0.006

x type

init

prop seq

type

y yhat ei

Iter = 3, Gap = 1.9909e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 22

SLIDE 23

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0e+00 2e−04 4e−04 6e−04 8e−04

x type

init

prop seq

type

y yhat ei

Iter = 4, Gap = 1.9992e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 23

SLIDE 24

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0e+00 1e−04 2e−04

x type

init

prop seq

type

y yhat ei

Iter = 5, Gap = 1.9992e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 24

SLIDE 25

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.00000 0.00003 0.00006 0.00009 0.00012

x type

init

prop seq

type

y yhat ei

Iter = 6, Gap = 1.9996e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 25

SLIDE 26

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0e+00 1e−05 2e−05 3e−05 4e−05 5e−05

x type

init

prop seq

type

y yhat ei

Iter = 7, Gap = 2.0000e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 26

SLIDE 27

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.0e+00 5.0e−06 1.0e−05 1.5e−05 2.0e−05

x type

init

prop seq

type

y yhat ei

Iter = 8, Gap = 2.0000e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 27

SLIDE 28

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0.0e+00 2.5e−06 5.0e−06 7.5e−06 1.0e−05

x type

init

prop seq

type

y yhat ei

Iter = 9, Gap = 2.0000e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 28

SLIDE 29

Surrogate-Model-Based Search Example

y

ei −1.0 −0.5 0.0 0.5 1.0 0.0 0.4 0.8 0e+00 1e−07 2e−07 3e−07 4e−07

x type

init

prop seq

type

y yhat ei

Iter = 10, Gap = 2.0000e−01 Bischl, Bernd, Jakob Richter, Jakob Bossek, Daniel Horn, Janek Thomas, and Michel Lang. “MlrMBO: A Modular Framework for Model-Based Optimization of Expensive Black-Box Functions,” March 9, 2017. http://arxiv.org/abs/1703.03373. 29

SLIDE 30

Two-Slide MBO

# http://www.cs.uwyo.edu/~larsko/mbo.py params = { 'C': np.logspace(-2, 10, 13), 'gamma': np.logspace(-9, 3, 13) } param_grid = [ { 'C': x, 'gamma': y } for x in params['C'] for y in params['gamma'] ] # [{'C': 0.01, 'gamma': 1e-09}, {'C': 0.01, 'gamma': 1e-08}...] initial_samples = 3 evals = 10 random.seed(1) def est_acc(pars): clf = svm.SVC(**pars) return np.median(cross_val_score(clf, iris.data, iris.target, cv = 10)) data = [] for pars in random.sample(param_grid, initial_samples): acc = est_acc(pars) data += [ list(pars.values()) + [ acc ] ] # [[1.0, 0.1, 1.0], # [1000000000.0, 1e-07, 1.0], # [0. 1, 1e-06,0.9333333333333333]]

30

SLIDE 31

Two-Slide MBO

regr = RandomForestRegressor(random_state = 0) for evals in range(0, evals): df = np.array(data) regr.fit(df[:,0:2], df[:,2]) preds = regr.predict([ list(pars.values()) for pars in param_grid ]) i = preds.argmax() acc = est_acc(param_grid[i]) data += [ list(param_grid[i].values()) + [ acc ] ] print("{}: best predicted {} for {}, actual {}" .format(evals, round(preds[i], 2), param_grid[i], round(acc, 2))) i = np.array(data)[:,2].argmax() print("Best accuracy ({}) for parameters {}".format(data[i][2], data[i][0:2]))

31

SLIDE 32

Two-Slide MBO (slide 3)

0: best predicted 0.99 for {'C': 1.0, 'gamma': 1e-09}, actual 0.93 1: best predicted 0.99 for {'C': 1000000000.0, 'gamma': 1e-09}, actual 0.93 2: best predicted 0.99 for {'C': 1000000000.0, 'gamma': 0.1}, actual 0.93 3: best predicted 0.97 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 4: best predicted 0.99 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 5: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 6: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 7: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 8: best predicted 1.0 for {'C': 0.01, 'gamma': 0.1}, actual 0.93 9: best predicted 1.0 for {'C': 1.0, 'gamma': 0.1}, actual 1.0 Best accuracy (1.0) for parameters [1.0, 0.1]

32

SLIDE 33

Application – Optimizing Graphene Oxide Reduction

▷ reduce graphene oxide to graphene through laser irradiation ▷ allows to create electrically conductive lines in insulating material ▷ laser parameters need to be tuned carefully to achieve good results

33

SLIDE 34

From Graphite/Coal to Carbon Electronics

Overview of the Process

34

SLIDE 35

Evaluation of Irradiated Material

595 !

"#$

833 !

"#$

1071 !

"#$

1309 !

"#$

1428 !

"#$

1527 !

"#$

1785 !

"#$

2023 !

"#$

35

SLIDE 36

Morphology of Irradiated Material

36

SLIDE 37

Surrogate-Model-Based Optimization

2

4 6 10 20 30 40 50

Iteration Ratio

37

SLIDE 38

Surrogate-Model-Based Optimization

2

4 6 2 4 6 8

Iteration Ratio

Predictions work even with small training dataset (19 points)
AI Model achieved IG/ID ratio (>6) after 1st prediction

During Training After 1st prediction + Prediction

Actual

50 um 50 um 38

SLIDE 39

Explored Parameter Space

1

4 3 45 5 7 6 8 2 15 13 14 12 17 26 21 22 27 19 20 18 25 9 24 31 40 32 35 29 38 41 34 33 11 30 28 10 16 23 46 36 42 37 39 47 48 44 43 2 4 6

Parameter Space Ratio

39

SLIDE 40

Tools and Resources

iRace http://iridia.ulb.ac.be/irace/ TPOT https://github.com/EpistasisLab/tpot mlrMBO https://github.com/mlr-org/mlrMBO SMAC http://www.cs.ubc.ca/labs/beta/Projects/SMAC/

Spearmint https://github.com/HIPS/Spearmint TPE https://jaberg.github.io/hyperopt/

COSEAL group for COnfjguration and SElection of ALgorithms: https://www.coseal.net/ Out soon: edited book on automated machine learning https://www.automl.org/book/ (Frank Hutter, Lars Kotthofg, Joaquin Vanschoren) More on our applications: https://www.uwyo.edu/ceas/engineering-initiative/aim/

40
