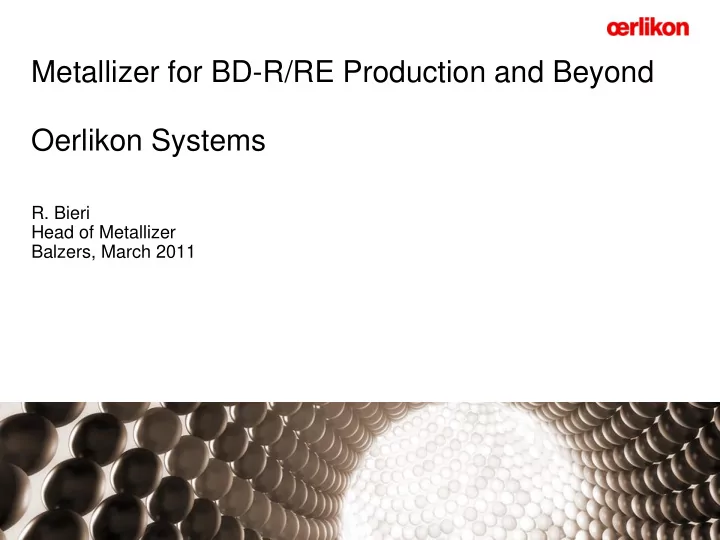

SLIDE 1
Metallizer for BD-R/RE Production and Beyond Oerlikon Systems
- R. Bieri
Page 2 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Oerlikon Systems R. Bieri Head of Metallizer Balzers, March 2011 - - PowerPoint PPT Presentation
Oerlikon Systems R. Bieri Head of Metallizer Balzers, March 2011 - - PowerPoint PPT Presentation
Metallizer for BD-R/RE Production and Beyond Oerlikon Systems R. Bieri Head of Metallizer Balzers, March 2011 Layer Stack done on Oerlikon Metallizer Page 2 15/03/2011 Media Tech 2011 R. Bieri SYOM Oerlikon Metallizer: more then 20
SLIDE 2
SLIDE 3
Page 3 15/03/2011 Media Tech 2011
- R. Bieri SYOM
SDS 131 BIG SPRINTER SPRINTER-9/13 SPRINTER-8 SPRINTER-5 SDS 100
90 . . . . 93 . . . . 94 . . . . 95 . . . . 96 . . . . 97 . . . . 98 . . . . 99 . . . . 00 . . . . 01 . . . . 02 . . . . 03 . . . . 04 . . . . 05 . . . .
MO Disc CD-RW, DVD+/-RW, DVD-RAM, BD-R/RE BDXL
Oerlikon Metallizer: more then 20 Years in the OD Industry
..2011..
CDI 901 CDI 915 TWISTER SWIVEL98 CUBE SPEED & SWIVEL2000 SWIVEL & Cube Star & CUBE LITE RF 2003
SLIDE 4
Page 4 15/03/2011 Media Tech 2011
- R. Bieri SYOM
BD Recordable Media Layers, the „Heart“ of the Recordable Disc
It„s all about the layers! done on Oerlikon Metallizer
SLIDE 5
Page 5 15/03/2011 Media Tech 2011
- R. Bieri SYOM
The right Metallizer for your Process HtL, LtH, Pre-Recorded
Recordable LtH & Pre-Recorded “Sprinter” Metallizer Recordable HtL (-R, -RE, -XL) Swivel & Cube Star Metallizer Pre-Recorded & Recordable LtH
SLIDE 6
Page 6 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Sprinter Family: The Industry Standard
Sprinter-5 BD-R Sprinter-9 BD-R/RE Sprinter-13 BD-RE, BDXL
SLIDE 7
Page 7 15/03/2011 Media Tech 2011
- R. Bieri SYOM
The Complete Layer Stack in one System
SLIDE 8
Page 8 15/03/2011 Media Tech 2011
- R. Bieri SYOM
The Complete Layer Stack in one System
Protective Layer Reflective Layer Protective Layer Recording Layer
SLIDE 9
Page 9 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Sprinter Advantages
Speed: Highest Throughput Protective Layer Reflective Layer Protective Layer Recording Layer Flexible Configuration: the right sputter source for your process Uniformity: Excellent Layer Uniformity
SLIDE 10
Page 10 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Sprinter Advantages: Speed
Speed: Highest Throughput
- Dry Cycle Time 2.8 sec
- > 1200 discs/h
- fast target change
- high uptime
Flexible Configuration: the right sputter source for your process Uniformity: Excellent Layer Uniformity
SLIDE 11
Page 11 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Speed: “Indicat” for ARQ21 DC & RF and Disc Loader
“Indicat” Indirect cooling plate Fast Target Change Time < 30 sec fixed cooling membrane Disc Loader Dry Cycle Time:
Sprinter-5: < 2.8 sec Sprinter-9: < 2.8 sec * Sprinter-13: < 2.8 sec
(* incl. process time < 1.7 sec)
SLIDE 12
Page 12 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Sprinter Advantages: Uniformity
Protective Layer Reflective Layer Protective Layer Recording Layer Speed: Highest Throughput
- Dry Cycle Time 2.8 sec
- > 1200 discs/h
Flexible Configuration: the right sputter source for your process Uniformity: Excellent Layer Uniformity
- < +/- 2.5 % for most sputter materials
- Disc rotation during sputtering
- stable production condition
SLIDE 13
Page 13 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Magnet system tuning to reach film thickness uniformity: ± 2.5 % within a disc
(for most sputter materials)
Thickness Uniformity
42.00 43.00 44.00 45.00 46.00 47.00 48.00
- 60.00
- 40.00
- 20.00
0.00 20.00 40.00 60.00 Radius [mm] Thickness [nm]
top-down +2.5%
- 2.5%
left-right
Uniformity: Layer Uniformity for your Process
Thickness Uniformity
35.00 35.50 36.00 36.50 37.00 37.50 38.00 38.50 39.00 39.50 40.00
- 60.00
- 40.00
- 20.00
0.00 20.00 40.00 60.00 Radius [mm] Thickness [nm]
top-down +2.0%
- 2.0%
left-right
SLIDE 14
Page 14 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Sprinter Advantages: Flexibility for any Process
Speed: Highest Throughput
- Dry Cycle Time 2.8 sec
- > 1200 discs/h
Flexible Configuration:
- DC, DC pulsed, DC Flexicat
- RF, RF Flexicat
- Cooling Station CS21
- MSQ Multi Source
Uniformity: Excellent Layer Uniformity
- < +/- 2.5 % for most sputter materials
- Disc rotation during sputtering
BD-R SL BD-RE SL BD-R DL BD-RE DL BDXL 4th Gen OD
SLIDE 15
Page 15 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Flexible Configuration: Process Station Selection
ARQ21 RF ARQ21 DC CS21 MSQ MCIS HS21 Window ARQ21 RF Flexicat ARQ21 DC Flexicat Disc Loader
SLIDE 16
Page 16 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Selected Sputter Rates for ARQ21DC and ARQ21RF
ARQ21 DC
Al-alloy 33 nm/sec Ag-alloy 33 nm/sec TeGeSb 10 nm/sec Cu-alloy 30 nm/sec SiN 3 nm/sec ZnS-SiO2 12 nm/sec GeCrN 2.5 nm/sec GeN 2.5 nm/sec
ARQ21 RF
SLIDE 17
Page 17 15/03/2011 Media Tech 2011
- R. Bieri SYOM
MSQ (4 x ARQ81) MSQ - Multi Source Quattro
- One to four DC /RF sputter cathodes in one process chamber
- Alloy sputtering (with individual power supply for each cathode)
- Serial sputtering to reduce investment costs (less process chambers and power supplies)
- Optimized geometry for superior radial composition uniformity when mixing different target materials
- Ideal for sputtering thin layers (<10nm)
- Ideal for low power sputtering
SLIDE 18
Page 18 15/03/2011 Media Tech 2011
- R. Bieri SYOM
ARQ21RF & DC Flexicat Cathode Movable Magnet Array for Uniformity Change
SLIDE 19
Page 19 15/03/2011 Media Tech 2011
- R. Bieri SYOM
ARQ21RF & DC Flexicat Cathode Mode a.) Layer Uniformity depending on magnet position
Thickness Uniformity (new Ag Target)
40.00 41.00 42.00 43.00 44.00 45.00 20.00 25.00 30.00 35.00 40.00 45.00 50.00 55.00 60.00
Radius [mm] Thickness [nm] 0% 10% 20% 30% 40% 50%
SLIDE 20
Page 20 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Uniformity ZnS-SiO2 Flexicat 21 cathode
20 25 30 35 40 45 50 55 60 Radius [mm] Thickness
2kWh Flexicat 21 (new target) 130kWh Flexicat 21 (old target)
Less than 2% thickness uniformity over whole target life!
ARQ21RF & DC Flexicat Cathode Mode b.) Constant layer uniformity over target life
SLIDE 21
Page 21 15/03/2011 Media Tech 2011
- R. Bieri SYOM
The right Metallizer for your Process HtL, LtH, Pre-Recorded
Recordable LtH & Pre-Recorded “Sprinter” Metallizer Recordable HtL (-R, -RE, -XL) Swivel & Cube Star Metallizer Pre-Recorded & Recordable LtH
SLIDE 22
Page 22 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Single & Dual Cathode Metallizer for:
Aluminum Silver, Ag-Alloys Silicon Gold, CD-Gold Reactive Sputtering (SiN, etc) RF sputtering
SWIVEL & Cube Lite CUBE STAR & CUBE STAR FLEX
Single Layer Sputter System Overview Swivel, Cube Lite & Cube Star
SLIDE 23
Page 23 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Swivel & Cube Lite for DC & RF Sputtering Single Cathode System
- Same base design for Swivel & Cube Lite
- Focus target cathode or flat target cathode
- Fixed or moving inner mask
- DC, DC reactive or RF sputtering
- Lowest running costs & smallest footprint
- Excellent service accessibility
- “Task oriented” touch screen panel, error tracking
- Large installed base
SLIDE 24
- Flexible cathode and pivot arm configuration for
DC and DC reactive sputtering
- Dual cathode design enables sputtering of very
thick layers
- Flip Unit for front and back side metallization
- Smallest footprint, everything integrated
- “Task oriented” touch screen panel
- Error tracking / service support / analysis tool
- Large installed base
Cube Star Dual Cathode System
SLIDE 25
Page 25 15/03/2011 Media Tech 2011
- R. Bieri SYOM
The Right Cathode for every Material Swivel, Cube Lite, Cube Star
Cathode Name Main Sputter Material Application Remarks ARQ 931S
Ag, Ag-Alloy, Al, Si, Au DVD9 L1 & L0, BD L0 Focus Target
ARQ931SiN
Si reactive for SiN BD Backside Coating SiN Focus Target
ARQ 950
Ag/Ag-Alloy DVD R DL BD-ROM DL L1 Focus Target
ARQ 941
Conductive Material Flat Target w center hole
ARQ 21 DC & RF
Conductive & Dielectric Material Barrier Layer BD-R LtH Flat Target w/o center hole
Cube Lite Swivel, Cube Lite, Cube Star
- Highest flexibility
- Excellent uniformity
- Outstanding target utilization -> longest target life
- Fastest target changes
SLIDE 26
Page 26 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Swivel ARQ931: best Target Utilization
Weight new target
4.5 kg
Weight used target
2.1 kg
Target utilization
> 52% (Silver)
= 1 mio shots @ 10nm
SLIDE 27
Page 27 15/03/2011 Media Tech 2011
- R. Bieri SYOM
Wrap-Up: Metallizer for today's and tomorrows OD Media
Recordable LtH & Pre-Recorded “Sprinter” Recordable Media (-R, -RE, -XL) Swivel & Cube Star Pre-Recorded & Recordable LtH
SLIDE 28
Page 28 15/03/2011 Media Tech 2011
- R. Bieri SYOM
