CORNER G Corner Electrical Systems Limited SYSTEMS DC Busbar Systems G Corner Electrical CORNER Systems Limited SYSTEMS G Corner is involved in the design, manufacture and supply of bus bar systems and components for the electrochemical


slide-1
SLIDE 1

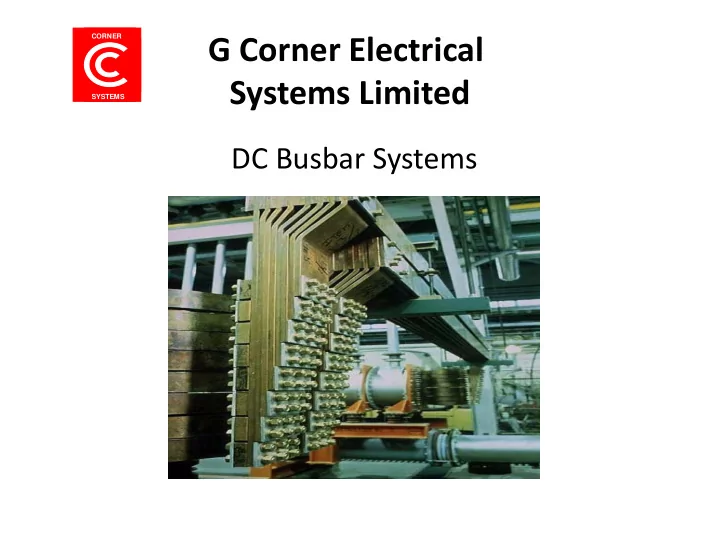

G Corner Electrical Systems Limited

DC Busbar Systems

SYSTEMS CORNER

slide-2
SLIDE 2
  • G Corner is involved in the design, manufacture and supply of

bus bar systems and components for the electrochemical refining industry

  • The G Corner name has been supplying Copper Based DC Bus

Bar Systems and components around the World for the last 30 Years

  • Based in Manchester UK with overseas factories and offices

in South Africa, India and Chile

  • With 35 Employees
  • ISO 9000 Series Approved for the Design and Manufacture of

DC Bus Bar Systems

  • USD 12 Million / Year turnover, part of MSS Group with an

annual turnover of USD 30 Million.

G Corner Electrical Systems Limited

SYSTEMS CORNER

slide-3
SLIDE 3

G Corner SA Factory for Busbar Systems Commerical Office Southern Africa MSS India Factory Manufacture of Electrolyser Components G Corner UK Busbar System Manufacturing Facility G Corner Santiago Chile Commerical and Technical office G Corner UK Head Office Design, Technology Project Management

G Corner Operational Structure

SYSTEMS CORNER

slide-4
SLIDE 4
  • A DC or Direct Current busbar system carries electrical

current around a plant when AC or Alternating Current can not be used.

  • These systems usually carry very large electrical currents
  • f between 15,000 Amps and 100,000 Amps
  • Due to the large currents involved the systems use heavy

sections of copper to conduct the electricity

  • With the heavy sections of copper involved a significant

supports structure is required.

  • Systems can also be manufactured from Aluminium

What is a DC Busbar System?

SYSTEMS CORNER

slide-5
SLIDE 5
  • DC Busbar systems are used extensively in

the refining of chlorine

  • This

refining produces a number

  • f

products such as: – Caustic Soda – Liquid Chlorine – Chlorine Dioxide

  • These products are used in a number of

areas such as for the production of bleach which is used to treat wood pulp for news print

  • For example MSS India has supplied a

Busbar system to Tamil Nadu Pulp and Paper Ltd for their new bleaching plant

ICI Chlorine Electrolyser Refinery

Uses of DC Busbar Systems ‐ Chemical Plants

SYSTEMS CORNER

slide-6
SLIDE 6

Uses of DC Busbar Systems ‐ Chemical Plants

Chemetics 25M Chlorine Dioxide Electrolysers

SYSTEMS CORNER

INEOS BiChlor Electrolysers

slide-7
SLIDE 7
  • DC Busbar Systems are used in

all base metal refineries for the production of metals such as:

– Copper – Cobalt – Nickel – Zinc

  • MSS India has also worked on

a number of these projects in Southern Africa and North America.

Uses of DC Busbar Systems ‐ Base Metal Refineries

First Quantum Minerals plc 75,000 tonne per Year Copper refinery Tankhouse in Kansanshi, Zambia

SYSTEMS CORNER

slide-8
SLIDE 8

Our Customers ‐ Base Metal Refining

SYSTEMS CORNER

slide-9
SLIDE 9

DC Busbar Systems from Aluminium

SYSTEMS CORNER

slide-10
SLIDE 10

DC Busbar Systems from Copper

SYSTEMS CORNER

slide-11
SLIDE 11

G Corner Capability

  • On site feasibility study
  • Design and specification of the system with the

Client

  • Detailed drawings of the installation for the

client

  • Manufacture of the bus bar system
  • Delivery to site
  • Site installation supervision and commissioning

SYSTEMS CORNER

slide-12
SLIDE 12

Photo Gallery

SYSTEMS CORNER

Manufacturing Plant

slide-13
SLIDE 13

DC Busbar Manufacturing Section

Main trunk busbar System

  • G Corner manufactures a large range of Main

trunk busbars for electro‐refining and the electro‐winning of base metals and the refining of certain chemicals such as chlorine with DC Electricity.

– 40,000 Sq Ft Factory – CNC Machining – CNC Bending – Specialist High Current flexible production facility – Room for handling, assembly and storage

Busbar Fabrication

SYSTEMS CORNER

slide-14
SLIDE 14

Inspection and Test Laboratory

SYSTEMS CORNER

slide-15
SLIDE 15

CNC Machining & Bending Cell

SYSTEMS CORNER

slide-16
SLIDE 16

Photo Gallery

SYSTEMS CORNER

Installations

slide-17
SLIDE 17

Copper Busbar System Chlorine Plant

SYSTEMS CORNER

slide-18
SLIDE 18

Copper Busbar Systems DC Switches

SYSTEMS CORNER

slide-19
SLIDE 19

Busbar Support System Copper Refinery

SYSTEMS CORNER

slide-20
SLIDE 20

DC Busbar System for copper refinery Intercell Busbar Systems

SYSTEMS CORNER

slide-21
SLIDE 21

Installation of DC Busbar Systems – South Africa

SYSTEMS CORNER

Kansanshi Zambia

slide-22
SLIDE 22

Busbar System Installation

SYSTEMS CORNER

Spence Copper Refinery BHP Billiton Chile

slide-23
SLIDE 23

Transformer / Rectifier Connections

SYSTEMS CORNER

slide-24
SLIDE 24

DC Busbar System Shorting Frames ‐ Electrowinning

SYSTEMS CORNER

slide-25
SLIDE 25

DC Busbar System Shorting Frames & Lifting Bale ‐Electrowinning

SYSTEMS CORNER
