ODOT Region 1 I-205: Johnson Creek Blvd to Glen Jackson Bridge Northbound Auxiliary Lane SE Powell Blvd to I-84 Northbound and Southbound Active Traffic Management (ATM) Schedule Advance Plans: May 31, 2018 Final

SLIDE 1

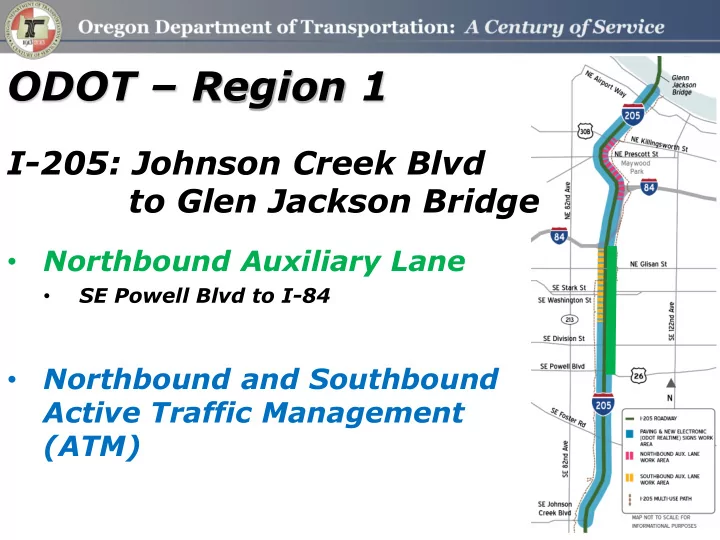

ODOT – Region 1

I-205: Johnson Creek Blvd to Glen Jackson Bridge

Northbound Auxiliary Lane
SE Powell Blvd to I-84
Northbound and Southbound

Active Traffic Management (ATM)

SLIDE 2

Schedule

Advance Plans:

May 31, 2018

Final Plans:
Jul. 27, 2018
Bid Opening:
Nov. 29, 2018
Construction:
Oct. 31, 2019*

* HB2017 Trigger Project with a fixed end date

SLIDE 3

Schedule

SLIDE 4

Closure Restrictions

Standard Ramp Closures
Sunday - Friday morning 9:00 p.m. to 5:00 a.m.
Friday - Saturday morning: 10:00 p.m. to 7:00 a.m.
Saturday - Sunday morning: 10:00 p.m. to 8:00 a.m.
I-84 and Airport Way Ramp Closures
Sunday - Friday morning 10:00 p.m. to 5:00 a.m.
Friday - Saturday morning: 10:00 p.m. to 7:00 a.m.
Saturday - Sunday morning: 10:00 p.m. to 8:00 a.m.
Full Closure or Rolling Closure
Sunday night - Friday morning 11:00 p.m. to 4:00 a.m.
Friday night - Sunday morning: 11:00 p.m. to 6:00 a.m.

SLIDE 5

I-205 NB: MP 19.8 & 20.4 (Night Time)

1. 82nd Ave. to

Washington St.

X X X

1

SLIDE 6

Intersection #1 – SE 82nd Ave. to SE Washington St. Annual Permitted Vehicle : Triple Trailer

SE Washington St.

Outcome: Truck successfully makes the turn

N

SLIDE 7

Intersection #1 – SE 82nd Ave. to SE Washington St. Annual Permitted Vehicle : Heavy Haul

SE Washington St.

Outcome: Truck encroaches in opposing direction of travel and/or greatly impacts streetscape

N

SLIDE 8

Intersection #1 – SE 82nd Ave. to SE Washington St. Annual Permitted Vehicle : Log Truck

SE Washington St.

Outcome: Truck encroaches in opposing direction of travel and/or greatly impacts streetscape

N

SLIDE 9

I-205 NB TO I-84 WB Ramp Closure (Night Time)

1. Glisan through to I-84

SLIDE 10

Intersection #1 – NE Glisan St. through to I-84 Annual Permitted Vehicle : Triple Trailer

NE Glisan St.

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 11

Intersection #1 – NE Glisan St. through to I-84 Annual Permitted Vehicle :

NE Glisan St.

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 12

Intersection #1 – NE Glisan St. through to I-84 Annual Permitted Vehicle :

NE Glisan St.

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 13

I-205 SB: MP 21.8 (Night Time)

1. 82nd Ave. to Glisan St

2.Glisan St to I-205 S

1 2

SLIDE 14

Intersection #1 – NE 82nd Ave. to Glisan St. Annual Permitted Vehicle : Triple Trailer

NE Glisan St. NE 82nd Ave.

Outcome: Vehicle navigates the intersection with minor encroachment into left turn lane

N

SLIDE 15

Intersection #1 – NE 82nd Ave. to Glisan St. Annual Permitted Vehicle : Heavy Haul

NE Glisan St. NE 82nd Ave.

Outcome: Vehicle navigates the intersection with major encroachment in both directions.

N

SLIDE 16

Intersection #1 – NE 82nd Ave. to NE Glisan St. Annual Permitted Vehicle : Log Truck

NE Glisan St. NE 82nd Ave.

Outcome: Vehicle navigates the intersection with major encroachment in both directions.

N

SLIDE 17

Intersection #2 – NE Glisan Turn to I-205 Annual Permitted Vehicle : Triple Trailer

NE Glisan St. I-205 Entrance Ramp

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 18

Intersection #2 – NE Glisan Turn to I-205 Annual Permitted Vehicle : Heavy Haul

NE Glisan St. I-205 Entrance Ramp

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 19

Intersection #2 – NE Glisan Turn to I-205 Annual Permitted Vehicle : Log Truck

NE Glisan St. I-205 Entrance Ramp

Outcome: Vehicle navigates the intersection with major encroachments into adjacent through lanes.

N

SLIDE 20

I-205 NB: MP 23.8 (Night Time)

1. NE Sandy Blvd

1

SLIDE 21

Intersection #1 – NE Sandy Blvd. Annual Permitted Vehicle : Triple Trailer

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 22

Intersection #1 – NE Sandy Blvd. Annual Permitted Vehicle : Heavy Haul

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 23

Intersection #1 – NE Sandy Blvd. Annual Permitted Vehicle : Log Truck

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 24

I-205: MP 24.5 SB

1. NE Mt. Hood Ave. to

NE Airport Way

1

SLIDE 25

Intersection #1 – NE Mt. Hood Ave. to NE Airport Way Annual Permitted Vehicle: Triple Trailer

Outcome: Vehicle successfully navigates the intersection.

N

SLIDE 26

Intersection #1 – NE Mt. Hood Ave. to NE Airport Way Annual Permitted Vehicle: Heavy Haul

Outcome: Vehicle slightly encroaches into adjacent through lane and greatly impacts streetscape elements.

N

SLIDE 27

Intersection #1 – NE Mt. Hood Ave. to NE Airport Way Annual Permitted Vehicle: Log Truck

Outcome: Vehicle navigates the intersection with major encroachments into adjacent through lanes.

N

SLIDE 28

I-205: Washington St. & Stark St. NB Exit Ramp Closure (Night Time)

1. I-205 N to I-205 S

1

SLIDE 29

Intersection #1 – I-205 N to I-205 S Annual Permitted Vehicle: Triple Trailer

Outcome : Truck successfully makes turn

NE Glisan St.

N

I-205 entrance ramp

SLIDE 30

Intersection #1 – I-205 N to I-205 S Annual Permitted Vehicle: Heavy Haul

Outcome : Vehicle navigates intersection with minor encroachment into adjacent through lane.

NE Glisan St.

N

I-205 entrance ramp

SLIDE 31

Intersection #1 – I-205 N to I-205 S Annual Permitted Vehicle: Log Truck

Outcome : Vehicle navigates intersection with major encroachment into adjacent through lanes.

NE Glisan St.

N

I-205 entrance ramp

SLIDE 32

Next Steps

Questions
Follow-up items
Request MCTD support for Project
