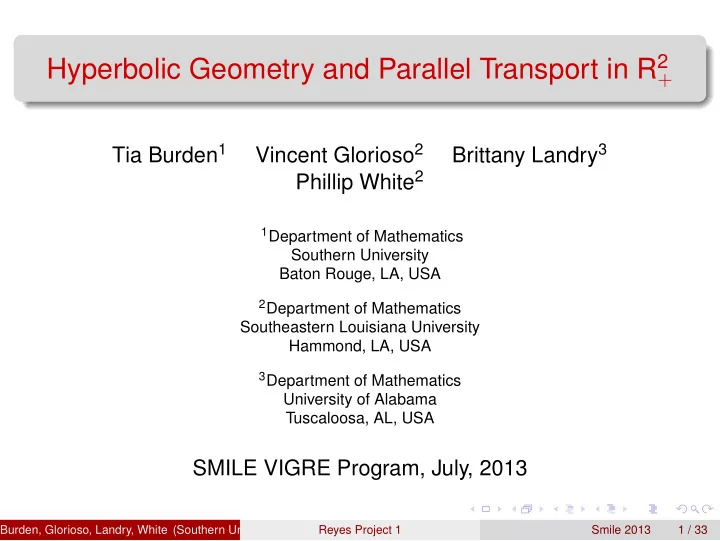

Hyperbolic Geometry and Parallel Transport in R2

+

Tia Burden1 Vincent Glorioso2 Brittany Landry3 Phillip White2

1Department of Mathematics

Southern University Baton Rouge, LA, USA

2Department of Mathematics

Southeastern Louisiana University Hammond, LA, USA

3Department of Mathematics

University of Alabama Tuscaloosa, AL, USA

SMILE VIGRE Program, July, 2013

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 1 / 33

Objective

Parallel transport along a hyperbolic triangle Compare angle of initial and final vector Compute area of hyperbolic triangle Compare area and angles of parallel transports of hyperbolic triangles

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 2 / 33

Albert Einstein and Hermann Minkowski

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 3 / 33

Applications

Complex variables Topology of two and three dimensional manifolds Finitely presented infinite groups Physics Computer science

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 4 / 33

Postulate 1

A straight line segment can be drawn joining any two points.

A B

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 5 / 33

Postulate 2

Any straight line segment can be extended indefinitely in a straight line

A B C

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 6 / 33

Postulate 3

Given any straight line segment, a circle can be drawn having the segment as a radius and one endpoint as center.

A B

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 7 / 33

Postulate 4

All right angles are congruent.

A B C D

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 8 / 33

Parallel Postulate

Through any given point not on a line there passes exactly one line that is parallel to that given line in the same plane.

A B C

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 9 / 33

Parallel Transport

w v

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 10 / 33

Parallel Transport About a Euclidean Triangle

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 11 / 33

Upper Half-Plane

Definition

Upper half-plane: R2

+ = {(x, y) ∈ R2 : y > 0}.

Complex plane: H2 = {x + iy : x, y ∈ R, y > 0}.

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 12 / 33

Geodesic

Definition

Geodesic is a line, curved or straight, between two points such that the acceleration of the line is 0. So given a curve γ defined on an open interval I it must satisfy D

dt dγ dt = 0 ∈ Tγ(t) for all t ∈ I.

Euclidean Geometry Hyperbolic Geometry

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 13 / 33

Covariant Derivative

Definition

There is a unique correspondence that associates the vector field DV

dt

along the differentiable curve γ to the vector field V. The vector field V is referred to as the covariant derivative.

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 14 / 33

Results from the Covariant Derivative

From the Covariant Derivative we obtain a set of two differential equations, using the curve γ = (γ1(t), γ2(t)) and the vector field V = (f(t), g(t)), that a parallel vector field must satisfy. f ′(t) = γ′

2(t)

γ2(t)f(t) + γ′

1(t)

γ2(t)g(t) g′(t) = γ′

1(t)

γ2(t)f(t) + γ′

2(t)

γ2(t)g(t)

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 15 / 33

Original Vector: V0

π 2

1 2

γ1(t) = (t, 1) η π

2 (t) = ( π

2 , t)

γ2(t) = (t, 2) η0(t) = ( π

2 , t)

V0

π 8 Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 16 / 33

Transport Along γ1(t) to V1

π 2

1 2

γ1(t) = (t, 1) η π

2 (t) = ( π

2 , t)

γ2(t) = (t, 2) η0(t) = ( π

2 , t)

V0

π 8

V1

3π 8 Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 17 / 33

Transport Along the Geodesic η π

2 to V2

π 2

1 2

γ1(t) = (t, 1) η π

2 (t) = ( π

2 , t)

γ2(t) = (t, 2) η0(t) = ( π

2 , t)

V0

π 8

V1

3π 8

V2

7π 8 3π 8 Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 18 / 33

Transport Back Along γ2(t) to V3

π 2

1 2

γ1(t) = (t, 1) η π

2 (t) = ( π

2 , t)

γ2(t) = (t, 2) η0(t) = ( π

2 , t)

V0

π 8

V1

3π 8

V2

7π 8 3π 8

V3

3π 8 7π 8 Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 19 / 33

Transport Down the Geodesic η0 to Vf

π 2

1 2

γ1(t) = (t, 1) η π

2 (t) = ( π

2 , t)

γ2(t) = (t, 2) η0(t) = ( π

2 , t)

V0

π 8

V1

3π 8

V2

7π 8 3π 8

V3

3π 8 7π 8

Vf

3π 8 π 4 Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 20 / 33

Area Calculation

To find the area of the rectangle, we use the following integral: A =

• π

2

2

1

dydx y2 =

• π

2

(−1 y

• 2

1

) dx =

• π

2

1 2 dx = 1 2x

• π

2

= π 4

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 21 / 33

General Equation

Given the curve c(t) = (t, mt + b), we used Mathematica to find the equation for the parallel vector field: V1(t) = e−

t b+mt

• e

t b+mt − 1

• ,

V2(t) = e−

t b+mt Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 22 / 33

Line: y = mx + b

Parallel Transport about the line 2t + 1.

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 23 / 33

General Parallel Transport

When a vector is being transported around a hyperbolic triangle it maintains the angle with the tangent vectors of the curve on which it is moving.

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 24 / 33

Area

Area Equation Step 1

For a hyperbolic triangle with angles α and β and γ = 0, which is an ideal triangle, we get the equation for the area: A = cos β

− cos α

∞ √

1−x2

dydx y2 = π − (α + β)

.5 1 1.5 2 .5 1 1.5 2 2.5

A B AB C D α β

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 25 / 33

Area Calculation

For the triangle AB∞ A = cos β

− cos α

∞ √

1−x2

dydx y2 = cos β

− cos α

−1 y

• ∞

√

1−x2 dx

= cos β

− cos α

1 √ 1 − x2 dx = arcsin(x)

• cos β

− cos α

= arcsin(sin(π 2 − β)) − arcsin(− sin(π 2 − α)) = ((π 2 − β) + (π 2 − α)) = π − (α + β)

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 26 / 33

Area

Area equation

We can find the area of a general hyperbolic triangle with angles α, β, and γ by subtracting the areas of two ideal hyperbolic triangles: A = π − (α + β + γ)

.5 1 1.5 2 .5 1 1.5 2 2.5

A B X Y C D α β1 γ β2 180 − γ

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 27 / 33

Area Calculation

For the triangle ABC A = cos β

− cos α

∞ √

1−x2

dydx y2 − cos β2

− cos(π−γ)

∞ √

1−x2

dydx y2 = cos β

− cos α

−1 y

• ∞

√

1−x2 dx −

cos β2

− cos(π−γ)

−1 y

• ∞

√

1−x2 dx

= cos β

− cos α

1 √ 1 − x2 dx − cos β2

− cos(π−γ)

1 √ 1 − x2 dx = arcsin(x)

• cos β

− cos α − arcsin(x)

• cos β2

− cos(π−γ)

= ((π 2 − β) + (π 2 − α)) − ((π 2 − β2) + (π 2 − γ)) = π − (α + β) − (π − (γ + β2)) = π − (α + β1 + β2) − (π − (γ + β2)) = π − (α + β + γ)

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 28 / 33

Area vs. Angle of Initial to Transported Vector

Theorem

The area of any hyperbolic triangle in R2

+ is equal to the angle between

the initial and final transported vectors.

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 29 / 33

Non-Normal Hyperbolic Triangle

1 2 3 4 5 6 1 2 3 4

A′ C′ B′ C B A

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 30 / 33

What are Fractional Transformations?

A fractional transformation is a special representation of a matrix that is used in Möbius Transformations.

Fractional Transformation

Given matrix M = a b c d

• , where a, b, c, d ∈ R, and the point

p = (x, y). The fractional transformation of p in terms of M is written as: fM(p) = ap + b cp + d = a(x + yi) + b c(x + yi) + d

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 31 / 33

Future Studies

Parallel Transport in Different Models of Hyperbolic Geometry

Poincaré Disk Hyperboloid

B A C

Burden, Glorioso, Landry, White (Southern University ,Southeastern Louisiana University, and University of Alabama) Reyes Project 1 Smile 2013 32 / 33

Acknowledgments

We would like to give a big thanks to our graduate student Andrew Holmes for helping us with this project, in addition to Dr. Edgar Reyes for providing the information needed for this project. Also, we would like to thank the SMILE program for allowing us to have this great

• pportunity.
