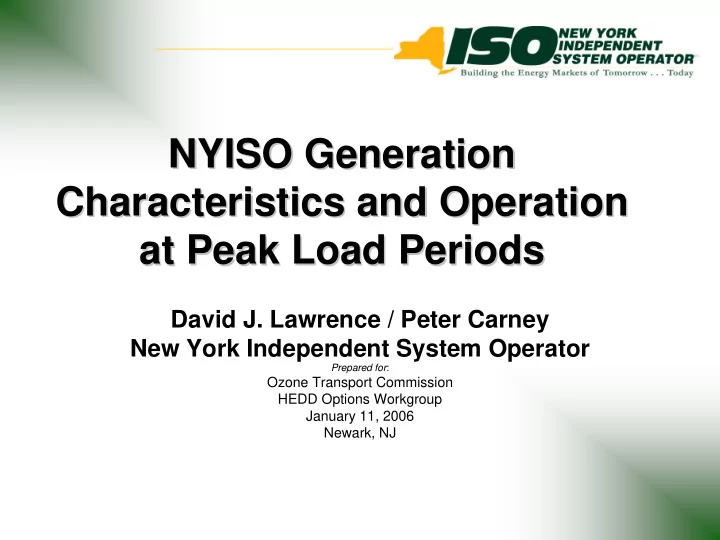

NYISO Generation NYISO Generation Characteristics and Operation Characteristics and Operation at Peak Load Periods at Peak Load Periods

David J. Lawrence / Peter Carney New York Independent System Operator

Prepared for:

Ozone Transport Commission HEDD Options Workgroup January 11, 2006 Newark, NJ

slide-2
SLIDE 2

2

Topics to Cover Topics to Cover

Overview of the NYISO Characteristics of NY Generation NYISO Demand Response Programs NYISO Installed Capacity Market Performance During Aug. 2, 2006 Peak

slide-3
SLIDE 3

3

Overview of the NYISO Overview of the NYISO

NYISO formed December 1, 1999 Independent board and management Highly divested and complex marketplace

featuring co-optimization market clearing systems

Most of the State’s generation is independently

  • wned

NYISO market volume was $10.7 billion in 2005

and $41.1 billion since inception

Unique challenge: New York City is world’s biggest

and most complex load pocket

slide-4
SLIDE 4

4

NYISO Generation Mix NYISO Generation Mix

slide-5
SLIDE 5

5

Megawatts of New Generation* Megawatts of New Generation* by NYISO Zone 1999 by NYISO Zone 1999 -

  • 2005

2005

A C 33 MW D 10 MW F I J H B E G K

* Built or Under Construction

43 MW 7 MW

1,715 MW 2,143 MW

801 MW

slide-6
SLIDE 6

NYISO Demand Response NYISO Demand Response Programs Programs

slide-7
SLIDE 7

7

Demand Response Program Overview Demand Response Program Overview

The NYISO operates two reliability-directed demand response programs:

  • The Emergency Demand Response Program (EDRP):
  • resources paid the greater of $500/MWh or the prevailing LBMP for

curtailments

  • no consequences for enrolled participants that fail to curtail
  • minimum 100 kW requirement – can aggregate resources
  • The Installed Capacity Special Case Resources Program (SCR):
  • certified resources can offer unforced capacity (UCAP) to Load Serving

Entities (LSEs).

  • resources are obligated to curtail when called upon to do so with two or more

hour’s notice, provided that they were notified on the day prior

  • resources are subject to testing to verify that they can fulfill their curtailment

requirement.

  • failure to curtail could result in penalties administered under the ICAP

program.

Participants register either for EDRP or ICAP/SCR but not both.

slide-8
SLIDE 8

8

Historical Participation in Historical Participation in EDRP & SCR Programs EDRP & SCR Programs

EDRP & SCR G rowth

200 400 600 800 1000 1200 1400 1600 1800 2000

D ate 5/23/2001 6/7/2001 7/5/2001 7/26/2001 8/20/2001 9/6/2001 12/18/2001 5/1/2002 6/6/2002 6/24/2002 7/1/2002 8/1/2002 9/12/2002 6/25/2003 8/5/2003 10/14/2003 2/6/2004 2/26/2004 3/29/2004 5/4/2004 6/24/2004 7/15/2004 8/15/2004 9/15/2004 10/26/2004 11/9/2004 12/7/2004 1/18/2005 2/9/2005 8/1/2005 10/18/2005 12/12/2005 2/6/2006 4/18/2006 5/31/2006 7/22/2006 8/31/2006 10/16/2006 11/30/2006

Date MW Registere 500 1000 1500 2000 2500 3000

# Customer

M W Registered # Custom ers # Custom ers (Disaggregated)

slide-9
SLIDE 9

9

Interruptible Load Comparison Interruptible Load Comparison

EDRP+SCR Interruptible Load (M W ), Novem ber 2005, Novem ber 2006 and October 2006

0.0 50.0 100.0 150.0 200.0 250.0 300.0 350.0 400.0 450.0 500.0 A B C D E F G H I J K 2005 Load Previous M

  • nth Load

2006 Load

1230 MW of interruptible load registered as

  • f November

2006

slide-10
SLIDE 10

10

Generator Comparison Generator Comparison

EDRP+SCR Generation (MW), Novem ber 2005, Novem ber 2006 and O ctober 2006

0.0 20.0 40.0 60.0 80.0 100.0 120.0 140.0 160.0 A B C D E F G H I J K 2005 Gen Previous M

  • nth Gen

2006 Gen

250 MW of distributed generation registered as

  • f November

2006

slide-11
SLIDE 11

11

Distributed Generator Rules Distributed Generator Rules Proposed by the NY DEC Proposed by the NY DEC

  • The NYS Dept. of Environmental Conservation (DEC) has drafted

rules (Part 222.1) that address environmental restrictions on the use of emergency generators in demand response programs.

  • Draft rules impose limits on MW registration in the NY

metropolitan area (roughly Zones H-K) and elsewhere: NYCMA Upstate

January 1, 2007:

271.9 MW 111.4 MW

January 1, 2011:

150.0 MW 100.0 MW

January 1, 2014:

50.0 MW 50.0 MW

  • 30-hour annual limit on use within sponsor demand response

programs (including NYISO, NYPA, LIPA and Con Ed)

slide-12
SLIDE 12

12

Characteristics of DG in NY Characteristics of DG in NY Demand Response Programs Demand Response Programs

To better understand emergency generator

participation in EDRP/SCR, the NYISO surveyed CSPs/RIPs in summer 2006

11 sponsoring organizations responded to

survey (out of 36 registered)

246 sources reported

96 sources surveyed are known to be generators in

NYISO records (39%) – 57.8 MW of ICAP

150 sources surveyed are not listed as generators

in NYISO records (61%) – 26.8 MW of ICAP

slide-13
SLIDE 13

13

Generator Type Generator Type

Generator Ty pe, A ll Reported Units

225 9 4 3 2 3 IC engine lean-burn IC engine (>= 1% O 2 exhaust) turbine m icroturbine (less than or equal to 250 kW )

  • ther (specify)

no generator type specified

Generator Ty pe, Units Subject to 222

78 9 3 2 3 IC engine lean-burn IC engine (>= 1% O 2 exhaust) turbine m icroturbine (less than or equal to 250 kW )

  • ther (specify)

no generator type specified

  • Most smaller units are either IC engines or microturbines
slide-14
SLIDE 14

14

Fuel Type Fuel Type

Fuel Type, A ll Reported Units

75 106 2 63

diesel natural gas biogas

  • ther (specify

) no fuel ty pe specified

Fuel Ty pe, Units Subject to 222

51 32 2 10 diesel natural gas biogas

  • ther (specify)

no fuel type specified

5 units regularly use low-sulfur fuel and are equipped with a particulate control device 3 units regularly use low-sulfur fuel and are equipped with a particulate control device

Predominant fuel for all reported units is natural gas; for units that would be subject to Part 222, predominant fuel is diesel

slide-15
SLIDE 15

15

Model Year and Run Hours Model Year and Run Hours

M

  • del Year (n=100)

5 10 15 20 25 30 35 40 1966 1968 1970 1972 1974 1976 1978 1980 1982 1984 1986 1988 1990 1992 1994 1996 1998 2000 2002 2004 2006 Y ear

Run Hours / Year (n=100)

10 20 30 40 50 60 400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 6400 6800 7200 Hours

slide-16
SLIDE 16

16

NOx Emissions Rate Survey Results NOx Emissions Rate Survey Results

NO x Em ission Rate (n=183)

5 10 15 20 25 30 35 40 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 lbs /MWh

NO x Rate, Units Subject to 222 (n=73)

5 10 15 20 25 30 35 40 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 lbs/MW h

  • Significant difference in mean values (34.7 lb/MWh for all units

reported, 19.1 lb/MWh for units subject to Part 222)

slide-17
SLIDE 17

17

PM Emissions Rate Survey Results PM Emissions Rate Survey Results

Smaller, gas-fired units emit very little PM

PM Em ission Rate (n=182)

10 20 30 40 50 60 70 80 90 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 PPM

PM Rate, Units Subject to 222 (n=72)

10 20 30 40 50 60 70 80 90 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 PPM 0.9 0.95 1

slide-18
SLIDE 18

NYISO Installed Capacity NYISO Installed Capacity Market Market

slide-19
SLIDE 19

19

ICAP Markets in New York ICAP Markets in New York

ICAP Requirements are set for the upcoming

capability year

Load serving entities can meet their ICAP

requirements by:

Self-Supply Bilateral Transactions with Suppliers Forward Auctions Deficiency/Spot Market Auctions After-the-fact penalty procurement

slide-20
SLIDE 20

20

Locational ICAP Locational ICAP

Due to transmission constraints into certain

localities, areas or zones, some LSE’s must procure at least some of their ICAP requirements from resources electrically located within that locality

New York (NY) has had locational requirements

since inception. There are two such transmission constrained zones:

  • New York City and
  • Long Island
slide-21
SLIDE 21

21

Demand Curve Demand Curve -

  • NYISO Objectives

NYISO Objectives

Improve the traditional ICAP market Increase system reliability by valuing

additional ICAP above the NYCA and Locational Requirements

Reduce price volatility and send a more stable

revenue signal for new resources

Continue to ensure a competitive, fair, and

non-discriminatory market for capacity in the NYCA

slide-22
SLIDE 22

22

Demand Curve Spot Market Auction Demand Curve Spot Market Auction

Replaced previous Deficiency Auctions Uses a Demand Curve as a proxy for LSE Bids The Demand Curves are based on the cost of new

entry, with decreasing prices for ICAP above the NYCA or Locational Requirements

Conversely, the Demand Curve increases prices/value for

ICAP when resources are short of the NYCA or Locational Requirements Resources have the opportunity to supply ICAP above

the NYCA and/or Locational ICAP Requirements

Reduces stranded capacity

slide-23
SLIDE 23

23

Current NY ICAP Initiatives Current NY ICAP Initiatives

If accepted by FERC, implement mitigation

rules for NYC divested generators

Update demand curve parameters Expand ICAP Automation software Investigate need for and approaches to a

forward capacity market

Reflect FERC’s deliverability requirement in

the ICAP market once the FERC accepts the NYISO proposal

slide-24
SLIDE 24

Performance During August 2, Performance During August 2, 2006 Peak 2006 Peak

slide-25
SLIDE 25

25

System Conditions System Conditions

  • EDRP and SCR resources were activated in Zones J&K from 1

pm to 7 pm, and Zones A, B &C from 2 pm to 7 pm.

  • Zones J&K activated for the same reasons as 8/1; A,B &C for

Western NY area voltages

  • Record Peak Load: 33,939MW
  • Fraser SVC and Leeds SVC taken out of normal for Oakdale and

Ramapo voltage

  • 1,300MW of Emergency Energy to ISO-NE in HB13, ISO-NE in

5% voltage reduction

  • Emergency Transfer Criteria on the 91 & 92 lines (Leeds-Pleasant

Valley) to support SENY & PJM Transfers

  • Estimated performance by Zone:
  • A – 328 MW (300 MW SCR, 28 MW EDRP)
  • B – 60 MW (59 MW SCR, 1 MW EDRP)
  • C – 94 MW (80 MW SCR, 14 MW EDRP)
  • J – 429 MW (334 MW SCR, 95 MW EDRP)
  • K – 261 MW (174 MW SCR, 87 MW EDRP)
  • Total – 1172 MW
slide-26
SLIDE 26

26

NY Control Area Load on 8/2/2006 NY Control Area Load on 8/2/2006

28000 29000 30000 31000 32000 33000 34000 35000 36000 12:00:00 PM 12:20:00 PM 12:40:00 PM 12:55:32 PM 1:15:00 PM 1:35:00 PM 1:53:42 PM 2:10:00 PM 2:30:00 PM 2:50:00 PM 3:10:00 PM 3:30:00 PM 3:50:00 PM 4:10:00 PM 4:30:00 PM 4:50:00 PM 5:10:00 PM 5:30:00 PM 5:50:00 PM 6:10:00 PM 6:30:00 PM 7:15:00 PM 7:35:00 PM 7:55:00 PM 8:15:00 PM 8:35:00 PM 8:55:00 PM M W 7/31 N Y CA 8/1 N Y CA 8/2 N Y CA 8/3 N Y CA 8/2 N Y CA n

  • DR
slide-27
SLIDE 27

27

Peak Day In Peak Day In-

  • City

City Generation Generation

Zone J Hourly Generation 8/2/06 2,000 4,000 6,000 8,000 10,000 1 3 5 7 9 11 13 15 17 19 21 23 HB Integrated Hourly Production

slide-28
SLIDE 28

28

Generation was at max Generation was at max

  • utput or standby
  • utput or standby

Zone J Hourly Capacity Factor 8/2/06 0.0% 10.0% 20.0% 30.0% 40.0% 50.0% 60.0% 70.0% 80.0% 90.0% 1 3 5 7 9 11 13 15 17 19 21 23 HB

slide-29
SLIDE 29

29

Steam Units provide the Steam Units provide the most cycling most cycling

Minimum Generation Hour MWH Gener ated Hourly Capacity Factor CT 806 30.6% CC 2,099 75.5% Steam 1,342 26.4% Total 4,247 40.5%

Maximum Generation Hour MWH Gener ated Hourly Capacity Factor CT 2,030 77.1% CC 2,006 72.0% Steam 4,704 92.6% Total 8,741 83.2%

slide-30
SLIDE 30

30

Questions? Questions?

David J. Lawrence David J. Lawrence dlawrence@nyiso.com dlawrence@nyiso.com 518 518-

  • 356

356-

  • 6084

6084 www.nyiso.com www.nyiso.com
