OCE Informal Document No. 23a Ninth Plenary Meeting of the Working Group On Off-Cycle Emissions 11&12 January 2005 Palais des Nations, Geneva "normal" Ambient temperature "normal" Altitude in Europe ACEA proposal


slide-1
SLIDE 1

File name

WWH-oce 12 January 2005

1

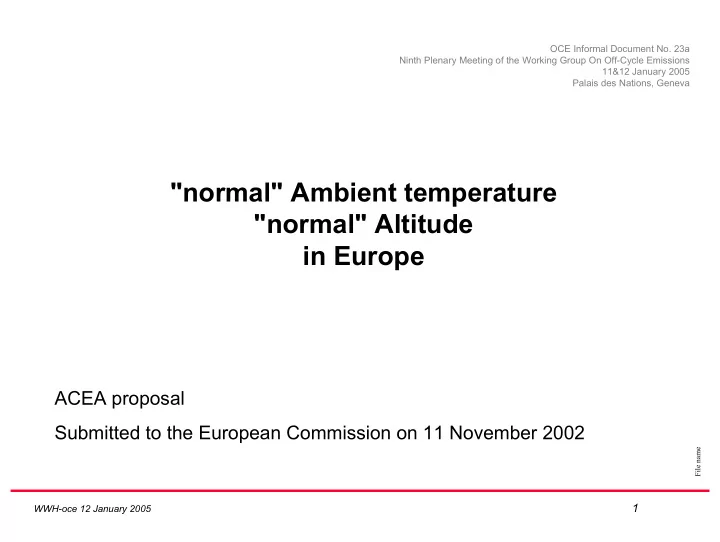

"normal" Ambient temperature "normal" Altitude in Europe

ACEA proposal Submitted to the European Commission on 11 November 2002

OCE Informal Document No. 23a Ninth Plenary Meeting of the Working Group On Off-Cycle Emissions 11&12 January 2005 Palais des Nations, Geneva

slide-2
SLIDE 2

File name

WWH-oce 12 January 2005

2

EU Normal operating conditions

background

  • Directive 2001/27/EC contains provisions on test

conditions under which the engine must meet the emissions standards

  • These provisions have been subject to review by the

Commission.

  • The temperature / altitude distribution in the EU has

been analysed through a collaboration between ACEA and the Aristoteles University in Tessalonniki to propose normal operating conditions.

slide-3
SLIDE 3

File name

WWH-oce 12 January 2005

3

EU Normal operating conditions

selected criterion

  • Normal Operating Conditions consist of

– minimum ambient temperature – maximum ambient temperature – maximum altitude.

  • The selection criterion for applying normal operating

conditions was selected so that more than 90% of the vehicle kilometres within the EU would be driven within the 3 given conditions

slide-4
SLIDE 4

File name

WWH-oce 12 January 2005

4

EU Normal operating conditions

source of information

  • All the EU 15 countries have been divided into

administrative regions according to the Nomenclature

  • f Territorial Units for Statistics (NUTS) In order to

take into account the differences between North and South, the Scandinavian countries and Spain have been further divided.

  • Altitude : http://www.calle.com/world/index.html.
  • Temperature: http://www.weatherbase.com
  • Annual vehicle kilometres driven by each HDV class

are taken from TRENDS for reference year 1995

slide-5
SLIDE 5

File name

WWH-oce 12 January 2005

5

EU Normal operating conditions

distribution analysis

< 1 m 4

  • 5

m > 8 m

0,0% 5,0% 10,0% 15,0% 20,0% 25,0% 30,0% v e h . k m f re q u e n c y

a l t i t ude t e mpe r a t ur e

EU veh.km / temperature / altitude distribution

chart developped on data originating f rom LAT (Greece)

slide-6
SLIDE 6

File name

WWH-oce 12 January 2005

6

EU Normal operating conditions

cumulative frequencies

EU day and night

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

  • 20
  • 10

10 20 30 40 temperatures cumulative frequencies EU EU day EU night
