Week 10 - Lecture Nonlinear Structural Analysis ME 24-688 Introduction to CAD/CAE Tools Product Lifecycle Week 10 Portfolio Conceptual Product Requirements Management Design Engineering Manufacturing Engineering Simulation &

slide-1
SLIDE 1

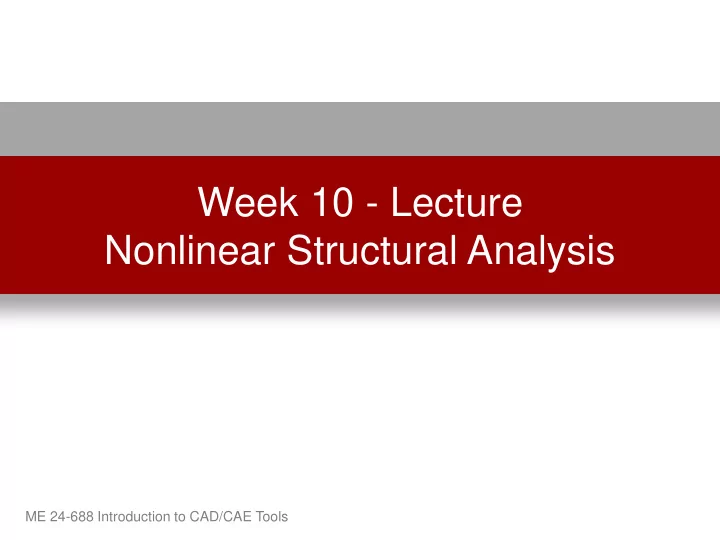

ME 24-688 Introduction to CAD/CAE Tools

Week 10 - Lecture Nonlinear Structural Analysis

slide-2
SLIDE 2

ME 24-688 Introduction to CAD/CAE Tools

Product Lifecycle – Week 10

Requirements Portfolio Management Conceptual Design Product Engineering Manufacturing Engineering Simulation & Validation Build & Produce Test & Quality Sales & Distribution Maintenance & Repair Disposal & Recycling

slide-3
SLIDE 3

ME 24-688 Introduction to CAD/CAE Tools

Goals of Simulation

  • Validate Designs
  • Predict Product Performance
  • Optimize Designs
slide-4
SLIDE 4

ME 24-688 Introduction to CAD/CAE Tools

Replicate the Physical World

The more closely a simulation conforms to what happens in the physical world, the more value it has to offer.

– Model Geometry – Analysis Type – Materials – Boundary Conditions – Loading Conditions

slide-5
SLIDE 5

ME 24-688 Introduction to CAD/CAE Tools

Materials

  • The available material selection

is vast and changes everyday.

  • The material properties and

material model determine the behavior under operating conditions.

slide-6
SLIDE 6

ME 24-688 Introduction to CAD/CAE Tools

Force Estimation Methods

  • Experience

– Engineers reply on past experience from similar projects to estimate forces.

  • Rigid-Body Dynamics

– Leverage the 3D design data to perform a motion simulation using rigid bodies to gain insights into force values.

  • Physical Experimentation

– Experiment with prototypes or past products to obtain accurate force values.

slide-7
SLIDE 7

ME 24-688 Introduction to CAD/CAE Tools

Linear vs. Nonlinear Analysis

  • Linear

– Structure returns to original form – No changes in loading direction or magnitude – Material properties do not change – Small deformation and strain

  • Nonlinear

– Geometry changes resulting in stiffness change – Material deformation that may not return to

  • riginal form

– Supports changes in load direction and constraint locations – Support of nonlinear load curves

Focus for this week

slide-8
SLIDE 8

ME 24-688 Introduction to CAD/CAE Tools

Nonlinear Analysis

  • Design Engineer Belief

– Too Complicated – Time Consuming – Specialized software packages

  • Reality

– Nonlinearities are common. – Advances in FEA Software – Advances in Computing Hardware

slide-9
SLIDE 9

ME 24-688 Introduction to CAD/CAE Tools

Types of Nonlinearity

  • Nonlinear Material

– Materials that do not have a complete linear stress strain curve as seen in plastic and rubber materials for example.

  • Nonlinear Geometry

– The changing shape of a model when large deformations exists provide nonlinear changes in the components stiffness.

  • Nonlinear Boundary Condition

– Boundary conditions that involve components in contact with one another often produce disproportionate changes in deformation.

  • Nonlinear Loading Condition

– Loading changes over time.

slide-10
SLIDE 10

ME 24-688 Introduction to CAD/CAE Tools

Materials Types

Stress = Strain =

Soft and Tough Change in Length Original Length

Area Force

Hard and Brittle Hard and Strong Hard and Tough

slide-11
SLIDE 11

ME 24-688 Introduction to CAD/CAE Tools

Elastic Region Plastic Region

Polymeric Material Example

Stress = Strain =

Failure Change in Length Original Length

Area Force

Proportional Limit Yield Limit Young’s Modulus

slide-12
SLIDE 12

ME 24-688 Introduction to CAD/CAE Tools

Nonlinear Boundary Condition

  • Component contacts produce stresses and

friction that result in disproportionate changes in deformation.

slide-13
SLIDE 13

ME 24-688 Introduction to CAD/CAE Tools

Nonlinear Geometry

  • Changing shape triggers nonlinear changes

in stiffness of the part model.

slide-14
SLIDE 14

ME 24-688 Introduction to CAD/CAE Tools

Event Simulation

  • Event simulation allows for the entire event
  • f a condition not just a static solution.
  • In mechanical engineering the static case
  • ften does not dictate the design.
  • Designs must consider the worst-case

scenario which often occurs after loading.

slide-15
SLIDE 15

ME 24-688 Introduction to CAD/CAE Tools

Event Simulation Example F

Linear static solution would have the entire load carried by vertical member.

slide-16
SLIDE 16

ME 24-688 Introduction to CAD/CAE Tools

Event Simulation Example F

With an event simulation the horizontal members would carry some of the load.

slide-17
SLIDE 17

ME 24-688 Introduction to CAD/CAE Tools

Nonlinear Example

  • Unbending and bending a paperclip back

into position has nonlinear material and geometry effects.

Residual Stresses Plastic Stresses

slide-18
SLIDE 18

ME 24-688 Introduction to CAD/CAE Tools

Everyday Nonlinear Requirements

slide-19
SLIDE 19

ME 24-688 Introduction to CAD/CAE Tools

Autodesk Simulation

Autodesk Simulation helps designers and engineers make decisions earlier and predict product performance.

– Linear and Nonlinear Static Stress – Fatigue Analysis – Linear Dynamic – Mechanical Event – Heat Transfer – CFD – Multiphysics

slide-20
SLIDE 20

ME 24-688 Introduction to CAD/CAE Tools

Element Types

The following are some of the element types available in Autodesk Simulation

– Beam – Spring – Brick – Shell – Truss – Special (Actuator) – Special (Membrane) – Special (Slider)

slide-21
SLIDE 21

ME 24-688 Introduction to CAD/CAE Tools

Load Curves

Load curves control the load value through a multiplier over a time period. Each specific load can follow a different load curve.

slide-22
SLIDE 22

ME 24-688 Introduction to CAD/CAE Tools

Six Flags Theme Parks - Case Study

“Our primary concern is safety. Inventor and Autodesk Simulation allow us to study real-world loading scenarios so we can be sure we have appropriate safety factors in our designs.” Mike Neuzil Corporate Engineer Six Flags Theme Parks, Inc. United States

Challenge

Maintain and renovate hundreds of thrill rides with minimal downtime.

Results

  • New, in-house design of anti-

rollback mechanism to modernize a wooden roller coaster, the Texas Giant

  • Better collaboration with

fabricators through use of high-quality drawings and documentation

  • Improve quality by increasing

reliability of high-wear parts.

slide-23
SLIDE 23

ME 24-688 Introduction to CAD/CAE Tools

Howden - Case Study

“Flexibility, adaptability and reliability are the key benefits that we enjoy with Autodesk Simulation products.” Laurent Tisserand Technical Director Howden France

Challenge

Reduce the time taken to produce tenders with technically and economically competitive proposals, while taking account of increasingly detailed customer requirements

Results

  • Substantial reduction in total

design time.

  • Faster response to customer

design requirements.

  • Simulation allows

investigation and validation of new design approaches.

  • Weight reduction through

design optimization brings reduced costs.

slide-24
SLIDE 24

ME 24-688 Introduction to CAD/CAE Tools

Computer-Cluster Projects (CP10)

slide-25
SLIDE 25

ME 24-688 Introduction to CAD/CAE Tools

Guided Lab Project 1

Guides instructions for completing a static stress linear simulation in Autodesk Simulation.

slide-26
SLIDE 26

ME 24-688 Introduction to CAD/CAE Tools

Guided Lab Project 2

Guided instructions for completing a mechanical event nonlinear analysis in Autodesk Simulation.

slide-27
SLIDE 27

ME 24-688 Introduction to CAD/CAE Tools

Guided Lab Project 3

Guided instructions for completing a snap fit nonlinear analysis on a medical device in Autodesk Simulation.

slide-28
SLIDE 28

ME 24-688 Introduction to CAD/CAE Tools

Problem Set Assignment

Analyze the electrical switch snap fit mounting to determine force required and design quality.

slide-29
SLIDE 29

ME 24-688 Introduction to CAD/CAE Tools

Demo Topics

slide-30
SLIDE 30

ME 24-688 Introduction to CAD/CAE Tools

User Interface

Setup tab Stress Analysis browser Graphical display

slide-31
SLIDE 31

ME 24-688 Introduction to CAD/CAE Tools

Mesh Panel and Settings

slide-32
SLIDE 32

ME 24-688 Introduction to CAD/CAE Tools

Simulation Browser

Multiple simulations Analysis Type Constraints and Loads Part Element Type Element Definition Material Surfaces Contacts

slide-33
SLIDE 33

ME 24-688 Introduction to CAD/CAE Tools

Assign Materials

slide-34
SLIDE 34

ME 24-688 Introduction to CAD/CAE Tools

Assign Constraints

slide-35
SLIDE 35

ME 24-688 Introduction to CAD/CAE Tools

Assign Loads

slide-36
SLIDE 36

ME 24-688 Introduction to CAD/CAE Tools

Contacts

slide-37
SLIDE 37

ME 24-688 Introduction to CAD/CAE Tools

Analysis Parameters

Duration Capture Rate Load Curves

slide-38
SLIDE 38

ME 24-688 Introduction to CAD/CAE Tools

Selection Panel

Selection Shape Select Type Subentites of Selection

slide-39
SLIDE 39

ME 24-688 Introduction to CAD/CAE Tools

Run Simulation

slide-40
SLIDE 40

ME 24-688 Introduction to CAD/CAE Tools

Results User Interface

Results Contours tab Stress Analysis browser Legend Graphical display

slide-41
SLIDE 41

ME 24-688 Introduction to CAD/CAE Tools

Results Contours / Results Inquire

slide-42
SLIDE 42

ME 24-688 Introduction to CAD/CAE Tools

Graph Results
