NOAA nowCOAST GIS-Web Mapping Portal to Near-Real-Time Weather & Ocean Data, Warnings, and Forecasts - Map Viewer & Web Map Services - John G.W. Kelley and Jason Greenlaw Coast Survey Development Laboratory NOAA/National Ocean


slide-1
SLIDE 1

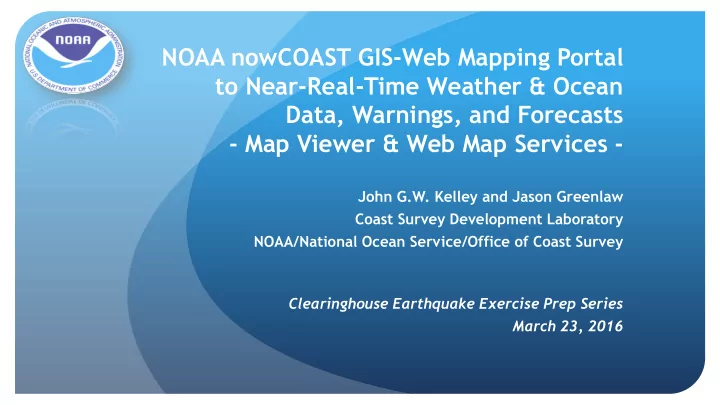

NOAA nowCOAST GIS-Web Mapping Portal to Near-Real-Time Weather & Ocean Data, Warnings, and Forecasts

  • Map Viewer & Web Map Services -

John G.W. Kelley and Jason Greenlaw Coast Survey Development Laboratory NOAA/National Ocean Service/Office of Coast Survey Clearinghouse Earthquake Exercise Prep Series March 23, 2016

slide-2
SLIDE 2

NOAA/NOS’ nowCOAST GIS-Based Web Mapping Portal

Purpose:

  • Provide users with situational awareness/coastal intelligence of the recent

past, present, & future environmental conditions for the coastal USA

  • Initial users included commercial & recreational mariners, emergency

managers, search & rescue and HAZMAT response, and fishermen

Accomplished by:

  • Integrating real-time observations, imagery, analyses, outlooks, warnings,

forecasts, & model forecast guidance from NOS, NWS, and NESDIS

Weather Radar Cloud Imagery Rainfall Analyses Outlooks Watches/Warnings Temp Forecast Model Guidance

  • Providing data and information via web map services & map viewer
slide-3
SLIDE 3

nowCOAST ArcGIS Map Services

ArcIMS Image Service

DHS/FEMA & Red Cross National Shelter System NOAA/NOS/ERMA

NOAA/NWS/EDD Fifth Third Bank

  • ArcGIS REST Map Services feeds nowCOAST’s Map Viewer
  • ArcGIS REST Map Services and OGC Web Map Services (WMS) feed external

map viewers for other NOAA offices, Homeland Security, Private Sector, and many others

Web Map Services

slide-4
SLIDE 4

Importance of nowCOAST

  • NOAA’s nowCOAST has become a critical data source for NOAA and NOAA

users, many of which provide 24 x 7 decision support function to theirs users.

I am a charter boat captain and the first weather I check every day is nowCOAST…I’m loyal user and advocate.

  • Capt. Dan Ryder, sailchannelisland.com

Thanks for the service John, the CG makes operation use of it every day. Robert Netsch CTR, USGS The NOAA nowCOAST information is critical to the Chevron Gulf of Mexico BU Persons-On-Board Hurricane Evacuation Decision Support Center, to ensure proper evacuation decision making in an attempt to protect human lives on-board our off-shore platforms. Costas Kotzabassis, GOM GIS Coordinator …the web services exposed via nowcoast are great…[the maps from nowcoast were used] to produce hourly maps in the Washington State DOT EOC….to brief the Sec. of Transportation. Rich Daniels, GIS Product Support

…it works great in our emergency operation app for our

Police & Fire Dept.…Thanks for making this information available to the public. Gerald Lee II, GIS Coord., City of Mufreesboro, TN The Department of Homeland Security’s National Operations Center (NOC) frequently uses geospatial web content from NOAA NowCOAST, via the DHS Common Operating Picture (COP), to enhance situational awareness on emerging weather hazards to the homeland. NowCOAST WMS services are used daily by the NOC to assist in briefing DHS senior decision makers, to include the White House Situation Room, on potential environmental impacts to the homeland. NowCOAST’s value is evidenced by its use not just in the DHS COP, but in many other homeland security enterprise user-defined operating pictures such as DHS Geospatial Information Infrastructure, OneView, USCG E-GIS, and many others. Michael Donnnelly, Geospatial Data Architect DHS/OCIO/Geospatial Management Office

slide-5
SLIDE 5

Slide 5

nowCOAST Monthly Web Stats – Hits

Hit = A single request which may be for a specific file, a particular referrer, or some other use of a resource.

slide-6
SLIDE 6

nowCOAST Web Map Services

REST and OGC Web Map Services (WMS)

NWS Weather Radar Mosaic NESDIS GOES Imagery NOAA In-Situ Surface Weather Obs NWS Quantitative Precip. Estimates NWS Real-Time Mesoscale Analyses NOS & NWS Ocean Model Guidance NWS NDFD Sfc Weather Forecasts NWS/NHC Track/Int Fcsts & Best Track NWS Short/Long Duration Watchs/Warnings/Advisories NWS Outlooks (Convective & Fire Wx) Lightning Strike Density NOS Ocean Model Forecasts NWS Global Real-Time Ocean Forecast System NWS NDFD Sfc Weather Forecasts

(*only for selected forecast projections and limited forecast horizon*) Sfc Observing Stns (ASOS,PORTS,Buoys) NWS & NOS AHPS & TAF Fcst Points Ocean Model Fcst Points NWS Forecast Discussions NOS HAB Forecasts NWS Marine Weather Forecasts

Time-Enabled Map Services (28) Time-Offsets Map Services (23) Geolinks Map Services (5)

slide-7
SLIDE 7

nowCOAST Map Viewer

Animation using one time control for all data layers Map Overlays & Basemaps Choice of Layer Menu

  • r

Legend Forecasts Available at the top

  • f menu

Related On-Map Data Layers & Hyperlinks Together

slide-8
SLIDE 8

Demo of new nowCOAST Map Viewer http://nowcoast.noaa.gov

slide-9
SLIDE 9

Slide 9

LayerInfo Web Service

  • Types of information retrievable from the service:
  • Timestamps
  • Given a ‘display time’, return the actual timestamps of all

data displayed Request: /layerinfo?service=radar_meteo_imagery_nexrad_time& request=timestamps&layers=3&displaytime=now Response:

RIDGE2 Weather Radar: Hawaii: 2014-02-05 15:15:00.0 Alaska: 2014-02-05 15:15:00.0 CONUS: 2014-02-05 15:10:00.0 Guam: 2014-02-05 15:15:00.0 Puerto Rico: 2014-02-05 15:15:00.0

slide-10
SLIDE 10

Slide 10

LayerInfo Web Service

  • Types of information retrievable from the service:
  • Legends
  • Return an HTML legend for a specified layer
  • For some layers, a “Dynamic Legend” is returned which only shows

legends for values present in the dataset (e.g., only show legend images for active watch/warning/advisory types) Request: /layerinfo?service=wwa_meteoceanhydro_longduration_hazard s_time&request=legend Response:

slide-11
SLIDE 11

nowCOAST and NOAA Integrated Dissemination Program (IDP) Infrastructure

  • National Ocean Service’s nowCOAST GIS Web Mapping Portal (http://nowcoast.noaa.gov)

hosted at the NOAA IDP infrastructure operated and monitored 24 x 7 by the NWS/NCEP Central Operations – located at the NOAA Center for Weather and Climate Prediction (NCWCP), College Park, MD – Virtual Machines (VM) Environment – environment designed to support load balancing and failover for high availability – backup site in Boulder, CO (~ Summer 2016)

slide-12
SLIDE 12

NOAA/NOS nowCOAST http://nowcoast.noaa.gov Info on nowCOAST Map Services

http://nowcoast.noaa.gov/help/#!section=map services

Questions: nowcoast.team@noaa.gov
