Cary Frame, President NEW NFPA STANDARDS EXPLAINED Hot & Cold Aisle Containment Wha hats di s di fff er erent: r ent: rooms within a r ooms within a room oom Sources of Confusion NFP NFPA A 2013 NFPA 75 Covers Aisle

SLIDE 1

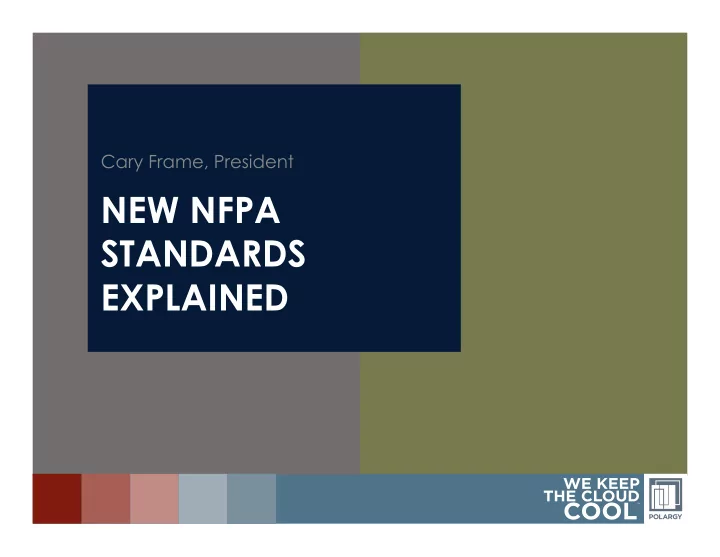

NEW NFPA STANDARDS EXPLAINED

Cary Frame, President

SLIDE 2

Hot & Cold Aisle Containment

Wha hat’s di s difffer erent: r ent: rooms within a r

oms within a room
om

SLIDE 3

Sources of Confusion

NFPA A

– 2013 NFPA 75 Covers Aisle Containment – NFPA Standards Local Fire Code

Fact

actory Mutual Global

ry Mutual Global

– 2012 Aisle Containment Added to Data Sheet 5-32 – Loss Prevention Data Sheets Site Requirements

Manuf

Manufactur acturers ers

– Marketing Materials Reality

SLIDE 4

Easy: 2 Key Topics

Materials erials

– ASTM e84 Flame Spread and Smoke Development – FM4910 for Factory Mutual Global – UL-94 Flammability Rating

Sprinkler Obs

Sprinkler Obstructions tructions

– New Build à Proper Coverage From The Start – Retrofit à Modify Existing – “Removable Obstructions”

SLIDE 5

NFPA ASTM e84 Class B Flame 50 and Smoke 450

Material ¡ ASTM ¡e84 ¡ UL-‑94 ¡ FM4910 ¡ Brand ¡Name ¡ Twin-‑wall ¡ Polycarbonate ¡ Class ¡A ¡ no ¡ no ¡ Lexan ¡by ¡Sabic ¡ Makrolon ¡by ¡Bayer ¡ Solid ¡ ¡ Polycarbonate ¡ Class ¡A ¡ no ¡ no ¡ Lexan ¡by ¡Sabic ¡ Makrolon ¡by ¡Bayer ¡ uPVC ¡ Class ¡A ¡ V-‑O ¡ no ¡ Ceilume ¡(Drop-‑Away ¡Panel) ¡ CPVC/FM4910 ¡ no ¡ no ¡ yes ¡ Boltaron ¡ LaminaIons ¡ Acrylic ¡ no ¡ V-‑0 ¡ no ¡ Plexiglass ¡ Lucite ¡ Acrylite ¡ ABS ¡PlasIc ¡ no ¡ V-‑O ¡ no ¡ Sabic ¡ Bayer ¡(Lego) ¡

SLIDE 6

UL UL-94

– Plastic Materials for Parts in Devices and Appliances – Small Scale Flammability Test – Not Part of NFPA75

SLIDE 7

Sprinkler Obstructions

hree Options ee Options

– Add/Move Sprinkler Heads – “Removable Obstruction” – Open Top/Partial Containment

SLIDE 8

Removable Obstructions

Fire P e Panel C anel Contr

ntrolled
lled

Types ypes

– Roll Up – Louvered Down – Slide Down – Swing Down

Heat C t Contr

ntrolled T
lled Types

ypes

– Fuseable Links – uPVC Drop-Away Panels

SLIDE 9

NFPA 75 Removable Obstructions

5 Part T art Tes est t

– Removed by Smoke Detection (Thermal Mechanical and Fusible Links not permitted) – Releasing devices are listed for the purpose – Remove all obstructions for entire suppression zone – Removal doesn’t impact egress (per NFPA 101) – Doesn’t lower intended level of protection

Gap is the W

ap is the Whole C hole Contr

ntraption

aption

Argue Y gue You “Meet Int

u “Meet Intent

ent” ”

SLIDE 10

Fuse Links

NFPA7 A75 Does Not Allo 5 Does Not Allow w

– FM Global Does Not Allow – Elsie – No Annual Replacement – Globe – Annual Replacement – Local Fire Marshal May Still OK Rec ecommended

mmended

Not R Not Rec ecommended

mmended

SLIDE 11

Factory Mutual Global

Los
ss Pr

s Prevention Da ention Data Sheet 5- ta Sheet 5-32 32

– “Starting Point” – Each Site Gets Customized Solution – Field Engineer – Seems Like A Different Answer Every Time – FM4910 is 10X more expensive than twinwall polycarbonate
