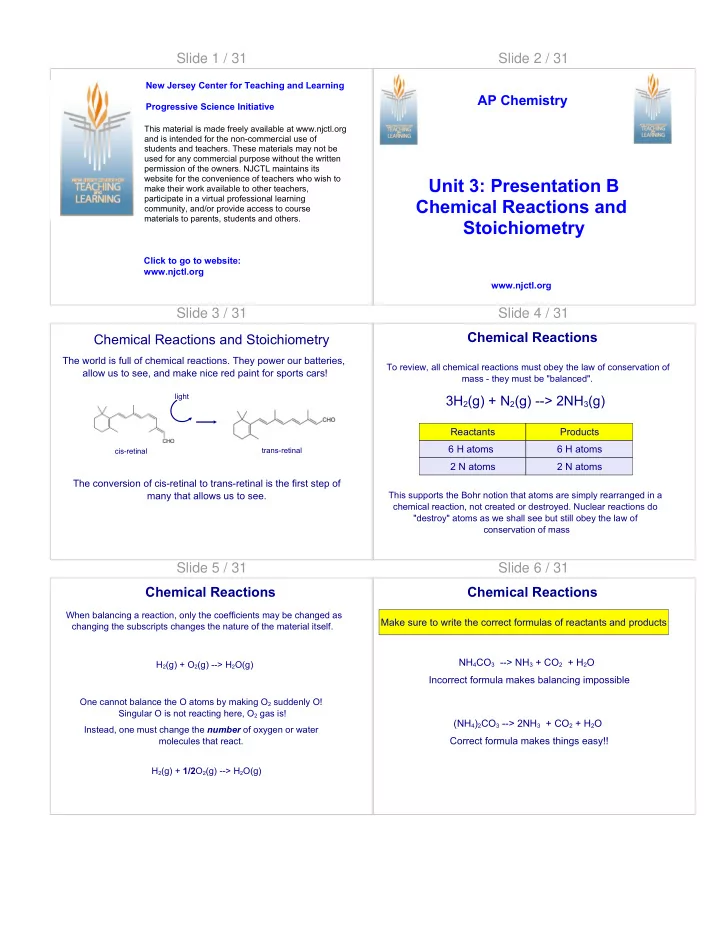

Slide 1 / 31

This material is made freely available at www.njctl.org and is intended for the non-commercial use of students and teachers. These materials may not be used for any commercial purpose without the written permission of the owners. NJCTL maintains its website for the convenience of teachers who wish to make their work available to other teachers, participate in a virtual professional learning community, and/or provide access to course materials to parents, students and others.

Click to go to website: www.njctl.org New Jersey Center for Teaching and Learning Progressive Science Initiative

Slide 2 / 31

www.njctl.org

Unit 3: Presentation B Chemical Reactions and Stoichiometry

AP Chemistry Slide 3 / 31 Chemical Reactions and Stoichiometry

The world is full of chemical reactions. They power our batteries, allow us to see, and make nice red paint for sports cars! The conversion of cis-retinal to trans-retinal is the first step of many that allows us to see.

cis-retinal trans-retinal light

Slide 4 / 31 Chemical Reactions

To review, all chemical reactions must obey the law of conservation of mass - they must be "balanced".

3H2(g) + N2(g) --> 2NH3(g)

Reactants Products 6 H atoms 6 H atoms 2 N atoms 2 N atoms

This supports the Bohr notion that atoms are simply rearranged in a chemical reaction, not created or destroyed. Nuclear reactions do "destroy" atoms as we shall see but still obey the law of conservation of mass

Slide 5 / 31 Chemical Reactions

When balancing a reaction, only the coefficients may be changed as changing the subscripts changes the nature of the material itself. H2(g) + O2(g) --> H2O(g) One cannot balance the O atoms by making O2 suddenly O! Singular O is not reacting here, O2 gas is! Instead, one must change the number of oxygen or water molecules that react. H2(g) + 1/2O2(g) --> H2O(g)

Slide 6 / 31 Chemical Reactions

Make sure to write the correct formulas of reactants and products (NH4)2CO3 --> 2NH3 + CO2 + H2O Correct formula makes things easy!! NH4CO3 --> NH3 + CO2 + H2O Incorrect formula makes balancing impossible

Slide 7 / 31 Chemical Reactions

Fractions may be used as coefficients which can then be multiplied through by a number to get whole number coefficients. 2NaCl(s) + H2O(g) + SO2(g) + 1/2O2(g) --> 2HCl(g) + Na2SO4 To get whole number coefficients, multiply all coefficients by 2! 4NaCl(s) + 2H2O(g) + 2SO2(g) + O2(g) --> 4HCl(g) + 2Na2SO4

Slide 8 / 31 Reaction Stoichiometry

Coefficients represent the relative number of molecules, elements, or compounds involved in the reaction. 4NaCl(s) + 2H2O(g) + 2SO2(g) + O2(g) --> 4HCl(g) + 2Na2SO4 4 moles of NaCl(s) produce 2 moles of Na2SO4 0.1 moles of NaCl(s) produce ______ moles Na2SO4 4.5 x 1023 formula units NaCl(s) produce ___________ formula units Na2SO4 *Note, the coefficients DO NOT represent the mass ratios -

• ie. 4 grams of NaCl will NOT produce 4 grams of HCl.

Slide 9 / 31 Reaction Stoichiometry

Coefficients can be used to determine the relative amounts of substances involved in a reaction.

4NaCl(s) + 2H2O(g) + 2SO2(g) + O2(g) --> 4HCl(g) + 2Na2SO4 How many grams of oxygen would be needed to produce 3 moles of HCl(g)? 3 moles of HCl x 1 mol O2 x 32 g O2 = 24 g O2 4 mol HCl molar ratio from balanced equation 1 mol O2

Slide 10 / 31

1 What is the proper coefficient in front of the oxygen molecule after the following equation is balanced? NH3(g) + O2(g) --> NO(g) + H2O(l)

Answer

Slide 10 (Answer) / 31

1 What is the proper coefficient in front of the oxygen molecule after the following equation is balanced? NH3(g) + O2(g) --> NO(g) + H2O(l)

[This object is a pull tab]

Answer 2.5 or whole number = 5

Slide 11 / 31

2 The fermentation of sugar produces ethyl alcohol and carbon dioxide gas. How many moles of carbon dioxide would be produced from the fermentation of 0.4 mol of glucose? C6H12O6(s) --> C2H5OH + CO2

Answer

Slide 11 (Answer) / 31

2 The fermentation of sugar produces ethyl alcohol and carbon dioxide gas. How many moles of carbon dioxide would be produced from the fermentation of 0.4 mol of glucose? C6H12O6(s) --> C2H5OH + CO2

[This object is a pull tab]

Answer 0.8 moles

Slide 12 / 31

3 What is the sum total of coefficients when the equation below is balanced and all coefficients are simplified to the lowest whole number ratio? C2H5NH2 + O2 --> CO2 + N2 + H2O

Answer

Slide 12 (Answer) / 31

3 What is the sum total of coefficients when the equation below is balanced and all coefficients are simplified to the lowest whole number ratio? C2H5NH2 + O2 --> CO2 + N2 + H2O

[This object is a pull tab]

Answer 43

Slide 13 / 31

4 Given the UNBALANCED reaction below, determine how many L of nitrogen gas would be produced when 110 grams of NaN3 decompose completely @STP? A 22.4 L B 44.8 L C 33.1 L D 57.2 L E 11.2 L

NaN3(s) ---> Na(s) + N2(g)

Answer

Slide 13 (Answer) / 31

4 Given the UNBALANCED reaction below, determine how many L of nitrogen gas would be produced when 110 grams of NaN3 decompose completely @STP? A 22.4 L B 44.8 L C 33.1 L D 57.2 L E 11.2 L

NaN3(s) ---> Na(s) + N2(g)

[This object is a pull tab]

Answer D

Slide 14 / 31

5 Phosphorus pentachloride decomposes into phosphorus trichloride gas and chlorine gas. How many total moles of gas will be produced after 50% of a 414 gram sample of phosphorus pentachloride decomposes? A 0.5 moles B 1.0 moles C 1.5 moles D 2.0 moles E 3.0 moles

Answer

Slide 14 (Answer) / 31

5 Phosphorus pentachloride decomposes into phosphorus trichloride gas and chlorine gas. How many total moles of gas will be produced after 50% of a 414 gram sample of phosphorus pentachloride decomposes? A 0.5 moles B 1.0 moles C 1.5 moles D 2.0 moles E 3.0 moles

[This object is a pull tab]

Answer D

Slide 15 / 31

6 If a 20 mL solution of 0.3 M Ca(NO3)2 were mixed with a solution of 3 M NaOH, how many mL of the 3 M NaOH solution would be needed to react with all of the calcium ions?

Ca2+(aq) + 2OH-(aq) --> Ca(OH)2(s)

Answer

Slide 15 (Answer) / 31

6 If a 20 mL solution of 0.3 M Ca(NO3)2 were mixed with a solution of 3 M NaOH, how many mL of the 3 M NaOH solution would be needed to react with all of the calcium ions?

Ca2+(aq) + 2OH-(aq) --> Ca(OH)2(s)

[This object is a pull tab]

Answer 4 mL

Slide 16 / 31 Reaction Stoichiometry

The theoretical yield is the anticipated amount of product that should be made based on the amounts of reactants used and reaction conditions. CaCO3(s) --> CO2(g) + CaO(s) What is the theoretical yield of CaO (in moles) if 200 grams of calcium carbonate completely decompose? 200 g CaCO3 x 1 mol CaCO3 x 1 mol CaO = 2 mol CaO 100 g CaCO3 1 mol CaCO3

Slide 17 / 31 Reaction Stoichiometry

When two or more reactants are present, the reactant that is used up first (the limiting reactant) will determine the theoretical yield of product. N2(g) + 3H2(g) --> 2NH3(g) If 44.8 L of nitrogen gas reacts with 44.8 L of hydrogen gas @STP, what is the theoretical yield of ammonia? This type of problem can be easily solved via a series of steps.

Slide 18 / 31 Reaction Stoichiometry Steps

STEP 1: Convert known quantities to moles

N2(g) + 3H2(g) --> 2NH3(g) If 44.8 L of nitrogen gas reacts with 44.8 L of hydrogen gas @STP, what is the theoretical yield of ammonia? 44.8 L N2(g) = 2 mol N2(g) 44.8 L H2(g) = 2 mol H2(g) One might think that since both reactants are found in the same quantities, we would run out of both at the same time. Why is this not true for this reaction?

Slide 19 / 31

STEP 2: Choose a reactant and determine how much of the other would be needed and compare to how much of that reactant is available. N2(g) + 3H2(g) --> 2NH3(g) If 44.8 L of nitrogen gas reacts with 44.8 L of hydrogen gas @STP, what is the theoretical yield of ammonia? Reactant Moles available Moles of other reactant needed N2(g) 2 moles 2 mol N2 x 3/1 = 6 mol H2 H2(g) 2 moles 2 mol H2 x 1/3 = 0.66 mol N2 Since 6 mol of H2 are required and only 2 moles are available, H2 is the limiting reactant.

Reaction Stoichiometry Steps Slide 20 / 31

STEP 3: Use limiting reactant amount to determine the theoretical yield of product or amount of excess reactant that reacted.

N2(g) + 3H2(g) --> 2NH3(g) If 44.8 L of nitrogen gas reacts with 44.8 L of hydrogen gas @STP, what is the theoretical yield of ammonia? Finding Theoretical Yield 2 mol H2 x 2 mol NH3 = 1.33 mol NH3 3 mol H2 Finding Amount of Excess Reactant that Reacted 2 mol H2 x 1 mol N2 = 0.66 mol N2 reacted 3 mol H2

Reaction Stoichiometry Steps Slide 21 / 31

7 How many grams of excess reactant will remain if 4 grams of hydrogen gas react with 16 grams of oxygen gas by the reaction below?

2H2(g) + O2(g) --> 2H2O(g)

Answer

Slide 21 (Answer) / 31

7 How many grams of excess reactant will remain if 4 grams of hydrogen gas react with 16 grams of oxygen gas by the reaction below?

2H2(g) + O2(g) --> 2H2O(g)

[This object is a pull tab]

Answer 2 grams H

2

Slide 22 / 31

8 If 16 grams of methane react with 32 grams of oxygen gas by the reaction below, what would be the theoretical yield of carbon dioxide ( in grams)? A 2 grams B 11 grams C 22 grams D 44 grams E 0.5 grams

CH4(g) + 2O2(g) --> CO2(g) + 2H2O(g)

Answer

Slide 22 (Answer) / 31

8 If 16 grams of methane react with 32 grams of oxygen gas by the reaction below, what would be the theoretical yield of carbon dioxide ( in grams)? A 2 grams B 11 grams C 22 grams D 44 grams E 0.5 grams

CH4(g) + 2O2(g) --> CO2(g) + 2H2O(g)

[This object is a pull tab]

Answer C

Slide 23 / 31

9 How many total liters of gas can be produced @STP if 4.8 grams of magnesium metal react with 100 mL of 0.5 M HCl?

Mg(s) + 2H+(aq) --> Mg2+(aq) + H2(g)

Answer

Slide 23 (Answer) / 31

9 How many total liters of gas can be produced @STP if 4.8 grams of magnesium metal react with 100 mL of 0.5 M HCl?

Mg(s) + 2H+(aq) --> Mg2+(aq) + H2(g)

[This object is a pull tab]

Answer 0.56 L

Slide 24 / 31

10 If 8 molecules of propane (C3H8) react with 10 molecules

• f oxygen gas, which would be true of the reaction

mixture after the reaction had gone to completion?

C3H8(g) + 5O2(g) --> 3CO2(g) + 4H2O(g)

C3H8 O2 CO2 H2O 3 2 2 6 6 8 2 5 3 4 A B C

Answer

Slide 25 / 31

11 If 300 mL of 0.2 M Ca(NO3)2 solution is mixed with 200 mL of 0.3 M Na3PO4 solution, what will be the concentration of phosphate ions after the reaction below has gone to completion?

3Ca2+(aq) + 2PO43-(aq) --> Ca3(PO4)2(aq)

Answer

Slide 25 (Answer) / 31

11 If 300 mL of 0.2 M Ca(NO3)2 solution is mixed with 200 mL of 0.3 M Na3PO4 solution, what will be the concentration of phosphate ions after the reaction below has gone to completion?

3Ca2+(aq) + 2PO43-(aq) --> Ca3(PO4)2(aq)

[This object is a pull tab]

Answer 0.04 n/L

Slide 26 / 31 Reaction Stoichiometry

The amount of product made in the laboratory is often less than what is theoretically possible. Actual Yield x 100 = % Yield Theoretical Yield

When 30 grams of CaCO3(s) decompose by the following reaction and produce 10 grams of CaO, what is the % yield? CaCO3(s) --> CO2(g) + CaO(s) 30 g CaCO3 x 1 mol x 1 mol CaO x 56 g = 16.8 g CaO 100g CaCO3 1 mol CaCO3 1 mol CaO 10 g CaO Actual Yield x 100 = 59.5% yield 16.8 g CaO Theoretical Yield

Slide 27 / 31 Reaction Stoichiometry

If the yield of a reaction is known, it can be used to modify the amounts of reactants needed to make the required amount of product.

How many grams of NaN3(s) must be decomposed to produce 62 L of N2(g) to fill an airbag at a 89% yield @STP? 2NaN3(s) --> 2Na(s) + 3N2(g) 62 L Actual Yield N2 x 100 L Theoretical Yield N

2 = 69.7 L

89 L Actual Yield N

2

We must plan to make 69.7 L instead of 62 L N

2.

69.7 L N2 x 1 mol N2 x 2 mol NaN3 x 65 g NaN3 =135 g NaN3 22.4 L N2 3 mol N2 1 mol NaN3

Slide 28 / 31

12 How many grams of potassium chlorate must decompose to produce 35 L of O2 gas @ STP if the reaction below

• perates at a 34% yield?

2KClO3(s) --> 2KCl(s) + 3O2(g)

Answer

Slide 28 (Answer) / 31

12 How many grams of potassium chlorate must decompose to produce 35 L of O2 gas @ STP if the reaction below

• perates at a 34% yield?

2KClO3(s) --> 2KCl(s) + 3O2(g)

[This object is a pull tab]

Answer 373 g

Slide 29 / 31

13 When 30 mL of 0.2 M KOH solution is mixed with 20 mL

• f 0.2 M Cu(NO3)2 solution, 0.23 grams of Cu(OH)2(s)

precipitate was formed. What is the % yield?

Answer

Slide 29 (Answer) / 31

13 When 30 mL of 0.2 M KOH solution is mixed with 20 mL

• f 0.2 M Cu(NO3)2 solution, 0.23 grams of Cu(OH)2(s)

precipitate was formed. What is the % yield?

[This object is a pull tab]

Answer 78%

Slide 30 / 31

14 When 44 grams of butene (C4H8) combust in excess

• xygen gas to produce carbon dioxide and water, what

will be the actual grams of carbon dioxide produced assuming the reaction operates at a 30% yield?

Answer

Slide 30 (Answer) / 31

14 When 44 grams of butene (C4H8) combust in excess

• xygen gas to produce carbon dioxide and water, what

will be the actual grams of carbon dioxide produced assuming the reaction operates at a 30% yield?

[This object is a pull tab]

Answer 41.5 g

Slide 31 / 31
