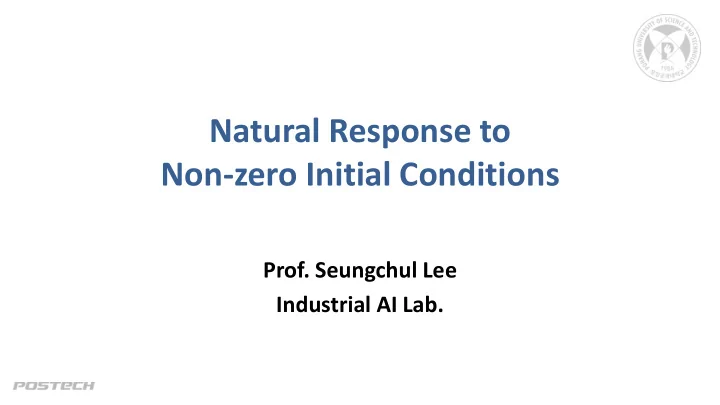

Natural Response to Non-zero Initial Conditions

  • Prof. Seungchul Lee

Industrial AI Lab.

slide-2
SLIDE 2

The First Order ODE

  • Solution will be exponential functions

– Unknown coefficient determined by initial conditions

  • Stability

– unstable if 𝑙 > 0 – stable if 𝑙 < 0

2

slide-3
SLIDE 3

The First Order ODE

3

slide-4
SLIDE 4

The First Order ODE

  • 𝜐: time constant

– Large 𝜐 : slow response – Small 𝜐 : fast response

4

slide-5
SLIDE 5

Two First Order ODEs (Independent)

  • Suppose 𝑣1 and 𝑣2 are independent
  • In a matrix form

5

slide-6
SLIDE 6

ODE in Vector Form (Dependent)

  • Suppose 𝑣1 and 𝑣2 are dependent
  • In a matrix form

6

slide-7
SLIDE 7

Systems of Differential Equations

7

slide-8
SLIDE 8

Systems of Differential Equations

  • Given
  • Superposition

8

slide-9
SLIDE 9

Systems of Differential Equations

  • For a single ODE
  • Let us try
  • Linear ODE = Eigenvalue problem

9

slide-10
SLIDE 10

Eigenanalysis

  • Eigenanalysis
  • General solution
  • where

10

slide-11
SLIDE 11

Eigenanalysis

11

slide-12
SLIDE 12

Eigenanalysis

  • Linear Transformation
  • Solution

12

slide-13
SLIDE 13

Eigenanalysis

  • 𝑤 - frame is decoupled by Ԧ

𝑦1 and Ԧ 𝑦2

13

slide-14
SLIDE 14

Real Eigenvalues

  • Example 1

14

slide-15
SLIDE 15

Real Eigenvalues

15

slide-16
SLIDE 16

Phase Portrait

  • Geometric representation of the trajectories of a dynamical system in the phase plane

16

slide-17
SLIDE 17

Real Eigenvalues

  • Example 2

17

slide-18
SLIDE 18

Real Eigenvalues

  • Example 3

18

slide-19
SLIDE 19

Different Eigenvectors with the Same Eigenvalues

19

slide-20
SLIDE 20

De-coupling via Linear Transformation

  • Change variables

20

slide-21
SLIDE 21

De-coupling via Linear Transformation

  • Change variables

– Total amount of water – Difference in height

  • De-coupled

21

slide-22
SLIDE 22

Trajectory Comparison

22

slide-23
SLIDE 23

Systems of Differential Equations: Complex Eigenvalues

23

slide-24
SLIDE 24

Complex Eigenvalues (Starting Oscillation)

  • 𝜇 can be a complex number 𝜇 = 𝜏 + 𝑘𝜕

24

slide-25
SLIDE 25

Complex Eigenvalues (Starting Oscillation)

  • Example 1

25

slide-26
SLIDE 26

Complex Eigenvalues (Starting Oscillation)

  • Example 1

26

slide-27
SLIDE 27

What is the Corresponding Physical System?

  • Simple harmonic motion Revisited

27

slide-28
SLIDE 28

Pure Oscillation

28

slide-29
SLIDE 29

Complex Eigenvalues

  • Example 2

29

slide-30
SLIDE 30

Pure Oscillation

30

slide-31
SLIDE 31

Complex Eigenvalues

  • Example 3

31

slide-32
SLIDE 32

Pure Oscillation

32

slide-33
SLIDE 33

Complex Eigenvalues with Damping

  • Example 1

33

slide-34
SLIDE 34

Oscillation with Damping

34

slide-35
SLIDE 35

Mass-Spring-Damper System

  • Mass-spring-damper system

35

slide-36
SLIDE 36

Mass-Spring-Damper System

36

slide-37
SLIDE 37

Mass-Spring-Damper System

37

slide-38
SLIDE 38

State Space Representation

  • Define states
  • State space

38

slide-39
SLIDE 39

Eigenanalysis

  • Physical interpretation of 0 < 𝜂 < 1

39

slide-40
SLIDE 40

Eigenvalues in S-plane

  • Oscillating with damping (under damping)

40

slide-41
SLIDE 41

Eigenvalues in S-plane

Over damping Critical damping Pure oscillating

41

slide-42
SLIDE 42

The Second Order ODE

  • State space representation

42

slide-43
SLIDE 43

Stability

  • Scalar systems
  • Matrix systems

43

slide-44
SLIDE 44

Summary

  • Natural response with non-zero initial conditions
  • Systems of differential equations
  • Eigen-analysis
  • Complex eigenvalues

– Their locations in s-plane

  • The second order ODE

– Mass, spring, and damper system

44
