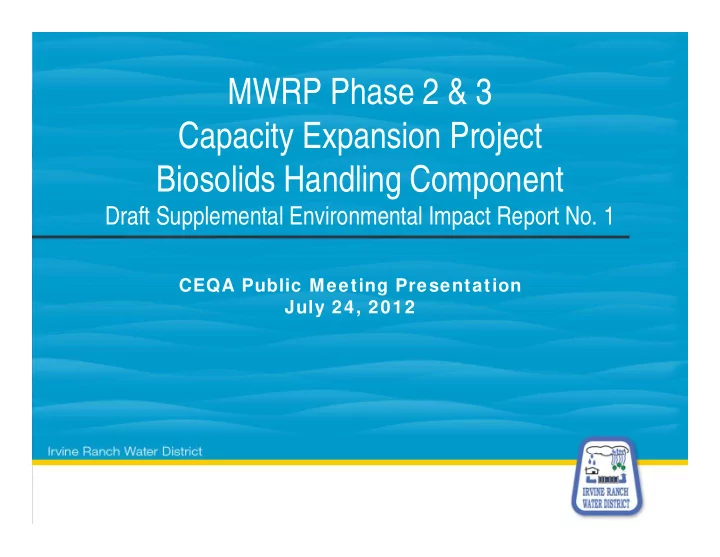

MWRP Phase 2 & 3 MWRP Phase 2 & 3 Capacity Expansion - - PowerPoint PPT Presentation

MWRP Phase 2 & 3 MWRP Phase 2 & 3 Capacity Expansion Project Biosolids Handling Component Biosolids Handling Component

Draft Supplemental Environmental Impact Report No. 1

CEQA Public Meeting Presentation July 24, 2012 July 24, 2012

Purpose & Agenda

• Purpose of Meeting

Purpose of Meeting

• Provide an opportunity to receive comments regarding

scope and content of analysis in the Draft Supplemental Environmental Impact Report (EIR) Environmental Impact Report (EIR)

• Agenda
• California Environmental Quality Act (CEQA) Overview

and Process

• Irvine Ranch Water District (IRWD) Overview
• Project Description and Objectives

j p j

• Issues Analyzed in the EIR
• Summary of Impacts and Mitigation Measures
• CEQA Schedule for Project

1

• CEQA Schedule for Project
• Public Comments

What is CEQA?

• Disclosure

Disclosure

Identify and disclose potential impacts to the environment

Miti ti

• Mitigation

Identify ways to avoid or reduce effects of potential impacts

• Decision-Making Tool

Inform the public and decision-makers about potential i t l i t environmental impacts

2

CEQA Process for an EIR

• PUBLIC SCOPING: Notice of Preparation

PUBLIC SCOPING: Notice of Preparation

• 30-day public review (March 28, 2011 to April 26, 2011)
• Public scoping meeting (April 12, 2011)
• Objective: receive input regarding issues to be evaluated in Draft EIR
• Draft Supplemental Environmental Impact Report
• 45-day public review (July 3 2012 through August 16 2012)

45 day public review (July 3, 2012 through August 16, 2012)

• Public meeting (July 24, 2012)
• Objective: receive comments regarding scope and content of analysis in Draft EIR
• Responses to Comments/Final Supplemental EIR
• Written responses to Draft EIR comments
• Certification of Final Supplemental EIR

3

• Certification of Final Supplemental EIR
• IRWD Board of Directors

Irvine Ranch Water District

• IRWD Services

IRWD Services

• Potable and recycled

water, sewage collection and treatment urban runoff and treatment, urban runoff treatment

• Service Area
• 115,531 acres
• Wastewater Treatment
• Michelson Water Recycling

Michelson Water Recycling Plant (MWRP)

• Currently being expanded
• Los Alisos Water Recycling

4

Plant (LAWRP)

Project Location

Project to be constructed on disturbed vacant land within the current boundary of the MWRP 5

Wastewater Treatment Process (Current)

6

Wastewater Treatment Process (Proposed Project)

7

Project Objectives and Benefits

• Allow IRWD to make efficient and sustainable use of its own

Allow IRWD to make efficient and sustainable use of its own renewable resources

• To make beneficial use of biosolids and biogases produced

d i th t t t during the treatment process

• Provide for greater control of residual (solids) management at

reduced costs reduced costs

• Minimize environmental impacts associated with solids

management

• Construct a biosolids handling and energy recovery facility that

adequately provides for IRWD’s future biosolids handling needs

8

Project Description

• IRWD to construct facilities at

MWRP for:

• Biosolids processing

Biosolids processing

• Biogas management &

energy recovery

• Odor Control System

Odor Control System

• IRWD would no longer export

solids to Orange County Sanitation District (OCSD)

• Project would dry solids from

IRWD’s LAWRP

• Delivered by truck

9

Preliminary 3-D Simulation

10

View looking East

Preliminary 3-D Simulation

11

View looking West

Issues Analyzed in the EIR

A th ti H d & H d

• Aesthetics
• Air Quality
• Hazards & Hazardous

Materials H d l & W t

• Biological Resources
• Cultural Resources
• Hydrology & Water

Quality L d U Pl i d Cultural Resources

• Geology, Soils &

Seismicity

• Land Use, Planning, and

Recreation Noise Seismicity

• Greenhouse Gas

Emissions

• Noise
• Transportation & Traffic

12

• Utilities & Energy

Other CEQA Requirements

• Alternatives Analysis
• Alternatives Analysis
• No-Project Alternative
• Cumulative Impact Analysis
• Growth Inducement Analysis

G o t duce e t a ys s

13

Summary of Impacts and Mitigation

• General Conclusions:
• General Conclusions:
• The project would have no significant

id bl i t unavoidable impacts.

• All impacts can be mitigated.
• None of the Alternatives are

environmentally superior to the Project. environmentally superior to the Project.

14

Summary of Impacts and Mitigation

Impact Category Key Issues Mitigation Summary

Aesthetics New structures would be contrasting features visible from public vantage points. New Nighttime security lighting could affect neighboring land uses

• Selecting paint color schemes that blend

with color palette of surrounding landscape

• External lighting to be shielded and

directed downward to limit light spill offsite neighboring land uses directed downward to limit light spill offsite. Air Quality Construction and operation would not emit pollutants in excess of federal or state air quality standards. N/A Odor Control System would prevent the release of objectionable odors. Biological Resources No direct impacts to biological resources due to existing disturbance at project site.

• Measures to detect and avoid impacts to

special‐status bird species in adjacent Potential indirect impacts to biological resources in adjacent natural habitat during construction natural habitat during nesting season.

• Measures to restore habitat and vegetation

affected during construction. Cultural Potential impacts to cultural resources due

• Cultural resource monitoring during

15

Cultural Resources Potential impacts to cultural resources due to ground disturbance during construction

• Cultural resource monitoring during

construction

Summary of Impacts and Mitigation

Impact Category Key Issues Mitigation Summary

Geology, Soils & Mineral Resources Project design incorporates features identified in geotechnical study to mitigate potential effects of land subsidence. Project incorporates engineering design criteria N/A required by California Building Code to mitigate potential effects of seismic activity Greenhouse Gas Emissions Net GHG emissions (construction and operation) would not exceed thresholds. N/A Project supports plans, policies and regulations to reduce GHG emissions through use of renewable energy resources. L l b fi i l f bi lid d GHG i i Local beneficial use of biosolids reduces GHG emissions associated with trucking biosolids out of region/state. Hazards & Hazardous Materials Accidental release of hazardous materials during project construction could occur.

• Contractor to implement Best

Management Practices (BMPs) to prevent accidental releases of

16

Materials Hazards associated with chemical use and biogas handling minimized with project design features: secondary containment, leak detection monitors,

• perational safeguards, and equipment redundancy.

prevent accidental releases of hazardous materials

Summary of Impacts and Mitigation

Impact Category Key Issues Mitigation Summary

Hydrology & Water Quality Accidental chemical spills could wash

• ffsite and pollute surface waters or

groundwater The MWRP flood wall protects the

• Updating existing Storm Water Pollution

Prevention Plan to include BMPs to avoid accidental spills. The MWRP flood wall protects the project from a 200‐year flood. Land Use, Planning & Recreation Project facilities would be consistent with the City of Irvine Zoning Code but would require a Conditional Use N/A q Permit. Noise Construction activities will generate noise

• Compliance with City of Irvine Noise Ordinance

for construction (7am to 7pm M‐F, 9am to 6pm Sat) or as permitted by the city New permanent noise‐generating equipment will be designed to adhere to City of Irvine Noise Ordinances.

• Noise control techniques applied to construction

equipment

• Establishment of a noise disturbance coordinator

to respond to noise complaints

• Post construction noise survey to ensure that

17

Post construction noise survey to ensure that

• peration of new equipment is in compliance

with City of Irvine Noise Ordinance at the property boundary.

Summary of Impacts and Mitigation

Impact Category Key Issues Mitigation Summary

Utilities & Energy Adequate landfill capacity to accommodate construction waste and provide backup disposal outlet for biosolids. Energy recovery systems would offset N/A project electricity and natural gas demands (beneficial use of biogas) Project replaces energy consumed at OCSD for solids treatment. Transportation & Traffic Operational truck trips would not affect traffic or circulation system performance on local or regional roadways. L l f bi lid ld d ffi N/A Local reuse of biosolids would reduce traffic

• n state freeways associated with hauling

and disposal of biosolids out of region/state

18

Remaining Schedule Estimate

19

Public Comments

• Comment Cards are available tonight
• Written comments will be accepted until August 16th at 5:00 pm
• Written comments will be accepted until August 16

at 5:00 pm

• Written comments will receive written response
• Submit written comments to:

Paul Weghorst, Director of Water Resources Irvine Ranch Water District 15600 S d C A I i CA 92618 15600 Sand Canyon Avenue, Irvine, CA 92618 weghorst@irwd.com

• Document Availability:

Document Availability: http://www.irwd.com Heritage Park Library Katie Wheeler Librar

20

Katie Wheeler Library University Park Library
