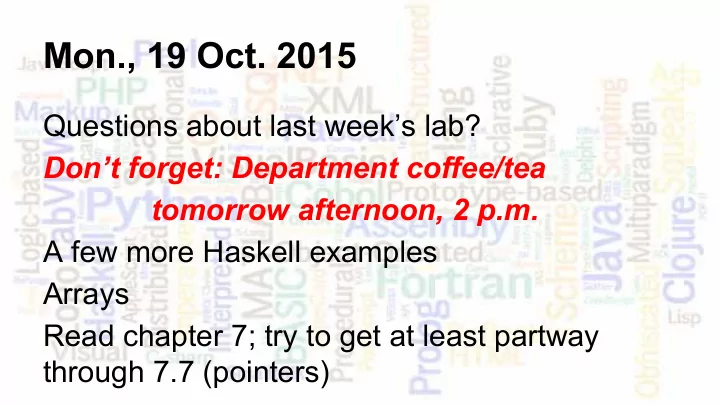

Mon., 19 Oct. 2015 Questions about last weeks lab? Dont forget: - - PowerPoint PPT Presentation

Mon., 19 Oct. 2015

Questions about last week’s lab? Don’t forget: Department coffee/tea tomorrow afternoon, 2 p.m. A few more Haskell examples Arrays Read chapter 7; try to get at least partway through 7.7 (pointers)

Three More Haskell Examples

unlucky.hs, hearts.hs, google.hs (oct19 folder) The “unlucky” function uses helper functions named “split”, “rejoin”, and “subst”:

split 32345 == [3,2,3,4,5] subst 3 7 [3,2,3,4,5] == [7,2,7,4,5] rejoin [7,2,7,4,5] = 72745l

More Haskell Examples

hearts.hs recursively checks each digit in an integer and, if it is less than 3, a “heart” (<3) is added on to the result string.

hearts n = if n < 3 then "<3" else if n < 10 then "" else hearts (n `quot` 10) ++ (if (n `mod` 10) < 3 then "<3" else "") hearts 10352 = “<3<3<3”

More Haskell Examples

google.hs takes a string and recursively replaces occurrences of “oo” with “oogleoo”:

google s = if (length s) < 2 then s else if take 2 s `elem` ["oo","OO","Oo","oO"] then "oogleoo" ++ google (drop 2 s) else (take 1 s) ++ google (drop 1 s) google “too cool!” == “toogleoo coogleool!”

Arrays

One of the first composite data types and still used very often. Fixed-size collection of values, all of the same type, accessed by one or more indices (sometimes called “subscripts” in analogy to mathematical notation such as x0, x1, x2, … or a0,0, a0,1, …, a5,4, a5,5).

Arrays

See program “array.cpp” for two different ways to represent arrays in C++: the “traditional” C array and the “array class” in C++.

Arrays

Index ranges: often zero-based for ease of calculation (see later slide). Thus, elements of int a[4] are a[0], a[1], a[2], and a[3]. Older languages (e.g., older versions of Fortran): 1-based (a[1],...,a[4]). Some languages allow other ranges (see Fortran 95 program array2.for in repo)

Arrays

Usually stored in consecutive memory locations. Example:

int a[10]; a[0] = 99; a[1] = -12; a[2] = 42; ...

a[0] a[1] a[2]

• ne int

= 4 bytes, so 40 bytes

99

• 12

42

Arrays

To find an int array element, take its base location plus its index times 4: a[2] is in location 10000 + 2*(sizeof int) = 10000 + 2*4 = 10008

a[0] a[1] a[2]

99

• 12

42

10000 10004 10008

Arrays

What about two-dimensional arrays? char c[3][4]; We have a choice: ROW MAJOR ORDER?

10000 c[0][0] c[0][1] c[0][2] c[0][3] c[1][0] c[1][1] c[1][2] c[1][3] c[2][0] c[2][1]

• ne

char = 1 bytes, so 12 bytes

… 2 more …

Arrays

char c[3][4]; ROW MAJOR ORDER: c[1][2] = base address + (1*(# cols) + 2)*sizeof char =10000+(1*4+2)*1=10006

10000 c[0][0] c[0][1] c[0][2] c[0][3] c[1][0] c[1][1] c[1][2] c[1][3] c[2][0] c[2][1] … 2 more … 10006

Arrays

char c[3][4]; … or COLUMN MAJOR ORDER?

10000 c[0][0] c[1][0] c[2][0] c[0][1] c[1][1] c[2][1] c[0][2] c[1][2] c[2][2] c[0][3] … 2 more …

Arrays

char c[3][4]; COLUMN MAJOR ORDER: c[1][2] = base address + (2*(#rows)+1)*sizeof char = 10000+(6+1)*1 = 10007

10000 c[0][0] c[1][0] c[2][0] c[0][1] c[1][1] c[2][1] c[0][2] c[1][2] c[2][2] c[0][1] … 2 more … 10007

Arrays

Java, C, and many other languages use row major order. (See program array2.cpp in

• ct19 repo.)

Fortran uses column major order. (See program array.for in oct19 repo.) Does it matter?

Efficiency Concerns

In a language that uses row-major order, it is more efficient to access elements by rows because they are in consecutive locations; accessing by columns involves a lot of jumping around in memory. See programs byrows.c and bycols.c; byrows.for and bycols. for in the class repository.

Efficiency Concerns

for (c=0;c<1000;c++) for (r=0;r<1000;r++) x[r][c] = ...; FASTER SLOWER

Experiments show that in C (which uses row major order), the loop on the left is faster than the loop on the right:

for (r=0;r<1000;r++) for (c=0;c<1000;c++) x[r][c] = ...;

Efficiency Concerns

However, in Fortran, the opposite holds:

do, r = 1,1000 do, c = 1,1000 a(r,c) = ... enddo enddo SLOWER FASTER

do, c = 1,1000 do, r = 1,1000 a(r,c) = ... enddo enddo

Multiple Dimensions

What about int a[3][4][2][5]; ? Row-major: a[0][0][0][0], a[0][0][0][1], a[0][0][0][2], … Column-major: a[0][0][0][0], a[1][0][0][0], a[2][0][0][0], …

Exercise

int a[3][4][2][5]; ? Come up with a formula for the address of a[i][j][k] [l], assuming zero-based indexing, assuming that each array element is 4 bytes and that row-major ordering is used, and, of course, assuming that i,j,k, and l are within the array bounds. Same, but for column-major ordering.
