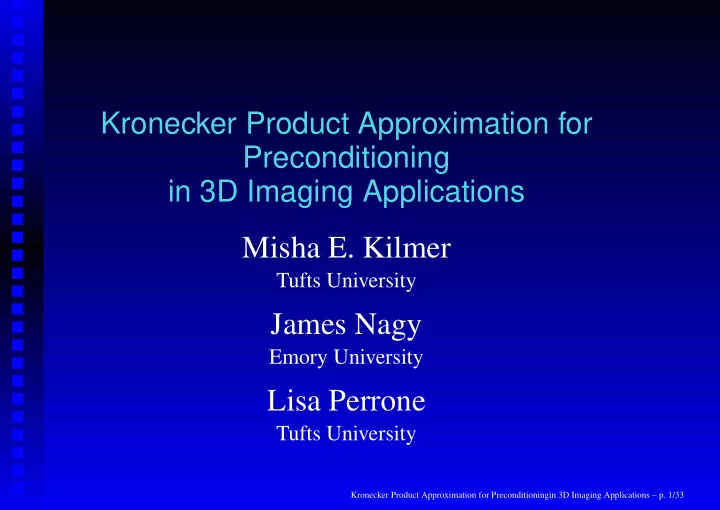

Kronecker Product Approximation for Preconditioning in 3D Imaging Applications

Misha E. Kilmer

Tufts University

James Nagy

Emory University

Lisa Perrone

Tufts University

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 1/33

slide-2
SLIDE 2

Problem Description

Model:

Kf = ˆ g + e = g

◮ K is ill-conditioned, no gap in SV spectrum ◮ K is structured:

* K is triply Toeplitz or T+H (restoration)

KT K may have similar structure in reconstruction

◮ For an n × n × n image, K has n3 columns! ◮ Noise, e, is white and unknown.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 2/33

slide-3
SLIDE 3

SVD Analysis

Assume, temporarily, we can compute

K = [U1U2] Σ1 Σ2 V T

1

V T

2

  • ,

where Σ1 is k × k and corresponds to components such that

uT

i g ≈ uT i ˆ

g.

Noise contaminated exact solution:

f = V1Σ−1

1 (UT 1 g) + dominant

  • V2Σ−1

2

(UT

2 g) ≈U T

2 e

Truncated SVD solution: freg = V1Σ−1

1 (UT 1 g)

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 3/33

slide-4
SLIDE 4

Iterative Regularization

We cannot compute the SVD of K! But K is structured, so we can compute matrix-vector products using FFT’s quickly

O(n3 log n) flops if image is n × n × n.

This means we should use an iterative regularization scheme (eg. CGLS, MRNSD). We stop iterating before the solution converges to the exact solution of the system. Cost is O(Nj) where a matvec costs O(N) and j is the number of iterations until semi-convergence.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 4/33

slide-5
SLIDE 5

Ideal Preconditioning

Major difficulty is that j can be large! Consider the left preconditioned system

M−1Kf = M−1g.

If we could compute the SVD of K, the ideal preconditioner would be

M = [U1U2] Σ1 I V T

1

V T

2

  • .

Then, semi-convergence in 1 iteration since:

◮ The singular values of M−1K are 1 and Σ2. ◮ M−1g looks similar to the TSVD solution and therefore

no noise is introduced.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 5/33

slide-6
SLIDE 6

Goal

Since we cannot compute the SVD of K, the main goal of

  • ur work is to approximate K by a matrix for which we can

compute (efficiently) and store (implicitly) the SVD, and use the SVD of the approximation to construct M. Key : Using the structure of K, the matrix approximation problem can be reduced to a computationally tractable problem involving 3-way arrays (tensors).

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 6/33

slide-7
SLIDE 7

Kronecker Products

B ⊗ C is the block matrix      b11C b12C · · · b1nC b21C b22C · · · b2nC . . . . . . . . . . . . bm1C bm2C · · · bmnC      . A ⊗ B ⊗ C is the double-block matrix:      a11B ⊗ C a12B ⊗ C · · · a1nB ⊗ C a21B ⊗ C a22B ⊗ C · · · a2nB ⊗ C . . . . . . . . . . . . am1B ⊗ C am2B ⊗ C · · · amnB ⊗ C      .

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 7/33

slide-8
SLIDE 8

SVDs of Kronecker Products

If A = UaΣaV T

a , B = UbΣbV T b , C = UcΣcV T c , then

A ⊗ B ⊗ C = (Ua ⊗ Ub ⊗ Uc)(Σa ⊗ Σb ⊗ Σc)(V T

a ⊗ V T b ⊗ V T c ),

which is an SVD (under appropriate ordering).

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 8/33

slide-9
SLIDE 9

Matrix Approximation Problem

Find Ai, Bi, Ci with the appropriate structure such that

K −

s

  • i=1

Ai ⊗ Bi ⊗ CiF

is minimized. (reason for s > 1 will be discussed later) Related 2D work:

◮ Kamm & Nagy, ’00 ◮ Nagy, & Ng, Perrone, ’04 ◮ Perrone, ’05 ◮ K. & Nagy, ’06

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 9/33

slide-10
SLIDE 10

Banded Toeplitz

Complete information about this banded Toeplitz matrix is captured in a central vector of length n:

       1 2 3 6 1 2 3 7 6 1 2 3 7 6 1 2 7 6 1        .

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 10/33

slide-11
SLIDE 11

Doubly Toeplitz

This doubly Toeplitz matrix can be represented by its central column, which we reshape:

               a b x h r a b l x h r a l x p q a b x h t p q r a b l x h t p r a l x p q a b t p q r a b t p r a                , P =   h b q x a p l r t  

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 11/33

slide-12
SLIDE 12

Triply Toeplitz

Same structure as doubly Toeplitz, except now each Ti is a doubly Toeplitz matrix. Similarly, if banded structure, the matrix is completely represented by its central column , which reshape into a 3-way array (tensor) P.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 12/33

slide-13
SLIDE 13

Structure

If we assume that the blurring in the 3D image is spatially invariant and that the image satisfies 0 boundary conditions,

K will be triply Toeplitz with this banded structure.

If we assume reflexive boundary conditions, K will be triply Toeplitz+Hankel with special banding: For ease of discussion, we omit this case.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 13/33

slide-14
SLIDE 14

Matrix Approximation Problem Revisited

Note that if A, B, C are banded Toeplitz, they are uniquely specified by their respective central columns, vectors a, b, c. Also, A ⊗ B ⊗ C is triply Toeplitz (banded).

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 14/33

slide-15
SLIDE 15

Theorem 1

Let K be triply Toeplitz (banded) and P be the 3D tensor defining the central column of K. Let ai, bi, ci be the central columns of banded Toeplitz matrices Ai, Bi, Ci, respectively. Then

K −

s

  • i=1

Ai ⊗ Bi ⊗ CiF = ¯ P −

s

  • i=1

¯ ci ◦ ¯ bi ◦ ¯ aiF,

where the bar notation implies a weighting on the faces of P and the vectors ai, bi, ci, and ◦ implies 3way outer product.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 15/33

slide-16
SLIDE 16

Tensor approximation

Being able to compute the optimal approximation to K by

s

i=1 Ai ⊗ Bi ⊗ Ci requires we be able to compute the

  • ptimal rank-s approximation to the tensor ¯

P.

◮ For s = 1, unique solution. ◮ For s > 1, is there a unique solution? Can we compute

it?

◮ There are no “orthogonality” constraints on the

decomposition.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 16/33

slide-17
SLIDE 17

Tensor Decompositions

Choices:

◮ PARAFAC model (package by R. Bro) ◮ HOSVD [ de Lathauwer, de Moor and Vandewalle, ‘00]

¯ P =

r1

  • i=1

r2

  • j=1

r3

  • k=1

δijkui ◦ vj ◦ wk ≈

s

  • m=1

˜ δimuim ◦ vim ◦ wim.

◮ We are working on other possibilities...

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 17/33

slide-18
SLIDE 18

Approximation

K −

s

  • i=1

Ai ⊗ Bi ⊗ CiF = ¯ P −

s

  • i=1

¯ ci ◦ ¯ bi ◦ ¯ aiF

◮ Optimal tensor solution calculated if s = 1, used to

construct Ai, Bi, Ci.

◮ Settle for HOSVD approximation for s > 1. ◮ To determine s, observe |˜

δi|. Gaps/decay for small

values of s imply K is well approximated by small number of terms in the Kronecker sum.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 18/33

slide-19
SLIDE 19

Preconditioner

◮ Case s = 1, compute SVD from Kronecker product

approximation directly and use it to construct M.

◮ Case s > 1, one more level of approximation required

(skip details), but M still ends up specified in Kronecker form.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 19/33

slide-20
SLIDE 20

Compute/Storage Summary

For an n × n × n image (an SVD of K would cost O(n9) flops, storage)

◮ Compute approximation/preconditioner: O(n3) flops ◮ Store a few columns of SVD for 3, n × n matrices.

(minimal)

◮ Preconditioner application O(n3) for small k ◮ Matvec O(n3 log(n))

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 20/33

slide-21
SLIDE 21

Example 1

Blurring effects, caused by optical limits in 3D microscopy,

  • n a stack of 20, 128 × 103 slices of a dendrite.

Both examples:

◮ Matlab 7 ◮ RestoreTools [Nagy, Palmer, Perrone, ‘04]

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 21/33

slide-22
SLIDE 22

True Image Slices (1,7,13,19)

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 22/33

slide-23
SLIDE 23

Blurred Image Slices

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 23/33

slide-24
SLIDE 24

Largest 50 |˜

δi|

5 10 15 20 25 30 35 40 45 50 10

−6

10

−5

10

−4

10

−3

10

−2

10

−1

10 10

1

Magnitude of δ values computed by HOSVD Index of sorted δ values computed by HOSVD

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 24/33

slide-25
SLIDE 25

Relative Errors

5 10 15 20 25 30 35 40 45 50 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 Iteration Relative error MRNSD PMRNSD, THOSVD(1) PMRNSD, THOSVD(3)

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 25/33

slide-26
SLIDE 26

Reconstructed Images

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 26/33

slide-27
SLIDE 27

Example 2

Blurring effects caused by partial volume averaging in spiral CT

κ(x, y, z) = (κ1(x, y, z) + κ2(x, y, z) + κ3(x, y, z))/3 ,

where

κi(x, y, z) = 1

  • (2π)3σ3

i

e−(x2+y2+z2)/2σ2

i ,

and σi were chosen randomly with 1 ≤ σi ≤ 2.

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 27/33

slide-28
SLIDE 28

True Image Slices 1,8,15,22

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 28/33

slide-29
SLIDE 29

Blurred, Noisy Slices 1,8,15,22

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 29/33

slide-30
SLIDE 30

Largest |˜

δi|

2 4 6 8 10 12 14 16 18 20 10

−6

10

−5

10

−4

10

−3

10

−2

10

−1

10 10

1

Magnitude of δ values computed by HOSVD Index of sorted δ values computed by HOSVD

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 30/33

slide-31
SLIDE 31

Convergence History

5 10 15 20 25 30 35 40 45 50 0.18 0.2 0.22 0.24 0.26 0.28 0.3 0.32 Iteration Relative error CGLS PCGLS, THOSVD(1) PCGLS, THOSVD(4)

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 31/33

slide-32
SLIDE 32

Restored Images

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 32/33

slide-33
SLIDE 33

Conclusions and Future Work

◮ Derived Kronecker product approximations to

  • perators in image processing applications, used them

to compute preconditioners making deblurring computationally tractable.

◮ Optimal approximation if one term is used. ◮ Raises interesting questions about tensor

decompositions, which are “best”.

◮ Extension to dense structured matrices (image

processing, PDE’s).

◮ Kronecker approximations may provide useful basis for

edge preserving regularization (work with Per Christian Hansen).

Kronecker Product Approximation for Preconditioningin 3D Imaging Applications – p. 33/33
