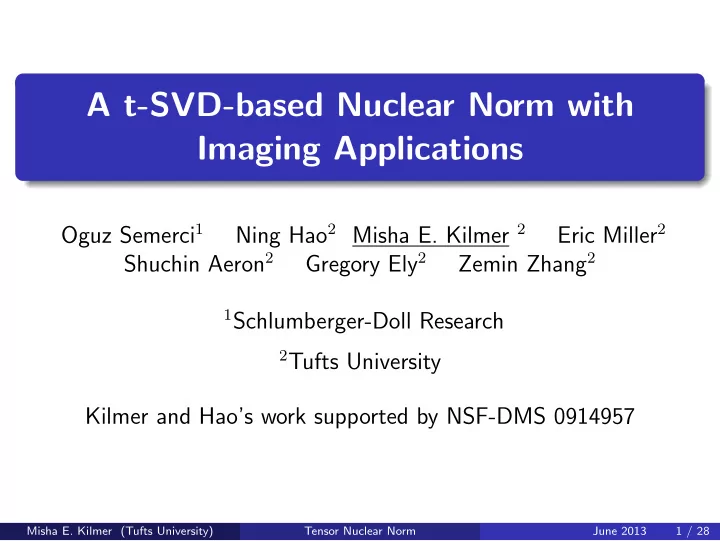

A t-SVD-based Nuclear Norm with Imaging Applications

Oguz Semerci1 Ning Hao2 Misha E. Kilmer 2 Eric Miller2 Shuchin Aeron2 Gregory Ely2 Zemin Zhang2

1Schlumberger-Doll Research 2Tufts University

Kilmer and Hao’s work supported by NSF-DMS 0914957

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 1 / 28

Notation

1

A(i,j,k) = element of A in row i, column j, tube k

1Graphics thanks to K. Braman

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 2 / 28

Notation

1

A(i,j,k) = element of A in row i, column j, tube k ← A4,7,1

1Graphics thanks to K. Braman

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 2 / 28

Notation

1

A(i,j,k) = element of A in row i, column j, tube k ← A4,7,1 ← A:,3,1

1Graphics thanks to K. Braman

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 2 / 28

Notation

1

A(i,j,k) = element of A in row i, column j, tube k ← A4,7,1 ← A:,3,1 ← A:,:,3

1Graphics thanks to K. Braman

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 2 / 28

Motivation

The application drives the choice of factorization (e.g. CP, Tucker) and the constraints. Today we are concerned with imaging applications, orientation dependent. Talk builds on: Closed multiplication operation between two tensors, factorizations reminiscent of matrix factorizations [K., Martin, Perrone, 2008; K., Martin 2010; Martin et al, 2012]. View of Third order tensors as operators on matrices, [K., Braman, Hoover, Hao, 2013]

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 3 / 28

Toward Defining Tensor-Tensor Multiplication

For A ∈ Rm×p×n, let Ai = A:,:,i. unfold − →        A1 A2 A3 . . . An        ∈ Rmn×p

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 4 / 28

Toward Defining Tensor-Tensor Multiplication

For A ∈ Rm×p×n, let Ai = A:,:,i. unfold − →        A1 A2 A3 . . . An        ∈ Rmn×p        A1 A2 A3 . . . An        fold − → ∈ Rm×p×n

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 4 / 28

Block Circulant Matrix

The block circulant matrix generated by unfold (A) is circ (A) =        A1 An · · · A3 A2 A2 A1 An · · · · · · A3 A2 ... ... ... . . . ... ... ... ... An · · · · · · A2 A1       

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 5 / 28

Block Circulants

A block circulant can be block-diagonalized by a (normalized) DFT in the 2nd dimension: (F ⊗ I)circ (A) (F ∗ ⊗ I) =      ˆ A1 · · · ˆ A2 · · · · · · ... · · · ˆ An      Conveniently, an FFT along tube fibers of A gives A.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 6 / 28

Tensor - Tensor Multiplication

[K., Martin, Perrone ‘08]: For A ∈ Rm×p×n and B ∈ Rp×q×n, define the t-product A ∗ B ≡ fold

• circ (A) · unfold (B)
• .

Result is m × q × n.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 7 / 28

Tensor - Tensor Multiplication

[K., Martin, Perrone ‘08]: For A ∈ Rm×p×n and B ∈ Rp×q×n, define the t-product A ∗ B ≡ fold

• circ (A) · unfold (B)
• .

Result is m × q × n. Example: A ∈ Rm×p×3 and B ∈ Rp×q×3, A ∗ B = fold     A1 A3 A2 A2 A1 A3 A3 A2 A1     B1 B2 B3     .

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 7 / 28

Tensor - Tensor Multiplication

[K., Martin, Perrone ‘08]: For A ∈ Rm×p×n and B ∈ Rp×q×n, define the t-product A ∗ B ≡ fold

• circ (A) · unfold (B)
• .

Result is m × q × n. Example: A ∈ Rm×p×3 and B ∈ Rp×q×3, A ∗ B = fold     A1 A3 A2 A2 A1 A3 A3 A2 A1     B1 B2 B3     . This tensor-tensor multiplication generalizes to higher-order tensors through recursion - see Martin et al, 2012.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 7 / 28

More Definitions

Definition A 1 × 1 × n tensor is called a tubal scalar. The t-product between tubal scalars is commutative ⇒ the t-product resembles matrix-matrix product with scalar mult replaced by t-product mult among tubal scalars. Definition The ℓ × ℓ × n identity tensor I is the tensor whose frontal slice is the ℓ × ℓ identity matrix, and whose other frontal slices are all zeros.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 8 / 28

Transpose

Definition If A is ℓ × m × n, then AT is the m × ℓ × n tensor obtained by transposing each of the frontal slices and then reversing the order of transposed frontal slices 2 through n. Example If A ∈ Rℓ×m×4 AT = fold         AT

1

AT

4

AT

3

AT

2

       

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 9 / 28

Orthogonality

Definition U ∈ Rm×m×n is orthogonal if UT ∗ U = I = U ∗ UT. Can show Frobenius norm invariance: U ∗ AF = AF.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 10 / 28

The t-SVD

Theorem (K. and Martin, 2011) Let A ∈ Rℓ×m×n. Then A can be factored as A = U ∗ S ∗ VT where U, V are orthogonal ℓ × ℓ × n and m × m × n, and S is a ℓ × m × n f-diagonal tensor. Also, B = U1:k,1:k,: ∗ S1:k,1:k,: ∗ VT

1:k,1:k,:

satisfies B = arg min

M A−BF,

M = {B = X∗Y, X ∈ Rℓ×k×n, Y ∈ Rk×m×

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 11 / 28

t-SVD Example

Let A be 2 × 2 × 2. (F ⊗ I)circ (A) (F ∗ ⊗ I) = ˆ A1 ˆ A2

• ˆ

A1 ˆ A2

• =

ˆ U1 ˆ U2

• 

    

• ˆ

σ(1)

1

ˆ σ(1)

2

• ˆ

σ(2)

1

ˆ σ(2)

2

• 

     ˆ V ∗

1

ˆ V ∗

2

• The U, S, VT are formed by putting the hat matrices as frontal slices,

ifft along tubes. e.g. s1 =

• ˆ

σ(1)

1

ˆ σ(2)

1

• riented into the screen.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 12 / 28

Multi-rank

Definition (K.,Braman,Hoover,Hao, 2013) Let A ∈ Rℓ×m×n. The multi-rank of A is length n vector consisting

• f the ranks of all the

A

(i), which must be symmetric about the

“middle”. Example A ∈ R2×2×4, multi-rank possible: [i, j, k, j]T, 1 ≤ i, j, k ≤ 2. Example A ∈ R5×4×3, multi-rank possible: [i, j, j]T, 1 ≤ i ≤ 4, 1 ≤ j ≤ 4.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 13 / 28

Tensor Nuclear Norm

If A is an ℓ × m, ℓ ≥ m matrix with singular values σi, the nuclear norm A⊛ = m

i=1 σi.

However, in the t-SVD, we have singular tubes (the entries of which need not be positive), which sum to a singular tube! The entries in the jth singular tube are the inverse Fourier coefficients

• f the length-n vector of the jth singular values of

A:,:,i, i = 1..n. Definition For A ∈ Rℓ×m×n, our tensor nuclear norm is A⊛ = min(ℓ,m)

i=1

√nFsi1 = min(ℓ,m)

i=1

n

j=1

Si,i,j. (Same as the matrix nuclear norm of circ (A)).

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 14 / 28

Tensor Nuclear Norm

Theorem (Semerci,Hao,Kilmer,Miller) The tensor nuclear norm is a valid norm. Since the t-SVD extends to higher-order tensors [Martin et al, 2012], the norm does, as well.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 15 / 28

TNN in Regularization and Optimization

Yes, the t-SVD is orientation dependent, as is the norm. There are applications where this is particularly useful! Collection of “structurally similar” m × n images Video frames (3D, 4D= color); completing missing data

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 16 / 28

Multi-energy XRay CT

k energy bins. µ(r, Ek) → Xk ∈ RN1×N2 xk = vec(Xk) (φ, t) space into Nm source/det pairs Then A ∈ RNm×Np where [A]ij represents the length of that segment of ray i passing through pixel j.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 17 / 28

Multi-energy XRay CT

0.02 0.04 0.06 0.08 0.2 0.4 0.6 0.8 Energy (Mev) cotton wax nylon ethanol soap plexiglass rubber

The log-liklihood function to be optimized, assuming Poisson noise Lk(xk) = D−1/2

k

(Axk − mk)2

2

where Dk is diagonal, mk is log of scaled projection data.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 18 / 28

Regularized Problem

Let Xs.t.X:,:,k = Xk; recall xk = vec(Xk). min

X ( N3

• k=1

Lk(xk) + αkR(xk)) + γZ∗, sbj to Z = X where R() denotes possible additional regularization. Optimized via an Alternating Direction Method of Multipliers (ADMM) (see Boyd et al 2011, Bertsekas 1999) Let Lη(X, Z, Y) denote the augmented Lagrangian. The updates are Xn+1 := argmin

X

Lη (X, Zn, Yn) , Zn+1 := argmin

Z

Lη

• Xn+1, Z, Yn

Yn+1 := Yn + η(Xn+1 − Zn+1)

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 19 / 28

t-SVD Shrinkage

Zn+1 := argmin

Z

Lη

• Xn+1, Z, Yn

Compute ( 1

ηYn + Xn+1) = U ∗ S ∗ VT. Recall

S contains Σk for frontal slices of transformed tensor. Zn+1 := U ∗ ρ(S) ∗ VT, where ρ(S) takes the non-zeros in S and replaces them with the difference between them and rho, if that difference is greater than 0, and 0 otherwise. ρ depends on the parameter in the problem. Shown that Zn+1 := U ∗ (S ∗ D) ∗ VT

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 20 / 28

Numerical Results

0.2 0.4 0.6 0.8 1 0.05 0.1 0.15 0.2 0.25

25 keV 85 keV

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 21 / 28

Numerical Results

FBP, TNN, TV, TNN+TV

0.2 0.4 0.6 0.8 1 0.2 0.4 0.6 0.8 1

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 22 / 28

Numerical Results

0.05 0.1 0.15 0.2 0.25 0.05 0.1 0.15 0.2 0.25

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 23 / 28

Tensor Completion

Given unknown tensor M of size n1 × n2 × n3, given a subset of entries {Mijk : (i, j, k) ∈ Ω} where Ω is an indicator tensor of size n1 × n2 × n3. Recover the entire M: min X⊛ subject to PΩ(X) = PΩ(M) The (i, j, k)th component of PΩ(X) is equal to Mijk if (i, j, k) ∈ Ω and zero otherwise. Similar to the previous problem, this can be solved by ADMM, with 3 update steps, one which decouples, one that is a shrinkage/thresholding step.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 24 / 28

Numerical Results

TNN minimization, Low Rank Tensor Completion (LRTC) [Liu, et al, 2013] based on tensor-n-rank [Gandy, et al, 2011], and the nuclear norm minimization on the vectorized video data [Cai, et al, 2010]. MERL2 video, Basketball video

2with thanks to Dr. Amit Agrawal

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 25 / 28

Numerical Results

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 26 / 28

Numerical Results

Basketball video data of size 144 × 256 × 3 × 80.

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 27 / 28

Conclusions

Introduced the notion of a tensor nuclear norm around the concept of the t-SVD for tensors Discussed in 3rd order case, but generalizes to higher order The tensor nuclear norm is useful in imaging applications where we can exploit certain features that are orientation dependent Efficiency in implementations (parallelism); exploit complex conjugacy in the Fourier domain A different t-SVD and associated factorizations and norm based

• n fast trig-transform [Kernfeld, et al, 2013]

Misha E. Kilmer (Tufts University) Tensor Nuclear Norm June 2013 28 / 28
