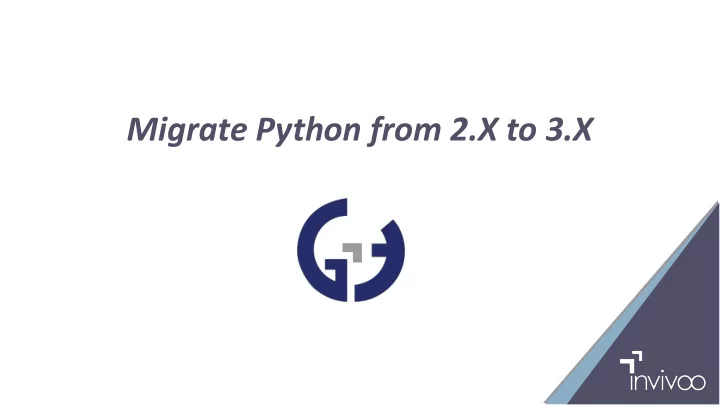

Migrate Python from 2.X to 3.X

WHO AM I?

PHILIPPE BOULANGER

6,5 years in CAD&Numeric simulations 3 years in embedded programming 11,5 years in finance 19,5 years in Python 20,5 years in C++

C++ & PYTHON DEVELOPER

@Pythonicien

CONCERNS

SOME NEWS

▪ 2017 ➢Instagram migrated major part of its code to Python 3 ▪September 2018 ➢Dropbox announced the end of its migration to Python 3 (they began in 2015)!

TECHNICAL ASPECTS (1/2)

▪ Support for Pyt ython 2.7 will ill stop soon ➢ January the 1st 2020 ▪ Some li libraries are no no more compliant ➢ Django, numpy (2019), etc. ▪Pyt ython 4 ➢ Will arrive in the next few years (2023 ?)

TECHNICAL ASPECTS (2/2)

▪ Asynchronous programming (a (asyncio) ▪ Consistency ➢ Return generator instead of containers ➢ Functional programming

DIFFERENCES (1/3)

Python 2 Python 3 print print ‘blabla' print(‘blabla’)

DIFFERENCES (1/3)

Python 2 Python 3 print print ‘blabla' print(‘blabla’) raise raise IOError, ‘file error' raise IOError(‘file error’)

DIFFERENCES (1/3)

Python 2 Python 3 print print ‘blabla' print(‘blabla’) raise raise IOError, ‘file error' raise IOError(‘file error’) long long(myvar) 5/2 = 2 int(myvar) 5/2 = 2.5 5//2 = 2

DIFFERENCES (2/3)

Python 2 Python 3 string unicode str str bytes

DIFFERENCES (2/3)

Python 2 Python 3 string unicode str str bytes dict, map, zip dict.items(): list dict.keys()[0] dict.iteritems() dict.items(): dict_items list(dict.keys())[0] dict.items()

DIFFERENCES (3/3)

u’toto’ b’titi’ instruction unicode() method __unicode__() StringIO/BytesIO

UNICODE MANAGEMENT

FINANCIAL ASPECT

▪ Mig igration costs?

➢ Heavy costs at short term ➢ Few costs at long term

▪ Costs to to keep Pyt ython 2?

➢ No immediat costs ➢ Heavy cost at middle/long term

GOAL…

NON-REGRESSION TESTS

▪ Is the migration a success? ▪ Are the performances as good as the 2.X version? ▪ What is the coverage of the tests? ▪ We need in indicators!

HOW TO VALIDATE THE MIGRATION?

UNIT TESTS

▪ Use a unit test for a small part of code testing (As a function). ▪ Utopic goal: have unit tests for all API.

FUNCTIONAL TESTS (1/2)

▪ Functional tests are more complex because several API are linked but cover a real service or functionality. ▪ Objective: cover most of the functionalities as

• possible. Having a tool to mesure code coverage

will be useful.

FUNCTIONAL TESTS (2/2)

▪ The need to automate tests is increasing with program size ▪ A functional test could be:

➢ A chain of API calls ➢ GUI actions (use of UFT/QTP)

PERFORMANCES TESTS

▪ You need to validate that migration keep the application performances : algorithms used in libraries could be replaced between versions, some conflicts between libraries could appears… ➢ Load tests?

COVERAGE TESTS (1/2)

▪ Knowing the number of lines of codes tested when all the tests are using (unit, functional

• r

performance)

https://coverage.readthedocs.io/en/coverage-4.5.1a

COVERAGE TESTS (2/2)

▪ According to my experience, with less than 60%

• f covered code, the chance of having hidden

bugs is very important ▪ A good target is 80% of covered code

Target 80% of covered code

GUI TESTS

▪ Test the GUI

• Either manual
• Or use tool like UFT (previous name: QTP)
• …

▪ Allow to automate test as if it was done by a user

HUMAN TESTS

▪ A developer tests the code from a way which corresponds to the implementation he done, a real user tests according to its habits ➢Update GUI controls, click… raise events and code execution and the order of calls can change the behavior ➢human add random part inside tests

PERIMETER

PERIMETER?

?

ENVIRONMENT

OS DB PYTHON DISTRIBUTION TOOLING PROCESSOR

WHAT MODULES ARE LOADED? (1/2)

▪ Standard modules in Python? ▪ Modules which were developed in intern? ▪ What are the external modules?

WHAT MODULES ARE LOADED? (2/2)

▪ How to determine the list of dynamically loaded modules… Available since Python 2.3.

AND THEN: PROBLEMS?…

▪ Is there module:

➢ with ended support or unmigrated?

➢ with modified API? ➢ licencing changed? ➢ library name changed?

NON-PYTHON MODULES

▪ Problems with C/C++ written modules

➢ C++ compiler migration

➢ porting C++ libraries ➢ tools problems (swig…) ➢ licences, etc…

MIGRATION METHODOLOGY

▪ « Divide to reign »: it will be better to migrate small groups of files to minimize interactions. ▪ Create bundles in using module dependencies (have a graph should be useful), internal or external module…

SPLIT IN BUNDLES

PORTING EXTERNAL CODE (1/2)

▪ External code has no dependency with house-made code: start with them will be a good idea. ▪ Take count of tools: ➢Compiler ➢Integration tools in Python: swig, boost.python, etc. ➢External libraries

PORTING EXTERNAL CODE (2/2)

▪ Library was ported or not? ▪ API changed? ▪ Licensing changed? ▪ Is there constraints according to the versions of different libraries? ▪ Is source code available ?

ADD PYTHON 3.X CHANGES INSIDE PYTHON 2.X CODE (1/3)

▪ from __future__ import division

• PEP 238: Changing the Division Operator

▪ from __future__ import print_function

• PEP 3105: Make print a function

ADD PYTHON 3.X CHANGES INSIDE PYTHON 2.X CODE (2/3)

▪ from __future__ import absolute_import

• PEP 328: Imports: Multi-Line and Absolute/Relative

▪ from __future__ import unicode_literals

• PEP 3112: Bytes literals in Python 3000

ADD PYTHON 3.X CHANGES INSIDE PYTHON 2.X CODE (3/3)

▪ Six : six.readthedoc.io

Python 2 Python 3 Six to add 3.X features in 2.X code

TOOLS (1/2)

▪ 2to3

mathilde@pc-moi~ 2to3 example.py RefactoringTool: Refactored example.py

• -- example.py (original)

+++ example.py (refactored) @@ -1,9 +1,9 @@

• from urllib2 import urlopen

+ from urllib.request import urlopen

my_url = “http://pythonprogramming.net” try: x = urlopen[my_url].read()

• print x
• except Exception, e:
• raise IOError, "Error 404"

+ print(x) +except Exception as e: + raise IOError("Error 404")

RefactoringTool: Files that need to be modified: RefactoringTool: example.py

TOOLS (2/2)

▪ 2to6

➢ Based on 2to3

➢ For compilancy between 2 and 3 ➢ Add __future__, six

REFACTORING

REFACTORING (1/6)

▪ listdir vs scandir

REFACTORING (2/6)

▪ Use generators

REFACTORING (3/6)

▪ Comprehension containers

REFACTORING (4/6)

▪ String format

name = ‘‘Toto’’ ‘‘My name is %s’’ % ( name ) # since 1.x ‘‘My name is {}’’.format( name ) # since 2.0 f‘‘My name is {name}’’ # since 3.6

REFACTORING (5/6)

▪ JIT compiler: numba

REFACTORING (6/6)

▪ Cache strategy

TO CONCLUDE

AND NOW…

▪ Migrations are like children: each of them is different ▪ Split in steps… ➢ After each step, TEST!!!! ▪ You will have difficulties but keep hope.
