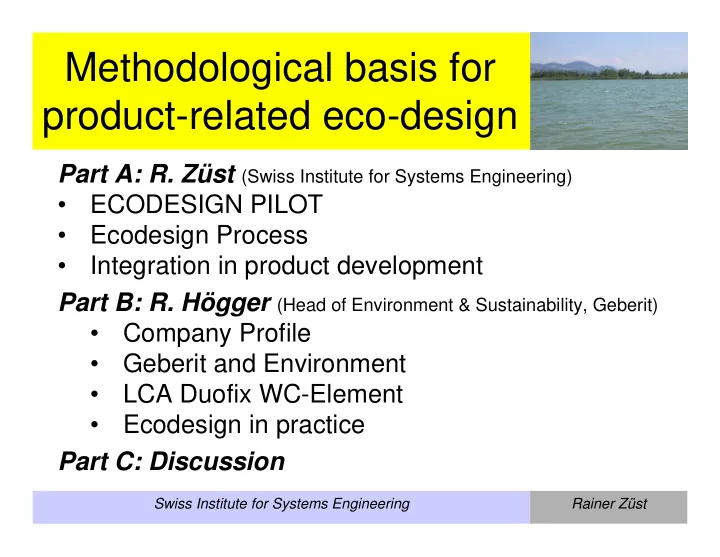

Methodological basis for product-related eco-design Part A: R. Zst (Swiss Institute for Systems Engineering) ECODESIGN PILOT Ecodesign Process Integration in product development Part B: R. Hgger (Head of Environment &

slide-1
SLIDE 1

Swiss Institute for Systems Engineering Rainer Züst

Methodological basis for product-related eco-design

  • R. Züst
  • R. Högger

Part A: R. Züst (Swiss Institute for Systems Engineering)

  • ECODESIGN PILOT
  • Ecodesign Process
  • Integration in product development

Part B: R. Högger (Head of Environment & Sustainability, Geberit)

  • Company Profile
  • Geberit and Environment
  • LCA Duofix WC-Element
  • Ecodesign in practice

Part C: Discussion

slide-2
SLIDE 2

Swiss Institute for Systems Engineering Rainer Züst

  • Dr. sc. techn., Dipl. Masch. Ing. ETH
  • 1993 – 1999 Assistant Professor at ETH Zurich
  • since 2000 Visiting Professor at Vienna University of

Technology (www.ecodesign.at)

  • 2001-2004: ETHags – Center for Sustainability at

ETH Zurich (www.ags.ethz.ch)

  • since 2002: „Swiss Institute for Systems Engineering“

SISE AG (www.swissinstitute.ch)

  • Author of different books

Rainer Züst

slide-3
SLIDE 3

Swiss Institute for Systems Engineering Rainer Züst

Examples of Projects

  • Reorganisation of the administration
  • Courses in Project Management
  • Ecodesign (Business-Area electric tools)
  • Ecodesign (WEEE & RoHS-standards)
  • Ecodesign (Workshops)
  • Ecodesign (strategic issues and teaching)
  • Ecodesign (EUP, Ecodesign standards)
  • lectures
slide-4
SLIDE 4

Swiss Institute for Systems Engineering Rainer Züst

Benefit from Ecodesign

  • innovative products
  • improved cost structure
  • future-orientedness of the enterprise
  • improved environmental performance
slide-5
SLIDE 5

Swiss Institute for Systems Engineering Rainer Züst

Focus on Ecodesign

  • ISO 14’001/2004: indirect impacts (including products

and services)

  • ISO/TR 14’062: Integration Environmental Aspects in

Product development

  • Laws and regulations: for example WEEE and RoHS

(product concept), and especially EUP

  • ….

Focus more on products & services

slide-6
SLIDE 6

Swiss Institute for Systems Engineering Rainer Züst

Options to improve products

[Wimmer, Züst, 2002]

slide-7
SLIDE 7

Swiss Institute for Systems Engineering Rainer Züst

ECODESIGN PILOT

Basic documentation:

  • (learning) book
  • CD-ROM
  • www.ecodesign.at/pilot

(5 languages)

slide-8
SLIDE 8

Swiss Institute for Systems Engineering Rainer Züst

Knowledge about ECODESIGN (ll)

[Wimmer, Züst, 2002]

slide-9
SLIDE 9

Swiss Institute for Systems Engineering Rainer Züst

Knowledge about ECODESIGN (lll)

[Wimmer, Züst, 2002]

slide-10
SLIDE 10

Swiss Institute for Systems Engineering Rainer Züst

ECODESIGN-Process (l): Life-Cycle Thinking

[Wimmer, Züst, 2002]

slide-11
SLIDE 11

Swiss Institute for Systems Engineering Rainer Züst

ECODESIGN-Process (ll): Strategies und Measures

[Wimmer, Züst, 2002]

slide-12
SLIDE 12

Swiss Institute for Systems Engineering Rainer Züst

ECODESIGN-Process (lll): Risk and Benefit

[Wimmer, Züst, 2002]

slide-13
SLIDE 13

Swiss Institute for Systems Engineering Rainer Züst

A short example

4 steps:

  • Life-Cycle-Thinking and

environmental-oriented evaluation (=> significant environmental impacts)

  • improvement strategies
  • successful measures
  • implementation in the

developing process

slide-14
SLIDE 14

Swiss Institute for Systems Engineering Rainer Züst

Life-Cycle-Thinking

[Wimmer, Züst, 2002]

slide-15
SLIDE 15

Swiss Institute for Systems Engineering Rainer Züst

Improvement

www.ecodesign.at/pilot

slide-16
SLIDE 16

Swiss Institute for Systems Engineering Rainer Züst

Possible Strategies

www.ecodesign.at/pilot

slide-17
SLIDE 17

Swiss Institute for Systems Engineering Rainer Züst

Example

[Wimmer, Züst, 2002]

slide-18
SLIDE 18

Swiss Institute for Systems Engineering Rainer Züst

Working with Check-Lists

www.ecodesign.at/pilot

slide-19
SLIDE 19

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

[Wimmer, Züst, Lee, 2002]

slide-20
SLIDE 20

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

  • 1. Product specific analysis and environmental-oriented

evaluation; that would mean: environmental-oriented strength & weaknesses; environmental-oriented SWOT

  • 2. Effective environmental-oriented strategies and

successful improvement measures (design tasks)

  • 3. Efficient product improvement process
  • 4. Integration in planning process
slide-21
SLIDE 21

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view

[Wimmer, Züst, Lee, 2002]

slide-22
SLIDE 22

Swiss Institute for Systems Engineering Rainer Züst

Product Model (Life-Cycle-Thinking)

[Wimmer, Züst, Lee, 2002]

slide-23
SLIDE 23

Swiss Institute for Systems Engineering Rainer Züst

Environmental View

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view KEA LCA

slide-24
SLIDE 24

Swiss Institute for Systems Engineering Rainer Züst

Environmental Evaluation

  • Environmental effects:

Environmental impacts environmental problems:

  • ressources, polution, distruction
  • local, regional, global

using eco-inventories (for example: ecoinvent.ch)

  • Environmental-oriented indicators:

using indicators, for example

  • cost-profile, mass-profile
  • energy-profile
  • profile of environmental harmful substancies
slide-25
SLIDE 25

Swiss Institute for Systems Engineering Rainer Züst

Energy Analysis (KEA)

  • 100.00

0.00 100.00 200.00 300.00 400.00 500.00 600.00 700.00

Energieaufwand für Rohstoffgewinnung Energieaufwand für Herstellung Energieaufwand für Distribution Energieaufwand für Betrieb Energieaufwand für Recycling

MJ

slide-26
SLIDE 26

Swiss Institute for Systems Engineering Rainer Züst

Life-Cycle-Assessment

Raw material Manufacture Distribution Product Use End of Life GW AD EU POC ARD

  • 10,00%

0,00% 10,00% 20,00% 30,00% 40,00% 50,00% 60,00% 70,00%

Weighted impact over the product life cycle

GW AD EU POC ARD

  • Global warming (GW)
  • Ozone layer depletion

(OD)

  • Acidification (AD)
  • Eutrophication (EU)
  • Photochemical oxidant

creation (POC)

  • Abiotic resource

depletion (ARD)

[Wimmer, Züst, Lee, 2002]

slide-27
SLIDE 27

Swiss Institute for Systems Engineering Rainer Züst

Different views

Cost profil Mass profile Energy profile Environmental profile

slide-28
SLIDE 28

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view

slide-29
SLIDE 29

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view E-BM E-QFD

slide-30
SLIDE 30

Swiss Institute for Systems Engineering Rainer Züst

Environmental QFD

[Wimmer, Züst, Lee, 2002]

slide-31
SLIDE 31

Swiss Institute for Systems Engineering Rainer Züst

Environmental Benchmarking

[Wimmer, Züst, Lee, 2002]

slide-32
SLIDE 32

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view

[Wimmer, Züst, Lee, 2002]

slide-33
SLIDE 33

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view

[Wimmer, Züst, Lee, 2002]

Ecodesign-Assistant

slide-34
SLIDE 34

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign-Assistant

www.ecodesign.at/assistent

slide-35
SLIDE 35

Swiss Institute for Systems Engineering Rainer Züst

Example (l)

slide-36
SLIDE 36

Swiss Institute for Systems Engineering Rainer Züst

Example (ll)

slide-37
SLIDE 37

Swiss Institute for Systems Engineering Rainer Züst

Example (lll)

slide-38
SLIDE 38

Swiss Institute for Systems Engineering Rainer Züst

Example (lV)

slide-39
SLIDE 39

Swiss Institute for Systems Engineering Rainer Züst

Example (V)

slide-40
SLIDE 40

Swiss Institute for Systems Engineering Rainer Züst

Example (Vl)

slide-41
SLIDE 41

Swiss Institute for Systems Engineering Rainer Züst

Example (Vll)

slide-42
SLIDE 42

Swiss Institute for Systems Engineering Rainer Züst

Integration in Product Development

[Wimmer, Züst, Lee (2004)]

Integration in developing process

slide-43
SLIDE 43

Swiss Institute for Systems Engineering Rainer Züst

12 Steps

Reference model:

  • Environmental analysis:

Step 1 – Step 4

  • Search for measures:

Step 5 and Step 6

  • Implementation:

Step 7 – Step 11

  • Communication:

Step 12

(Springer 2004)

slide-44
SLIDE 44

Swiss Institute for Systems Engineering Rainer Züst

Step 1 – Step 4

Step 1: What product(-system) has to be redesigned? (product model, based on environmental parameter) Step 2: What are the stakeholder requirements? What is expected from the product? (E-QFD, based on environmental parameters) Step 3: Which are the environmental-oriented strength and weaknesses compared with competitors products? (E-BM, based on environmental parameters) Step 4: What are the significant environmental aspects of the product throughout its entire life cycle? ( environmental aspects)

slide-45
SLIDE 45

Swiss Institute for Systems Engineering Rainer Züst

Step 5 and Step 6

Step 5: How to combine stakeholder’s requirements and significant aspects into improvement strategies (selection of strategies by using ECODESIGN PILOT (or ECODESIGN assistant)) Step 6: Which ECODESIGN guidelines should be implemented in the product (selection of measures by using the checklists from ECODESIGN PILOT)

slide-46
SLIDE 46

Swiss Institute for Systems Engineering Rainer Züst

Step 7 – Step 12

Step 7: What are the product specifications to start with? Step 8: How to modify the functional structure of the product? Step 9: How to generate new ideas for the functions of the product? Step 10: How to generate and select the best product concept variants? Step 11: How does the improved product look like? Step 12: How to communicate the environmental improvements

  • f the product to the market?
slide-47
SLIDE 47

Swiss Institute for Systems Engineering Rainer Züst

Ecodesign Process

Environmental view Laws, standards, … Competitor’s product(s) Product improvement ECODESIGN tasks Integration in developing process Customer’s view E-BM E-QFD Ecodesign-Assistant KEA LCA

slide-48
SLIDE 48

Swiss Institute for Systems Engineering Rainer Züst

Conclusion (l)
