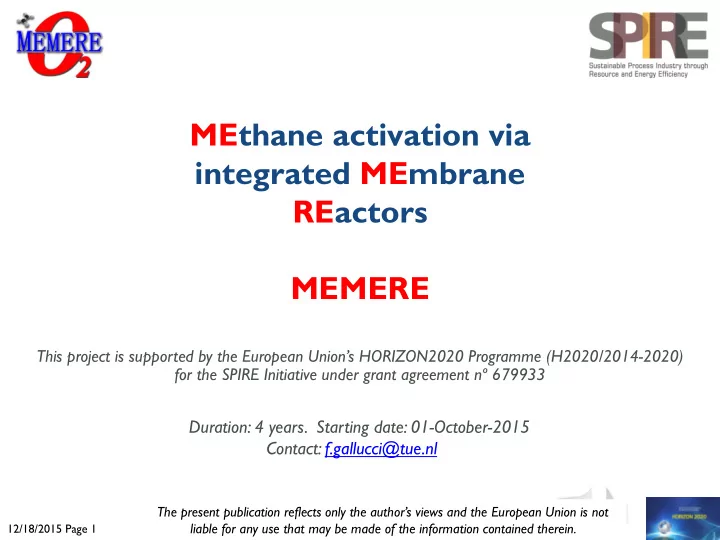

MEthane activation via integrated MEmbrane REactors MEMERE

This project is supported by the European Union’s HORIZON2020 Programme (H2020/2014-2020) for the SPIRE Initiative under grant agreement nº 679933

Duration: 4 years. Starting date: 01-October-2015 Contact: f.gallucci@tue.nl

The present publication reflects only the author’s views and the European Union is not liable for any use that may be made of the information contained therein.

slide-2
SLIDE 2

12/18/2015 Page 2

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Project objectives

The key objective of the MEMERE project is the design, scale-up and validation of a novel membrane reactor for the direct conversion of methane into ethylene with integrated air separation. The focus of the project will be on the air separation through novel MIEC membranes integrated within a reactor operated at high temperature for OCM allowing integration of different process steps in a single multifunctional unit and achieving significantly higher yields in comparison with the conventional reactor technologies, combined with improved energy efficiency.

slide-3
SLIDE 3

12/18/2015 Page 3

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Consortium

The MEMERE consortium bring together 11 partners from 8 different countries

slide-4
SLIDE 4

12/18/2015 Page 4

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Work Packages

The MEMERE concept will start from catalyst and membrane material, and design a new reactor for C2 production

slide-5
SLIDE 5

12/18/2015 Page 5

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Work Packages

The MEMERE project is organized in 9 work packages

slide-6
SLIDE 6

12/18/2015 Page 6

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Powders development

slide-7
SLIDE 7

12/18/2015 Page 7

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Powders development

slide-8
SLIDE 8

12/18/2015 Page 8

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

  • Over a hundred metal oxide/promoter/support combinations

reported as catalytically active for OCM

  • JM will perform high throughput screening to select the benchmark

catalyst for lab and pilot scale testing

Catalyst development

slide-9
SLIDE 9

12/18/2015 Page 9

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Microspheres Randomly dispersed catalyst aggregates Helix-loop scaffolds Future incarnations Orthogonal scaffolds Current incarnation

Catalyst development

slide-10
SLIDE 10

12/18/2015 Page 10

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Supports

Manufacturing of porous ceramic supports Development of dense tubes fitting to porous supports Joining technology between porous supports and dense tubes Analysis of porous tubes

Membrane development

slide-11
SLIDE 11

12/18/2015 Page 11

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Oxygen membranes for OCM

  • Development of MIEC capillary membranes.
  • Development of pore-filled supported membranes
  • Improvement of sealing procedure to integrate the membranes in the

catalytic membrane reactors

  • Membrane characterization under realistic reforming conditions in lab-

scale units prior to application of the optimal membranes in the pilot prototypes

  • Manufacturing of membranes for the prototype reactor (scaling-up of

the membrane length and number per batch). Objectives:

slide-12
SLIDE 12

12/18/2015 Page 12

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

A-site B-site O2-

2θ

Development of MIEC capillary membranes

Oxygen membranes for OCM

Development of MIEC powders for capillary and pore-filled membranes

Self-supported membranes

slide-13
SLIDE 13

12/18/2015 Page 13

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Oxygen membranes for OCM

Development of pore filled supported membranes B) Pore-filled membranes A) Tubular supports for membranes

Asymmetric structure

slide-14
SLIDE 14

12/18/2015 Page 14

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

OCM Process and Miniplant

14

slide-15
SLIDE 15

12/18/2015 Page 15

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Parallel and Integrated Reactors

15  Fluidized bed membrane reactor  Dual membrane reactor  Integrated parallel reactor  Network of reactors

Godini et al., Chemical Engineering and Processing 74 (2013) 153–164 Godini et al., Fuel Processing Technology, 106 (2013) 684–694

CH4 O2

slide-16
SLIDE 16

12/18/2015 Page 16

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Simulation and techno-economic analysis

16 http://www.mosaic-modeling.de/ Integrated OCM process Membrane reactor Fluidized bed reactor

slide-17
SLIDE 17

12/18/2015 Page 17

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Operando experiments

slide-18
SLIDE 18

12/18/2015 Page 18

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Operando experiments

slide-19
SLIDE 19

12/18/2015 Page 19

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Prototype design and build

Objectives:

  • Setup and optimization of oxygen enrichment
  • Design of OCM reactor
  • 3D design
  • Based on efficiency, scalability, reliability, production costs
  • Construction
  • Reactor construction
  • Control unit
  • Auxiliary components
  • Factory acceptance test
  • Integrity and safety in operation
  • Debugging
slide-20
SLIDE 20

12/18/2015 Page 20

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Oxygen generator

O2 enriched air NG O2 depleted air O2 C2H4+C2H6+…

Membrane reactor

Q

Prototype design and build

slide-21
SLIDE 21

12/18/2015 Page 21

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Prototype test and validation

Objectives:

  • Tests
  • Set-up of test protocol
  • Duration tests, thermal cycling, sensitivity to oxygen content
  • Verification of efficiency, sealing properties, permeation rates,

selectivity, chemical performance

  • Validation
  • OCM reactor models
  • Business model
  • Provide data for Life Cycle Assessment
slide-22
SLIDE 22

12/18/2015 Page 22

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Environmental LCA and economic assessment

Specific WP8 objectives include:

  • Assess the environmental and

cost performance of the developed novel OCM technology compared to conventional technologies

  • Guide the design and

development of the novel OCM technology towards more sustainable solutions

  • Define and evaluate

comprehensive business scenarios for the successful deployment and commercialisation of the developed OCM technology in Europe and possibly globally

slide-23
SLIDE 23

12/18/2015 Page 23

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Environmental LCA and economic assessment

Economic assessment Business plan Final LCA Preliminary LCA

Task 8.1 Task 8.2 Task 8.3

Goal and scope definition Life cycle inventory analysis Data collection management Preliminary environmental LCA

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

D8.1

Prelim.

D8.1

Final

D8.2 D8.3

Final environmental LCA Life cycle costing Cost-benefit analysis SWOT analysis

slide-24
SLIDE 24

12/18/2015 Page 24

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Environmental LCA and economic assessment

Task 8.1 - Environmental LCA Task 8.2 - Economic assessment

  • Life Cycle Costing (LCC)
  • Cost-benefit analysis
  • SWOT analysis

Task 8.3 - Business plan

  • Marketability of the proposed MEMERE solution
  • Definition of strategies for future deployment and commercialisation
  • Risk analysis

Use of resources Climate change Human health Ecosystem quality Water withdrawal

Environmental indicators

slide-25
SLIDE 25

12/18/2015 Page 25

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Stakeholder Analysis Dissemination and Exploitation Strategy Year 1 Year 2 : Year 4

  • Stakeholders

Identification

  • Need analysis

through Market Surveys

  • Engagement and

networking

SUPPORT TO SUSTANABILITY: Diffusion of Project Results

  • Tailored on Stakeholder analysis
  • Industrial Workshops
  • Dedicated Industry Event in Rome in 2018
  • IPR strategy
  • Support to exploitation management (including

2 exploitation workshops)

Dissemination and exploitation

slide-26
SLIDE 26

12/18/2015 Page 26

(Disclosure or reproduction without prior permission of MEMERE is prohibited).

Economic Assessment Business Plan Year 2 : Year 4

  • Support in the definition of

relevant costs and variables in CAPEX and OPEX

  • Support in the definiton of Life

Cylce costs impact

  • Suport in the analysis of

paramteters relevant for economic benefits

SUPPORT TO SUSTANABILITY: Economic Viability

  • Assessment of costs and

economic variables

  • Market Survey to assess target

costs

  • Replicability and scalability

assessment analysis

  • Economic Indicator and

investment analysis

Dissemination and exploitation

slide-27
SLIDE 27

12/18/2015 Page 27

(Disclosure or reproduction without prior permission of MEMERE is prohibited).
