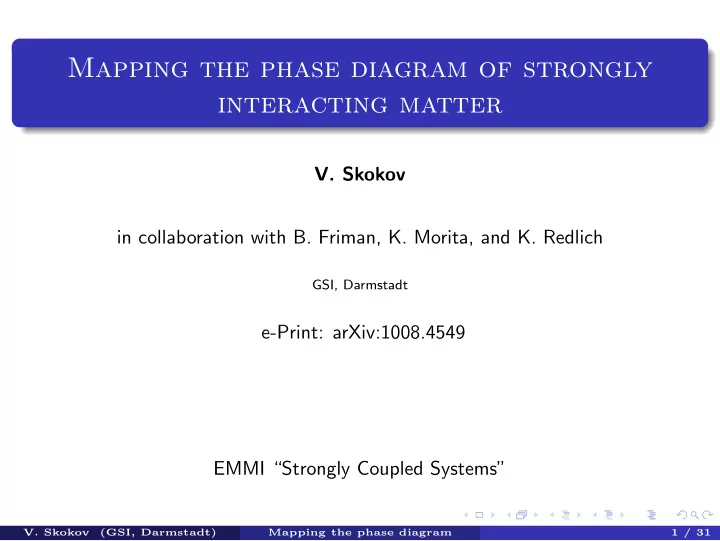

Mapping the phase diagram of strongly interacting matter

  • V. Skokov

in collaboration with B. Friman, K. Morita, and K. Redlich

GSI, Darmstadt

e-Print: arXiv:1008.4549 EMMI “Strongly Coupled Systems”

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 1 / 31

slide-2
SLIDE 2

Outline

Motivation Simple example of conformal mapping application Analytical structure of thermodynamic functions on the complex µ plane (chiral limit) Location of the second-order phase transition singularity Outlook: Finite size effect

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 2 / 31

slide-3
SLIDE 3

QCD phase diagram

Temperature

Hadronic phase

Nuclear matter

Color superconductivity

Baryon chemical potential

CEP Quark-gluon phase

Experiments Model calclulations Lattice QCD

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 3 / 31

slide-4
SLIDE 4

QCD phase diagram

Temperature

Hadronic phase

Nuclear matter

Color superconductivity

Baryon chemical potential

CEP Quark-gluon phase

Experiments Model calclulations Lattice QCD Functional methods (talk by C. Fischer)

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 3 / 31

slide-5
SLIDE 5

Lattice QCD and “sign problem” at finite µ

The partition function of QCD with integrated out quark degrees of freedom Z(µ) =

  • DA exp(−S[A])det[D(µ)]

with det[D(µ)] ∈ Complex. The weight function is not positive definite. The Monte-Carlo technique fails. Indirect approaches to sidestep the sign problem

Reweighting technique (Z. Fodor and S. Katz) Imaginary baryon chemical potential: Imµ = 0, Reµ = 0 (Ph. de Forcand and

  • O. Philipsen; M.-P. Lombardo and M. D’Elia)

Taylor expansion (hotQCD collaborations, R. V. Gavai and S. Gupta)

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 4 / 31

slide-6
SLIDE 6

Thermodynamic function is given by its Taylor expansion at µ = 0 P T 4 =

  • k

c2k(T) × µ T 2k , c2k = 1 (2k)! ∂2k(P/T 4) ∂(µ/T)2k

  • µ=0

Radius of convergence R and its estimates Rk R = lim

k−>∞ inf R2k

with R2k =

  • c2k

c2k+2

  • 1/2
  • r

R2k =

  • 1

c2k

  • 1/(2k)

Convergence radius is defined by the closest singularity on the complex µ plane Conversely, the convergence properties of a power series provides information on the closest singularity of the original function

  • C. Schmidt(2010)

R2(P/T4) R2(χB ) R4(χB ) open symb. freeze-out curve 0.8 0.85 0.9 0.95 1 1.05 1.1 1.15 1.2 1 2 3 4 5 µB/Tc T/Tc

  • F. Karsch et. al., arXiv:1009.5211
  • M. Wagner talk

0.2 0.4 0.6 0.8 1 0.5 1 1.5 2 T/Tχ µ/Tχ n=4 n=8 n=12

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 5 / 31

slide-7
SLIDE 7

Ways to improve Taylor series convergence

Pade approximant – a ratio of two power series PN

M = N

i=0 aixi

1+M

i=1 bixi

Pade approximant may be superior to Taylor expansion and may work even beyond a radius of convergence. The drawback of Pade approximation: it is uncontrolled. Conformal mapping Conformal mapping is a transformation ξ = ξ(z) that preserves local angles. The main idea is to extend the radius of convergence and to enhance the sensitivity to the properties of the critical point by a non-linear transformation of an original series.

E.g. by conformal mapping one can move the physical singularities closer to the expansion point, while taking non-physical singularities as far away as possible.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 6 / 31

slide-8
SLIDE 8

Applications

In condensed matter physics (3d Ising model and high temperature expansion)

  • A. Danielian and K.W. Stevens, Proc. Phys. Soc. B70, 326 (1957).
  • C. Domb and M.F. Sykes, J. Math. Phys. 2, 63 (1961).
  • C. J. Pearce, Adv. Phys. 27, 89 (1978).

In scattering theory to extend applicability of low energy approximations

  • W. R. Frazer, Phys. Rev. 123, 2180 (1961).
  • A. Gasparyan and M. F. M. Lutz, arXiv:1003.3426 [hep-ph].

a pedagogical example for an exactly solvable theory: I. V. Danilkin, A. Gasparyan, and M. F. M. Lutz, [arXiv:1009.5928 [hep-ph]]

In quantum field theory for analytic continuation of perturbative results to the strong coupling regime

  • D. I. Kazakov et al., Theor. Math. Phys. 38, 9 (1979).

. . .

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 7 / 31

slide-9
SLIDE 9

Simple example: Euler transformation

ln(1 + z) = z − 1 2z2 + 1 3z3 + · · · The radius of convergence of the series is |z| < 1 owing to a branch point singularity at z = −1. The power series in z → the power series in the variable ξ =

z 1+z .

The power series is obtained from the original ln(1 + z) = − ln(1 − ξ) = ξ + 1 2ξ2 + 1 3ξ3 + · · · The radius of convergence of the series is |ξ| < 1. |ξ| =

x2+y2 (x+1)2+y2 < 1 or x > − 1 2.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 8 / 31

slide-10
SLIDE 10

The original series is known up to m-th order f (x) ≈ m

i=0 cixi

Change of the variables: x → ξ/(1 − ξ) and series expansion around ξ = 0 m

i=0 c′ i ξi,

where c′

i are linear combination of ci with i ≤ m.

Back substitution ξ → x/(1 + x) m

i=0 c′ i ( x 1+x )i

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 9 / 31

slide-11
SLIDE 11

f (x) = ln(1 − x) ≈ m

i=0 cixi

m = 3

0.5 1 1.5 2 x 0.5 1 1.5 2 f(x)

Taylor; 3d order

  • Conf. map; 3d order

Exact

m = 6

0.5 1 1.5 2 x 0.5 1 1.5 2 f(x)

Taylor; 6th order

  • Conf. map; 6th order

Exact

Original Taylor expansion does not describe the exact function for x > 1 even at large m. Taylor expansion + conformal mapping provides systematic improvement with increasing m.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 10 / 31

slide-12
SLIDE 12

Higher values of x : m = 3

1 2 3 4 5 x 0.5 1 1.5 2 2.5 3 3.5 4 f(x)

Taylor; 3d order

  • Conf. map; 3d order

Exact

m = 6

1 2 3 4 5 x

  • 2
  • 1.5
  • 1
  • 0.5

0.5 1 1.5 2 f(x)

Taylor; 6th order

  • Conf. map; 6th order

Exact

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 11 / 31

slide-13
SLIDE 13

Radius of convergence and importance of the analytical structure

Temperature Hadronic phase

Nuclear matter Color superconductivity

Baryon chemical potential CEP Quark-gluon phase Im (Baryon chemical potential)

To understand the dependence of convergence radius on temperature and to invent an appropriate conformal mapping, the analytical structure of thermodynamic functions is to be studied.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 12 / 31

slide-14
SLIDE 14

Analytic structure of the complex µ plane

general structure illustrated by the quark-meson model (≈ NJL) in the mean-field approximation.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 13 / 31

slide-15
SLIDE 15

Analytic structure of the complex µ plane

general structure illustrated by the quark-meson model (≈ NJL) in the mean-field approximation. Chiral limit.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 13 / 31

slide-16
SLIDE 16

Singular points expected on the complex µ plane

Singularities on the complex plane are related to

a critical point of a second-order phase transition. The singularity is on the real µ axis. to a crossover transition. The singularity is at some complex µ.

See P. C. Hemmer and E. H. Hauge, Phys. Rev. 133, A1010 (1964); C. Itzykson, R. B. Pearson and J. B. Zuber, Nucl. Phys. B 220, 415 (1983);

  • M. A. Stephanov, Phys. Rev. D 73, 094508 (2006).

spinodal lines for a first-order phase transition. Singularities are either at the real or complex values of µ.

See M. A. Stephanov, Phys. Rev. D 73, 094508 (2006);

“thermal singularities” associated with zeros of the inverse Fermi-Dirac function

See F. Karbstein and M. Thies, Phys. Rev. D 75, 025003 (2007)

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 14 / 31

slide-17
SLIDE 17

“Thermal” singularities

The inverse Fermi-Dirac function has zeros in the complex plane. This leads to ”thermal” singularities of thermodynamic functions.

[fF(ω)]−1 = exp ω − µ T

  • + 1

Imµ = iπT − exp ω − Re[µ] T

  • + 1 = 0

Examples: for massless particles zeros of the Fermi-Dirac functions are located on the lines Reµ = p, Imµ = iπT + 2iπnT, n = 0, ±1, ±2, · · · . for particles with mass m, Reµ =

  • m2 + p2, Imµ = iπT + 2iπnT,

n = 0, ±1, ±2, · · · .

See also F. Karbstein and M. Thies, Phys. Rev. D 75, 025003 (2007)

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 15 / 31

slide-18
SLIDE 18

Analytic structure of the complex µ plane.

Phase diagram imaginary µ real µ Complex µ plane TTPC<T<T0

  • 10
  • 8
  • 6
  • 4
  • 2

2 4 sign(

2) |

/T

0|

0.5 1 1.5 2 2.5 T/T0 TCP ?

Line of 2-d order PT Broken phase Restored phase

second-order PT line; possible TPC thermal cuts and associated singularities (branch points) denoted by open dots; second-order PT

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 16 / 31

slide-19
SLIDE 19

Analytic structure of the complex µ plane.

Phase diagram imaginary µ real µ Complex µ plane

  • 10
  • 8
  • 6
  • 4
  • 2

2 4 sign(

2) |

/T

0|

0.5 1 1.5 2 2.5 T/T0 TCP ?

Line of 2-d order PT Broken phase Restored phase

T=T0

second-order PT line; possible TPC thermal cuts and associated singularities (branch points) denoted by open dots; second-order PT

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 16 / 31

slide-20
SLIDE 20

Analytic structure of the complex µ plane.

Phase diagram imaginary µ real µ Complex µ plane T0<T<2T0

  • 10
  • 8
  • 6
  • 4
  • 2

2 4 sign(

2) |

/T

0|

0.5 1 1.5 2 2.5 T/T0 TCP ?

Line of 2-d order PT Broken phase Restored phase

second-order PT line; possible TPC thermal cuts and associated singularities (branch points) denoted by open dots; second-order PT

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 16 / 31

slide-21
SLIDE 21

Analytic structure of the complex µ plane.

Phase diagram imaginary µ real µ Complex µ plane

  • 10
  • 8
  • 6
  • 4
  • 2

2 4 sign(

2) |

/T

0|

0.5 1 1.5 2 2.5 T/T0 TCP ?

Line of 2-d order PT Broken phase Restored phase

T=2T0

second-order PT line; possible TPC thermal cuts and associated singularities (branch points) denoted by open dots; second-order PT

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 16 / 31

slide-22
SLIDE 22

Position of CP and the radius of convergence

Assumption: the critical point defines the closest singularity.

The QM model for finite and zero pion mass: The radius of convergence (or distance to singularity) in the chiral limit

0.5 1 1.5 2 2.5 3 R (µ)/T0 0.3 0.6 0.9 1.2 1.5 T/T0 TCP chiral limit

The radius of convergence for finite pion mass

0.5 1 1.5 2 2.5 3 R (µ)/T0 0.3 0.6 0.9 1.2 1.5 T/T0 CEP nonzero quark mass

see also RM calculations, M. Stephanov PRD73:094508, 2006

TCP and CEP do not exhibit unique features in Rµ as function of T.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 17 / 31

slide-23
SLIDE 23

Fugacity plane

Thermal singularities can affect the radius of convergence. Chemical potential plane for 2nd order PT

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 18 / 31

slide-24
SLIDE 24

Fugacity plane

Thermal singularities can affect the radius of convergence. Chemical potential plane for 2nd order PT Corresponding fugacity plane The solution: fugacity

λ = exp(µ/T). In the complex λ plane the thermal branch points are mapped onto the negative real λ-axis. Images of the critical points are located at positive λ, λc = eµc /T and at 1/λc. The closest singularity of the thermal cuts is a branch point at λth = 0. Since λc > 1 and hence 0 < 1/λc < 1, the singularity closest to λ = 1 is the one at 1/λc. In the complex λ plane, the radius of convergence, Rλ = 1 − 1/λc, is not affected by the thermal singularities. This is the case also for crossover phase transition.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 18 / 31

slide-25
SLIDE 25

Further transformation

Conformal mapping: maps the cut fugacity plane onto the interior of the unit circle: w(λ) = √λλc − 1 − √λc − λ √λλc − 1 + √λc − λ the exact location of the critical point λc is used to proceed with the map the branch points at λc and 1/λc are mapped onto w = 1 and w = −1 the corresponding cuts are mapped onto the circumference of the unit circle a Taylor series about w = 0, which corresponds to λ = 1 (µ = 0), converges for all points within the unit circle in w plane and in whole cut µ-plane. we obtain an analytic continuation of the Taylor series in λ or µ, which is valid also beyond the radius of convergence in the λ or µ plane, Rλ or Rµ .

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 19 / 31

slide-26
SLIDE 26

Illustration: the chiral QM model

Number of terms in original the Taylor expansion 12; the location of the critical point is provided λc . The order parameter for real chemical potential

1 1.2 1.4 1.6 Re[µ]/T 20 40 60 80 σ [MeV]

exact

  • riginal Taylor series

after mapping

T= 0.75 T0

the order parameter for imaginary chemical potential

0.5 1 1.5 2 2.5 3 Im[µ]/T 60 80 100 120 σ [MeV]

exact

  • riginal Taylor series

after mapping

T= 0.75 T0 µc/T= 1.4

T0 is the critical T for µ = 0. We also can inverse this procedure in order to use information of imaginary chemical potential as a supplement for Taylor expansion at µ = 0. Lattice calculations done for both cases with the same lattice parameters are required.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 20 / 31

slide-27
SLIDE 27

Locating singularity I

In reality we do not know the location of the singularity mapping : w(λ, λg) =

  • λλg − 1 −
  • λg − λ
  • λλg − 1 +
  • λg − λ

λg is the guessed value for the location of the singularity Imagine: N → ∞, all Taylor coefficients are known the analytical structure in w plane depends on λg

  • λg > λc : the critical points are

mapped inside the unit circle at w = ±wc = ±wg(λc; λg)

  • λg < λc : the critical points are

mapped onto the circumference of the unit circle

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 21 / 31

slide-28
SLIDE 28

Locating singularity II

  • λg > λc :

The closest singularity is at ±wc, therefore Rw = wc.

  • λg < λc :

The closest singularity is on the unit circle, therefore Rw = 1.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 22 / 31

slide-29
SLIDE 29

Locating singularity II

  • λg > λc :

The closest singularity is at ±wc, therefore Rw = wc.

  • λg < λc :

The closest singularity is on the unit circle, therefore Rw = 1.

  • 1
  • 0.5

0.5 1 1/λg 0.2 0.4 0.6 0.8 1 R

w

1/λc

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 22 / 31

slide-30
SLIDE 30

Locating singularity II

  • λg > λc :

The closest singularity is at ±wc, therefore Rw = wc.

  • λg < λc :

The closest singularity is on the unit circle, therefore Rw = 1.

  • 1
  • 0.5

0.5 1 1/λg 0.2 0.4 0.6 0.8 1 R

w

1/λc

In order to enhance the sensitivity to the location of CP and minimize the influence of other singularities, it is advantageous to use a mapping which leaves the singularity of interest close to the origin and moves all others as far away as possible. This can be achieved by varying λg .

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 22 / 31

slide-31
SLIDE 31

Locating singularity III: finite N

In reality only finite number of terms N in the Taylor expansion is known.

  • 1
  • 0.5

0.5 1 1/λg 0.2 0.4 0.6 0.8 1 R

w

1/λc

N → ∞

  • 1 -0.75 -0.5 -0.25

0.25 0.5 0.75 1 1/λg 0.2 0.4 0.6 0.8 1 R

w 12

T = 0.75 T0

N = 12, error bars show the deviation of radius of convergence Rw

12 = 1/(cw 12)1/12

from one obtained with N = 10 Numerical value for an approximate location of CP is obtained by performing a fit Rω = const + w(λc, λg), with λc as a fitting parameter. µc = T ln(λc).

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 23 / 31

slide-32
SLIDE 32

Reconstructed phase diagram. The QM model in the chiral limit.

Repeating this procedure for different temperatures, we obtain

50 100 150 200 250 300 350 µ [MeV] 100 120 140 160 180 T [MeV]

exact (c6/c8)

1/2

(c10/c12)

1/2

c8

  • 1/8

c12

  • 1/12

mapping, 8

th-order

mapping, 12

th-order

N = 8, 12 σ =

N

  • k=0

ck µ T k , ck = ∂kσ ∂(µ/T)k

  • µ=0

.

Information is only provided for the coefficients ck

Better estimate for transition temperature.

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 24 / 31

slide-33
SLIDE 33

Restored phase diagram. The QM model in the chiral limit. 50 100 150 200 250 300 350 µ [MeV] 100 120 140 160 180 T [MeV]

exact (c10/c12)

1/2

c12

  • 1/12

mapping, 12

th-order

Hunter-Guerrieri

A comparison to the procedure by Hunter and Guerrieri [C. Hunter and

  • B. Guerrieri, SIAM J. Appl. Math.

39, 248 (1980)]. HG’s procedure is based on the Darboux theorem for late coefficients of a Taylor series. if f (x) = (1 − x/xc)−vr(x) + a(x) then cn ∼ nν−1 xn

c Γ(ν)

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 25 / 31

slide-34
SLIDE 34

Finite size effects with Random Matrix Model

Taylor coefficients cN

n for finite

system size can significantly deviate from their thermodynamical limits c∗

n

Cuts in the complex µ plane are transformed to Lee-Yang zeros; Z(T, µ) = 0 Density of Lee-Yang zeros depends

  • n system size;

50 100 150 200 N

  • 0.5
  • 0.25

0.25 0.5 0.75 1 c

N n/c * n

n=4 n=6 n=8 n=10 T = 0.8 m = 0

  • 0.4
  • 0.2

0.2 0.4 Re µ

  • 2
  • 1

1 2 Im µ

  • 0.4
  • 0.2

0.2 0.4

  • 2
  • 1

1 2 T=T0 T=TTCP T<TTCP

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 26 / 31

slide-35
SLIDE 35

Finite size effects: possible signature of TCP (CEP)

The phase diagram of the RM model in thermodynamic limit

0.2 0.4 0.6 0.8 µ 0.2 0.4 0.6 0.8 1 T/Tc

1st order 2nd order spinodals

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 27 / 31

slide-36
SLIDE 36

Finite size effects: possible signature of TCP (CEP)

The phase diagram of the RM model in thermodynamic limit The radius of convergence defined exactly by the location of the closest Lee-Yang zero for finite system

0.2 0.4 0.6 0.8 µ 0.2 0.4 0.6 0.8 1 T/Tc

1st order 2nd order spinodals N=30

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 27 / 31

slide-37
SLIDE 37

Finite size effects: possible signature of TCP (CEP)

The phase diagram of the RM model in thermodynamic limit The radius of convergence defined exactly by the location of the closest Lee-Yang zero for finite system The radius of convergence defined by a low order coefficients in the Taylor expansion The radius of convergence defined by a high order coefficients

0.2 0.4 0.6 0.8 µ 0.2 0.4 0.6 0.8 1 T/Tc

1st order 2nd order spinodals N=30 Low order High order

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 27 / 31

slide-38
SLIDE 38

Conclusions

Conformal mapping approach yields better estimate for the phase boundary Supplementary information for imaginary chemical potential can be used to further improve the results. The extracted phase boundary for finite systems could deviate from the one in thermodynamic limit. Non-zero pion mass and location of CEP ???

  • V. Skokov

(GSI, Darmstadt) Mapping the phase diagram 28 / 31
