49th International Conference on Parallel Processing - ICPP ParSecureML: An Efficient Parallel Secure Machine Learning Framework on GPUs Zheng Chen , Feng Zhang , Amelie Chi Zhou , Jidong Zhai+, Chenyang Zhang , Xiaoyong Du Renmin

slide-1

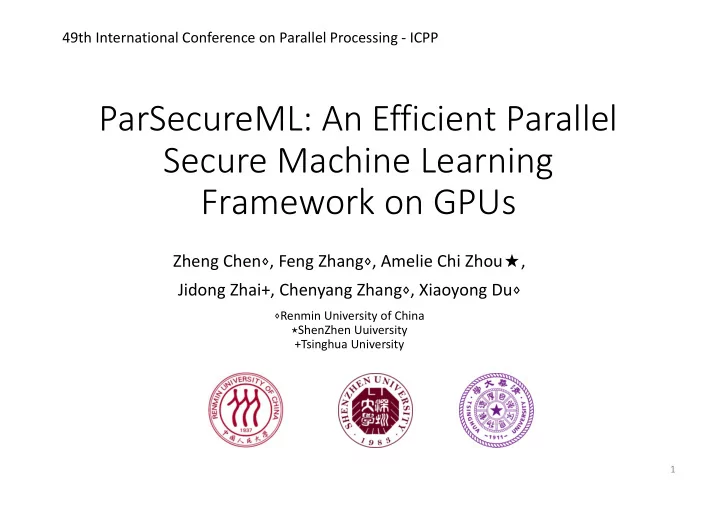

SLIDE 1

ParSecureML: An Efficient Parallel Secure Machine Learning Framework on GPUs

1

Zheng Chen , Feng Zhang , Amelie Chi Zhou★, Jidong Zhai+, Chenyang Zhang , Xiaoyong Du

⋄Renmin University of China ⋆ShenZhen Uuiversity +Tsinghua University

49th International Conference on Parallel Processing - ICPP

slide-2

SLIDE 2

Outline

1. Background
2. Motivation
3. Basic Idea
4. Challenges
5. ParSecureML
6. Evaluation
7. Source Code at Github
8. Conclusion

2/33

slide-3

SLIDE 3

1. Background
Secure Machine Learning

3/33

… …

(a) Typical machine learning process. (b) Machine learning process with two-party computation.

slide-4

SLIDE 4

1. Background
Secure Machine Learning

4/33

… …

(a) Typical machine learning process. (b) Machine learning process with two-party computation. 1

slide-5

SLIDE 5

1. Background
Secure Machine Learning

5/33

… …

(a) Typical machine learning process. (b) Machine learning process with two-party computation. 1 2

slide-6

SLIDE 6

1. Background
Secure Machine Learning

6/33

… …

(a) Typical machine learning process. (b) Machine learning process with two-party computation. 1 2 3

slide-7

SLIDE 7

1. Background
Secure Machine Learning

7/33

… …

(a) Typical machine learning process. (b) Machine learning process with two-party computation. 1 2 3 4

slide-8

SLIDE 8

1. Background
GPU Acceleration

8/33

https://developer.nvidia.com/deep-learning

slide-9

SLIDE 9

2. Motivation
Performance Degradation

9/33

0.5 1 1.5 2 2.5 3

Linear regression Logistic regression MLP Convolution neural network Normalized performance

rigin

SecureML

slide-10

SLIDE 10

2. Motivation
Time Breakdown for two-party computation

10/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-11

SLIDE 11

2. Motivation
Time Breakdown for two-party computation

11/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-12

SLIDE 12

2. Motivation
Time Breakdown for two-party computation

12/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-13

SLIDE 13

2. Motivation
Time Breakdown for two-party computation

13/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-14

SLIDE 14

2. Motivation
Time Breakdown for two-party computation

14/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-15

SLIDE 15

2. Motivation
Time Breakdown for two-party computation

15/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-16

SLIDE 16

2. Motivation
Time Breakdown for two-party computation

16/33

compute1 … communicate compute2 server1 client 62.68s 95.52s 0.24s compute final result 0.05s 0.11s compute1 … communicate compute2 server2 0.19s 0.21s

ffline
nline

encrypted data encrypted data input data data distribution

slide-17

SLIDE 17

3. Basic Idea
A GPU-based two-party computation that considers both

the GPU characteristics and features of two-party computation shall have better performance acceleration effects.

Challenges
Challenge 1: Complex triplet multiplication based computation

patterns

Challenge 2: Frequent intra-node data transmission between CPU

and GPU

Challenge 3: Complicated inter-node data dependence

17/33

slide-18

SLIDE 18

4. Challenges
Challenge 1: Complex triplet multiplication based

computation patterns

18/33

… …

slide-19

SLIDE 19

4. Challenges
Challenge 2: Frequent intra-node data transmission

between CPU and GPU

19/33

server1 GPU CPU

Step n Step n+1

data data data server2 GPU CPU

Step n Step n+1

data data data data data

… …

slide-20

SLIDE 20

4. Challenges
Challenge 3: Complicated inter-node data dependence

20/33

server1 GPU CPU

Step n Step n+1

data data data server2 GPU CPU

Step n Step n+1

data data data data data

… …

slide-21

SLIDE 21

5. ParSecureML
Overview - ParSecureML consists of three major

components:

Profiling-guided adaptive GPU utilization
Intra-node double pipeline
Inter-node compressed transmission communication
21/33

client compute final result

ffline
nline

encrypted data encrypted data input data GPU-based data distribution compressed communication … server1 reconstruct forward GPU operation forward reconstruct backward layer2 layer 1 … pipeline execution among different layers GPU operation backward … server2 reconstruct forward GPU operation forward reconstruct backward layer2 layer 1 … pipeline execution among different layers GPU operation backward

slide-22

SLIDE 22

5. ParSecureML
Profiling-Guided Adaptive GPU Utilization

22/33

𝐷𝑄𝑉: 𝐹𝑗 = 𝐹0 + 𝐹1 𝐺 = 𝐺0 + 𝐺1 𝐻𝑄𝑉: 𝐷𝑗 = (−𝑗) × 𝐹 × 𝐺 + 𝐵𝑗 × 𝐺 + 𝐹 × 𝐶𝑗 + 𝑎𝑗

Offline acceleration design Online acceleration design

slide-23

SLIDE 23

5. ParSecureML
Double Pipeline for Intra-Node CPU-GPU Fine-Grained

Cooperation

Pipeline 1 to overlap PCIe data transmission and GPU

computation.

23/33

Ai Bi E (-i) E+Ai D E F time data transmission: GPU computation:

slide-24

SLIDE 24

5. ParSecureML
Double Pipeline for Intra-Node CPU-GPU Fine-Grained

Cooperation

Pipeline 1 to overlap PCIe data transmission and GPU

computation.

Pipeline 2 to overlap operations

Ai Bi E (-i) E+Ai D E F time data transmission: GPU computation:

reconstruct (forward)

peration

(forward) reconstruct (backward) reconstruct (forward)

peration

(forward) reconstruct (backward) reconstruct (forward)

peration

(forward) reconstruct (backward)

peration

(backward)

peration

(backward)

peration

(backward) layer 1 layer 2 layer n time … …

slide-25

SLIDE 25

5. ParSecureML
Compressed Transmission for Inter-Node

Communication

25/33

E0 F0 F1

server1 server2

𝑗 𝑗 𝑗, 𝑘 + 1 = 𝑗, 𝑘 𝐵 𝑗𝑘 𝑗, 𝑘 + 1 = 𝑗, 𝑘 𝐶 𝑗𝑘

ΔA ΔB

server1

Is Sparse?

ΔA

no

ΔB

no

CSRΔA CSRΔB ΔA ΔB

server2

Is Sparse?

ΔA

no

ΔB

no

CSRΔA CSRΔB

yes yes

E1

slide-26

SLIDE 26

6. Evaluation
Baseline: SecureML[1]
Benchmarks
Convolution neural network (CNN)
Multilayer Perceptron (MLP).
Recurrent neural network (RNN)
Linear regression
Logistic regression
Datasets - VGGFace2/NIST/SYNTHETIC/MNIST
HPC Cluster
Intel(R) Xeon(R) CPU E5-2670 v3
Nvidia Tesla V100

[1] Mohassel P, Zhang Y. Secureml: A system for scalable privacy preserving machine learning[C]//2017 IEEE Symposium on Security and Privacy (SP). IEEE, 2017: 19-38

slide-27

SLIDE 27

6. Evaluation
Overall speedups. On average, ParSecureML achieves an

average speedup of 32.2x over the SecureML.

27/33

1 10 100 VGGFace2 NIST SYNTHETIC MNIST Speedup

Overall performance

CNN MLP Linear Logistic RNN

slide-28

SLIDE 28

6. Evaluation
Online speedups. The average online performance speedup

is 61.4x (even higher than the overall speedup).

28/33

1 10 100 VGGFace2 NIST SYNTHETIC MNIST Speedup

Online performance

CNN MLP Linear Logistic RNN

slide-29

SLIDE 29

6. Evaluation
Offline speedups. Applying GPUs in the offline phase brings

1.2x performance benefits.

29/33

0.5 1 1.5 2 2.5 3

VGGFace2 NIST SYNTHETIC MNIST speedup

ffline performance

CNN MLP Linear Logistic RNN

slide-30

SLIDE 30

6. Evaluation
Communication benefits - On average, ParSecureML

reduces 23.7% communication overhead.

30/33

10 20 30 40 50 60 VGGFace2 NIST SYNTHETIC MNIST Improvement(%)

Communication benefits

CNN MLP Linear Logistic RNN

slide-31

SLIDE 31

6. Evaluation
Influence of workload size

31/33

500 1000 1500 2000 2500 time(s) workload size(MB)

workload

SecureML ParSecureML

slide-32

SLIDE 32

6. Source Code at Github
https://github.com/ZhengChenCS/ParSecureML

32/33

slide-33

SLIDE 33

7. Conclusion
We exhibit our observations and insights in SecureML

acceleration.

We develop ParSecureML, the first parallel secure machine

learning framework on GPUs.

We demonstrate the benefits of ParSecureML over the

state-of-the-art secure machine learning framework.

33/34

slide-34

SLIDE 34

Thank you!

Any questions?

34/34

ParSecureML: An Efficient Parallel Secure Machine Learning Framework on GPUs

Zheng Chen , Feng Zhang , Amelie Chi Zhou★, Jidong Zhai+, Chenyang Zhang , Xiaoyong Du

⋄Renmin University of China ⋆ShenZhen Uuiversity +Tsinghua University

chenzheng123@ruc.edu.cn, fengzhang@ruc.edu.cn, chi.zhou@szu.edu.cn, zhaijidong@tsinghua.edu.cn, chenyangzhang@ruc.edu.cn, duyong@ruc.edu.cn

https://github.com/ZhengChenCS/ParSecureML
