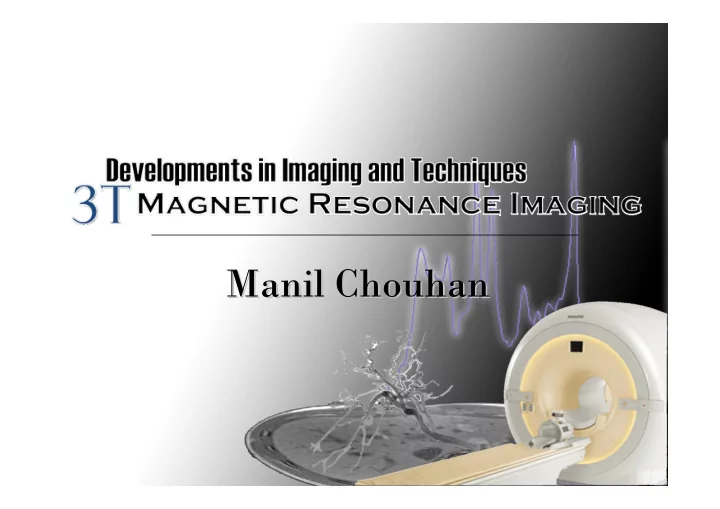

Manil Chouhan Manil Chouhan Tesla is a measure of magnetic field strength The magnetic field of the earth is 0.00005 T The average fridge magnet is 0.001 T 1.5 T 3.0 T 3.0 T? Why? Why? High Resolution Head and Neck SCC Whole Body T2

slide-1
SLIDE 1

Manil Chouhan Manil Chouhan

slide-2
SLIDE 2

Tesla is a measure of magnetic field strength

slide-3
SLIDE 3

The magnetic field of the earth is 0.00005 T

slide-4
SLIDE 4

The average fridge magnet is 0.001 T

slide-5
SLIDE 5

1.5 T

slide-6
SLIDE 6

3.0 T

slide-7
SLIDE 7

3.0 T?

slide-8
SLIDE 8

Why? Why?

slide-9
SLIDE 9

High Resolution ‐ Head and Neck SCC

slide-10
SLIDE 10

Whole Body T2 ‐ Lymphoma

slide-11
SLIDE 11

Whole Body T1 ‐ Prostate Cancer

slide-12
SLIDE 12

Conventional Assessment ‐ Lymphoma MRI

slide-13
SLIDE 13

Conventional Assessment ‐ Lymphoma MRI

slide-14
SLIDE 14
slide-15
SLIDE 15

Diffusion

Dynamic contrast enhancement (DCE)

Spectroscopy

Arterial spin labelling

Fat‐water quantitation

Equilibrium contrast imaging R2* imaging Blood-oxygen level dependent imaging

Susceptibility weighted imaging

Flow imaging

dynamic

slide-16
SLIDE 16

Thermal energy causes diffusion of water molecules Thermal energy causes Thermal energy causes diffusion diffusion of water molecules

  • f water molecules
slide-17
SLIDE 17

Cellular barriers cause restriction to water movement Cellular barriers cause Cellular barriers cause restriction restriction to water movement to water movement

slide-18
SLIDE 18

Diffusion ‐ Head and Neck SCC

slide-19
SLIDE 19

Diffusion ‐ Crohn’s Disease

slide-20
SLIDE 20

Post Tx

b0 b50 b200 b400

Pre Tx

b0 b50 b200 b400 Diffusion ‐ Acute Colitis

slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28

Ktrans Ve

slide-29
SLIDE 29

DCE ‐ Prostate Cancer

slide-30
SLIDE 30
slide-31
SLIDE 31

DCE ‐ Lymphoma Spleen

slide-32
SLIDE 32

Small Bowel Motility

slide-33
SLIDE 33

Vocal Cord Movement

slide-34
SLIDE 34

How? How?

slide-35
SLIDE 35

50% research 50% clinical

slide-36
SLIDE 36

Purchase and installation (50%) Underwriting of running costs on a tapering scale until grant income sufficient

‐ Senior Lectureships in Radiology and Medical Physics ‐ Research Radiographers ‐ Administation staff

3 years

CRBC funding

slide-37
SLIDE 37
slide-38
SLIDE 38

Final approval summer 2010 Detailed scanner evaluation and tendering process Phillips scanner chosen Q4 2010 Installed Q1‐Q2 2011

slide-39
SLIDE 39

Research Applications Research Applications

slide-40
SLIDE 40

Pre clinical Pre clinical First in man First in man Initial Validation/ proof

  • f concept

Initial Validation/ proof

  • f concept

Clinical trials Clinical trials Clinical implementation Clinical implementation Novel sequences, tracers, computational techniques eg registration, motion correction. Novel therapies Novel sequences, tracers, computational techniques eg registration, motion correction. Novel therapies Pilot studies Pilot studies Single site clinical trials Single site clinical trials Multisite clinical trials‐health economics, advanced statistics, health psychology Multisite clinical trials‐health economics, advanced statistics, health psychology

Imaging

slide-41
SLIDE 41

Body imaging

Neurodegeneration Cardiovascular Disease Cellular and Gene Therapy Ear, Nose and Throat) Education, Training and Biostatistics Gastroenterology and Hepatology Infection and Inflammation cancer Neurodiagnostics NeuroImaging Neurotherapeutics Oral health Respiratory, Anaesthesia, Critical Care, and Exercise, Sports & Health Women’s Health Medical physics CABI CMIC

slide-42
SLIDE 42

Quantitative MRI for Crohn’s disease ‐ S Taylor, S Halligan, A Windsor, S Bloom Detection of vulnerable plaques in patients with acute coronary syndrome ‐ P Meier, R Botnar, A Indermuehle Neuroprotective effects of hypothermia and Xenon after perinatal brain injury ‐ N Robertson, E Cady Clinical relevance of microbleeds in stroke ‐ D Werring, R Jager, M Brown, H Houlden, T Yousry, J Hardy Postnatal brain growth and early infancy outcomes in very preterm children ‐ N Marlow, S Johnson, M de Haan, S Ourselin, N Robertson, X Golay Laryngeal Reinnervation versus Type I Thyroplasty in Unilateral Vocal Fold Paralysis Patients ‐ M Birchall, M Mat Baki, T Beale Multi-parametric prostate MRI (PROMIS) ‐ M Emberton, H Ahmed, A Kirkham, C Allen MRI for detection and characterisation of lung nodules ‐ S Punwani, S Janes, N Navani, P Shaw, M Taylor, N Bell

slide-43
SLIDE 43

MR assessment of liver haemodynamics in chronic liver disease

slide-44
SLIDE 44

The future... The future...

slide-45
SLIDE 45

UCH Cancer centre 3T MRI 3T MRI PET/MRI Basic Science Basic Science Clinical Translation Clinical Translation

slide-46
SLIDE 46

The UCLH 3T MRI team The UCLH 3T MRI team

slide-47
SLIDE 47
  • David Atkinson - Medical Physicist
  • Uma Kumar - MRI Radiographer
  • Nicola Stevens - MRI Radiographer
  • Shonit Punwani - Radiologist
  • Mara Balcombe – 3T Research Co-ordinator (not

shown)

3tresearchimagingrequests@uclh.nhs.uk

slide-48
SLIDE 48

Questions? Questions?
