Health and Safety Health and Safety Executive Executive Managing manual handling risks in construction work Jane Beckmann Health Risk Management Unit Construction Sector What I Will Cover Why manual handling is an HSE priority What

slide-1

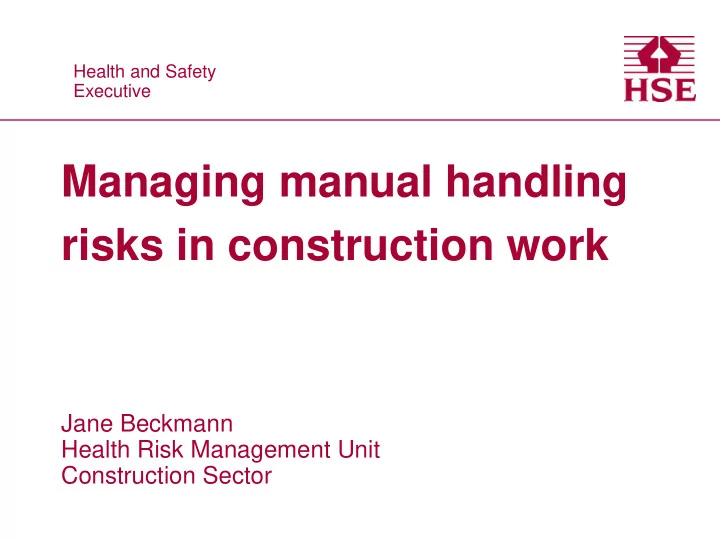

SLIDE 1

Health and Safety Executive Health and Safety Executive

Managing manual handling risks in construction work

Jane Beckmann Health Risk Management Unit Construction Sector

slide-2
SLIDE 2

What I Will Cover

  • Why manual handling is an HSE priority
  • What are Musculoskeletal Disorders (MSDs)
  • How to control the risk

– Identifying high risk tasks – Control strategies

  • Going forward
slide-3
SLIDE 3

Why a priority?

  • Lifting and Carrying

– Handling is most common over 7- day injury in the industry – Skilled construction and building trades have one the highest estimated rates of back and upper limb disorders

slide-4
SLIDE 4

Why a priority?

Ill-health statistics – construction

  • 1.2m working days lost
  • Over 60% due to MSDs
  • Over 3/4m days to MSDs
slide-5
SLIDE 5

What are MSDs

  • Upper Limb

Disorders

  • Lower Limb

Disorders

  • Back pain
  • Aches & pain
  • Stiffness
  • Weakness
  • Tingling
  • Numbness
  • Cramp
  • swelling
slide-6
SLIDE 6

Upper limb disorders

  • Osteoarthritis
  • Tennis elbow
  • Carpel tunnel syndrome
  • Repetitive strain injury
slide-7
SLIDE 7

Lower limb disorders

  • Osteoarthritis
  • Knee bursitis including beat knee
  • Meniscal lesions & tear damage
  • Stress fracture & reaction injuries
  • Varicose veins
slide-8
SLIDE 8

Back pain

slide-9
SLIDE 9

Manual handling operation

Involves a load being

  • Lifted
  • Lowered
  • Carried
  • Pushed
  • pulled
slide-10
SLIDE 10

How to avoid manual handling risk (and other health risks)

slide-11
SLIDE 11

Common Principles

  • Assess
  • Control
  • Review
slide-12
SLIDE 12

Assess

Identify your high risk tasks: Think about the:

  • Load
  • Task
  • Frequency
  • Working area
  • Individual
  • Other factors
slide-13
SLIDE 13

Assess: MSD toolkits

RAPP tool

slide-14
SLIDE 14

Assess: Case Study

  • This is a grade II list

building which has been gutted and now

  • n fit out stage.
  • House has 3 floors

plus attic

slide-15
SLIDE 15

Assess

New sash windows are to be fitted. Most are already in house but still need to be installed.

slide-16
SLIDE 16

Assess

What do you need to know?

  • Load weight
  • Task
  • frequency
  • Work area
  • Individual
slide-17
SLIDE 17

Assess

  • Load weight

– 90-120 kg each

  • Task

– 2 men carried windows up stairs

  • Frequency

– Over 50 windows

  • Work area

– Narrow stairs & through doors

slide-18
SLIDE 18

Assess

MAC

slide-19
SLIDE 19

Assess

MAC

slide-20
SLIDE 20

Assess: What happened!

  • PN served on site
  • Follow up visit to PC
  • Track back visit to designer
slide-21
SLIDE 21

Assess

  • Involve workers
slide-22
SLIDE 22

Control Law requires:

  • Avoid manual handling operations which

involve a risk of injury so far as reasonably practicable

  • Take appropriate steps to reduce risk of injury

to lowest level reasonably practicable

  • Take appropriate steps to provide weight of load
slide-23
SLIDE 23

Control: Elimination

  • Design Out
  • Work processes
slide-24
SLIDE 24

Eliminate

slide-25
SLIDE 25

Lightweight kerbs

slide-26
SLIDE 26

Control: Mechanical handling

Photo courtesy of Loughborough University

slide-27
SLIDE 27

Control: Mechanical handling

slide-28
SLIDE 28
  • Specify blocks less than 20kg
  • Deliver close to the point of

use and keep dry

  • Prevent work above shoulder

height

  • Reduce lay rate for feet level
  • Adjust scaffold height and use

spot boards

Control: blocks

slide-29
SLIDE 29

Control: plasterboard

Weight of 1200 x 2400 x 12.5 mm?

  • Standard
  • Fire board
  • Soundbloc
  • Lifeboard
slide-30
SLIDE 30

Control: plasterboard

Weight of 1200x2400x12.5mm?

  • Standard

23kg

  • Fire board

28kg

  • Soundbloc

30kg

  • Lifeboard

34kg

slide-31
SLIDE 31

Reduce – manual handling

slide-32
SLIDE 32

Control: Loading out

slide-33
SLIDE 33

Control: handling solutions

slide-34
SLIDE 34

Control: Installing

slide-35
SLIDE 35

Review:

  • Have work procedures
  • Check controls working
  • Maintenance
  • Supervision
slide-36
SLIDE 36

Operational Guidance

  • Transparent decision making
slide-37
SLIDE 37

Operational Guidance

  • Transparent and proportionate
  • http://www.hse.gov.uk/foi/internalops/og/og-00049.htm
slide-38
SLIDE 38

Risk Gap

  • Difference between:

– Expected standards – On-site conditions

slide-39
SLIDE 39

Guidance

slide-40
SLIDE 40

Guidance

slide-41
SLIDE 41

Guidance

slide-42
SLIDE 42

Guidance

  • Being revised
  • Published 2016
  • Will include:

– MAC – ART – RAPP

slide-43
SLIDE 43

Health Remains a Priority

“Tackling ill health” is a strategic theme in the new strategy

slide-44
SLIDE 44

Wider Developments

slide-45
SLIDE 45

Be Inspired!

https://player.vimeo.com/video/151709341

slide-46
SLIDE 46

Any questions?

Jane Beckmann Health risk management unit jane.beckmann@hse.gsi.gov.uk
