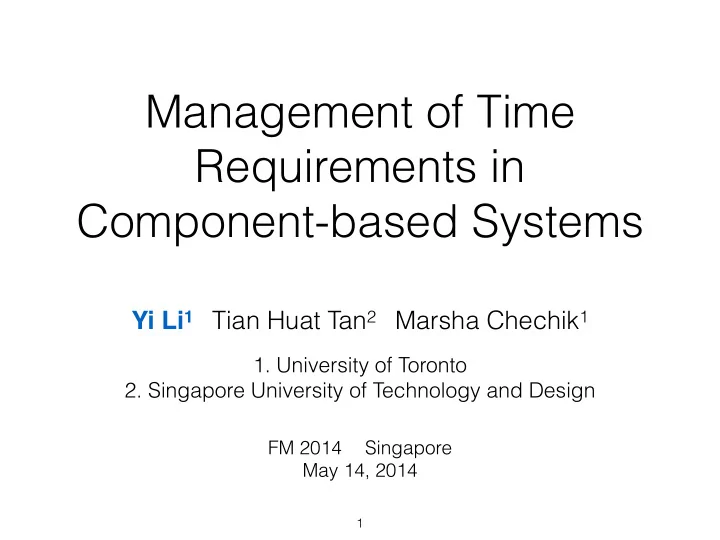

Management of Time Requirements in Component-based Systems

Yi Li1 Tian Huat Tan2 Marsha Chechik1

• 1. University of Toronto
• 2. Singapore University of Technology and Design

FM 2014 Singapore May 14, 2014

1

Component-based Software Engineering

2

Component-based Software Engineering

Business Goals & System Requirements

2

Component-based Software Engineering

modularity, reusability, separation of concerns

Business Goals & System Requirements

2

Timing Requirements

3

Timing Requirements

Vehicle Control Systems

• Electronic Stability Control (ESC)
• Anti-lock braking system (ABS)

3

Timing Requirements

Vehicle Control Systems

• Electronic Stability Control (ESC)
• Anti-lock braking system (ABS)

Smart Phones

3

Timing Requirements

Vehicle Control Systems

• Electronic Stability Control (ESC)
• Anti-lock braking system (ABS)

Smart Phones

• Sensors - motion tracking

3

Timing Requirements

Vehicle Control Systems

• Electronic Stability Control (ESC)
• Anti-lock braking system (ABS)

Smart Phones

• Sensors - motion tracking

Web Service Compositions

• Ticket Booking
• Stock Quotes

3

Timing Requirements

Vehicle Control Systems

• Electronic Stability Control (ESC)
• Anti-lock braking system (ABS)

Smart Phones

• Sensors - motion tracking

Web Service Compositions

• Ticket Booking
• Stock Quotes

…

3

Existing Approach: LTR

?

4

Existing Approach: LTR

?

4

Existing Approach: LTR

?

4

Existing Approach: LTR

?

4

Existing Approach: LTR

?

4

Existing Approach: LTR

Failure!

?

4

Existing Approach: LTR

Must finish within 4s!

4

Previous Work: [ICSE’13]

• Local Timing Requirements

(LTR) synthesis

• Web Services - BPEL
• Monolithic representation

Existing Approach: LTR

Must finish within 4s! tDS tFS tPS

4

Previous Work: [ICSE’13]

• Local Timing Requirements

(LTR) synthesis

• Web Services - BPEL
• Monolithic representation

Existing Approach: LTR

Must finish within 4s! tDS tFS tPS

LTR:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

4

Previous Work: [ICSE’13]

• Local Timing Requirements

(LTR) synthesis

• Web Services - BPEL
• Monolithic representation

Existing Approach: LTR

Must finish within 4s! tDS tFS tPS

LTR:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

4

LTR - monolithic constraint

Pros: + distills complicated composition structures into a single formula + precisely captures all feasible combinations Cons:

• imposes dependencies across components
• lacks support for localized debugging/repairing

Previous Work: [ICSE’13]

• Local Timing Requirements

(LTR) synthesis

• Web Services - BPEL
• Monolithic representation

Existing Approach: LTR

Must finish within 4s! tDS tFS tPS

LTR:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

4

uLTR:

(0≤tDS<1⋀0≤tFS<1) ∨(0≤tDS<1⋀0≤tPS<1)

LTR vs. uLTR

• Component-dependent

timing requirement

• Linear real arithmetic
• Precise
• Monolithic

5

uLTR: (0≤tDS<1⋀0≤tFS<1) ∨(0≤tDS<1⋀0≤tPS<1)

• Component-independent

under-approximated LTR

• Intervals
• Under-approximated
• Localized

LTR:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

All possible timing configurations, e.g., tDS = 1, tFS = 0.5, tPS = 0.8

LTR vs. uLTR

6

Precision

All possible timing configurations, e.g., tDS = 1, tFS = 0.5, tPS = 0.8

LTR vs. uLTR

6

LTR

Precision

unsafe safe

All possible timing configurations, e.g., tDS = 1, tFS = 0.5, tPS = 0.8

LTR vs. uLTR

6

LTR

uLTR

false negatives

Precision

Precision(uLTR) = #configurations satisfied by uLTR

#configurations satisfied by LTR × 100% under- approximation

All possible timing configurations, e.g., tDS = 1, tFS = 0.5, tPS = 0.8

LTR vs. uLTR

6

LTR

uLTR

Precision

Precision(uLTR) = #configurations satisfied by uLTR

#configurations satisfied by LTR × 100%

Checklist

What is uLTR?

• Component-independent under-approximated LTR
• Soundness: ensure timing safety

How to break up the monolithic constraint?

• Compute uLTR from LTR
• Precision: preserve as many choices as possible

How can localized constraints support the management of timing requirements?

• uLTR for component selection
• uLTR for runtime adaptation and recovery

7

Checklist

What is uLTR?

• Component-independent under-approximated LTR
• Soundness: ensure timing safety

How to break up the monolithic constraint?

• Compute uLTR from LTR
• Precision: preserve as many choices as possible

How can localized constraints support the management of timing requirements?

• uLTR for component selection
• uLTR for runtime adaptation and recovery

7

φ:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S

8

φ:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S

8

φ:

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

B: (0≤tDS<1⋀0≤tFS<1) ∨(0≤tDS<1⋀0≤tPS<1)

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S

8

3 1 2 1 tDS tF S tP S

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S

8

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S

B1= MaxCube(φ)

8

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S

B1= MaxCube(φ) InfCube(φ,B1)

8

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S

B1= MaxCube(φ) InfCube(φ,B1) B2= MaxCube(φ)

8

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S

B1= MaxCube(φ) InfCube(φ,B1) B2= MaxCube(φ) …

3 1 2 1 tDS tF S tP S

8

B=Merge(B1,…,Bi)

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S

B1= MaxCube(φ) InfCube(φ,B1) B2= MaxCube(φ) …

3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S

8

if (h(Bi)<ω) return; B=Merge(B1,…,Bi)

Compute uLTR from LTR

3 1 2 1 tDS tF S tP S

B1= MaxCube(φ) InfCube(φ,B1) B2= MaxCube(φ) … Soundness Termination

3 1 2 1 tDS tF S tP S 3 1 2 1 tDS tF S tP S

Precision

8

if (h(Bi)<ω) return; B=Merge(B1,…,Bi)

SMT Encodings

MaxCube(φ) //return the hypercube in φ with maximum volume InfCube(φ,B) //relax in one direction if possible

9

SMT Encodings

MaxCube(φ) //return the hypercube in φ with maximum volume InfCube(φ,B) //relax in one direction if possible

// sample arbitrary hyper-rectangle

9

θ , ∀V ars(ϕ) · (( V

vi∈V ars(ϕ)

li ≤ vi ≤ ui) ⇒ ϕ)

SMT Encodings

MaxCube(φ) //return the hypercube in φ with maximum volume InfCube(φ,B) //relax in one direction if possible

// sample arbitrary hyper-rectangle // sample maximal hyper-cube

9

θ , ∀V ars(ϕ) · (( V

vi∈V ars(ϕ)

li ≤ vi ≤ ui) ⇒ ϕ)

Optimize(θ ∧ ( V

vi∈V ars(ϕ)

(ui − li = h)), h)

SMT Encodings

MaxCube(φ) //return the hypercube in φ with maximum volume InfCube(φ,B) //relax in one direction if possible

// sample arbitrary hyper-rectangle // sample maximal hyper-cube

9

θ , ∀V ars(ϕ) · (( V

vi∈V ars(ϕ)

li ≤ vi ≤ ui) ⇒ ϕ)

Optimize(θ ∧ ( V

vi∈V ars(ϕ)

(ui − li = h)), h)

Symbolic Optimization [POPL’14]

SMT Encodings

MaxCube(φ) //return the hypercube in φ with maximum volume InfCube(φ,B) //relax in one direction if possible

// sample arbitrary hyper-rectangle // sample maximal hyper-cube // relax lower bound // relax upper bound

9

θ , ∀V ars(ϕ) · (( V

vi∈V ars(ϕ)

li ≤ vi ≤ ui) ⇒ ϕ) unSAT? (¬(B[li/∞] ⇒ ϕ))

unSAT? (¬(B[ui/∞] ⇒ ϕ))

Optimize(θ ∧ ( V

vi∈V ars(ϕ)

(ui − li = h)), h)

SMT Encodings

MaxCube(φ) //return the hypercube in φ with maximum volume InfCube(φ,B) //relax in one direction if possible

// sample arbitrary hyper-rectangle // sample maximal hyper-cube // relax lower bound // relax upper bound // heights of sampled hyper-cubes form a non-increasing sequence

9

θ , ∀V ars(ϕ) · (( V

vi∈V ars(ϕ)

li ≤ vi ≤ ui) ⇒ ϕ) unSAT? (¬(B[li/∞] ⇒ ϕ))

unSAT? (¬(B[ui/∞] ⇒ ϕ))

Optimize(θ ∧ ( V

vi∈V ars(ϕ)

(ui − li = h)), h)

Checklist

What is uLTR?

• Component-independent under-approximated LTR
• Soundness: ensure timing safety

How to break up the monolithic constraint?

• Compute uLTR from LTR
• Precision: preserve as many choices as possible

How can localized constraints support the management of timing requirements?

• uLTR for component selection
• uLTR for runtime adaptation and recovery

10

Checklist

What is uLTR?

• Component-independent under-approximated LTR
• Soundness: ensure timing safety

How to break up the monolithic constraint?

• Compute uLTR from LTR
• Precision: preserve as many choices as possible

How can localized constraints support the management of timing requirements?

• uLTR for component selection
• uLTR for runtime adaptation and recovery

10

uLTR for component selection

11

uLTR for component selection

publish

11

uLTR for component selection

publish

LTR:(tFS<1⋀tDS≤3⋀tDS+tFS≤3)∨ …

11

uLTR for component selection

publish

LTR:(tFS<1⋀tDS≤3⋀tDS+tFS≤3)∨ …

11

uLTR for component selection

publish request r e t r i e v e

11

Carminati et al., 2005 Rajendran et al., 2010 Al-Masri & Mahmoud, 2007

uLTR for component selection

publish request r e t r i e v e

tFS<1s finds the “best” match given localized constraints

11

uLTR for component selection

publish request r e t r i e v e

tFS<1s finds the “best” match given localized constraints

11

• Real-world Web Service data: QWS dataset
• Case studies: online booking service, …
• Evaluate the percentage of false-negatives (precision)

w.r.t. size of the uLTR model

uLTR for component selection

100 200 Size of uLTR model (|BS|) 10 20 30 40 50 60 70 80 90 100 Precision of uLTR model (%) QWS, Te = 10.8s Rand, Te ≈ 201.4s 1 4 7 10 Size of uLTR model (|BS|) 60 65 70 75 80 85 90 95 100 Precision of uLTR model (%) QWS, Te = 0.9s Rand, Te ≈ 10.8s 1 4 7 10 Size of uLTR model (|BS|) 60 65 70 75 80 85 90 95 100 Precision of uLTR model (%) QWS, Te = 2.7s Rand, Te ≈ 242.2s

12

• Real-world Web Service data: QWS dataset
• Case studies: online booking service, …
• Evaluate the percentage of false-negatives (precision)

w.r.t. size of the uLTR model

uLTR for component selection

100 200 Size of uLTR model (|BS|) 10 20 30 40 50 60 70 80 90 100 Precision of uLTR model (%) QWS, Te = 10.8s Rand, Te ≈ 201.4s 1 4 7 10 Size of uLTR model (|BS|) 60 65 70 75 80 85 90 95 100 Precision of uLTR model (%) QWS, Te = 0.9s Rand, Te ≈ 10.8s 1 4 7 10 Size of uLTR model (|BS|) 60 65 70 75 80 85 90 95 100 Precision of uLTR model (%) QWS, Te = 2.7s Rand, Te ≈ 242.2s

12

Strong dependency in the original LTR: t1+t2+3t3-2t4<4

uLTR for runtime adaptation and recovery

Must finish within 4s!

Monitor

13

uLTR for runtime adaptation and recovery

Must finish within 4s! response time

Monitor

13

uLTR for runtime adaptation and recovery

Must finish within 4s! response time

Monitor

13

uLTR for runtime adaptation and recovery

Must finish within 4s! response time repairing plan

Monitor

13

uLTR for runtime adaptation and recovery

Must finish within 4s! response time repairing plan

Monitor

13

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

uLTR for runtime adaptation and recovery

Must finish within 4s! response time repairing plan

Monitor

13

¬(0≤tDS⋀1≤tFS⋀1≤tPS) ⋀((0≤tDS⋀0≤tFS⋀0≤tPS)⇒tDS≤3) ⋀((0≤tDS⋀0≤tFS≤1⋀0≤tPS)⇒tDS+tFS≤3) ⋀((0≤tDS⋀1≤tFS⋀0≤tPS≤1)⇒tDS+tPS≤2)

uLTR for runtime adaptation and recovery

Must finish within 4s!

?

response time repairing plan

Monitor

Have to replace both DS and FS.

13

uLTR for runtime adaptation and recovery

Must finish within 4s! tDS<1 tFS<∞ tPS<1 response time repairing plan

Monitor

13

uLTR for runtime adaptation and recovery

Must finish within 4s! tDS<1 tFS<∞ tPS<1 response time repairing plan

Monitor

Replacing DS is enough!

13

uLTR for runtime adaptation and recovery

Must finish within 4s! tDS<1 tFS<∞ tPS<1 response time repairing plan

Monitor

Replacing DS is enough! The “meaning” of LTR: safe if one of tFS and tPS is less than 1.

13

uLTR for runtime adaptation and recovery

Experiments:

• Use real service response time
• Simulate violations by adding uniform random delays to

components

• Compare the length of recovery plans generated by

LTR and uLTR

• In ~90% cases, uLTR discovers shorter repairs

14

Limitations & Future Work

Limited evaluation

• Need to look at other domains

Proof of concept, not the silver bullet

• Generalize the sampling algorithm: allow arbitrary

hyper-rectangles

Scalability issues:

• Quantifier elimination
• Balance between precision and performance

15

Checklist

What is uLTR?

• Component-independent under-approximated LTR
• Soundness: ensure timing safety

How to break up the monolithic constraint?

• Compute uLTR from LTR
• Precision: preserve as many choices as possible

How can localized constraints support the management of timing requirements?

• uLTR for component selection
• uLTR for runtime adaptation and recovery

16

Checklist

What is uLTR?

• Component-independent under-approximated LTR
• Soundness: ensure timing safety

How to break up the monolithic constraint?

• Compute uLTR from LTR
• Precision: preserve as many choices as possible

How can localized constraints support the management of timing requirements?

• uLTR for component selection
• uLTR for runtime adaptation and recovery

16

Questions?

Thank you!

17

References

Li, Y., Albarghouthi, A., Gurfinkel, A., Kincaid, Z., Chechik, M.: Symbolic Optimization with SMT Solvers. In: Proc. of POPL 2014 (2014) Tan, T.H., André, E., Sun, J., Liu, Y., Dong, J.S., Chen, M.: Dynamic Synthesis of Local Time Requirement for Service Composition. In: Proc.

• f ICSE 2013, pp. 542–551 (2013)

Al-Masri,E.,Mahmoud,Q.H.:QoS-based Discovery and Ranking of Web Services.In:Proc. of ICCCN 2007, pp. 529–534. IEEE (2007) Wang, S., Rho, S., Mai, Z., Bettati, R., Zhao, W.: Real-time Component- based Systems. In: Proc. of RTETAS 2005, pp. 428–437 (2005) Carminati, B., Ferrari, E., Hung, P.C.: Exploring Privacy Issues in Web Services Discovery Agencies. IEEE Security & Privacy 3(5), 14–21 (2005)

18
