Man Manag agin ing F Fai airness an and Applic icat ation Performance w with Activ ive Qu Queue Man Manag agement in DOC OCSIS-based C ed Cable e Net etworks Presen ented a d at ACM M SIGCOMM MM Cap apac acity Shar aring

slide-1
SLIDE 1

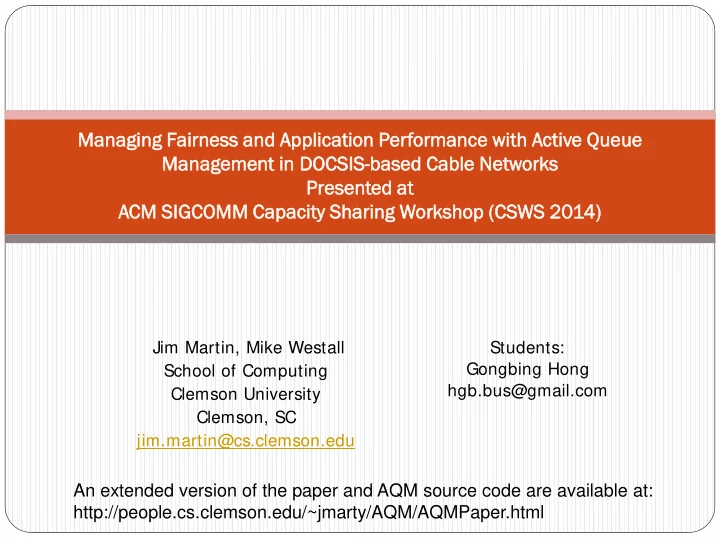

Man Manag agin ing F Fai airness an and Applic icat ation Performance w with Activ ive Qu Queue Man Manag agement in DOC OCSIS-based C ed Cable e Net etworks Presen ented a d at ACM M SIGCOMM MM Cap apac acity Shar aring Workshop ( (CSWS 2014)

Jim Martin, Mike Westall School of Computing Clemson University Clemson, SC jim.martin@cs.clemson.edu Students: Gongbing Hong hgb.bus@gmail.com

An extended version of the paper and AQM source code are available at: http://people.cs.clemson.edu/~jmarty/AQM/AQMPaper.html

slide-2
SLIDE 2

Agenda

  • Summary of the research and the contribution
  • Motivations
  • Background
  • Methodology
  • Results
  • Conclusions and next steps
  • Acknowledgements

2

slide-3
SLIDE 3

Summary of the Research and the Contribution

  • Using an ns2-based simulation model of DOCSIS 3.0,

we address the following questions

  • How effectively do CoDel and PIE support fairness and

application performance in realistic cable scenarios?

  • Are there issues when AQM interacts with tiered service levels?
  • How effectively do the schemes isolate responsive traffic from

unresponsive flows?

  • Contribution:
  • Better understand delay-based AQM when considering tiered

service levels, workloads that include HTTP-based adaptive streaming (HAS), and DOCSIS cable environments

3

slide-4
SLIDE 4

Motivations

  • The field of AQM is well established however….why

does bufferbloat still exist?

  • Progress …we are moving towards large scale

deployments of a standard AQM!

  • To the best of our knowledge, delay-based AQM has not

been studied stood in cable environments with tiered service levels or HAS workloads.

4

slide-5
SLIDE 5

Background : AQM

  • It has been shown that RED is sensitive to traffic loads and parameter settings
  • Renewed AQM manifesto (IETF Recommendations Regarding Active Queue Management

draft-ietf-aqm-recommendation-08)

  • Deployments should use AQM, should not require tuning, should respond to measured

congestion such that outcomes are not sensitive to application packet size

  • Led to :
  • Relook at Adaptive RED : adapts the RED maxp parameter to track a target queue level
  • Two new delay-based AQMs: Controlled Delay (CoDel) and Proportional Integral

Controller (PIE).

  • Both introduce two parameters:
  • Target_delay : sets a statistical target queue delay bound
  • Control_interval: defines the timescale of control
  • DOCSIS 3.1 requires cable modems to support PIE (recommended for DOCSIS 3.0);

Both DOCSIS 3.1 and 3.0 recommend a published AQM

5

slide-6
SLIDE 6

Background : DOCSIS-Based Cable

6

Cable Modem Cable Modem Termination System Cable Provider’s Network Internet RF Channels Subscriber’s Network Web browsing Peer-to-Peer Social Networking IP TV Cable Modem Subscriber’s Network Web browsing Peer-to-Peer Social Networking IP TV

Upstream Traffic

VoIP VoIP Optical to Coax Node The Hybrid Fiber Coaxial (HFC) network

  • DOCSIS (Data Over Cable Service Interface Specification)
  • Application traffic mapped to ‘Service Flows’
  • Upstream:
  • Single Carrier QAM modulation based on TDMA
  • Provides a set of ATM-like services:
  • Best Effort (BE)
  • Unsolicited Grant Service (UGS)
  • Real-time Polling Service (RTPS)
  • Non-real-time Polling Service (NRTPS)
  • An upstream scheduler computes the allocation for the next

‘map time’….regularly broadcasts a MAP message with grants to all Cable Modems

Fiber

slide-7
SLIDE 7

Background : DOCSIS-Based Cable

7

Cable Modem Cable Modem Termination System Cable Provider’s Network Internet RF Channels Subscriber’s Network Web browsing Peer-to-Peer Social Networking IP TV Cable Modem Subscriber’s Network Web browsing Peer-to-Peer Social Networking IP TV VoIP VoIP Optical to Coax Node The Hybrid Fiber Coaxial (HFC) network Fiber

  • Downstream
  • Single carrier QAM modulation, Time division multiplexing
  • IP packets are broken up into 188 Byte MPEG frames, packets reconstructed

at the cable modem

  • As in Ethernet, a cable modem receives all frames – only forwards frames

that match the hardware address, broadcast address, or multicast address

  • Support for multiple channels
  • Cable Modems equipped with multiple downstream tuners
  • Downstream services flows are assigned to a bonding group
  • A bonding group is an abstraction that represents the group of channels that

are available to a service flow.

  • For downstream, the scheduler can allocate bandwidth to service flows from

any channel that is in the bonding group Downstream Traffic

slide-8
SLIDE 8

Background : DOCSIS Standards

 DOCSIS 1.0: base version.

 About 30Mbps DS, 5 Mbps US

 DOCSIS 1.1/2.0:.

 Added QoS capabilities.  About 42 Mbps DS, 30 Mbps US

 DOCSIS 3.0: channel bonding

 Any number of 6MHz DS channels can be combined (4 to 8 common)  Up to 4 US channels can be combined

 DOCSIS 3.1:

 Spectrum rebanding (24 to 192 MHz channels)  OFDM for DS, OFDMA for US  Adaptive modulation and coding through a set of standard profiles

8

slide-9
SLIDE 9

Methodology: CMTS System Model

9

US Scheduler

MAP and contro messages BE requests from CMs Periodic bandwidth requests Operations Support System

Downstream Scheduler

AQM (DT, ARED, CoDel, PIE, DRR)

Token bucket timer

DS Service Flows SF1 SF2 SF3 … SFn

traffic arrival process Regulator

Channel 1 Channel 2 Channel 3 Channel n

  • We consider scenarios involving 1 DS channel (an

update to our extended paper considers 4 DS channels)

  • We consider scenarios that include use of a token

bucket rate shaper/limiter

  • Includes cases when different service flows are

provisioned with different ‘service rates’ – we refer to this as tiered service levels

  • We assume each subscriber operates one application
  • We consider competing services flows will interact

with different servers located at possibly different geographic locations.

  • We consider scenarios where services flows

experience different uncongested path RTTs

  • Experiments are designed such that the downstream

cable network is the single bottleneck AND this is where one of the following queue management is performed:

  • Drop Tail, Adaptive RED, CoDel, PIE, and Deficit

RR

slide-10
SLIDE 10

10

Downstream Scheduling Discipline Regulator

Aggregate Queue(s)

CMTS

VoIP Server FTP Servers … FS-11 FS-1

Router 1 Router 2

Data rates: multiples of: 30.72Mbps upstream, 42.88Mbps downstream

VoIP client FTP clients

…

Upstream Scheduler

CM requests for US bandwidth MAP Messages Applications and Workloads (most traffic DS)

  • FTP: varied the number
  • VoIP: server sends G.711 traffic to the client (always
  • n), compute the R-Value based on observed latency,

jitter, loss

  • HTTP-based Adaptive Streaming (HAS) :
  • Server : HTTP server that receives requests for

a specific segment of content from one of a set of available bitrate representations.

  • Client: requests segments as needed, adapting

the requested video quality to minimize the frequency of buffer stalls while maximizing video playback quality

HAS Content Servers …. DS-5 DS-1

Router 3 Uncongested path RTT: 50 ms Uncongested path RTT: 80 ms Uncongested path RTT: 150 ms Cable Modems

Methodology

HAS clients Metrics

  • Application level:
  • FTP : throughput, TCP RTT, TCP loss rate
  • VoIP: latency, loss, R-Value
  • HAS: average video play back rate and

frequency of video adaptation

  • System level (Fairness measures): (see next slide)
  • Jain’s fairness index:
  • Min-Max ratio
  • Allocation error:
slide-11
SLIDE 11

Methodology

11

 We define the normalized throughput for the i’th user among

n users competing for channel capacity as

 𝑦𝑗 = 𝑈𝑗 𝑠𝑗

where 𝑈𝑗 is the achieved throughput of the i’th flow and 𝑠

𝑗 is the expected outcome based on a max-min criteria

 Jain’s Fairness Index is defined as:

 𝐾𝐾𝐾 =

∑ 𝑦𝑗

𝑜 𝑗=1 2

𝑜 ∑ 𝑦𝑗

2 𝑜 𝑗=1

, 𝑦𝑗 ≥ 0

 The min-max ratio is simply :

𝑁𝑗𝑜 𝑦𝑗 𝑁𝑁𝑦 𝑦𝑗 .

 The allocation error is the ratio of the difference between the

average achieved throughput of n similar flows and 𝑠 (the expected outcome) to 𝑠 :

∑ 𝑈𝑗 𝑜 𝑗=1 𝑜

  • −𝑠 𝑠
slide-12
SLIDE 12

Methodology

12

More details ……

  • Simulation run for 2000 seconds
  • All results described use the staggered (varying) path RTT
  • The max TCP window is set to 10000 packets
  • The buffer capacity of the bottleneck link is 2048 packets
  • For DRR that uses multiple queues, each per flow queue set with a capacity of 2048/16
  • The buffer capacity of all other links is 4096

Experiment ID Summary EXP1 All flows not limited by service rates, vary the number of competing DS FTP flows EXP2 Same as EXP1 except add five HAS flows EXP3 Same as EXP1 except: 1)Set all flow services rates to 6 Mbps (refer to these flows as Tier 1 flows); 2)Add one additional competing FTP flow with a service rate of 12 Mbps that is active only during the time 500 – 1500 seconds. Refer to this flow as a Tier 2 flow. EXP4 Same as EXP1 except add a 12 Mbps DS UDP flow (starts at 500 seconds, stops at 1500 seconds)

slide-13
SLIDE 13

Results : EXP1

13

  • a. Aggregate Throughput
  • c. Jain’s Fairness Index
  • b. VoIP R-Value
  • d. Min-Max Ratio

1 2 3 4 5 6 7 8 9 10 11 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Number of Competing DS Flows Min/Max Fairness Per Flow Performance Statistics FCFS-Droptail Adaptive RED CoDeL PIE DRR 1 2 3 4 5 6 7 8 9 10 11 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 Number of Competing DS Flows Jains Fairness Index Per Flow Performance Statistics FCFS-Droptail Adaptive RED CoDeL PIE DRR 1 2 3 4 5 6 7 8 9 10 11 10 20 30 40 50 60 70 80 90 100 Number of Competing DS Flows VOIP R Value Downstream VoIP Assessment FCFS-Droptail Adaptive RED CoDeL PIE DRR 1 2 3 4 5 6 7 8 9 10 11 20 22 24 26 28 30 32 34 36 38 40 Number of Competing DS Flows Aggregate Throughput (Mbps) DS FTP TCP stats FCFS-Droptail Adaptive RED CoDeL PIE DRR

Results:

  • Fig. a: Each AQM leads to

slightly different aggregate throughputs…converge at high levels of congestion.

  • Fig. c/d: As expected, DRR

achieves a correct max-min allocation, Drop-tail has synchronization issues, PIE/CoDel seems the most sensitive to TCP/RTT unfairness.

  • Fig. b: delay-based AQM

very effective at providing isolation

slide-14
SLIDE 14

Results : EXP2

14

  • c. HAS Video Playback Rate
  • a. JFI

1 2 3 4 5 6 7 8 9 10 11 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 Number of Competing DS Flows Jains Fairness Index Per Flow Performance Statistics FCFS-Droptail Adaptive RED CoDeL PIE DRR 1 2 3 4 5 6 7 8 9 10 11 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 Number DS FTP Flows Average Video Stream Playback Rate (Mbps) HAS Performance Results FCFS-Droptail Adaptive RED CoDeL PIE DRR

Results:

  • Fig. a: We assume HAS flows have a

demand of 4.2 Mbps, leading to an expected max-min allocation shown above.

  • Outcomes more variable than EXP1
  • DRR is not exactly max-min
  • Allocation error suggests that HAS

allocation is less than max-min although the error moves from on the order of 25% to 5% as the load increases

  • Fig. c: Suggests a similar, linear

decrease in video quality

  • Further analysis is required to make

sense of the other HAS metrics

slide-15
SLIDE 15

Results : EXP3

15

200 400 600 800 1000 1200 1400 1600 1800 2000 1 2 3 4 5 6 7 8 9 10 Time (seconds) Throughput (Mbps) TCP/FTP (Tier 1 Flow) TCP/FTP (Tier 2 Flow)

During time interval 500 – 1500 seconds: Tier 1 Flow mean/std (Mbps): 3.54 / 0.39 Tier 2 Flow mean/std (Mbps): 4.10 / 0.46 CoDel Result: One Tier 1 flow (out of 9) and the Tier 2 Flow Compete (similar path delays)

Results:

  • We assume non-weighted max-min is

the intended outcome

  • Max-min is 3.8 Mbps (38 Mbps /10 flows)
  • Tier 2 achieves higher allocation in all

cases except for PIE and CoDel at the highest load level

9 FTPs 9 FTPs 11 FTPs 11 FTPs Tier 1 Tier 2 Tier 1 Tier 2 DT -14.2105 137.1053 -11.6719 154.5741 ARED -7.36842 2.894737 -5.99369 6.624606 CoDel -6.84211 7.894737 -8.51735 -5.99369 PIE -7.63158 -4.73684 -9.46372 -13.2492 DRR -1.57895 -2.10526 -1.57729 -2.2082

slide-16
SLIDE 16

Results : EXP4

16

CoDel DRR

200 400 600 800 1000 1200 1400 1600 1800 2000 5 10 15 20 25 30 35 40 Flow Throughput with DRR Management Time (seconds) Throughput (Mbps) Unresponsive UDP Flow Sum of 9 FTP Flows 200 400 600 800 1000 1200 1400 1600 1800 2000 5 10 15 20 25 30 35 40 Flow Throughput with CoDel AQM Management Time (seconds) Throughput (Mbps) Unresponsive UDP Flow Sum of 9 FTP Flows

slide-17
SLIDE 17

Conclusions and Next Steps

Motivating Questions:

 How effectively do CoDel and PIE support fairness and application performance in realistic cable

scenarios?

PIE/CoDel seems the most sensitive to TCP/RTT unfairness

delay-based AQM very effective at providing isolation between high BW flows and low BW latency sensitive flows  Are there issues when AQM interacts with tiered service levels?

Allocation error suggests that HAS allocation is less than max-min although the error moves from on the order of 25% to 5% as the load increases  How effectively do the schemes isolate responsive traffic from unresponsive flows?

As one would expect, single queue AQM is not able to manage unresponsive flows

Further analysis is required, but there appears to be a tradeoff between maintaining a low delay and fairness

Moving Forward:

 Include scenarios involving higher speeds….we are developing a technique that allows uncapped (i.e.,

no token bucket rate limiting) except during times of congestion

 We are develop a two-queue AQM method that can better address unresponsive traffic

Slide 17

slide-18
SLIDE 18

Acknowledgements

 Thanks to my team in the networking lab, especially

Gongbing Hong and Yunhui Fu.

 Thanks to Greg White at CableLabs who developed the tail-

drop CoDel ns2 code.

 Thanks to Rong Pan (and others at Cisco) who developed the

PIE ns2 code.

 Thanks to the anonymous reviewers- very helpful comments

and feedback.

 Thanks to current and prior sponsors of our work in

DOCSIS including CableLabs, Cisco, Comcast, Cox Communications and Huawei.

Slide 18

slide-19
SLIDE 19

Appendix

 Step 1: identify the communities  Step 2: identify common goals and objectives  Step 3: coordinated plans

Slide 19

slide-20
SLIDE 20

scheduler

Adaptive RED

Arriving Traffic Configured parameters:

  • maxCapacity: maximum queue capacity (2048 packets)
  • Wq: queue average time constant (0.002 default)
  • minth: minimum threshold (maxCapacity / 20 packets)
  • maxth: maximum threshold (maxCapacity /2 packets)
  • Tupdate: frequency of adaptation (0.50 seconds)
  • target: target queue level ( (minth + (minth+maxth) / 2 ) packets)
  • alpha: maxp / 4
  • beta: 0.90
  • maxp : initial setting 0.10

state variables:

  • avgQ: averaged queue size
  • count: packets since last drop
  • Pdrop : drop probability
  • maxp : maximum value for Pdrop

On packet arrival to a system where all channels are busy: dropPacketFlag = FALSE; curTime = getCurrentTime(); avgQ = (1-Wq)*avgQ + Wq*q.curSize(); if (minth <=avgQ <=maxCapacity) { count++ Pdrop = computeDropProbability(avgQ,count) dropPacketFlag = dropDecision(Pdrop) } else if (avgQ >=maxCapacity) dropPacketFlag = TRUE; else count = -1; if (dropPacketFlag == TRUE) { q.drop(pkt) count=0 } else if maxth <= avgQ q.drop(pkt) else q.enqueue(pkt); //Every Tupdate seconds: if (curTime – lastUpdateTime > Tupdate) lastUpdateTime = curTime; If (avg > target) and maxp <= 0.5 maxp+=alpha else if (avg < target and maxp >= 0.01) maxp = beta*maxp }

Pdrop Avg Queue Level 1 maxp minth maxth maxCapacity

slide-21
SLIDE 21

Tail Drop Variant of CoDel

state variables:

  • dropping: flag indicating if in dropping state
  • drop_next: The time for the next scheduled drop
  • count : The number of drops since entering the last drop state

On packet arrival to a system where all channels are busy: curTime = getCurrentTime(); pkt->timestamp=curTime; if (q.curSize() + 1 > maxCapacity) { q.drop(pkt) return; } dropFlag = NO_DROP; if (dropping) { if (drop_now) { dropFlag = DROP; drop_now_ = 0; } else if (drop_next == 0.0) { count++; drop_next = curTime + interval / sqrt(count); } else if (curTime > drop_next) { dropFlag = DROP; } } If (dropFlag== DROP) { q.drop(pkt); count++; drop_next_ =curTime + interval / sqrt(count); } else q.enqueue(pkt); When a channel is available : curTime = getCurrentTime(); pkt = q.dequeue(); d_exp = curTime - pkt->timestamp; if (dropping) { if (d_exp < target) switchToNotDropping() ; } else { if (d_exp > target) { if (first_above_time == 0) { first_above_time = curTime + interval; } else if (curTime >= first_above_time) { switchToDropping(); } } else { first_above_time = 0; } } Configured parameters:

  • maxCapacity: maximum queue capacity (2048 packets)
  • target : target queue delay (0.020 seconds)
  • interval : packet latency must exceed the target for an

interval amount of time before moving to dropping state (0.100)

slide-22
SLIDE 22

PIE

On packet arrival to a system where all channels are busy: curTime = getCurrentTime(); if (curTime – lastUpdateTime > Tupdate) { cur_delay= q.curSizel() / departure_rate; Pdrop = Pdrop+ alpha*(cur_delay – target_delay) + beta*(cur_delay-prev_delay) if ( (cur_delay < (0.5* target_delay)) && (prev_delay < (0.5* target_delay)) && ( Pdrop == 0) ) { dq_count = -1; avg_dq_rate = 0.0; burst_allowance = max_burst; } prev_delay = cur_delay; lastUpdateTime = curTime } dropPacketFlag = dropDecision(Pdrop) if (dropPacketFlag == TRUE) { if (burst_allowance > 0) q.enqueue(pkt); else q.drop(pkt); } else q.enqueue(pkt); } When an acceptable channel becomes available and the queue is NOT empty curTime = getCurrentTime(); pkt = dequeue(); if ( (q.getLevel() >= target_delay) && (dq_count == -1) ) { dq_start = curTime; dq_count = 0; } //in a measurement cycle if (dq_count != -1) { dq_count ++; // done with a measurement cycle if (dq_count >= target_delay) { double tmp = curTime - dq_start; departure_rate = 0.9* departure_rate +0.1*dq_count/tmp; // restart a measurement cycle if there is enough data if (q.curSize() > target_delay) { dq_start = curTime; dq_count = 0; } else { dq_count = -1; } // update burst allowance if (burst_allowance > 0) burst_allowance -= tmp; } } Configured parameters:

  • maxCapacity: maximum queue capacity (2048 packets)
  • target_delay: target max allowed queue delay (0.015

seconds)

  • Tupdate: Frequency of updates to drop probability (0.016

seconds)

  • max_burst: maximum allowed burst allowed (0.142 seconds)

State variables:

  • Pdrop : drop probability
  • lastUpdateTime : last time the Pdrop was updated
  • departure_rate: estimated departure rate over last measurement period (bps)
  • cur_delay: The current expected packet delay
  • prev_delay : the previous estimated queue delay (seconds)
  • burst_allowance: current level of burst supported (init to max_burst)
  • dq_count: amount of data dequed in current measurement cycle
  • dq_start: start of current measurement cycle
  • alpha: Pdrop computation weight for current (0.25)
  • beta : Pdrop computation weight for previous (2.5)
slide-23
SLIDE 23

23

HTTP Server DASH Client Playback buffer queues segments

  • clientbuffersize: Capacity in time,
  • maxSegments: max queue size (segs)
  • maxSize: max buffer size (bytes)
  • Highwatermark:
  • Lowwatermark:

Representations Player Controller HTTP Get Requests {SegmentNumber,BitRate} Segment data Request Logic Parameters

  • Throughput Monitor Timescale
  • Segment size in seconds
  • Number of outstanding requests

Monitor Arrival Process Rendering Performance updates … …

slide-24
SLIDE 24

Network Diagram

24

1000Mbps, .5ms prop delay

Data rates: 10 Mbps (US and DS)

Node 1 Node n

Router 1

10Mbps, 6.5ms prop delay Netflix Servers Competing Traffic Generators/Sinks

Router 2 Router 3

slide-25
SLIDE 25

25

  • a. Measurement Result: Competing iperf flow 600-1200 seconds

200 400 600 800 1000 1200 1400 1600 1800 2 4 6 8 10 12 14 16 18 20 Time (seconds) Bandwidth Consumption (Mbps) 2.0 second samples 50 second samples 200 400 600 800 1000 1200 1400 1600 1800 2 4 6 8 10 12 14 16 18 20 Time (seconds) Bandwidth Consumption (Mbps) 2.0 second samples 50 second samples

  • b. Simulation Result: Competing Iperf flow 600-1200 seconds

Iperf(equivalent): Mean: 5447624 bps Std: 306462 bps HAS: Mean: 4968097 bps Std: 1795931 bps iperf: Mean: 7844665 bps Std: 343156 bps Netflix: Mean: 2188694 bps Std: 318451 bps

Measurement and Simulation Results (Netflix competing with iperf flow)
