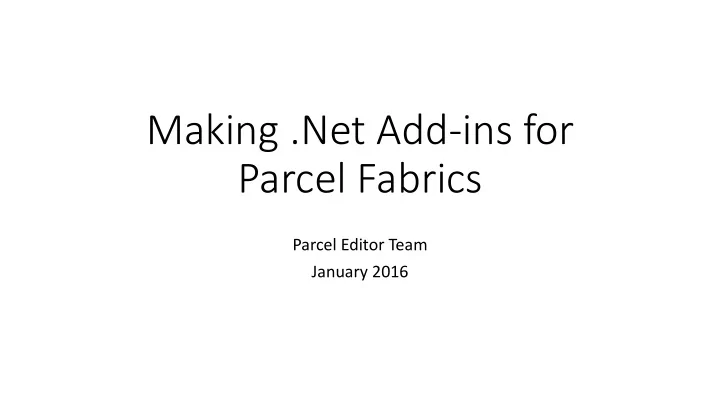

Making .Net Add-ins for Parcel Fabrics

Parcel Editor Team January 2016

Topics

• What was covered in the previous SDK Meetup
• Poll question
• Demo of two new Add-ins
• New Documentation & Sample code
• New API for 10.4 parcel editor ArcObjects SDK

Previous SDK Meet-up Recording

Part 1

• What are Add-ins?
• When to use Add-ins?
• Finding & Installing Add-ins for Parcel Fabric/Editing
• Demos of Add-ins

Part 2

• Development tools
• Process
• Publishing to ArcGIS Online

Previous SDK Meet-up Recording

• Recording available here:

http://esriurl.com/7048

Poll Question

Existing Fabric Add-ins

• Add-ins: Fabric Source Utilities
• Curves & Lines toolbar
• Add-ins: Parcel Editor
• Angle Deflection
• Delete fabric records
• Fabric history
• Add-ins: Parcel Fabric
• Extended Fabric Properties
• Fabric Plan tools

New Fabric Add-ins: coming soon

• Parcel Quality Control toolbar
• Symbolize layers based on quality metrics
• Inverse bearings and distances
• Code is published on GitHub: http://bit.ly/1TpMVMH
• Fabric Point Move to Feature toolbar
• Update fabric point locations matching to features
• Uses new 10.4 API

Demo of New add-ins

New Document

https://esri.box.com/ArcObjectsForParcelFabrics

Data Model & Concepts

• Understand the data model and concepts before coding

Data Model & Concepts

• Basic table schema:
• relationships between fabric tables
• Line categories
• Shared points, overlapping lines, line-points

Data Model & Concepts

• Units, projections and geographic datums
• Points, control points, geometry vs coordinate attributes
• Lines and curves, geometry versus attributes

Data Model & Concepts

• Line-strings
• Unclosed parcels
• Unjoined parcels / empty geometries

Data Model & Concepts

• The 3 classifications of fields:
• Geometry & System fields
• MiscloseDistance, Shape_Length …
• Private fields
• Bearing, Distance, Radius….
• Public fields
• Name, MyCustomField1, ….

Parcel Locking & Jobs

• Multi-user environment: Jobs and Parcel locks
• Document section

Parcel Locking & Jobs

• When programmatically editing any of the fields shown below, the

code must acquire a lock on the parcel

Parcel Locking & Jobs

• Roles of Jobs
• Describes a group of Parcels
• Stored in the geodatabase
• Export to Cadastral XML
• Edit tracking
• Re-selection (since ids are stored)
• Automatically Includes Associated Control
• Coding: represents a packet that manages the parcels & related lines/points
• Multi-user environment manages Parcel Edit locks

Parcel Locking & Jobs

• Multi-user environment manages Parcel Edit locks
• Create a Cadastral Job
• Test to make sure another Version doesn’t already have a lock

1 2

Parcel Locking & Jobs

• Multi-user environment manages Parcel Edit locks
• Create a Cadastral Job

1

Parcel Locking & Jobs

• Multi-user environment manages Parcel Edit locks
• Test to make sure another Version doesn’t already have a lock

2

Parcel Editing

• Two Sample Code Visual Studio Solutions
• Editing fabric
• Parcel Fabric Events
• GitHub Commit for Sample Solutions Code:

http://tinyurl.com/SampleCodeForFabricsOnGitHub

Parcel Editing

• Sample Code
• Editing of fabric tables directly – changing a line to a circular curve
• Editing fabric using a Cadastral Packet – adding a new parcel

Parcel Editing Events

• Sample Code
• Document

Demo: Testing/Running/Viewing New sample code

New API in 10.4

• ICadastralFabricUpdate
• Document

New API in 10.4

• Code snippet:

Making custom functionality with Add-ins

• Batch report Close Points, with option to Merge
• Easier and Quicker entry of multiple Line Points
• Adding a spiral
• Flipped bearings on line re-sequence (counter-clockwise parcels)
• Getting misclose information on selected lines within a construction
• ideas.arcgis.com (Search: Parcel Fabric)
• Would you like to demo your Add-in at the Meetup?

Poll Question
