Magnetic, Transport and electron magnetic resonance studies of nanomanganite Nd 0.67 Sr 0.33 MnO 3 S . S . Rao Department of Physics, Indian Institute of Science, Bangalore, India. ssrao@physics.iisc.ernet.in Introduction to Rare Earth


slide-1

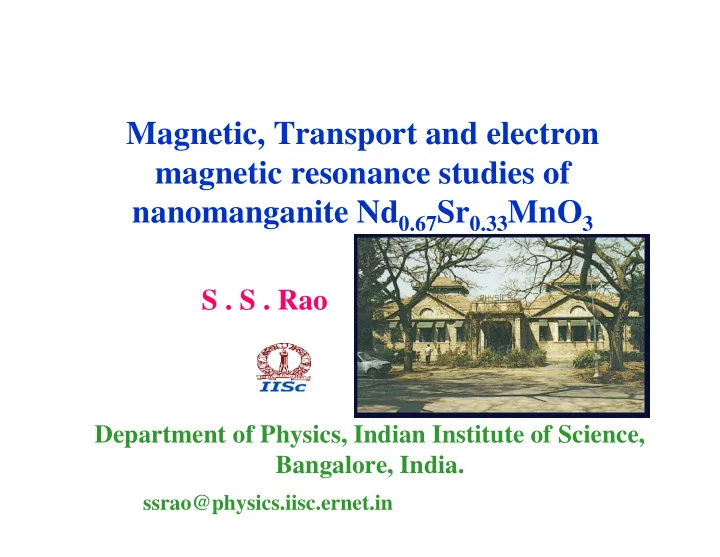

SLIDE 1

Magnetic, Transport and electron magnetic resonance studies of nanomanganite Nd0.67Sr0.33MnO3

S . S . Rao

Department of Physics, Indian Institute of Science, Bangalore, India.

ssrao@physics.iisc.ernet.in

slide-2
SLIDE 2

Department of Physics,Indian Institute of Science,Bangalore.

Introduction to Rare Earth Manganites

General Formula : A3+

1-x B2+ x Mn3+ 1-x Mn4+ x O2- 3

A : Rare earth Ion La3+ ,Pr3+ ,Nd3+ B : Divalent Ion Ca2+ ,Pb2+ ,Sr2+

Phenomena Exhibited by the Manganites

  • Colossal Magnetoresistance (CMR)
  • MI transition concurrent with FM-PM transition
  • Charge Ordering , Orbital Ordering
  • Phase Separation
slide-3
SLIDE 3

Department of Physics,Indian Institute of Science,Bangalore.

Perovskite Structure

A or B : Body Centre (purple) Mn : Corners (gray) O : Midpoints of the edges (green & blue)

slide-4
SLIDE 4

Department of Physics,Indian Institute of Science,Bangalore.

Mn3+ eg t2g

Electronic Configuration

Mn4+ t2g eg JT Splitting d4 d3

Δ = 2 eV 1.5 eV

Hund’s coupling 3 eV

Hole Doping : Doping of Divalent ion in AMnO3 introduces Mn4+ Electron Doping : Doping of trivalent ion in BMnO3 introduces Mn3+

slide-5
SLIDE 5

Nanomanganites - Properties-Importance

  • Magnetic recording, magnetic data storage and magnetic

field sensors etc…

  • Tuning of intrinsic colossal magneto resistance (CMR) with

the particle size leads to intergranular magneto resistance (IMR) which is due to the spin polarized tunneling between the neighbouring grains. IMR can be increased by decreasing the grain size.

  • Reduction of saturation magnetization with the particle size

due to the enhancement of outer layer (shell) thickness as the particle size decreases.

  • In nano range, each grain consists of core and shell. Core

exhibits the properties similar to the bulk and the outer shell consists of oxygen faults, vacancies and dangling bonds.

Department of Physics,Indian Institute of Science,Bangalore.

slide-6
SLIDE 6
  • Magnetic Calorific Effect (MCE) reduces with the surface

to volume ratio. Core shows the first order magnetic phase transition and the shell shows the second order. The nano crystal exhibits the second order phase transition by hiding the intrinsic behaviour.

  • Exhibiting the superparamagnetic behaviour, surface spin

glass behaviour, large coerceivities and improved low field magneto resistance (LFMR) as compared to their corresponding bulk values.

  • Tuning of magnetic phase transitions with the particle size.
  • Increase in resistivity with the decrease of particle size.

Department of Physics,Indian Institute of Science,Bangalore.

slide-7
SLIDE 7

Motivation

  • The above mentioned properties are addressed only

for the limited number of nanomanganite systems (LCMO, LSMO) and are not studied in other systems. The transport and magnetic properties of this system (NSMO) are studied for the first time in our report.

  • There are very few EMR reports on nanomanganite

systems which gives the information about the interaction mechanisms, spin-orbit couplings, nanoscopic phase separations and magnetic phase transitions.

Department of Physics,Indian Institute of Science,Bangalore.

slide-8
SLIDE 8

Nd1-xSrxMnO3 phase diagram

Department of Physics,Indian Institute of Science,Bangalore.

slide-9
SLIDE 9

Experimental details:

  • Sample preparation - Sol-gel method
  • X-ray diffraction (XRD) to know the phase purity and

Transmission electron microscopy (TEM) was used to measure the grain size and it’s distribution.

  • Resistivity measurements were done both in the presence

(7T) and in the absence of magnetic field down to liquid nitrogen temperature from room temperature to study the transport properties.

  • AC susceptibility measurements were performed from

room temperature down to 77K to study the magnetic phase transitions.

  • Electron Magnetic Resonance measurements were

performed from 10K to 300K to study the spin dynamics.

Department of Physics,Indian Institute of Science,Bangalore.

slide-10
SLIDE 10

2 0 4 0 6 0 8 0 1 0 0 N S M O -8

F ig 1

Intensity

N S M O -1 1

T w o T h e ta (in d e g re e s )

Results:

0.5 µm 0.2 µm

NSMO-8 NSMO-11 XRD micrograph TEM micrographs Unit cell: orthorhombic, a = 5.45 Ao , b = 5.43 Ao, c = 7.71 Ao, , space group is PBNM. Bulk values: a = 5.46 Ao , b = 5.45 Ao , c = 7.73 Ao Department of Physics,Indian Institute of Science,Bangalore. Mean grain size 20nm Mean grain size 35nm

slide-11
SLIDE 11

Effect of grain size:

800 850 900 950 1000 1050 1100 14 16 18 20 22 24 26 28 30 220 230 240 250 260

<S> <S>nm Sintering Temperature(

  • C)

Fig 5

TP TC T(K)

Department of Physics,Indian Institute of Science,Bangalore.

  • With the sintering temperature,

grain size increases.

  • With the decrease in grain size,

Tc (ferromagnetic-paramagnetic transition temperature) increases.

  • As the grain size decreases, Tp

(metal-insulator transition temperature) decreases.

slide-12
SLIDE 12

. S a m p le c

  • d

e C

  • m

p

  • sitio

n al F

  • rm

u la S in terin g T e m p .(

  • C

) T

P

T

C

 T(T

CT P)

  • (D

eg reeK elv in) S (n m ) M R % N S M O

  • 8

N d

.6 7S

r

.3 3M

n O

3

8 2 1 5 2 6 4 5 1 5 4 5 N S M O

  • 9

N d

.6 7S

r

.3 3M

n O

3

9 2 2 5 2 5 8 3 3 2 4 7 N S M O

  • 1

N d

.6 7S

r

.3 3M

n O

3

1 2 4 2 5 3 1 3 2 5 4 4 N S M O

  • 1

1 N d

.6 7S

r

.3 3M

n O

3

1 1 2 4 5 2 4 9 4 3 4 5

Department of Physics,Indian Institute of Science,Bangalore.

Experimental data of NSMO material

slide-13
SLIDE 13

Sample code Compo sitional formul a Sintering temperat ure (in

  • C)

TP (in Kelvin) TC (in Kelvi n) T (TC

  • TP) in

Kelvin Crystal lite size S (nm) MR% NSMO8 Nd0.67Sr

0.33MnO 3

800 215 268 45 15 45 NSMO9 Nd0.67Sr

0.33MnO 3

900 225 258 33 20 47 NSMO 10 Nd0.67Sr

0.33MnO 3

1000 240 253 13 25 44 NSMO- 11 Nd0.67Sr

0.33MnO 3

1100 245 249 4 30 45

slide-14
SLIDE 14

100 125 150 175 200 225 250 275 300 10 15 20 25 30 35 40

Fig3

N SM O

  • 8

0T 1T 3T 5T 7T

(cm)

T(K)

Electrical transport and MagnetoResistance (MR)

Department of Physics,Indian Institute of Science,Bangalore.

  • In high magnetic fields

resistivity decreases drastically at ferromagnetic to paramagnetic transition temperature (TC).

  • MR = ρ(H) - ρ (O)/ ρ (O)
slide-15
SLIDE 15

Fig 6

90 120 150 180 210 240 270 300 2 4 6 8 10 12 14 NSMO-11

(cm)

0T 7T

T(K)

90 120 150 180 210 240 270 300 4 6 8 10 12 14 NSMO-10 0T 7T

(cm)

T(K)

90 120 150 180 210 240 270 300 4 8 12 16 20 24 NSMO-9

T(K)

(cm)

0T 7T 10 15 20 25 30 35 40 45 90 120 150 180 210 240 270 300 NSMO-8

T(K)

0T 7T

(cm)

Ferromagnetic Metallic region

Department of Physics,Indian Institute of Science,Bangalore.

  • ρ = ρ0 + ρ2*T2
  • ρ = ρ0 + ρ2.5*T2.5
  • ρ = ρ0 + ρ2*T2

+ρ4.5*T4.5

slide-16
SLIDE 16

Sample code  = 0+2T2  = 0+2.5T2.5  = 0+2T2 +4.5T4.5 NSMO-8 0.9910 0.9894 0.9993 NSMO-9 0.9977 0.9945 0.9992 NSMO-10 0.9961 0.9946 0.9993 NSMO-11 0.9931 0.9946 0.9993 Sample Code 0 (cm) 2 (cm K- ) 4.5(cm K-4.) 0T 7T 0T 7T 0T 7T NSMO-8 8.75 4.09 10.0010- 5.0010- 4.1810- 2.1310-0 NSMO-9 5.44 1.81 4.4010- 2.2010- 9.9710- 8.3910- NSMO-10 5.09 1.33 1.8110- 1.8010- 2.9410- 7.6410-2 NSMO-11 4.88 0.89 1.710- 1.5010- 2.0810- 5.1510-2

ρ0 = grain boundary resistivity ρ2.5 = resistivity due to electron-electron scattering ρ4.5 = resistivity due to electron-magnon scattering Department of Physics,Indian Institute of Science,Bangalore.

Square of Linear Correlation Coefficient (R2)

slide-17
SLIDE 17

From the above Transport studies in ferromagnetic metallic region, it is known that…….

  • Grain boundary resistivity (ρ0) and the resistivity due to

electron-electron scattering (ρ2) increase with the decrease of particle size and these values are larger than their bulk counterparts - size effect.

  • Resistivity due to electron-magnon scattering or spinwave

scattering (ρ4.5) also decrease with the increase of particle size which may be due to the partial alignment of spins.

  • All the three parameters (ρ0, ρ2, ρ4.5) found to decrease with

the increase of magnetic field attributed to the suppression of scattering mechanisms.

Department of Physics,Indian Institute of Science,Bangalore.

slide-18
SLIDE 18

Paramagnetic Insulating region

Variable Range Hopping (VRH) model: T<Tp<Θd/2 Mott’s Equation for VRH model is σ = σ0 exp (-T0/T)-1/4

Department of Physics,Indian Institute of Science,Bangalore.

σ0 = pre factor To= 16α3/KBN(EF) N(EF) = density of states at the fermi level

0.24 0.25 0.26 0.27 0.28 3.6 3.4 3.2 3.0 2.8 2.6

Fig 8

(a) NSMO-8

ln() T

  • 1/4(K
  • 1/4)
slide-19
SLIDE 19

F ig 7

0 . 0 0 3 0 . 0 0 4 0 . 0 0 5 0 . 0 0 6 0 . 0 0 7

  • 5 . 7
  • 5 . 4
  • 5 . 1
  • 4 . 8

N S M O - 1 1 0 T 7 T

  • 3 .9
  • 3 .6
  • 3 .3
  • 3 .0

N S M O -1 0 0 T 7 T

  • 3 . 9
  • 3 . 6
  • 3 . 3
  • 3 . 0
  • 2 . 7

N S M O -9 0 T 7 T

  • 3 . 3
  • 3 . 0
  • 2 . 7
  • 2 . 4
  • 2 . 1
  • 1 . 8

N S M O -8 0 T 7 T

(d ) (c ) (b ) (a )

ln (  / T ) T

  • 1 ( K
  • 1 )

Polaron hopping model: Tp>T>Θd/2

Adiabatic process: ρ = ρα T exp (Ep/KBT)

Department of Physics, Indian Institute of Science, Bangalore.

Non-Adiabatic process: ρ = ρα T3/2 exp (Ep/KBT) It is found that the adiabatic hopping mechanism is applicable for the present system.

slide-20
SLIDE 20

E

P(m

eV ) T

(10  K

) N (E

F)(eV

  • 1cm
  • 3)

Sam ple code 

D

(K ) B = 0T B =7T B = 0T B =7T B =0T B = 7T N SM O

  • 8

530.4 140.99 95.99 3.87 0.49 5.2410



4.1410

1

N SM O

  • 9

540.8 130.92 87.82 2.56 0.31 7.9310



6.5110

1

N SM O

  • 10

550.5 125.95 79.28 1.05 0.20 19.2510



9.8010

1

N SM O

  • 11

561.1 118.83 78.84 0.63 0.13 31.9610



14.6010

1

Fitted parameters:

Department of Physics, Indian Institute of Science, Bangalore.

θD/2 = The temperature at which the deviation from the linearity occurs. θD = Debye temperature. EP = Activation energy.

slide-21
SLIDE 21

From the above transport studies in the paramagnetic insulating phase, it is known that……

  • To values are found to decrease enormously and

continuously with the increase of particle size and magnetic field.

  • Consequently the density of states increase with the

increase of particle size in both the presence and absence of magnetic field.

  • Debye temperature decreases with the particle size.
  • Activation energy values are found to increase

continuously with the decrease of particle size both in the presence and in absence of magnetic field – may be due to the interconnectivity effect between two grains.

Department of Physics, Indian Institute of Science, Bangalore.

slide-22
SLIDE 22

AC susceptibility measurements: to find out the magnetic phase transitions

50 100 150 200 250 300 350 0.075 0.080 0.085 0.090 0.095 0.100 0.105 0.110

Tc

NSMO-9 Tc=258.5 K

T(K) d(

)/dT (a.u)

'( emu / g )

T(K)

100 150 200 250 300 350

  • 2.5x10
  • 3
  • 2.0x10
  • 3
  • 1.5x10
  • 3
  • 1.0x10
  • 3
  • 5.0x10
  • 4

0.0 5.0x10

  • 4

Fig 4

Tc

Department of Physics, Indian Institute of Science, Bangalore.

TC = obtained by the inflexion point of the susceptibility graph as shown in the inset figure.

TC values of NSMO Bulk = 200 K NSMO-11 = 249 K NSMO – 10 = 253 K NSMO – 9 = 258 K NSMO – 8 = 260 K

slide-23
SLIDE 23

From the above susceptibility measurements, it is known that……

  • As the particle size decreases from 30 nm to 15 nm, the

ferromagnetic to paramagnetic phase transition temperature (TC) increases from 248 K to 260 K. The TC of this compound in it’s bulk form is 200 K. An upward shift

  • f 60 K is observed when the particle size is decreased.

WHY? May be due to the Unit cell volume contraction ( order of 1% - 2%) and the reduction in the unit cell anisotropy parameter.

Department of Physics, Indian Institute of Science, Bangalore.

  • The above changes cause the decrease and increase of

bond length and bond angle respectively, enhances the bandwidth and transfer integral which pushes the electron to hop easily and thereby shows the enhancement in Tc.

slide-24
SLIDE 24

Department of Physics, Indian Institute of Science, Bangalore.

Motivation behind the EMR work in Manganites

  • Manganites are strongly correlated electron systems where the

charge, spin, orbital and lattice degrees of freedom are interrelated

  • EMR is a microscopic probe to complex Spin Dynamics
  • Sensitive to Spin-Orbit Coupling (through the shift in the

g value of the Spectra)

  • Sensitive to Spin-Spin and spin lattice couplings(through the

linewidth).

  • EMR is sensitive to the local environment of the Spins.
slide-25
SLIDE 25

Origin of ESR signal in Manganites

Two magnetic ions are : Mn3+ , S = 2 Mn4+ ,S = 3/2 Both Ions contribute to EMR line Intensity (Causa et. al. PRB, 58,1998)

Issue related to the EMR in manganites

Department of Physics, Indian Institute of Science, Bangalore.

slide-26
SLIDE 26

E E

H UNPAIRED ELECTRONS IN A MAGNETIC FIELD

Boltzmann distribution

Nβ/Nα = exp (- ΔE/KBT)

slide-27
SLIDE 27

 h g  THE EPR PHENOMENON E H H

Department of Physics, Indian Institute of Science, Bangalore.

slide-28
SLIDE 28

EMR experimental details:

  • The EMR experiments were carried out using the

Bruker ER 200D ESR spectrometer having the temperature ranges from 4 K to 300 K.

  • To isolate the nanoparticles electrically and

magnetically, they were dispersed in the paraffin wax and the EMR experiments were done on the dispersed nanoparticles.

  • DPPH was used as a field marker to measure the g –

value accurately.

Department of Physics, Indian Institute of Science, Bangalore.

slide-29
SLIDE 29

Why EMR studies of nanomanganites?

  • EMR is very sensitive local probe in condensed matter

physics which gives the information about the complex spin dynamics, charge states, g-value, internal magnetic fields and magnetic phase transitions (if any) in strongly correlated systems.

  • Individual (isolated) grain response is obtained by

dispersing the nano powder in the diamagnetic paraffin wax which is not possible in other magnetic experiments, which shows the sensitivity of EMR technique.

  • The information is obtained by fitting the EMR signals in to

appropriate line shape, extract the parameters (line width, resonance field and intensity) by fitting and plot them with the temperature.

  • Department of Physics, Indian Institute of Science, Bangalore.
slide-30
SLIDE 30
  • There are very few reports (Shames etal) of EMR studies of
  • nanomangnites. In their study (mostly in paramagnetic region), it

is shown that nanomanganites (La0.7Sr0.3MnO3) are less homogeneous when compared to their bulk counterparts and didn’t address the nanoparticle properties in ferromagnetic region.

  • There are some theoretical and experimental reports on

nanomanganites which address the core-shell model and estimated the shell thickness.

  • Two NMR signals were observed from nano La0.7Sr0.3MnO3
  • manganite. It is observed that one signal comes from the core

(due to Mn3+/4+) and the other signal comes from the shell (due to Mn+4 only).

  • EMR is being the the most sensitive to the presence of unpaired

electrons and their environment, in this study we have shown the presence of core and shell regions in naoparticle which are different in magnetic nature.

slide-31
SLIDE 31

Department of Physics, Indian Institute of Science, Bangalore.

NSMO BULK NSMO NANO

1000 2000 3000 4000 5000 6000

300 K 240 K 230 K 170 K

Magnetic Field H (Gauss)

130 K

JAP 93, 8334 (2003)

slide-32
SLIDE 32

Department of Physics, Indian Institute of Science, Bangalore.

FMR lineshape (in ferromagnetic phase) Two Gaussian absorption model EMR lineshape (in paramagnetic phase)

Single Lorentzian derivative model

P p A H e A H e

H H H H H H

  

    1 1 2 01 2 12 2 2 2 02 2 22

2 2  

 

  / /

( ) ( )

dP/dH = d/dH * A [ΔH/(ΔH)2 + (H – H0)2]

slide-33
SLIDE 33

50 100 150 200 250 300 350 1000 2000 3000 4000 5000

Fig 10 (b)

NSMO-8

FWHM (Gauss) Temperature T (K)

50 100 150 200 250 300 350 2000 3000 4000 5000

Fig 10 (a)

NSMO-8

Ho (Gauss) Temperature T (K)

50 100 150 200 250 300 350

  • 0.002

0.000 0.002 0.004 0.006 0.008 0.010 0.012 0.014 0.016

Fig 10 (c)

NSMO-8

Norm I Temperature T (K)

Core signal Shell signal

slide-34
SLIDE 34

50 100 150 200 250 300 350 1000 1500 2000 2500 3000 3500 4000 4500 5000

Fig 11 (a)

NSMO-11 Ho (Gauss) Temperature T (K)

50 100 150 200 250 300 350 500 1000 1500 2000 2500 3000 3500 4000

Fig 11 (b)

NSMO-11 FWHM (Gauss) Temperature T (K)

50 100 150 200 250 300 350 0.0 0.5 1.0 1.5 2.0

Fig 11 (c)

NSMO-11

Norm I

Temperature T (K)

slide-35
SLIDE 35

How to indentify the core-shell EMR signals?

  • The core region is ferromagnetically ordered and exhibits

it’s bulk properties. The shell spins are magnetically disordered which contains defects, vacancies and dangling

  • bonds. So the core signal (black symbol) is more intense

than the shell signal (red symbol).

  • The core spins are subjected to the Weiss field, gets added

up to the applied external field making their resonance appear at a lower field. Shell signals have larger linewidths than the core signals.

Department of Physics, Indian Institute of Science, Bangalore.

slide-36
SLIDE 36

Conclusions from the EMR results:

  • EMR signals of bulk and nano samples show different in shape in

ferromagnetic phase.

  • EMR signals fit into two Gaussians in the ferromagnetic phase of nano

NSMO, indicates the presence of two signals and in the paramagnetic phase EMR signals fit into a single Lorentzian.

  • g – value in the paramagnetic phase increases (1.9806 – 1.9852) as with the

decrease of particle size. This shows that spin – orbit coupling and crystal fields are effected by the size of particle.

  • Linewidth magnitude which gives information about the spin dynamics

changes with the particle size in the paramagnetic phase.

  • Differences are seen in the EMR properties of NSMO-8 and NSMO-11.

This may be due to the presence of single domain particles in NSMO-8 and NSMO-11 contains both single and multidomain particles. Department of Physics, Indian Institute of Science, Bangalore.

slide-37
SLIDE 37

Summery:

  • Transport properties are studied both in the presence

and in the absence of magnetic field and also shown the effect of particle size .

  • AC susceptibility measurements were done to see the

effect of particle size on magnetic phase transition temperatures.

  • EMR experiments have been done to study the effect of

grain size on EMR spectral properties and probed the core – shell regions of the nanoparticle.

Department of Physics, Indian Institute of Science, Bangalore.

slide-38
SLIDE 38

Acknowledgements:

  • My sincere thanks to our research superviser Prof .

S . V . Bhat and my labmates for their stimulating and useful discussions.

  • I am very thankful to IISc, CSIR, INSA and BATA

for financial support.

  • My colloborators Venkataiah and Prof . Venugopal

reddy for supplying the samples.

  • Department of Physics, Indian Institute of Science, Bangalore.
slide-39
SLIDE 39

Principles of Electron Paramagnetic Resonance (EPR)

Magnetic field Energy h = gH0 H0  : Frequency of microwave radiation g: g factor : Bohr Magneton H0: Resonance Field Resonant absorption of microwave radiation across the Zeeman split electronic energy levels.

slide-40
SLIDE 40

g : g : obtained from the resonant field H

  • btained from the resonant field H0

 H: H: linewidth proportional to 1/T linewidth proportional to 1/T2

2 (T

(T2

2 is the spin spin relaxation

is the spin spin relaxation time) time) 1/T 1/T2

2 = 1/T

= 1/T2

2' + 1/2T

' + 1/2T1

1

Intensity: Intensity: area under the curve proportional to the number of area under the curve proportional to the number of spins contributing to the EPR signal spins contributing to the EPR signal A/B ratio: A/B ratio: measures the asymmetry of the EPR signal from measures the asymmetry of the EPR signal from single crystals. It depends on the ratio of the sample thickness single crystals. It depends on the ratio of the sample thickness to to skin depth and of the electron diffusion time T skin depth and of the electron diffusion time TD

D to T

to T2

2

Parameters obtained from EPR Parameters obtained from EPR

slide-41
SLIDE 41

Origin of linewidth

  • Possible mechanisms:
  • Dipolar interaction
  • Crystal Field interaction
  • Dzyaloshinsky Moriya (antisymmetric exchange

interaction)

  • Exchange narrowed dipolar linewidth:~ 3 Gauss
  • Observed linewidth ~ 1800 Gauss (isotropic

exchange interaction) Huber et al., J. Appl. Phys. 83, 6949, 1998 Huber et al., J. Appl. Phys. 83, 6949, 1998

slide-42
SLIDE 42

Origin of linewidth

  • Possible mechanisms:
  • Dipolar interaction
  • Crystal Field interaction
  • Dzyaloshinsky Moriya (antisymmetric exchange

interaction)

  • Exchange narrowed dipolar linewidth:~ 3 Gauss
  • Observed linewidth ~ 1800 Gauss (isotropic

exchange interaction) Huber et al., J. Appl. Phys. 83, 6949, 1998 Huber et al., J. Appl. Phys. 83, 6949, 1998

slide-43
SLIDE 43

Origin of Linewidth

  • Due to non zero orbital angular momentum of the

ground state of Mn ions, in the octahedral crystal field, there is large zero field splitting providing a channel for rapid relaxation.

  • Hence EPR signal is broadened out beyond
  • bservability.
  • However, due to strong exchange narrowing

effect, the natural linewidths are substantially reduced, rendering the EPR signals observable.

slide-44
SLIDE 44

EPR Linewidths

Crystal field and DM interaction cause further broadening of the lines As seen by the temperature dependence and orietation dependence of linewidths No effect of spin lattice r elaxation No effect of double exchange Narrowed down by isotropic spin spin interaction Very large natural linewidths from Mn ions
