AREA OF WORK: 8 EAST 93RD STREET

MADISON AVENUE FIFTH AVENUE

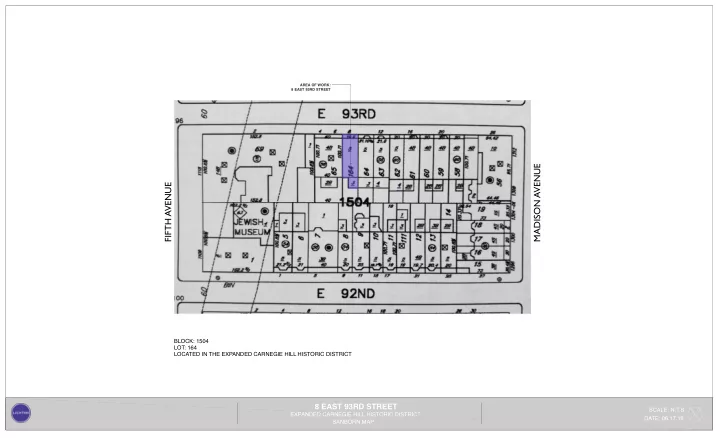

BLOCK: 1504 LOT: 164 LOCATED IN THE EXPANDED CARNEGIE HILL HISTORIC DISTRICT

8 EAST 93RD STREET

EXPANDED CARNEGIE HILL HISTORIC DISTRICT SCALE: N.T.S DATE: 06.17.19 SANBORN MAP

EXISTING STEPS TO BE REMOVED EXISTING PAVERS TO BE REMOVED EXISTING WALL AND DECORATIVE FINIALS TO BE REMOVED EXISTING GATE TO BE REMOVED EXISTING WALL TO REMAIN EXISTING WALL AND LEDGE TO REMAIN EXISTING STEPS TO BE REMOVED EXISTING ENTRY DOOR TO BE REMOVED EXISTING DOOR TO REMAIN EXISTING WINDOW TO

• REMAIN. EXISTING

WINDOW GUARDS TO BE REMOVED EXISTING IRON ENTRY GATE TO BE REMOVED PROPERTY LINE

03 03 04 04 DN

A

EXISTING WINDOWS TO BE REMOVED

B B

PROPERTY LINE

BASEMENT FF 0' - 0" FOURTH FLOOR FF 34' - 5 1/2" THIRD FLOOR FF 22' - 5 1/2" FIRST FLOOR FF 9' - 10 1/2" 45' - 6 1/8" SECOND FLOOR FF

• X' - X"

CELLAR FF

A B B EXISTING NORTH ELEVATION

02

CELLAR FF

• X' - X"

BASEMENT FF 0' - 0" FOURTH FLOOR FF 34' - 5 1/2" THIRD FLOOR FF 22' - 5 1/2" FIRST FLOOR FF 9' - 10 1/2" 45' - 6 1/8" SECOND FLOOR FF

A B B EXISTING WHITE ALUMINUM SIDING TO BE REPLACED WITH HARDIE BOARD LAP SIDING

REMOVALS PLAN: FRONT YARD

01SCALE: 1

8" = 1'-0"

REMOVALS PLAN: FIRST FLOOR

02 SCALE: 1

8" = 1'-0"

8 EAST 93RD STREET

EXPANDED CARNEGIE HILL HISTORIC DISTRICT REMOVALS PLANS AND EXISTING ELEVATIONS

EXISTING NORTH ELEVATION

03 SCALE: 3

32" = 1'-0"

EXISTING NORTH ELEVATION

04 SCALE: 3

32" = 1'-0"

SCALE: AS NOTED DATE: 06.17.19

A B B NEW PAINTED WOOD BOX PLANTERS

NEW RAILING AND PLANTERS TO MATCH 12 EAST 93RD STREET

NEW BLACK PAINTED WROUGHT IRON RAILING ON TOP OF NEW CONCRETE CURB WITH STUCCO FINISH

6 1/2"

DN NEW PAINTED WROUGHT IRON RAILING ON TOP OF CONCRETE CURB WITH STUCCO FINISH BOX PLANTERS ON TOP OF CONCRETE CURB WITH STUCCO FINISH BLUESTONE PAVERS 2" BLUESTONE SLAB TREADS AND RISERS NEW ENTRY DOOR AND WOOD JAMB

6'-3" 13'-3"

EXISTING WALL TO REMAIN EXISTING WALL AND LEDGE TO REMAIN

3/4" 4" EQ. 4" EQ. 4" EQ. 4" EQ. 4" 3/4"

DESIGN TO MATCH FRONT YARD AT 12 EAST 93RD STREET

NEW IRON GATE PROPERTY LINE

PROPERTY LINE

NEW WINDOW GUARD 03 03 04 04

NEW WINDOWS

A B B

PROPERTY LINE A B B

STUCCO TO BE INFILLED AND REPAIRED AS REQUIRED EXISTING STUCCO FIGURES TO REMAIN EXISTING LIGHT FIXTURE TO REMAIN NEW UNLACQUERED BRASS OPERABLE ENTRY HARDWARE NEW BLACK PAINTED WOOD JAMB NEW UNLACQUERED BRASS MAIL SLOT NEW WINDOWS WITH SILLS LOWERED TO ORIGINAL SILL HEIGHT NEW WOOD RAISED PANEL ENTRY DOOR PAINTED BLACK NEW UNLACQUERED BRASS DECORATIVE KNOB AND ROSE DOTTED: NEW RECESSED DOWNLIGHT AT HEAD BEHIND IRON DOOR IRON WINDOW GUARD AND IRON DOOR TO BE REPLACED AND TO MATCH DESIGN AT 10 EAST 93RD STREET NEW RECESSED DOWN LIGHT AT HEAD EXISTING TRANSOM TO REMAIN EXISTING ALUMINUM SIDING TO BE REPLACED WITH HARDIE BOARD LAP SIDING IN "IRON GRAY"

8 EAST 93RD STREET

EXPANDED CARNEGIE HILL HISTORIC DISTRICT SCALE: AS NOTED DATE: 06.17.19 PROPOSED PLANS AND ELEVATIONS

PROPOSED NORTH ELEVATION

03 SCALE: 3

32" = 1'-0"

PROPOSED NORTH ELEVATION

04 SCALE: 3

32" = 1'-0"

PROPOSED PLAN: FRONT YARD

01SCALE: 1

8" = 1'-0"

PROPOSED PLAN: FIRST FLOOR

02 SCALE: 1

8" = 1'-0"
