Adam Ingram Chris Done Piotr ycki P Chris Fragile Low frequency QPOs: a precession model in the context of mass accretion rate fluctuations The truncated disc model Cool, optically Hot electrons in thick disc high scale height,

slide-1
SLIDE 1

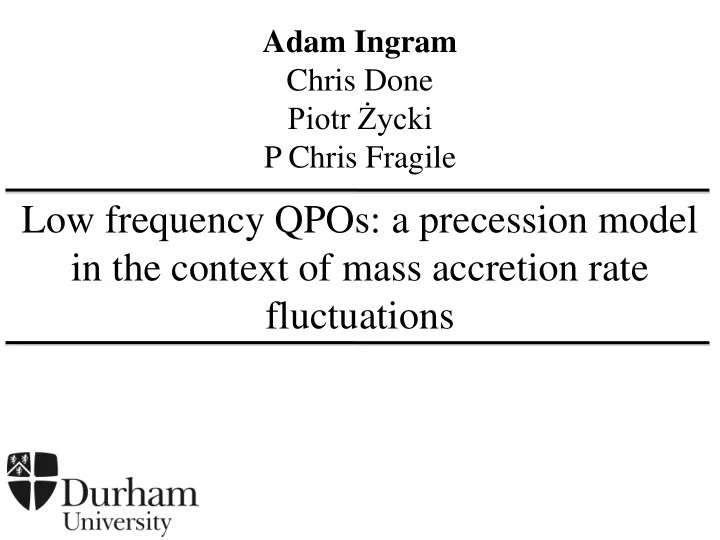

Low frequency QPOs: a precession model in the context of mass accretion rate fluctuations

Adam Ingram Chris Done Piotr Życki P Chris Fragile

slide-2
SLIDE 2

Cool, optically thick disc thermalises to emit a multi coloured black body spectrum Hot electrons in high scale height,

  • ptically thin flow

Compton up-scatter disc seed photons to give power law emission

XTE 1550-564

The truncated disc model

slide-3
SLIDE 3

XTE 1550-564

The truncated disc model

slide-4
SLIDE 4

XTE 1550-564

The truncated disc model

slide-5
SLIDE 5

XTE 1550-564

The truncated disc model

slide-6
SLIDE 6

XTE 1550-564

The truncated disc model

slide-7
SLIDE 7

XTE 1550-564

The truncated disc model

slide-8
SLIDE 8

XTE 1550-564

The truncated disc model

slide-9
SLIDE 9

XTE 1550-564

The truncated disc model

…so what could this QPO be?

slide-10
SLIDE 10

Frame dragging

Asymmetric potential => precession of particle

  • rbits

www.phys.ncku.edu.tw/.../ apod/ap971107.html

slide-11
SLIDE 11

Lense-Thirring precession Lense-Thirring precession

Ingram, Done & Fragile 2009 Relativistic precession models: Stella & Vietri 1998

slide-12
SLIDE 12

Lense-Thirring precession

slide-13
SLIDE 13

Lense-Thirring precession Lense-Thirring precession

Ingram, Done & Fragile 2009: show that the precession frequency can match QPO frequency

slide-14
SLIDE 14

Lense-Thirring precession Lense-Thirring precession

…but how does it modulate the spectrum?

slide-15
SLIDE 15

Seed photon variation

Less seed photons incident on the flow now

slide-16
SLIDE 16

Seed photon variation

…than now

slide-17
SLIDE 17

Self-occultation

Photons must pass through more of the flow now

slide-18
SLIDE 18

Self-occultation

…than now

slide-19
SLIDE 19

QPO model

Ls Ltot

slide-20
SLIDE 20

QPO model

ro=37

slide-21
SLIDE 21

QPO model

ro=21

slide-22
SLIDE 22

QPO model

ro=19

slide-23
SLIDE 23

QPO model

ro=15

slide-24
SLIDE 24

QPO model

ro=12

slide-25
SLIDE 25

QPO model

ro=10

slide-26
SLIDE 26

QPO model

We see:

  • Harmonic structure
  • Inclination dependence

…but:

  • It is far too narrow
  • QPO width and strength are both constant
  • We haven’t produced the broadband noise ..or sigma-

flux relation, time lags etc

slide-27
SLIDE 27

Fluctuating Lh

dLh M(r,t)

฀  

  • Emission from the flow not just up-scattered seed

photons

  • Also emission from liberated gravitational potential

energy

  • Gravitational energy emitted from an annulus of the

flow:

slide-28
SLIDE 28

Fluctuating Lh

…but what is the nature of the Mdot fluctuations?

  • Emission from the flow not just up-scattered seed

photons

  • Also emission from liberated gravitational potential

energy

  • Gravitational energy emitted from an annulus of the

flow:

dLh M(r,t)

฀  

slide-29
SLIDE 29
  • Mass accretion rate fluctuations fuelled by

MRI

  • Mdot can’t vary on shorter timescales than

the local viscous timescale

This gives the noise spectrum GENERATED at each annulus

fPf

Propagating M fluctuations

slide-30
SLIDE 30

This gives the noise spectrum EMMITED at each annulus

e.g. Lyubarskii 1997; Arevalo & Uttley 2006, Kotov et al 2001

Propagating M fluctuations

slide-31
SLIDE 31

Propagating M fluctuations

Lh

Arevalo & Uttley 2006 Uttley & McHardy 2001

slide-32
SLIDE 32

Propagating M fluctuations

mass conservation =>

M Σ

slide-33
SLIDE 33

Implications for QPO

So the frequency fluctuates => QPO width

slide-34
SLIDE 34

Total variability model

ro=37

Using approximation that under predicts the harmonics

slide-35
SLIDE 35

Total variability model

ro=21

Using approximation that under predicts the harmonics

slide-36
SLIDE 36

Total variability model

ro=19

Using approximation that under predicts the harmonics

slide-37
SLIDE 37

Total variability model

ro=15

Using approximation that under predicts the harmonics

slide-38
SLIDE 38

Total variability model

ro=9

Using approximation that under predicts the harmonics

slide-39
SLIDE 39

Total variability model

ro=7

Using approximation that under predicts the harmonics

slide-40
SLIDE 40

Approximation

The approximation honestly does under predict the harmonics!

slide-41
SLIDE 41

Approximation

ro=21

slide-42
SLIDE 42

Approximation

ro=21

slide-43
SLIDE 43

Predictions, Successes and Limitations

Successes:

  • Produce QPO and harmonic
  • Both evolve as observed
  • Reproduce the broadband noise and sigma-flux

relation

  • This correlates with the QPO

Predictions:

  • Iron line in QPO spectrum
slide-44
SLIDE 44

Predictions, Successes and Limitations

Limitations:

  • Not finished yet!
  • Currently no energy dependence
  • Currently no disc variability which is required in

some states (Wilkinson & Uttley 2009)

  • BUT:

– Disc variability should correlate with the flow variability – Disc variability should correlate with the QPO ...another prediction!

slide-45
SLIDE 45

Registration now open at: http://astro.dur.ac.uk/xray2010/

slide-46
SLIDE 46

Approximation

Ω Ψ

LQPO = AΩ - BΨ

slide-47
SLIDE 47

Rough match to data

slide-48
SLIDE 48

Photon index

฀    7 3 Ls Lh      

1/6
