Louis Nine/Intervale/Freeman Summer 2012 1 Commissioner Janette Sadik-Khan, New York City Department of Transportation Presented by the Pedestrian Projects Group, September 14, 2011 to Bronx Community Board 3 Project Extent CROTONA PARK

slide-1
SLIDE 1

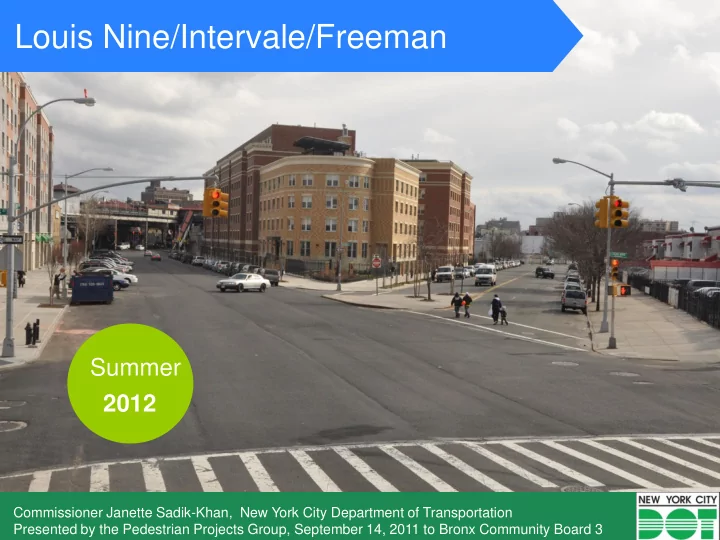

1

2012 Summer

Commissioner Janette Sadik-Khan, New York City Department of Transportation Presented by the Pedestrian Projects Group, September 14, 2011 to Bronx Community Board 3

Louis Nine/Intervale/Freeman

slide-2
SLIDE 2

2 NORTH

Freeman St Station # 2 and 5

Project Extent

CROTONA PARK BRONX RIVER Freeman St

slide-3
SLIDE 3

3

Crash Data 2005-2010

Freeman St: Southern Bvld – Bristow St. Louis Nine Blvd: Crotona Park E – Freeman St

  • Pedestrian injuries: 16
  • Bicyclist injuries: 2
  • Motor vehicle occupant injuries: 60

Background

CB 3 and WHEDCO requested improvements to the corridor

slide-4
SLIDE 4

Intersection under elevated train

Southern Blvd at Freeman St

Existing Conditions

NORTH Freeman St

Freeman St Station

Passengers wait in the street for bus

View South

Narrow sidewalk at foot of stairs to 2/5 subway

slide-5
SLIDE 5

Southern Blvd at Freeman St

Proposal

NORTH

New sidewalk protects people waiting for the bus Shortens crosswalk ADA accessible

slide-6
SLIDE 6

6 NORTH

Southern Blvd at Louis Nine Blvd

Existing Conditions

View South

Long skewed crossing Pedestrians vulnerable to fast turning vehicles at wide intersection

130 feet

slide-7
SLIDE 7

NORTH

Southern Blvd at Louis Nine Blvd

Proposal

40 feet 36 feet

Angled parking maintained Shorter 2-part crossing

slide-8
SLIDE 8

8

Pedestrians vulnerable to free-right-turning vehicles

Louis Nine Blvd and Intervale Ave

Existing Conditions Wide multi-legged intersection

70 feet

Louis Nine Blvd NORTH

slide-9
SLIDE 9

NORTH

Louis Nine Blvd and Intervale Ave

Proposal Safer 2-part crossing, slows vehicle turns

Grocery

Separates right-turn onto Intervale Ave from thru movement to Louis Nine Blvd Expand existing Greenstreet

slide-10
SLIDE 10

10 NORTH

Triangle Corridors

Existing Conditions

Freeman St

NEW BUILDING NEW BUILDING NEW BUILDING

60 foot wide roadbed Low traffic volumes

slide-11
SLIDE 11

Triangle Corridors

Proposal

NORTH

Maintain angled parking where possible Grocery deliveries require parallel parking

Daytime Loading zone

Angled Parking Added

slide-12
SLIDE 12

12 NORTH

Other Project Corridors

Existing Conditions

Southern Blvd

Two lanes in each direction

Wide corridor + Low traffic volumes = High speeds Percentage of vehicles speeding

32% 52%

slide-13
SLIDE 13

13

Other Project Corridors

Proposal

slide-14
SLIDE 14

14

Example of Typical Corridor Treatment

Laconia Ave, BRONX

slide-15
SLIDE 15

NORTH

Freeman Street at Bristow Street

Proposal “Painted” neckdown shortens crosswalks

Painted Neckdown Example

slide-16
SLIDE 16

16

Plan Summary

Improvements for Louis Nine/Intervale/Freeman:

  • 1. Reduce travel lanes from four to three lanes,
  • ne in each direction with left-turn lanes as

needed

  • 2. Construct green pedestrian islands at Louis

Nine Boulevard and Southern Boulevard

  • 3. Extend pedestrian area and increase green

space at Louis Nine Boulevard and Intervale Avenue

  • 4. Extend curb at Southern Boulevard and

Freeman Street

  • 5. Add painted neckdown at Bristow Street and

Freeman Street and at Wilkins Ave and Crotona Park East

  • 6. Refurbish all crosswalk markings on corridors
slide-17
SLIDE 17

17 17

www.nyc.gov/dot

Thank You
