Logistics Applications

(Seaport, Dry port and Airport)

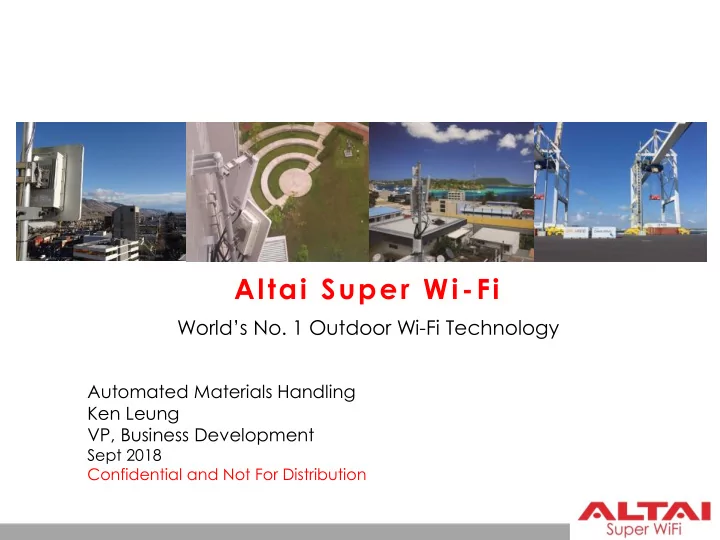

Altai Super Wi-Fi

World’s No. 1 Outdoor Wi-Fi Technology

Automated Materials Handling Ken Leung VP, Business Development

Sept 2018 Confidential and Not For Distribution

Altai At a Glance: 2002 - Present

8 6 4 2

2002 2006 2008 2011 2014 2007 2009 2012

Red Herring 100 Asia A member of WiFi Alliance IET Innovation Award for Communications Full selection of Indoor & Outdoor WiFi solution ASTRI Incubation developed the World’s first 8x8Mimo Smart Antenna Technology Hong Kong Awards for Industries: Technological Achievement Grand Award Altai Established with World leading outdoor WiFi Technology 20+ Patents in U.S. and China Asia Pacific ICT Grand Awards Hong Kong ICT Awards: Award of the Year, Grand Award (Wireless Technology), Gold Award (Innovative Technology) Altai powered WISP got acquired by Cable & Wireless Hong Kong ICT Awards Boeing Research & Technology Silver Award Hong Kong ICT Awards 50,000+ of units deployed in China serving the operator’s 50M subscribers

2017

Geographical Presence

• Global Presence with sales

channels and deployments in 100+ countries with 200 container ports and airports

Direct Sales & Technical Presence: Asia North America EMEA South America Corporate Offices: Hong Kong & Shenzhen MFG: Taiwan

Large Coverage Smart Antenna High Performance 3x3 High Performance 2x2 Affordable

A8-Ein (ac)

Smart Antenna Dual-Band 2x2 802.11ac

A3-Ei

Integrated Antenna Dual-Band 3x3 802.11ac

A2

• Ext. 2.4G/Int. 5G Antenna

Dual-Band 2x2 802.11ac

AX500-S/T

Smart Antenna Dual-Band 2x2 802.11ac MU-MIMO

C2s

Integrated Antenna Dual-Band 2x2 802.11ac

C1n / C1an

Integrated Antenna 2x2 802.11n

Outdoor Product Lineup

C1xn / C1xan

External Antenna 2x2 802.11n

A8n (ac)

Smart Antenna Dual-Band 2x2 802.11ac

A8in (ac)

Smart Antenna Dual-Band 2x2 802.11ac

AX500-X

External Antenna Dual-Band 2x2 802.11ac MU-MIMO

High Performance 3x3 Affordable 2x2 Affordable Single-Band

A3c

Ceiling-Mount Dual-Band 3x3 802.11ac

C2s

Wall-Mount Dual-Band 2x2 802.11ac

C1n / C1an

Wall-Mount 2x2 802.11n

A3w

Wall-Mount Dual-Band 3x3 802.11ac

A2c

Ceiling Mount Dual-Band 2x2 802.11ac

Indoor Product Lineup

C1ni

Industrial CPE 2x2 802.11n

Automated Materials Handling (AMH)

Evolution of AMH

What is Automated Warehouse?

Automatic Storage and Retrieval Systems (AS/RS) Automated Guided Vehicle (AGV) Sorting

Market Drivers for the Growth of AMH

• Reduce overall costs including labor, electricity and more…
• Cater to 24/7 operations
• Increasing demand of same day E-commerce delivery services
• The need to improve safety and working condition
• Emerging markets such as China and India

The AMH Market

Current challenges on Standard WiFi

• Lack of Coverage and RSSI for AGV applications
• Coverage Redundancy
• Seamless handover for constantly moving platforms
• Concurrent capacity
• Increasing of installation + labor costs

What Altai SuperWiFi has to offer?

• Field Proven WiFi Technology
• Maximizing WiFi coverage with 8x8mimo patented smart

antenna technology (up to 1.7km LOS and 500m NLOS)

• Cost Effective solution with 1:10 ratio for installed AP
• Fully redundant Coverage
• Seamless Coverage
• Leading handover time (under 80ms compared to

standard 150ms) and extended coverage to 2km LOS w/industrial CPE in AGV

A8-Ein A8-Ein Up to 1.7km LOS and 500m NLOS Inside of AGV: C1ni Industrial CPE supports PROFINET Up to 3km LOS Standard AGV Standard AGV w/ Altai C1ni

Case 1: Warehouse of a famous e-commerce company

• Area of 8,000 m2;
• Shelves of 3 layers, with height around 2m;
• 2 x A8-Ein(ac) for full redundant coverage;
• 45+ AGVs working simultaneously.

Case Study: 8000m2 Automated logistics Centre

Standard AP Altai SuperWiFi Coverage Area 10m 1700m Total number of AP required >20 (non-redundancy) 2 for redundancy Total cost of

• wnership

>3x 1x Handover >150ms <80ms Concurrent capacity 30-50AGV 80 AGV

▪ Location: China ▪ Application: Indoor WiFi connectivity for automated logistics applications including RF readers, automated guided vehicle and robots ▪ Product: A8Ein and C1ni ▪ Challenge: Large and complex area with a lot of mobile terminals and automated robots. Large metal racks created major obstacle and Non- Line of sight coverage, especially inside of each aisle. ▪ Solution: A8Ein(s)were installed for wireless coverage and C1ni is embedded to the AGV ▪ Result: ▪ Complete seamless coverage of the logistics center with strong connectivity at every corner, even deep into the aisle. ▪ Top industrial fast roaming with handover time of < 80ms under WPA2

Automated logistics Centre
