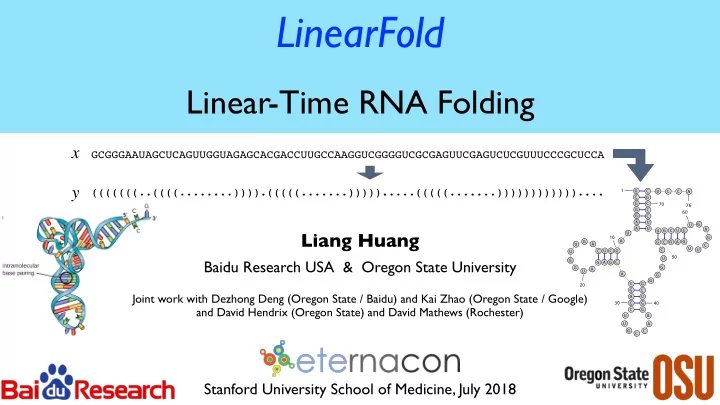

LinearFold

Linear-Time RNA Folding

Liang Huang

Baidu Research USA & Oregon State University

Joint work with Dezhong Deng (Oregon State / Baidu) and Kai Zhao (Oregon State / Google)
 and David Hendrix (Oregon State) and David Mathews (Rochester)

1 10 20 30 40 50 60 70 76

GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA (((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

x y

Stanford University School of Medicine, July 2018

A Bit About Myself…

2

Ph.D., 2008 Research Scientist, 2009 Assistant Professor, 2015- Principal Scientist, 2018-

…

• my main area is computational linguistics (aka natural language processing)
• where I develop faster (linear-time) algorithms to understand/translate languages
• but I also apply these algorithms to computational structural biology…

RNA Structure Prediction and Design

3

CRISPR/Cas9: gene editing

GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA

RNA sequence RNA secondary structure RNA 3D structure design structure prediction

• M. tuberculosis

RNA Structure Prediction (Folding)

4 GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA (((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

allowed pairs: G-C A-U G-U assume no crossing pairs

x y

G 5’ C G G G 5 A A U A G 10 C U C A G 15 U U G G U 20 A G A G C 25 A CGAC 30 C U U G C 35 C A A G G 40 U C G G G 45 GUCGC 50 G A G U U 55 C G A G U 60 C U C G U 65 U U C C C 70 G C U C C 75 A 3’

parse tree

G C G G G A A U A G C U C A G U U G G U A G A G C A C G A C C U U G C C A A G G U C G G G G U C G C G A G U U C G A G U C U C G U U U C C C G C U C C A

1 10 20 30 40 50 60 70 76

4

example: transfer RNA (tRNA)

challenge: existing structure prediction algorithms are way too slow: O(n3) solution: borrow linear-time algorithms from natural language parsing

Our Linear-Time Prediction is Much Faster…

5

10,000nt (~HIV) 4min 7s 244,296nt (longest in RNAcentral) ~200hrs 120s

1 2 3 4 5 6 7 8 9 1000nt 2000nt 3000nt

CONTRAfold MFE, ~n2.6 V i e n n a R N A f

• l

d , ~ n2.6 LinearFold b=100, ~n1.0 LinearFold b=50, ~n

1 .

running time per sequence (sec)

1 10 100 1000 103nt 104nt 105nt

Vienna RNAfold: n2.6 CONTRAfold MFE: n2.6 LinearFold b=100: n1.0 LinearFold b=050: n1.0

2 hrs s s s s

with even slightly better prediction accuracy!!

5

Computational Linguistics => Computational Biology

1955 Chomsky:
 context-free grammars 1953 Watson & Crick:
 DNA double-helix

linguistics biology computer science

1964 Cocke \ 1965 Kasami - CKY Parsing: O(n3) 1967 Younger / 1965 Knuth: LR Parsing: O(n) 1958 Backus & Naur: CFGs in programming lang. 1986 Tomita: Generalized LR Parsing 2010: linear-time DP parsing
 (Huang & Sagae) 1980s: O(n3) CKY for RNA structures 2018: LinearFold: O(n) RNA
 structure prediction ~1990: linear-time greedy parsing

6

1985 Shieber: non-CF languages 1970 Joshi: tree-adjoining grammars 1985 CKY-style TAG parsing in O(n6) 1999: TAGs for RNA pseudoknots

Current Structure Prediction Method: O(n3)

C A A G U . . . . . .. .. .. () ... (.) (.) .(.) (.). ((.))

( )

i j i+1 j-1 i j k

. . .

• Dynamic Programming — O(n3)
• bottom-up CKY parsing
• example: maximize # of pairs (A-U G-C G-U)

7

5’ 3’ GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA (((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

How to Fold RNAs in Linear-Time?

• idea 0: tag each nucleotide from left to right
• maintain a stack: push “(”, pop “)”, skip “.”
• exhaustive: O(3n)

(Huang and Sagae, 2010) 8

5’ 3’ GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA

How to Fold RNAs in Linear-Time?

• idea 1: DP by merging “equivalent states”
• maintain graph-structured stacks
• DP: O(n3)

(Huang and Sagae, 2010)

(((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

9

5’ 3’ GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA (((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

How to Fold RNAs in Linear-Time?

(Huang and Sagae, 2010)

• idea 1: DP by merging “equivalent states”
• maintain graph-structured stacks
• DP: O(n3)

10

5’ 3’ GCGGGAAUAGCUCAGUUGGUAGAGCACGACCUUGCCAAGGUCGGGGUCGCGAGUUCGAGUCUCGUUUCCCGCUCCA

How to Fold RNAs in Linear-Time?

• idea 2: approximate search: beam pruning
• keep only top b states per step
• DP+beam: O(n)

(Huang and Sagae, 2010)

each DP state corresponds to
 exponentially many non-DP states

graph-structured stack (GSS)


(Tomita, 1986)

(((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

11

Another View: Left-to-Right CKY

• many variants of CKY ~ various topological ordering

all O(n3), but the incremental ones can apply beam search to run in O(n)

bottom-up left-to-right right-to-left

(S, 0, n) (S, 0, n) (S, 0, n)

12

Our Linear-Time Prediction is Much Faster…

13

10,000nt (~HIV) 4min 7s 244,296nt (longest in RNAcentral) ~200hrs 120s

1 2 3 4 5 6 7 8 9 1000nt 2000nt 3000nt

CONTRAfold MFE, ~n2.6 V i e n n a R N A f

• l

d , ~ n2.6 LinearFold b=100, ~n1.0 LinearFold b=50, ~n

1 .

running time per sequence (sec)

1 10 100 1000 103nt 104nt 105nt

Vienna RNAfold: n2.6 CONTRAfold MFE: n2.6 LinearFold b=100: n1.0 LinearFold b=050: n1.0

2 hrs s s s s

with even slightly better prediction accuracy!!

13

On to details...

An Example Path

push push skip pop pop

15

Version 1: Exhaustive Search O(3n)

16

Version 1: Exhaustive Search O(3n)

17

Version 1: Exhaustive Search O(3n)

18

Version 1: Exhaustive Search O(3n)

19

Version 1: Exhaustive Search O(3n)

20

Version 1: Exhaustive Search O(3n)

21

Idea 1a: Merge Identical Stacks

Merge states with the same full stack (unpaired openings): “Equivalent States” 22

Version 2: Merge by Full Stack O(2n)

exhaustive full-stack merge

23

Version 2: Merge by Full Stack O(2n)

merge states with identical stacks exhaustive full-stack merge

24

Version 2: Merge by Full Stack O(2n)

O(2n)

exhaustive full-stack merge

25

Idea 1b: Merge “Temporary Equivalents”

Merge states with the same top of the stack
 (last unpaired opening): “Temporarily Equivalent States”

O(2n)

26

Version 3: Merge by Stack Top O(n3)

packing temporarily equivalent states

27

Version 3: Merge by Stack Top O(n3)

28

Version 3: Merge by Stack Top O(n3)

29

Version 3: Merge by Stack Top O(n3)

unpacking packing

30

Version 3: Merge by Stack Top O(n3)

O(2n)

packing

31

Close Up Look at Two Paths

32

Close Up Look at Two Paths

33

Idea 3: Beam Pruning

O(2n)

34

stack-top merge full-stack merge

Version 4: DP with Beam Search O(n)

+beam pruning stack-top merge

35

Recap: O(3n) to O(n3) to O(n)

• 5 search algorithms
• DP: bottom-up CKY: O(n3)
• left-to-right (exhaustive): O(3n)
• DP: merge by full stack: O(2n)
• DP: merge by stack top: O(n3)
• approx. DP via beam search: O(n)
• this is a simple illustration that we just

maximize the number of pairs

• our real systems work with complicated

feature templates

1 2 3 4 5 C CC CCA CCAG CCAGG no DP ..( ...( O(3n)

✏ . .. ... .... .....

.( .(. .(.. .(..)

.(( .(.) .(.).

( (. (.. (... (...)

(.( (..) (..).

(( ((. ((.) ((.))

C CC CCA CCAG CCAGG DP ✏ . .. ... .(.. O(2

.( .(. .(.) ((.))

( (. (.. ((.)

(( ((.

C CC CCA CCAG CCAGG DP+GSS ✏ . .. ... ?(.. O(n3)

( ?( ?(. .(.) ((.))

(. (.. ((.)

C CC CCA CCAG CCAGG LinearFold ✏ . ?( ?(. .(.) ((.)) O(n)

( (. (.. ((.) (approx. DP)

× × × ×

. ( ( . . ( . . . . ( ( ( . . ) . ) ) ( . ) . ) . ) ( . . ( . ( . . . . . . ) . ) ) ) . ) . ( . ( ( . . . . . . ) ) . ) ) . ) . ( ( ( . . . ) ) ) . )

+full stack merge +GSS +beam

O(2n) 36

Connections to Incremental Parsing

• shared key observation: local ambiguity packing
• pack non-crucial local ambiguities along the way
• unpack (in a reduce action) only when needed

(Huang and Sagae, 2010)

psycholinguistic evidence
 (eye-tracking experiments): delayed disambiguation

John and Mary had 2 papers John and Mary had 2 papers

Frazier and Rayner (1990), Frazier (1999)

each together

37

Experiments

Applying Prediction Models on LinearFold

• models from two most widely-used systems
• CONTRAfold MFE (machine-learned)
• Vienna RNAfold (thermodynamic)
• we linearized both systems from O(n3) to O(n)

efficiency systems time space machine-learned thermo-dynamic

baselines O(n3) O(n2) CONTRAfold Vienna RNAfold

• ur work

O(n) O(n) LinearFold-C LinearFold-V

39

Efficiency & Scalability

• tested on two datasets
• Archive II dataset (labeled, like Penn Treebank)
• #: 2,889, avglen: 222nt; up to 2,927nt
• used for both efficiency and accuracy evaluations
• RNAcentral dataset (unlabeled, like Gigaword)
• over 1.3M of unlabeled sequences; up to 244,296nt
• only used for efficiency/scalability evaluations

10MB 100MB 1GB 10GB 103nt 104nt 105nt

CONTRAfold MFE, ~n2.0 Vienna RNAfold: ~n2.0 LinearFold b=100, ~n1.0 LinearFold b=50, ~n1.0

memory used

1 2 3 4 5 6 7 8 9 1000nt 2000nt 3000nt

CONTRAfold MFE, ~n 2.6 V i e n n a R N A f

• l

d , ~ n

2 . 6

LinearFold b=100, ~n 1.0 L i n e a r F

• l

d b = 5 , ~ n

1.0

running time per sequence (sec)

1 10 100 1000 10

3nt

10

4nt

10

5nt

Vienna RNAfold: n

2.6

CONTRAfold MFE: n

2.6

LinearFold b=100: n

1.0

LinearFold b=050: n

1.0

(2 hrs)

40

40 50 60 70 80

tRNA 5S rRNA SRP RNaseP tmRNA Group I Intron telomerase RNA 16S rRNA 23S rRNA * *

PPV

CONTRAfold MFE LinearFold-C b=100 ** * ** Vienna RNAfold LinearFold-V b=100 * * *

40 50 60 70 80

tRNA 5S rRNA SRP RNaseP tmRNA Group I Intron telomerase RNA 16S rRNA 23S rRNA * *

Sensitivity

CONTRAfold MFE LinearFold-C b=100 * * ** Vienna RNAfold LinearFold-V b=100 * *

Accuracy

• use beam=100 for LinearFold
• Tested on Archive II dataset


(on a family-by-family basis)

• significant improvements on 3 longer families
• biggest improvements on the longest families:

16S/23S rRNAs

% CONTRAfold LinearFold-C Vienna LinearFold-V PPV (precision) 54.8 56.9 (+2.1) 50.7 50.9 (+0.2) Sensitivity (recall) 55.7 57.1 (+1.4) 59.3 59.5 (+0.2)

41

Beam Size and Search Quality

• beam search achieves good search quality starting b=100
• slightly under-predicts compared to exact search, but close

57 60 63 66 69 72 20 100 200 300 number of pairs predicted beam size Vienna RNAfold LinearFold-V Ground Truth CONTRAfold MFE LinearFold-C

• 83
• 81
• 79
• 77

20 100 200 300

• 24
• 23
• 22
• 21

average free energy average model cost beam size Vienna RNAfold LinearFold-V CONTRAfold MFE LinearFold-C

42

Beam Size and PPV/Sensitivity

• PPV/Sensitivity trade-off as a function of beam size
• stable PPV/Sensitivity around b=100-150

49 52 55 58 20 100 200 300 49 52 55 58 PPV Sensitivity beam size

CONTRAfold MFE LinearFold-C CONTRAfold MFE LinearFold-C

50 51 52 53 54 55 56 57 58 51 52 53 54 55 56 57 58 Sensitivity PPV

CONTRAfold MFE LinearFold-C

b=20 b=50 b=75 b=300

56.8 57 57.2 57.4 56.2 56.4 56.6 56.8 57 b=150 b=120 b=100

43

Improvements on Long-Range Pairs

• long-distance pairs are well-known to be hard to predict
• but our beam search systems are even better on those

44

10 20 30 40 50 60 70 1

• 2

2 1

• 5

> 5 PPV base pair distance

CONTRAfold MFE LinearFold-C b=100

10 20 30 40 50 60 70 1

• 2

2 1

• 5

> 5 Sensitivity base pair distance

CONTRAfold MFE LinearFold-C b=100

Incremental Folding

• left-to-right vs. right-to-left folding (cotranscriptional folding?)

49 50 51 52 53 54 55 56 57 58 21 21.5 22 22.5 23 23.5

linear PPV linear Sensitivity right-to-left PPV right-to-left Sensitivity contrafold PPV contrafold Sensitivity

negative free energy PPV / Sensitivity

45

Example Predictions: CONTRAfold__

46

Example Predictions: Vienna RNAfold

47

Web Demo 1 (Beam Sizes)

http://web.engr.oregonstate.edu/~liukaib/demo_json+canvas.html

48

Web Demo 2 (Live Demo)

http://linearfold.eecs.oregonstate.edu

49

Bonus Track: Deep Learning for RNA Folding

Existing Models

• Physics-based energy model
• hundreds of carefully designed and experimentally-measured

thermodynamic parameters

• Machine Learning based model
• claimed “without physics”, but still using physics-based

feature templates

• just learn the feature weights (parameters) from data
• Can we really do it “without physics”?

51

Deep Learning

• Deep Learning for RNA structure prediction
• RNNs automatically extract features and learn their weights
• Completely without physics
• First deep learning RNA secondary structure prediction algorithm
• We borrow techniques from natural language parsing
• where deep learning has been very successful since ~2016
• our group’s “span-based” parsing framework is now dominant

52

Training

Input x Output y

Model w

“idealized” ML

Training

Input x Output y

Model w

“actual” ML

feature map ϕ

Training

Input x Output y

Model w

deep learning ≈ representation learning

feature map ϕ

Our Approach: from NLP Span Parsing

• Span differences are taken from an encoder

(in this case: a bi-LSTM)

• A span is scored and labeled by a feed-

forward network

• The score of a tree is the sum of all the

labeled span scores

stree(t) = P

(i,j,X)∈t

s(i, j, X)

s

(fj − fi, bi − bj)

s(i, j, X)

⟨/s⟩ ⟨s⟩

f0 f1 f2 f3 f4 f5 b1 b2 b3 b4 b5 b0

1 3 5 2 4

You should eat ice cream

Cross + Huang 2016 Stern et al. 2017 Wang + Chang 2016

53

Our Approach: RNA structure predict.

• Replace words with nucleotides (A,C,G,U) as inputs
• 3 labels for a span:
• Left-unpair

.

• Left-pair

( )

• Pair

( )

54

s

(fj − fi, bi − bj)

s(i, j, X)

⟨/s⟩ ⟨s⟩

f0 f1 f2 f3 f4 f5 b1 b2 b3 b4 b5 b0

C A G A C

Experiments

• database: S-Full (Andronescu et al. 2008; 2010)
• preprocessing (cap at 700nt; removing pseudoknots and non-canonical

base-pairs); 3245 distinct structures; 80% / 20% split for training / set

• randomly split into training set (2586) and testing set (659)
• can be found https://www.cs.bgu.ac.il/~negevcb/contextfold/

system precision recall F-score

Physics-based Vienna RNAfold 53.35 61.68 57.21 Machine learning CONTRAfold (off the shelf) 55.75 53.63 55.75 CONTRAfold (retrained) 61.13 65.80 63.38 Deep learning Our model 77.06 59.55 67.18

55

Thank you very much

⾮靟常 感谢 !

fēi cháng gǎn xiè

!

1 10 20 30 40 50 60 70 76

Just google “LinearFold”
