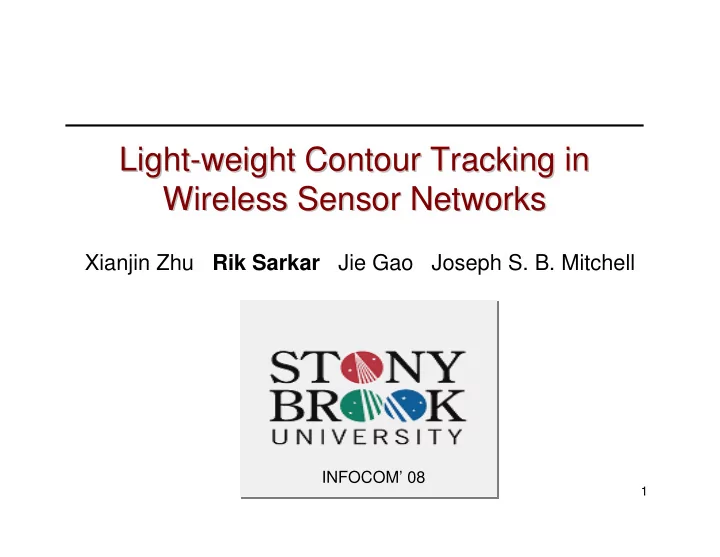

Light- -weight Contour Tracking in weight Contour Tracking in Light Wireless Sensor Networks Wireless Sensor Networks Xianjin Zhu Rik Sarkar Jie Gao Joseph S. B. Mitchell INFOCOM 08 1 Motivation Motivation Sensor network: sense


slide-1
SLIDE 1

1

Light Light-

  • weight Contour Tracking in

weight Contour Tracking in Wireless Sensor Networks Wireless Sensor Networks

Xianjin Zhu Rik Sarkar Jie Gao Joseph S. B. Mitchell

INFOCOM’ 08

slide-2
SLIDE 2

Motivation Motivation

  • Sensor network: sense and monitor the physical world

(temperature, traffic density, pollution level, etc).

2

slide-3
SLIDE 3

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

3

slide-4
SLIDE 4

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

4

slide-5
SLIDE 5

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

5

slide-6
SLIDE 6

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

6

slide-7
SLIDE 7

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

7

slide-8
SLIDE 8

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

8

slide-9
SLIDE 9

Motivation Motivation

  • Time-varying 2-D signal field
  • Example application scenario

– Chemical pollution

9

slide-10
SLIDE 10

Motivation Motivation

10

  • Topological features are important
  • Queries:

– Is there a safe path from B to A? C to B? – Is a location surrounded by chemical contaminations?

A B C

slide-11
SLIDE 11

Contour tracking problem Contour tracking problem

  • Track contours at a threshold of

interest - below/above thresh (0/1).

  • Capture their topological features as

contours evolve over time

11

1 1 1 1

slide-12
SLIDE 12

Related works Related works

  • Target tracking [Guibas 2002, Zhao et al. 2002,

Aslam et al. 2003, Liu et al. 2004, Kim et al. 2005, He et al. 2006, Shrivastava et al. 2006 ]

– Track individual targets – Few works on tracking a continuously deforming blob

  • r groups of targets
  • Boundary detection [Fekete et al. 2005, Wang et
  • al. 2006, Funke et al. 2006, Kroller et al. 2006]

– Can be used in static scenario – Periodically running boundary detection in dynamic scenario is inefficient.

12

slide-13
SLIDE 13

Our contributions Our contributions

  • Light-weight distributed algorithm to track time-

varying contours

  • Capture topological features
  • Low communication cost

– proportional to the change in the input

13

slide-14
SLIDE 14

Outline: our approach Outline: our approach

  • Network setting & concepts
  • Challenges
  • Contour tracking algorithm
  • Theoretical results
  • Simulation results

14

slide-15
SLIDE 15

Network setting & concepts Network setting & concepts

  • Binary sensor model:

– Color

  • BLACK: all neighbors high
  • WHITE: all neighbors low
  • GRAY: neither BLACK nor WHITE

(mixed high and low)

  • We want to track the Black boundaries.
  • Robustness: resilient to outliers and ambiguity.
  • Black regions and white regions are separated by gray.
  • Black regions are bounded by contours of threshold.

15

slide-16
SLIDE 16

Goal of the algorithm Goal of the algorithm

  • K-gray band:

– a set of gray nodes at most k-hop from BLACK region

  • Contour network: Graph to

capture topological features of contours

16

Contour network k-gray band

slide-17
SLIDE 17

Goal of the algorithm Goal of the algorithm

  • Deformation retract:

– A thinner version in subspace, with same homotopy. There is a continuous deformation taking the space to the retract. – Contour network: skeleton of k-gray band

17

Contour network k-gray band

slide-18
SLIDE 18

Challenges Challenges

18

(ii) (iv)

  • Hard to tell if a contour network is valid from local view
  • Same contour topology may have multiple valid

deformation retract with totally different local view

(i) (iii)

?

slide-19
SLIDE 19

Challenges Challenges

19

Network setting Goal

Naturally require distributed efficient algorithm global property Each sensor node only has local information Limited resources Maintain graphs with identical topological information

slide-20
SLIDE 20

Contour tracking algorithm Contour tracking algorithm

  • When change occurs:

– freeze the valid segments in the old contour graph – only repair the contour network where it is broken

  • Automaton runs at each sensor

20

RED: a GRAY node on the contour network

slide-21
SLIDE 21

Contour Repair Contour Repair

  • The simplest case: repair of a single contour cycle

21

slide-22
SLIDE 22

Contour Repair Contour Repair

  • The simplest case: repair of a single contour cycle
  • Open red nodes take responsibility of repair

– Red nodes at edge of broken contour

22

a

b Open red node

slide-23
SLIDE 23

Contour Repair Contour Repair

  • Which direction to send repair messages?

– sensor nodes have no sense of orientation

  • The k-hop neighbors of the closed red segments block

the propagation of repair messages.

23

a

b

Open region

slide-24
SLIDE 24

Contour Repair Contour Repair

  • Simultaneous repair, merging and splitting

– May encounter multiple RED nodes, which RED node to connect to?

24

slide-25
SLIDE 25

Contour Repair Contour Repair

  • Simultaneous repair, merging and splitting

– May encounter multiple open RED nodes, which RED node to connect to? – Connect by a (non self-intersecting) spanning tree, e.g, the shortest path tree.

25

a b c d

slide-26
SLIDE 26

Contour creation Contour creation

  • Triggered at some BLACK nodes

– have a GRAY neighbor but cannot see RED nodes in its k-hop neighborhood

  • GRAY neighbors start to create a new contour

– Select leaders within k-hop neighborhood – Form short chain with length > k – Start contour repair

26

slide-27
SLIDE 27

Summary of algorithm Summary of algorithm

  • Valid segments of contour network are still usable
  • Repair only happens where the contour network is broken

27

  • Repair connects all red

nodes within a open neighborhood through a spanning tree.

  • Augmented algorithm

deals with small holes inside the k-gray band

slide-28
SLIDE 28

Theoretical results Theoretical results

  • Theorem: The contour network is a deformation retract
  • f the k-gray band, when the system stabilizes.
  • Sketch of proof:

– Existing contour network is a deformation retract of the segment

  • f k-gray band it resides in.

– Repaired new contour network is a deformation retract of open neighborhood. – The boundaries align correctly.

28

a

b

a b c d

slide-29
SLIDE 29

Simulations Simulations

  • Setup:

– 4000 nodes distributed in a 500*500 field – Simulate dynamic changes among a sequence of stabilized states of a contour field – Changes happen in a random order between two stabilized states

29

slide-30
SLIDE 30

Simulations Simulations

30

Two black regions move closer. Their gray bands meet each other and (multiple) “bridges” are built up. Black regions themselves merge together.

  • Contour merge/split
slide-31
SLIDE 31

Simulations Simulations

  • Nested contours

31

slide-32
SLIDE 32

Simulations Simulations

  • Contours pass through a hole

32

slide-33
SLIDE 33

Simulations Simulations

  • Multi-level contours

– Apply the single-level contour tracking algorithm at each level independently

33

slide-34
SLIDE 34

Simulation Simulation

34

  • Communication cost:

– Proportional to number of changes

slide-35
SLIDE 35

Simulations Simulations

  • Video clips

35

slide-36
SLIDE 36

Conclusions Conclusions

  • A light-weight distributed algorithm that captures the

topological features of time-varying contours.

  • The communication cost is “output-sensitive”,

proportional to the amount of contour changes.

  • The algorithm provides a foundation for further

processing of spatial sensor data, e.g., contour compression and aggregation [Gandhi et al. 2007].

36

slide-37
SLIDE 37

Future Works Future Works

  • Explore the applications of contour tracking

– Real-time response and emergency rescue – Direct vehicles to alleviate traffic jam

  • Combine with our concurrent contour tree work

37

slide-38
SLIDE 38

Thank you ! Thank you !

  • Questions & Comments?
