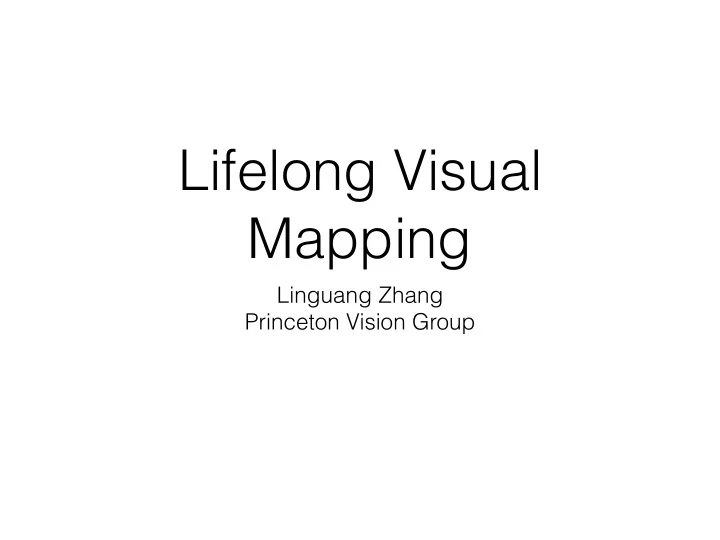

Lifelong Visual Mapping

Linguang Zhang Princeton Vision Group

Papers

• Toward lifelong object segmentation from change

detection in dense rgb-d maps.

• Towards Semantic KinectFusion.
• Slam++: Simultaneous localisation and mapping at

the level of objects.

• 3D mapping, localisation and object retrieval using

low cost robotic platforms: A robotic search engine for the real-world.

Current SLAM Systems

• NO truly ‘pick up and play’ SLAM systems.
• Low-cost devices.
• Used by non-expert users.
• Sparse feature-based SLAM:
• world is modeled as an unconnected point cloud.
• can be improved by key frame SLAM systems (bundle adjustment).
• Dense SLAM:
• GPGPU processing hardware.
• Reconstruct and track full surface models.
• KinectFusion (extension using a sliding volume: Kintinuous).
• Truly scalable, multi-resolution, loop closure capable dense non-parametric surface representation has not

been developed.

• Wasteful in environments with symmetry.

Tools

• KinectFusion
• Kintinuous: https://www.youtube.com/watch?v=D3yYjaLmiqU
• Iterative Closest Point: https://www.youtube.com/watch?

v=PCPfuZ7njmQ

Lifelong Object Segmentation

• Input: two RGB-D maps with regions of overlap where

the map have changed (obtained from Kintinuous system)

• Goals:
• Discover objects by differencing.
• Training segmentation algorithms.
• If the same object is discovered, refine the features

and the segmentation method.

Object Discovery

• RGB-D SLAM - Kintinuous.
• Map Alignment - manually initialized and refined by ICP.
• Differencing (Symmetric).
• .
• Filtering.
• Small scattered points - remove clusters smaller than a 3 x 3 x

3 cm cube (estimated from Kintinuous volumetric resolution).

• Free-space filtering.

Free-space Filtering

after filtering before filtering

Free-space Filtering

unseen

• ccupied

free space Only assume the clusters protrude into the free-space as

• bjects.

Segmentation Methods

• Graph structure.
• Treat every point in the map as a node.
• Neighboring nodes are defined by the points within a radius

r’ (twice the volumetric resolution).

• Connect neighboring nodes by undirected edges with weights

(initialized by T).

• Kill edges with a weight below a dynamic threshold.
• Threshold (controlled by k) grows after each joining.
• k is correlated to the segment size.

Edge Weights

• Color edge weights:
• Normal edge weights:

Convex Convex parts more likely correspond to objects. Concave parts correspond to object boundaries.

Segmentation Fitting

• Scoring.
• Optimization.

Different Segmentation Methods

Color Convexity surface normal

Segmentation Fitting

• Object representation.
• based on Principle Component Analysis (PCA).
• each feature is used as a normal distribution with

mean being the measured value and variance being

• Object matching.

Lifelong Learning

• Manually group discovered objects together to guarantee the

correct convergence for the variance of the features.

• Update scores and feature distributions.
• new score is the weighted average using the number of

times each object was observed as the weights.

Results

Precision Recall Curve trash bin stuffed bunny

Results

Semantic KinectFusion

• Contributions.
• using a TSDF volume to build a keyframe

representation of the environment.

• Semantic Bundle Adjustment.

Keyframe Representation

• Surface voxels: voxels having a non-truncated

function value in TSDF.

• Adding a new field to each TSDF voxel to keep

track of the list of keyframes.

• Appending the keyframe index to the keyframe

list when merging a keyframe into the volume.

Optimization

• Optimize the pose graph. (G2O optimizer)
• cost function:
• Novel matching scheme - for each keyframe:
• find its corresponding surface voxels by back-projection.
• get keyframe list and project the voxel back to all

corresponding keyframes.

• 2D local search and find the nearest 3D point.
• After all these, recreate the TSDF.

Semantic KinectFusion

• Extracting 3D features. (In experiments: SIFT3D, Color-SHOT.)
• “A Representation for 3-D Surface Matching”
• “A combined texture-shape descriptor for enhanced 3D feature matching”
• Generate set of candidate hypotheses on objects’ presence.
• RANSAC-based 6DOF pose estimation.
• Validation graph
• edges:
• virtual edges:
• Clear wrong hypotheses and include all the constraints into the global graph.

System Overview

Results

Results

Results

Object-oriented SLAM - SLAM++

• Stronger assumptions:
• World has intrinsic symmetry - repetitive objects.
• Pre-define the objects.
• Video: https://www.youtube.com/watch?v=tmrAh1CqCRo

Characteristics of Object SLAM

• The map only contains a few discrete entities.
• Enables the possibility to jointly optimize over all
• bject positions to make globally consistent map.
• Tracking one object in 6DOF is enough to localize a

camera.

• Lost camera or loop closure detection can be

performance based on a small number of object measurements.

SLAM Map Representation

• Graph representation:
• object - world pose
• object - camera pose
• camera - world pose
• additional factors:
• camera - camera pose (ICP).
• structural priors: objects must be grounded on the same

plane.

Real-Time Object Recognition

• Point-Pair Features (PPFs).
• 4D descriptors of relative position and normals of pairs of
• riented points.
• Randomly sample points and pair up in all possible

combinations to generate PPFs.

• Matching against models and producing a vote for each match.
• Active Object Search:
• Generate a mask image space from view prediction. (avoid
• cclusion)

Active Object Search

Camera Tracking and Object Pose Estimation

• Camera model tracking.
• In KinectFusion, track against incomplete models at early stage.
• For SLAM++, track against high quality models.
• Tracking for model initialization. (reject incorrect objects)
• Given a candidate object and detected pose, run camera-model

ICP estimation on the detected object pose.

• Camera-Object pose constraints.
• Run dense ICP estimate between the live frame and each visible

model object.

Relocalization

Loop Closure

• Small loops:
• standard ICP tracking mechanism
• Large loops:
• matching fragments within the main long-term

graph (same as relocalization)

Loop Closure

Real-world Example

Whelan, Thomas, et al. "3D mapping, localisation and object retrieval using low cost robotic platforms: A robotic search engine for the real-world." https://www.youtube.com/watch?v=XqDUniEY954

System Overview

Steps

• Avoidance-based exploration.
• Dense SLAM.
• Planar simplification.
• Object detection.
• Path planning.
• Onboard localization and control.

Problem: compounding of failure rates

• Frame-drops in the wireless streaming of raw-

RGB-D image sequence.

• Failure of the planar segmentation algorithm.
• Failure of object segmentation -> recognition due

to noise. Conclusion: techniques involved are quite robust

• alone. But the reliability is not enough when combining

them together into a complete framework.
